P1140

DTC P1140 IVT CONTROL POSITION SENSOR




Component Description
The intake valve timing control position sensor is located front-end of the cylinder head. This sensor detects a signal (intake valve position) generated by the protrusion of camshaft sprocket and sends it to the ECM. This sensor is not used to control the engine system. It is used only for the on board diagnosis of intake valve timing control.

On Board Diagnosis Logic:






DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

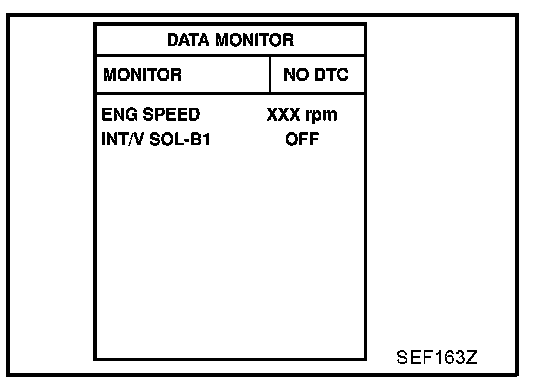

1. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT-II.
2. Start engine and keep the engine speed at 2,000 rpm and wait at least 15 seconds.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "With CONSULT-II" above.

EC-IVCS-01:




Wiring Diagram

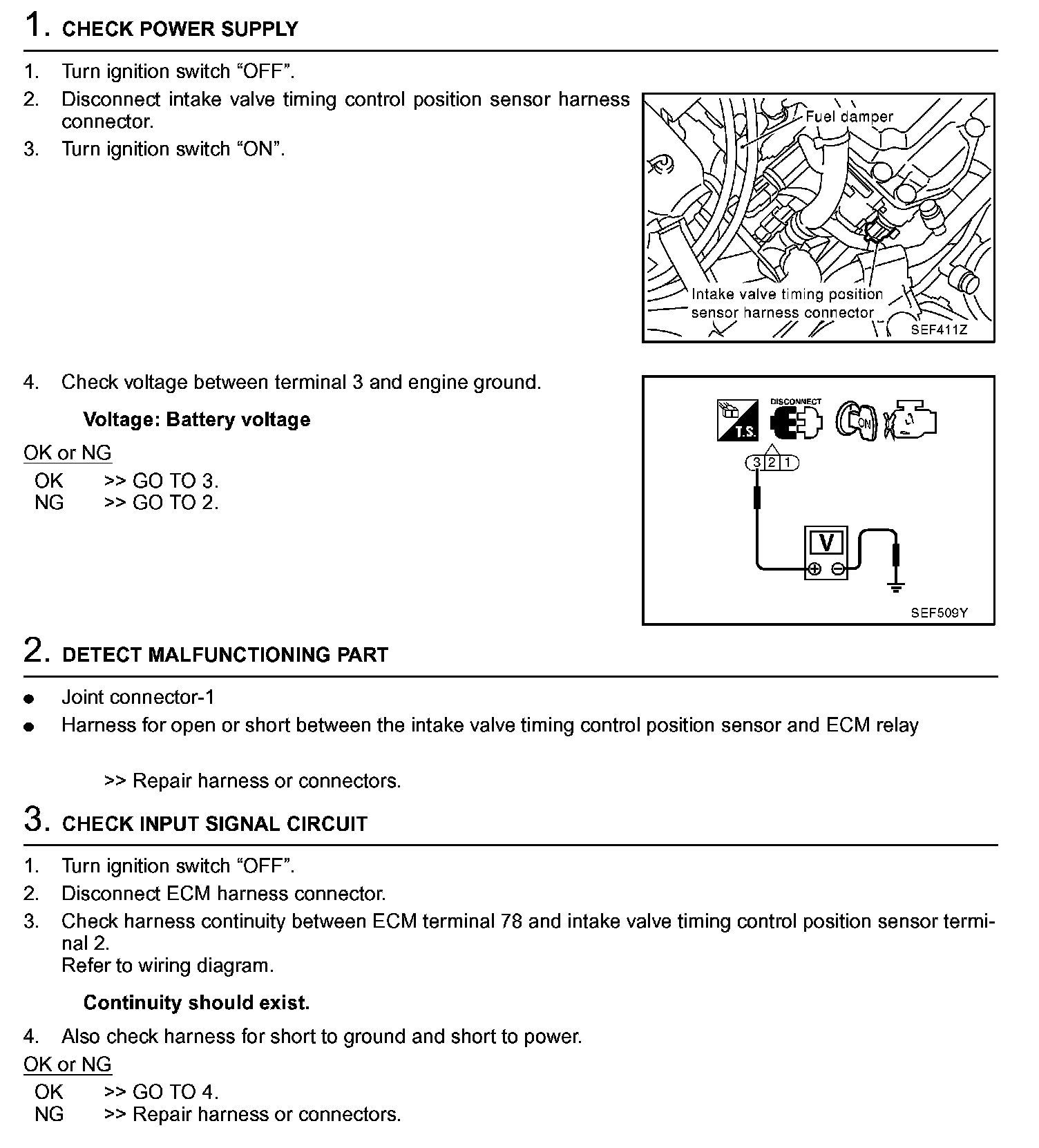

Diagnostic Procedure Step 1 - 3:

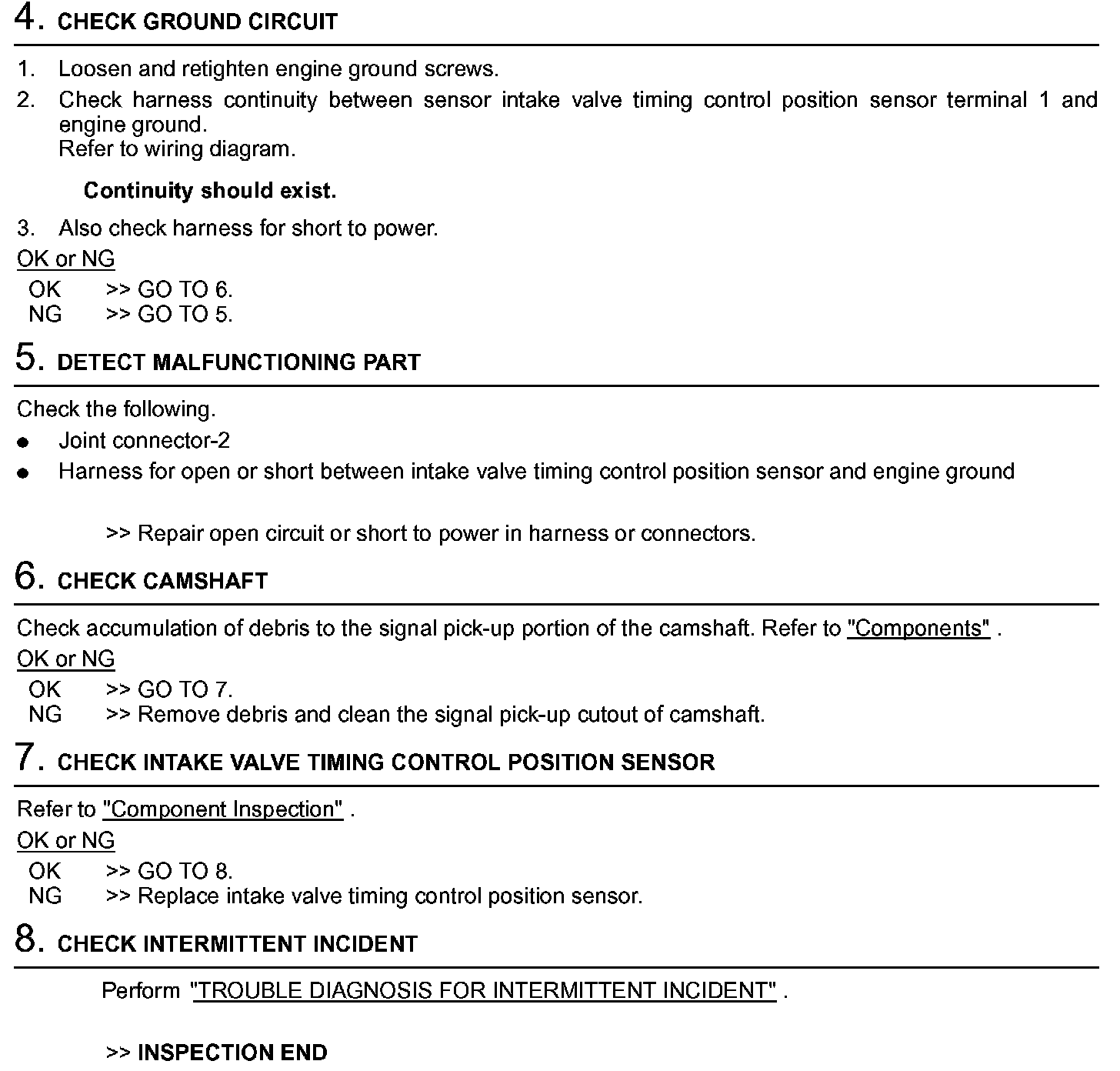

Diagnostic Procedure Step 4 - 8:




Diagnostic Procedure

Component Inspection




INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen fixing bolt of the sensor.

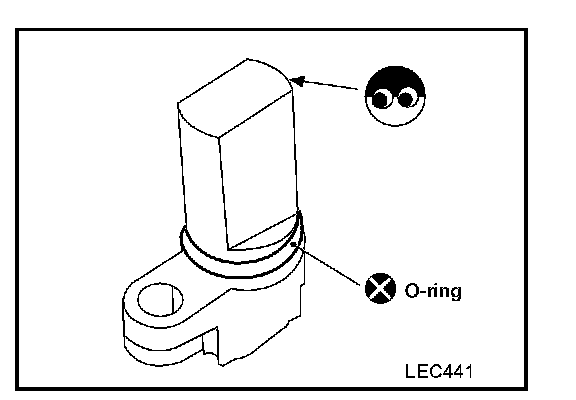

3. Visually check the sensor for chipping.

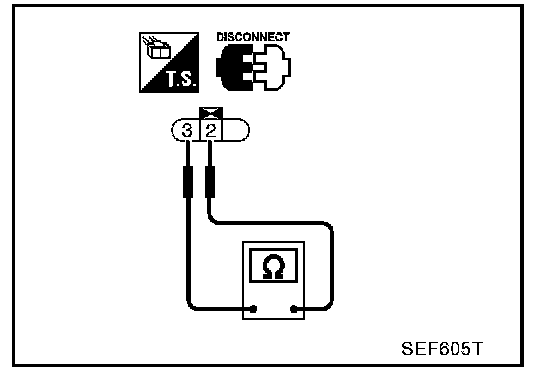

4. Check resistance between terminals 2 and 3.
Resistance: 600 - 740 Ohm [at 20 °C (68 °F)]

If NG, replace intake valve timing control position sensor.
