P0462
DTC P0462 FUEL LEVEL SENSOR

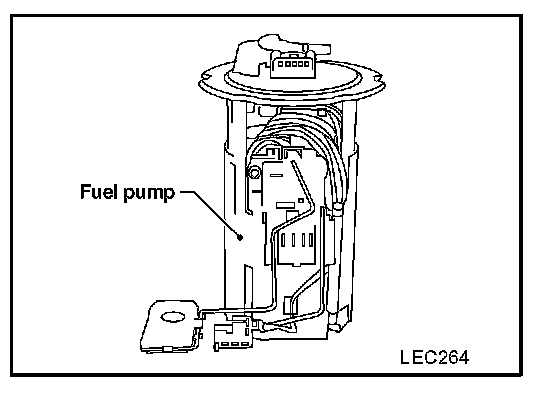

Component Description
The fuel level sensor is mounted in the fuel level sensor unit. The sensor detects a fuel level in the fuel tank and transmits a signal to the ECM.
It consists of two parts, one is mechanical float and the other side is variable resistor. Fuel level sensor output voltage changes depending on the movement of the fuel mechanical float.
On Board Diagnostic Logic
ECM receives two signals from the fuel level sensor circuit.
One is fuel level sensor power supply circuit, and the other is fuel level sensor ground circuit.
This diagnosis indicates the former, to detect open or short circuit malfunction.
Malfunction is detected when an excessively low (P0462) or high (P0463) voltage is sent from the sensor is sent to the ECM.
Possible Cause
- Fuel level sensor circuit
(The fuel level sensor circuit is open or shorted.)
- Fuel level sensor
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 11V at ignition switch "ON".
WITH CONSULT-II
1. Turn ignition switch "ON".

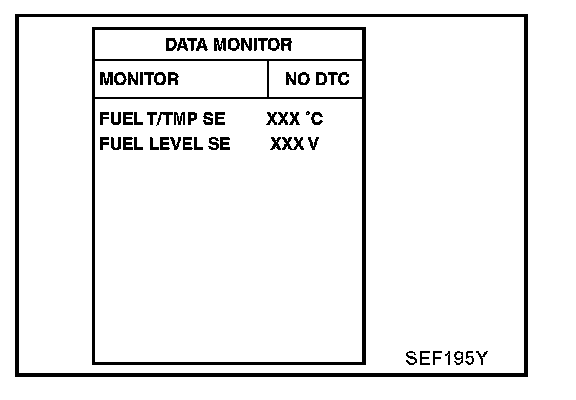

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
WITH GST
Follow the procedure "WITH CONSULT-II" above.
EC-FLS2-01:
Wiring Diagram
Diagnostic Procedure

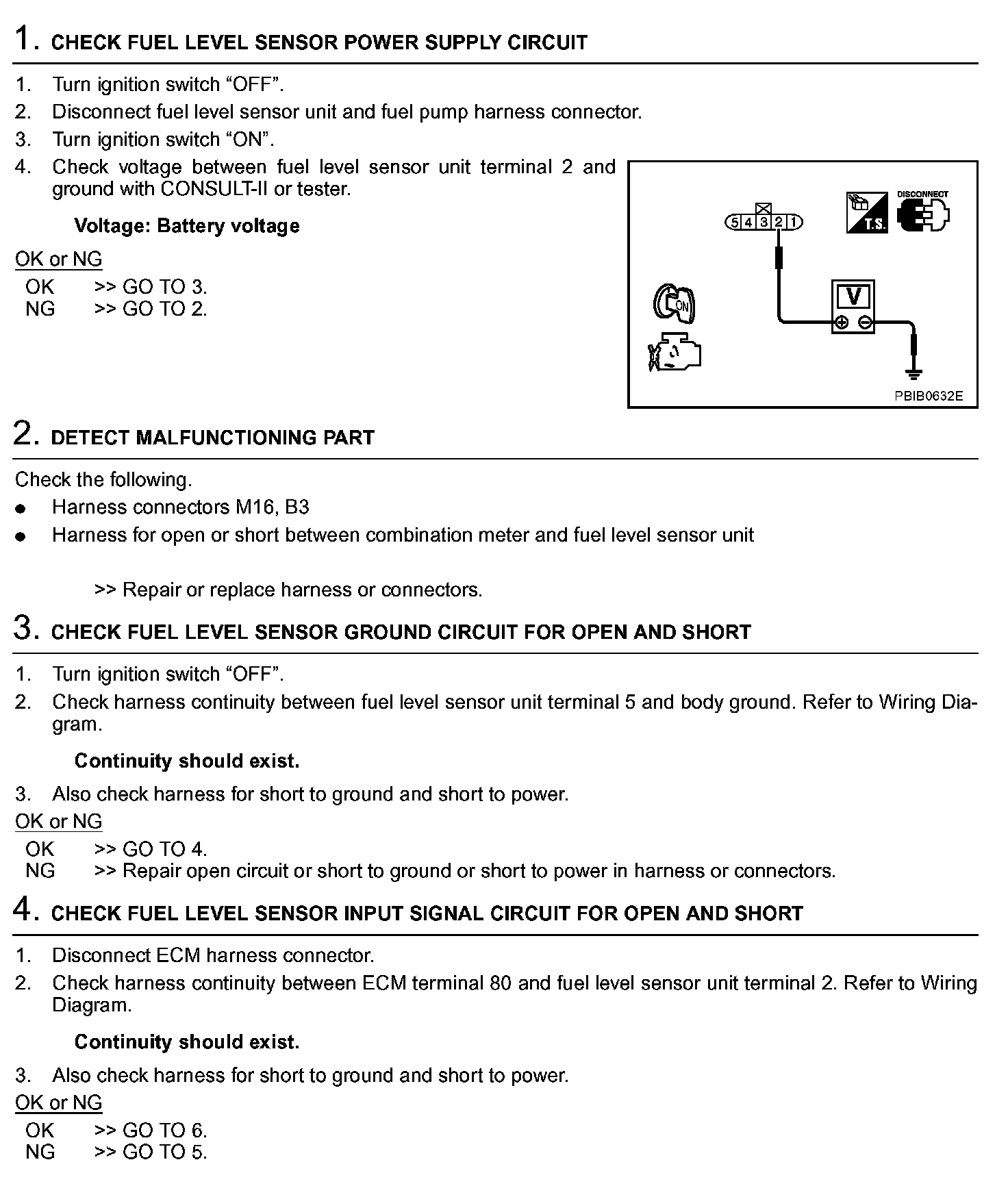

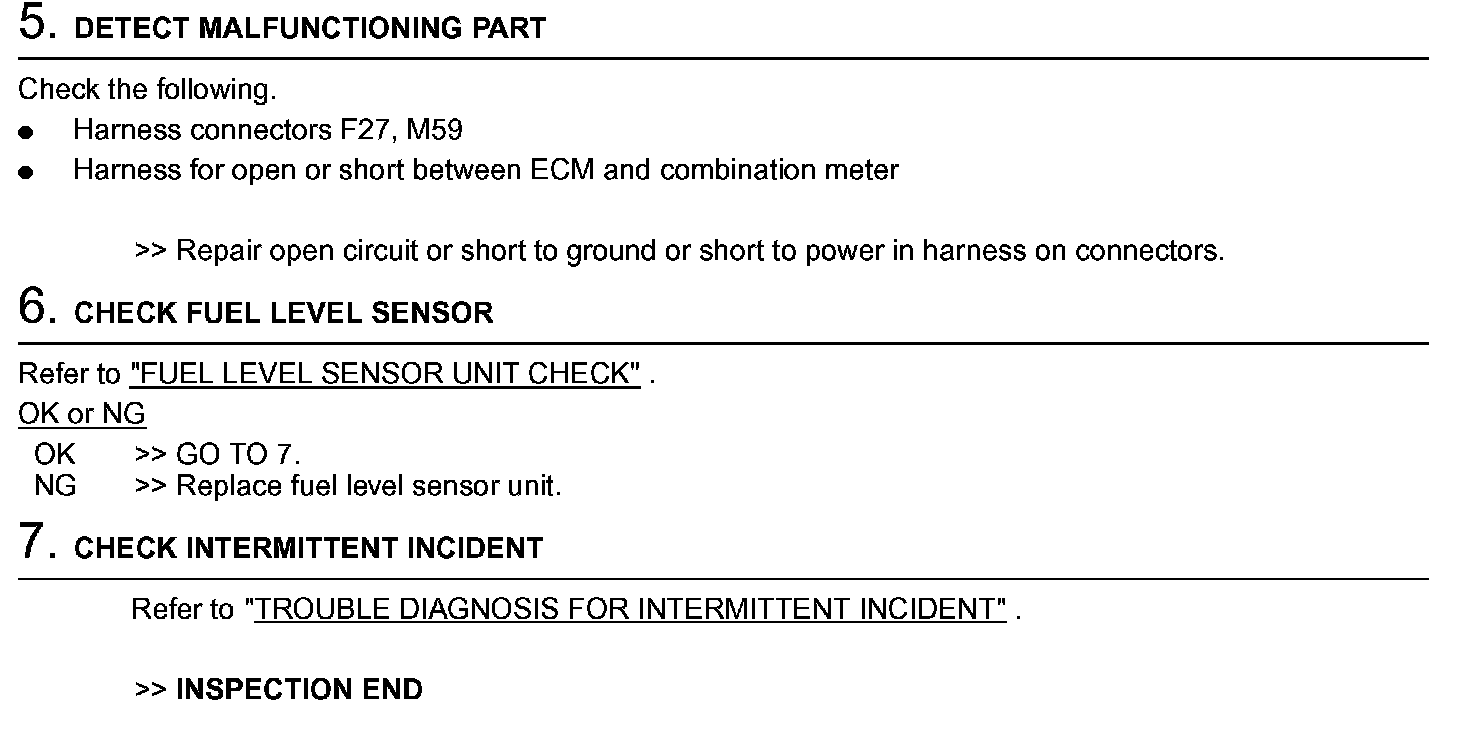

Diagnostic Procedure Step 1 - 4:
