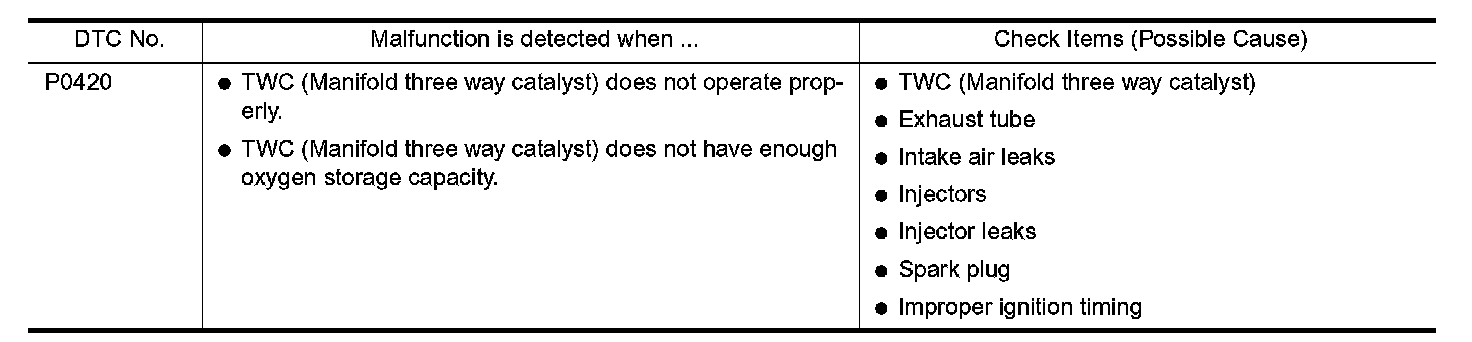

P0420
DTC P0420 THREE WAY CATALYST FUNCTION
On Board Diagnosis Logic

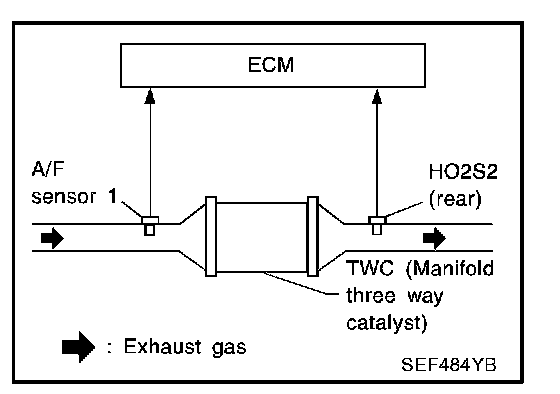

The ECM monitors the switching frequency ratio of air fuel ratio (A/F) sensor 1 and heated oxygen sensor 2.
A TWC (Manifold three way catalyst) with high oxygen storage capacity will indicate a low switching frequency of heated oxygen sensor 2. As oxygen storage capacity decreases, the heated oxygen sensor 2 switching frequency will increase.
When the frequency ratio of air fuel ratio (A/F) sensor 1 and heated oxygen sensor 2 approaches a specified limit value, the three way catalyst malfunction is diagnosed.
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
TESTING CONDITION:
- Open engine hood before conducting the following procedure.
- Do not hold engine speed for more than the specified minutes below.
1. Turn ignition switch "ON".

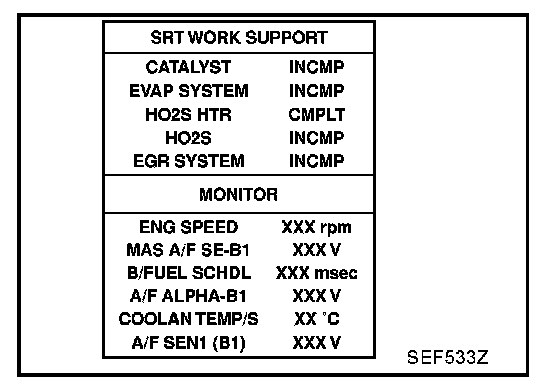

2. Select "DTC & SRT CONFIRMATION" then "SRT WORK SUPPORT" mode with CONSULT-II.
3. Start engine.
4. Rev engine up to 3,000 ± 500 rpm and hold it for 3 consecutive minutes then release the accelerator pedal completely.

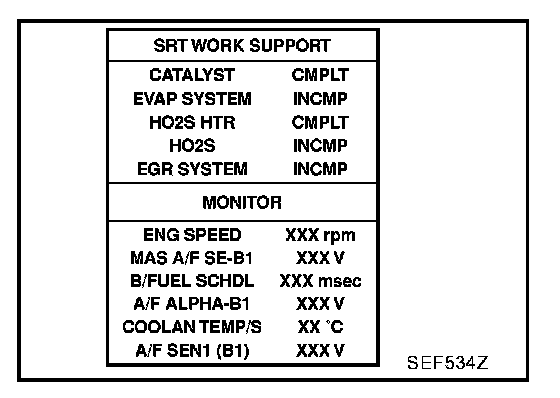

If "INCMP" of CATALYST changes to "CMPLT", go to step 7.
5. Wait 5 seconds at idle.
6. Rev engine up to 2,500 ± 500 rpm and maintain it until "INCMP" of CATALYST changes to "CMPLT" (It will take approximately 5 minutes).
If not "CMPLT", stop engine and cool it down to less than 70 °C (158 °F) and then retest from step 1.

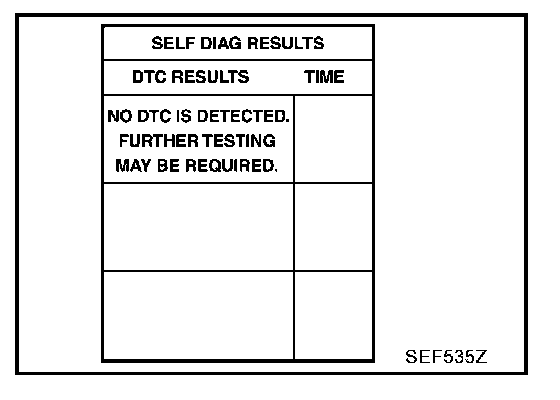

7. Select "SELF-DIAG RESULTS" mode with CONSULT-II.
8. Confirm that the 1st trip DTC is not detected.
If the 1st trip DTC is detected, go to "Diagnostic Procedure" below.
Overall Function Check
Use this procedure to check the overall function of the three way catalyst. During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.

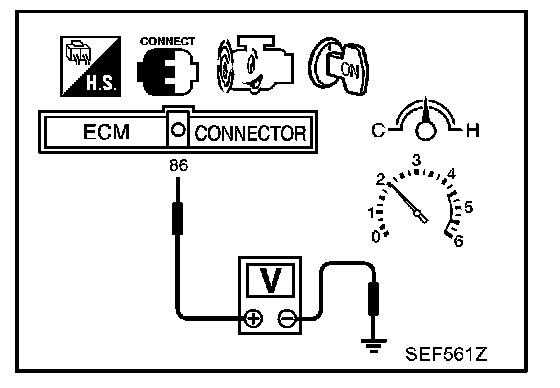

3. Set voltmeter probe between ECM terminal 86 and ground.
4. Keep engine speed at 2,500 rpm constant under no load.
5. Make sure that the voltage does not vary for more than 5 seconds.
If the voltage fluctuation cycle takes less than 5 seconds, go to "Diagnostic Procedure" below.
1 cycle: 0.6 - 1.0 V -> 0 - 0.3 V -> 0.6 - 1.0 V
Diagnostic Procedure

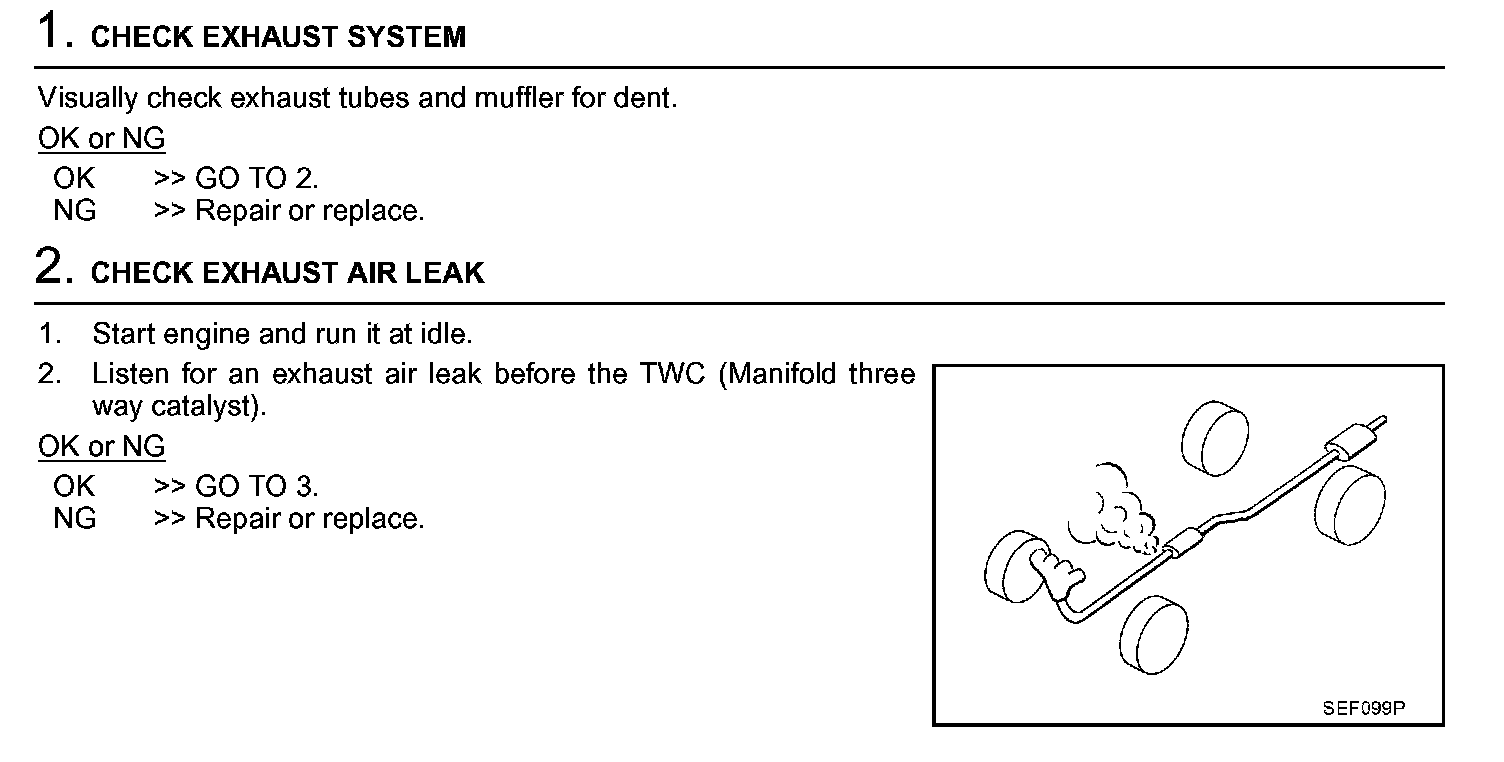

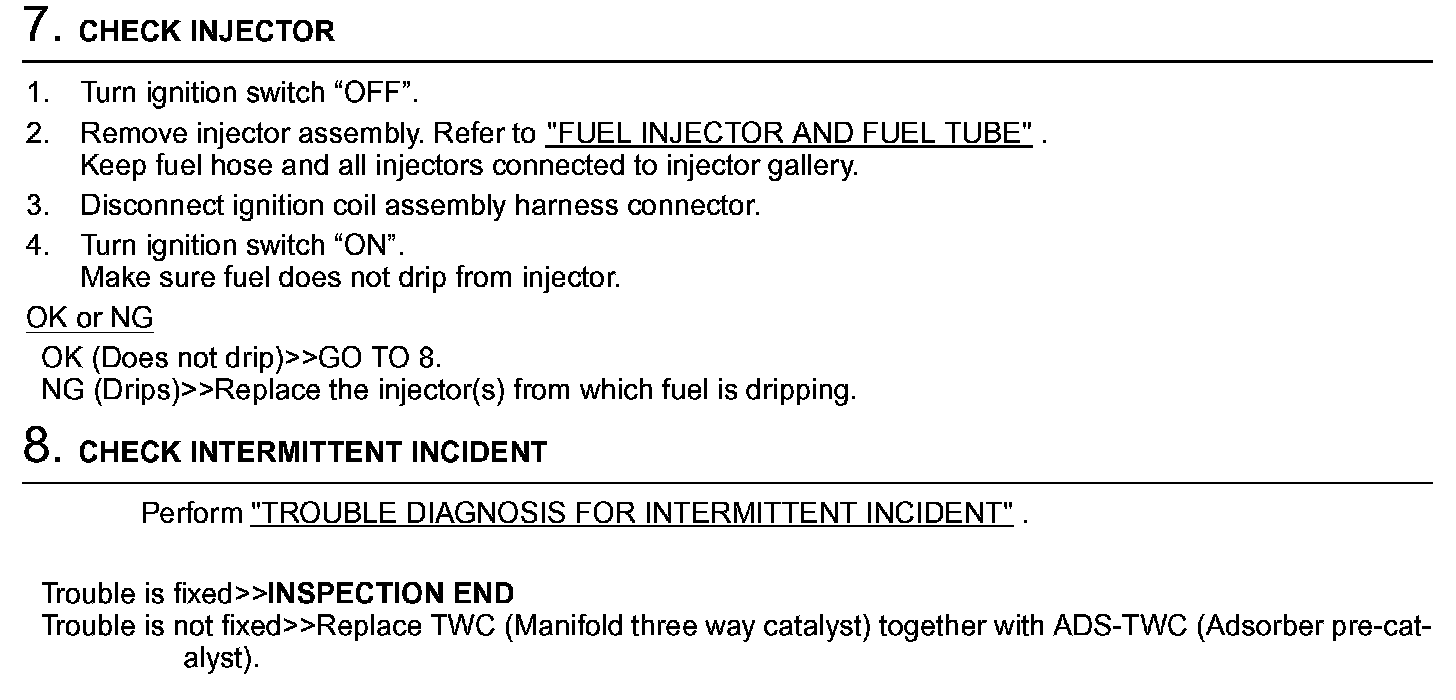

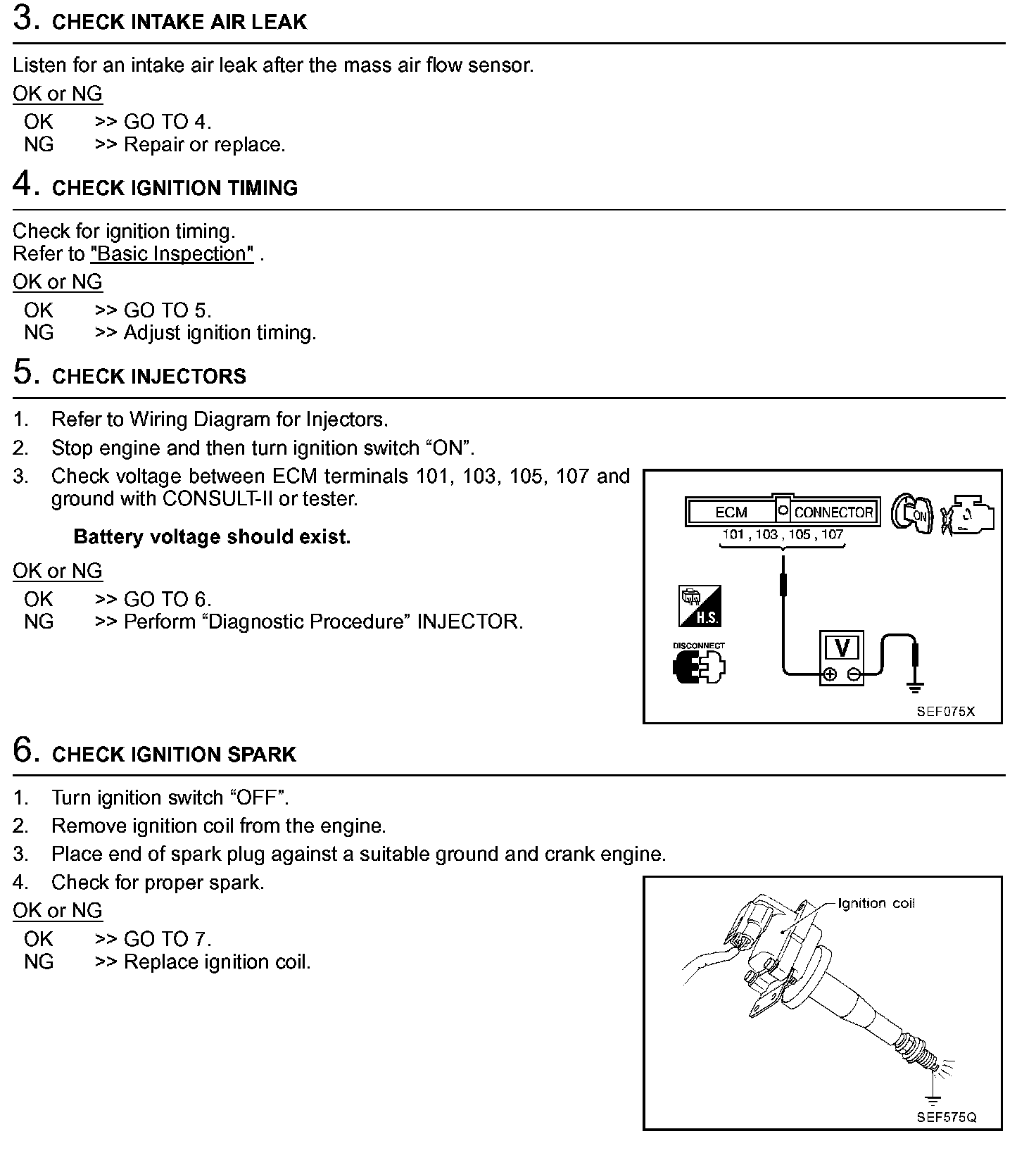

Diagnostic Procedure Step 1 - 2:
