P0335

DTC P0335 CKP SENS0R (POS)







Component Description
The crankshaft position sensor (POS) is located on the cylinder block rear housing facing the gear teeth (cogs) of the signal plate at the end of crankshaft. It detects the fluctuation of the engine revolution.

The sensor consists of a permanent magnet and hall IC.

When the engine is running, the high and low parts of the teeth cause the gap with the sensor to change.

The changing gap causes the magnetic field near the sensor to change.

Due to the changing magnetic field, the voltage from the sensor changes.

The ECM receives the voltage signal and detects the fluctuation of the engine revolution.

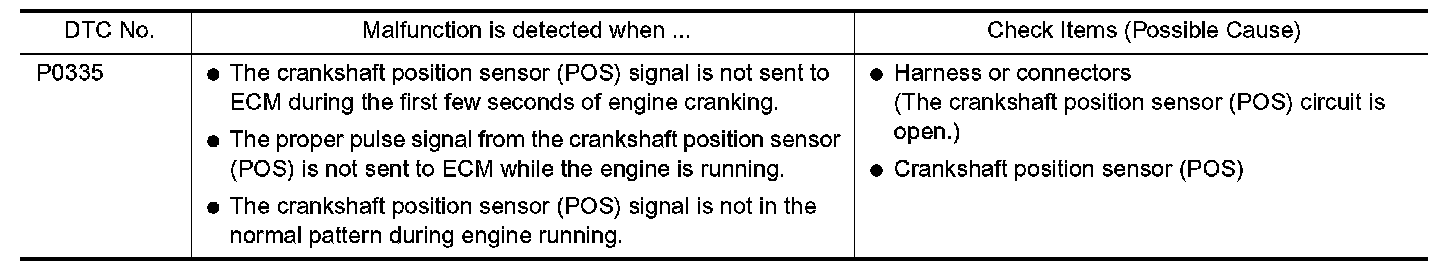

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10.5V with ignition switch "ON".

WITH CONSULT-II

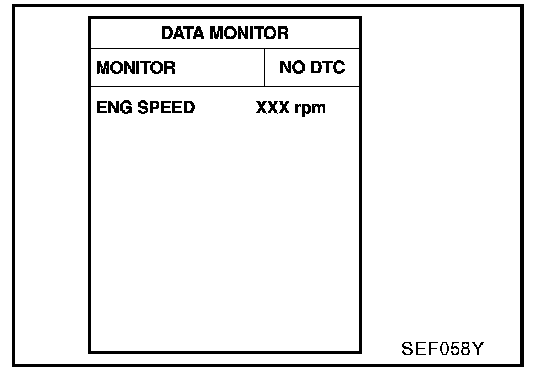

1. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT-II.
2. Start engine and run it for at least 10 seconds at idle speed.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "With CONSULT-II" above.

EC-POS-01:

Wiring Diagram

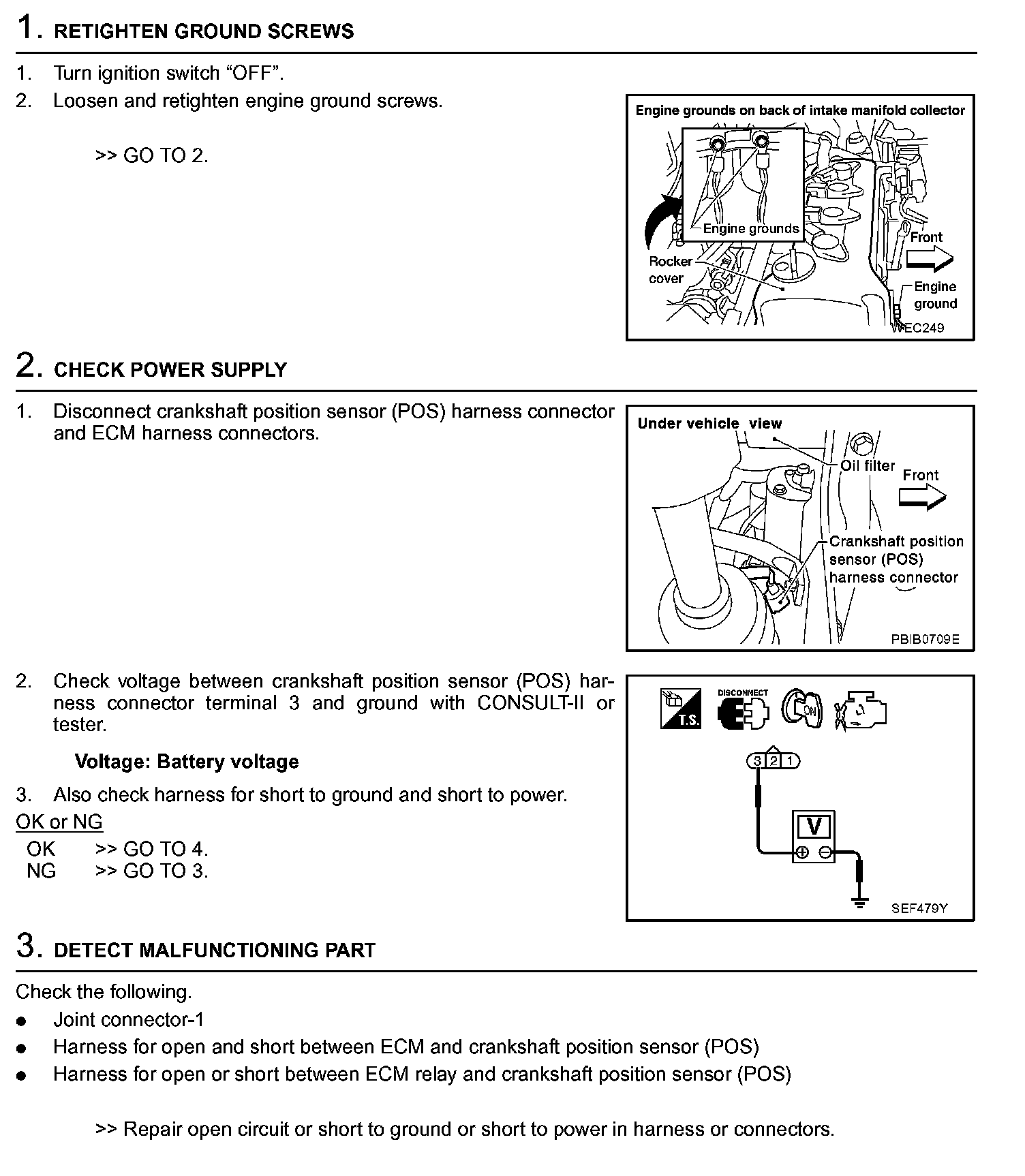

Diagnostic Procedure Step 1 - 3:

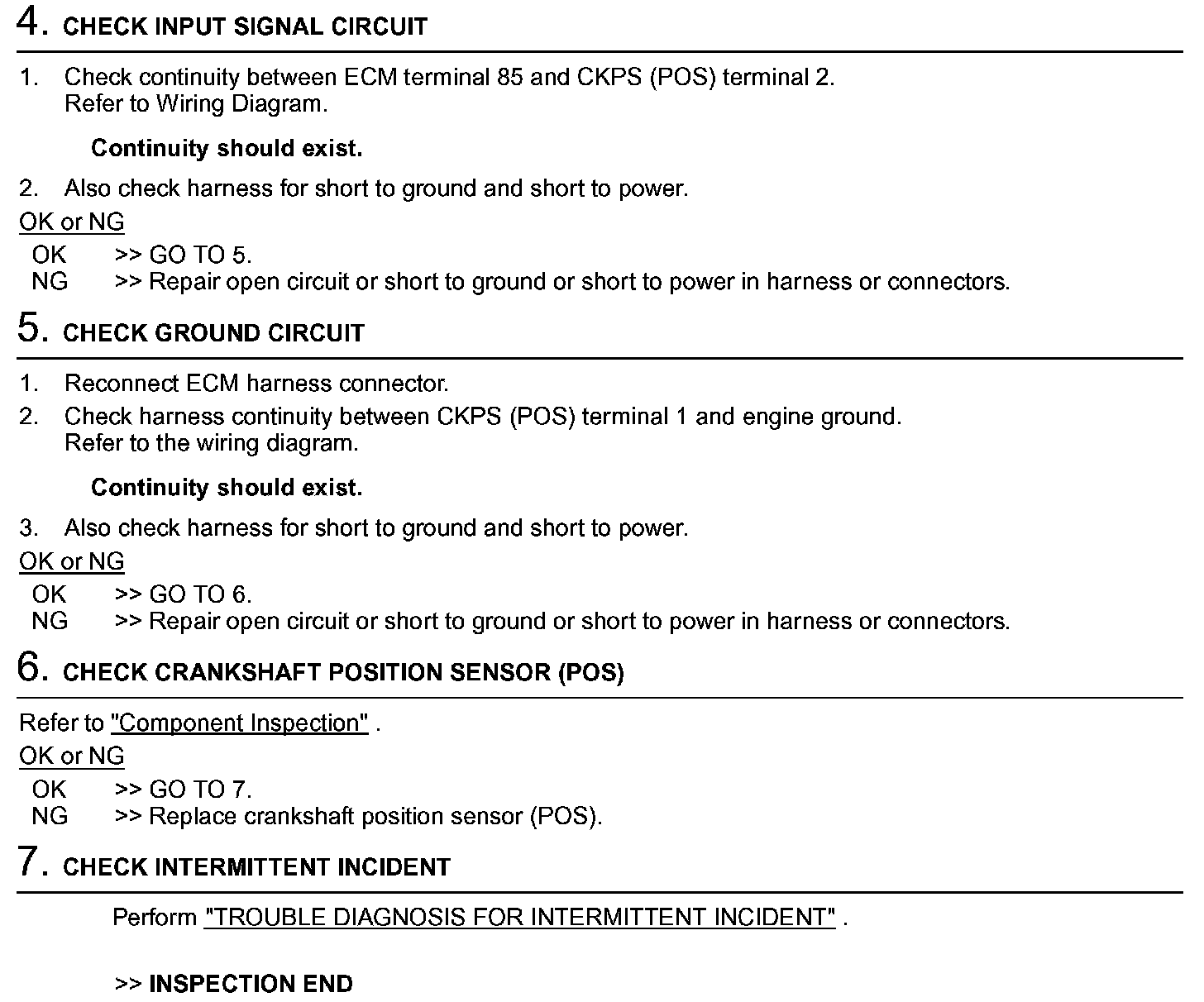

Diagnostic Procedure Step 4 - 7:

Diagnostic Procedure

Component Inspection

CRANKSHAFT POSITION SENSOR (POS)
1. Disconnect crankshaft position sensor (POS) harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor. Service and Repair




4. Visually check the sensor for chipping.







5. Check resistance as shown in the figure.
If NG, replace crankshaft position sensor (POS).

Removal and Installation

CRANKSHAFT POSITION SENSOR (POS)
Refer to "CYLINDER BLOCK". Service and Repair
