P0107

DTC P0107 BARO SENSOR







Component Description
The barometric pressure (BARO) sensor detects ambient barometric pressure and sends the voltage signal to the ECM. As the pressure increases, the voltage rises.

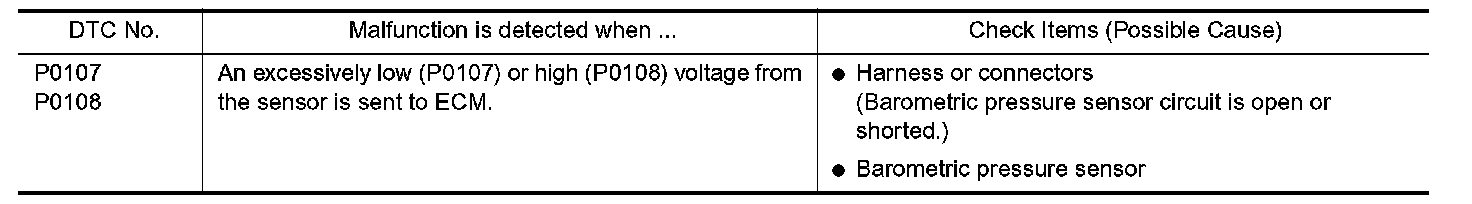

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II
1. Turn ignition switch "ON".

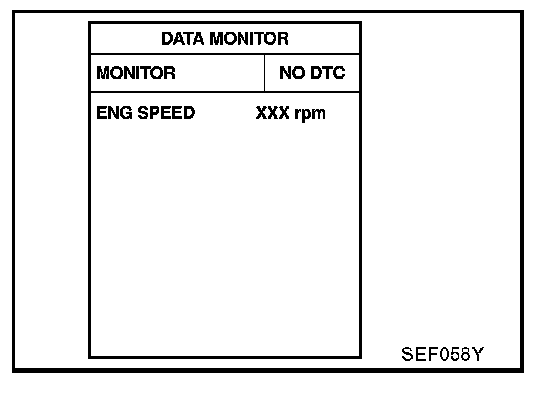

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 6 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "With CONSULT-II" above.

EC-BARO-01:

Wiring Diagram

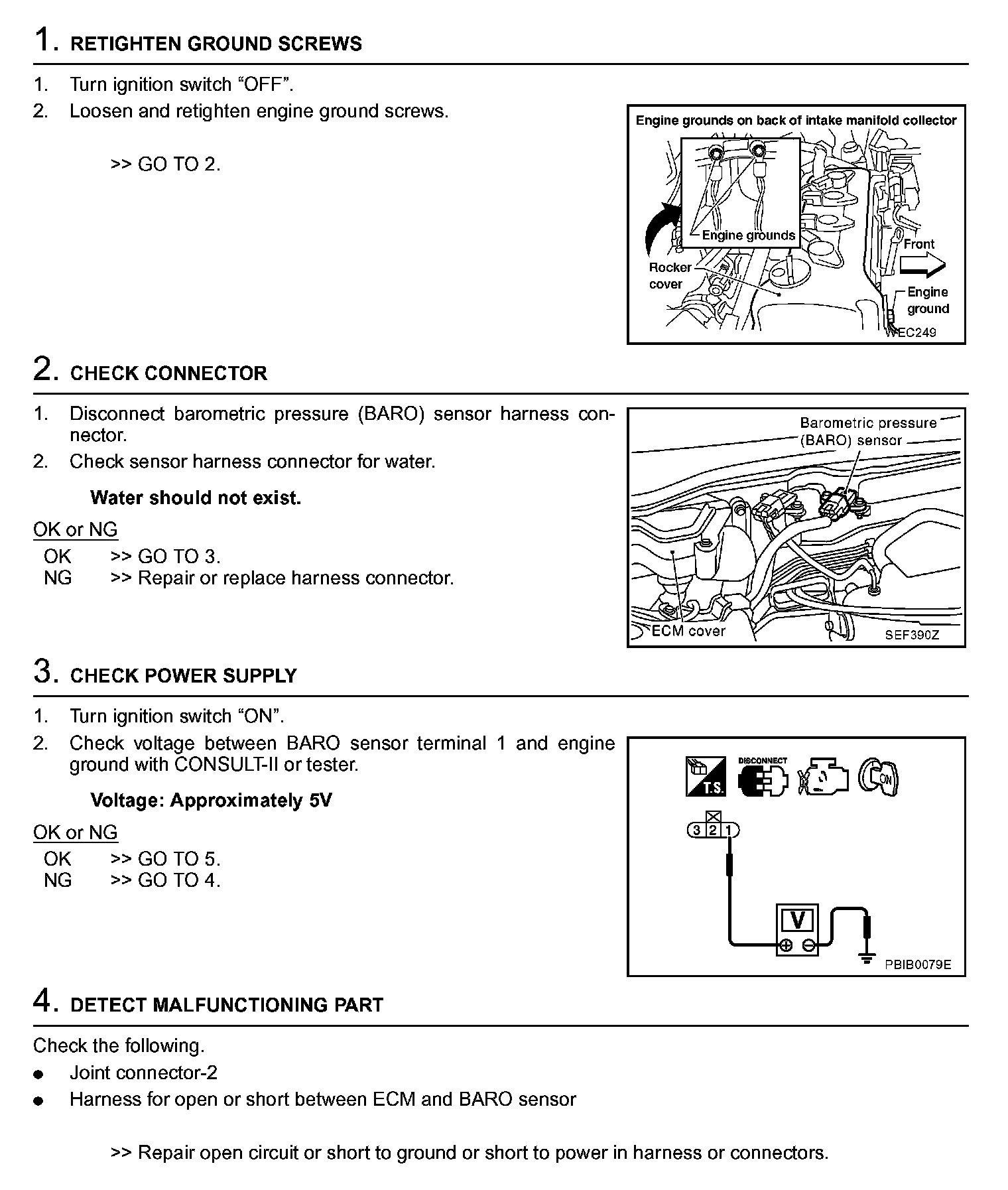

Diagnostic Procedure Step 1 - 4:

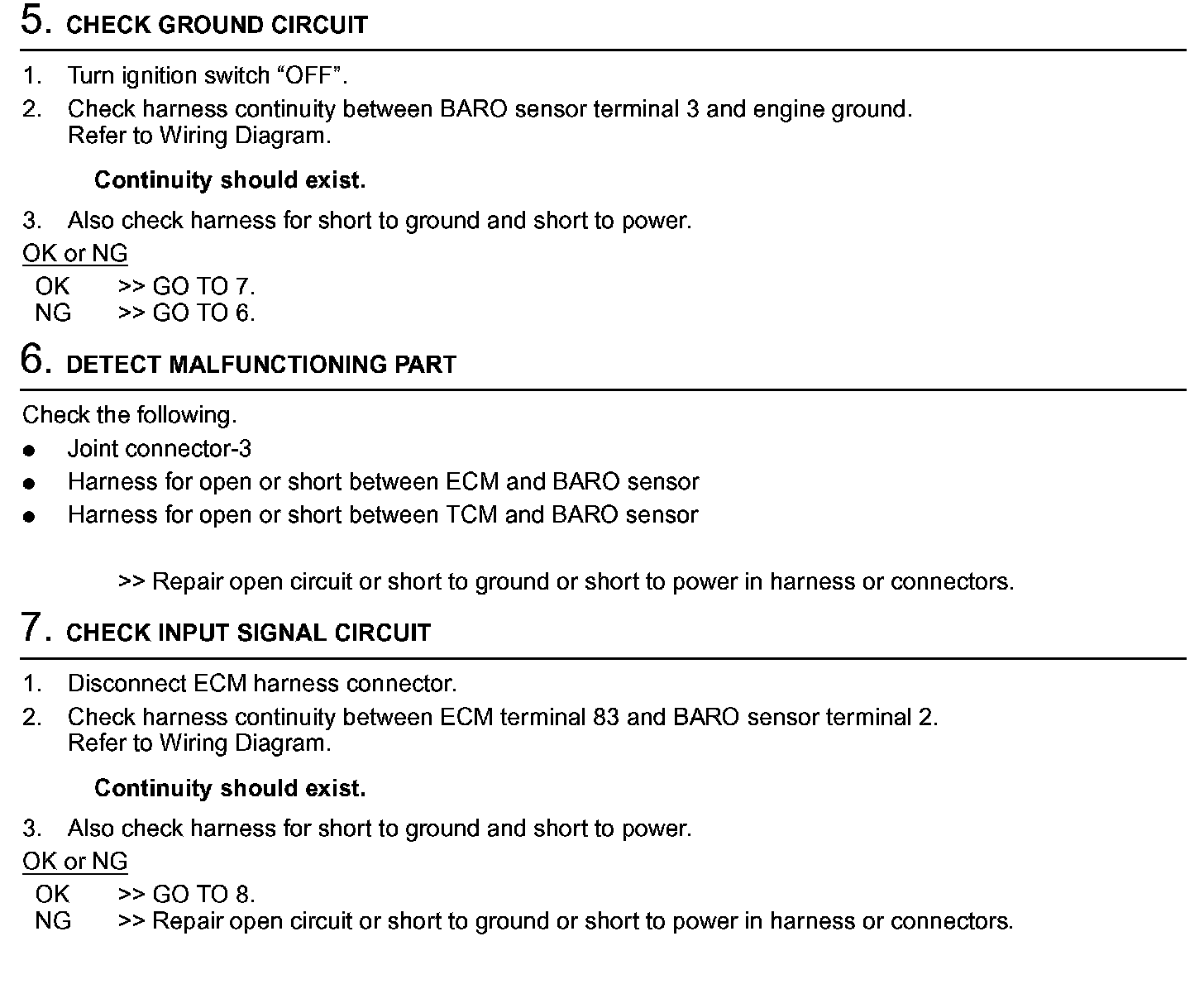

Diagnostic Procedure Step 5 - 7:

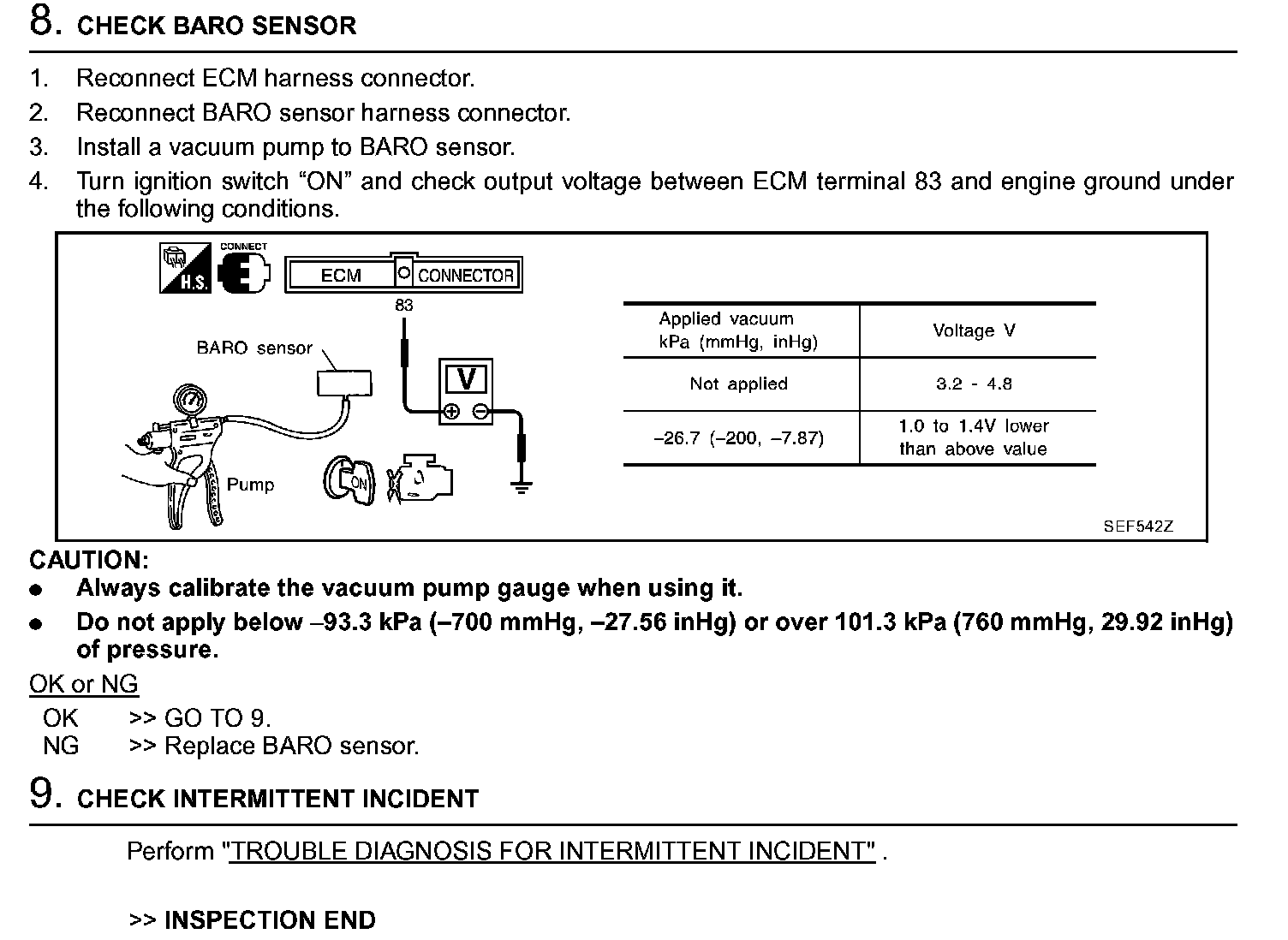

Diagnostic Procedure Step 8 - 9:

Diagnostic Procedure

Removal and Installation

BAROMETRIC PRESSURE SENSOR
Refer to Engine/Diagrams: Outer Component Parts
