DTC 22

WHEEL SENSOR OR ROTOR MALFUNCTION CODE NO. 21, 22, 25, 26, 31, 32, 35, 36 or 18

NOTE: Wheel position should be identified by code No. except code No. 18 (sensor rotor).

DIAGNOSTIC PROCEDURE





Procedure 1 - 3

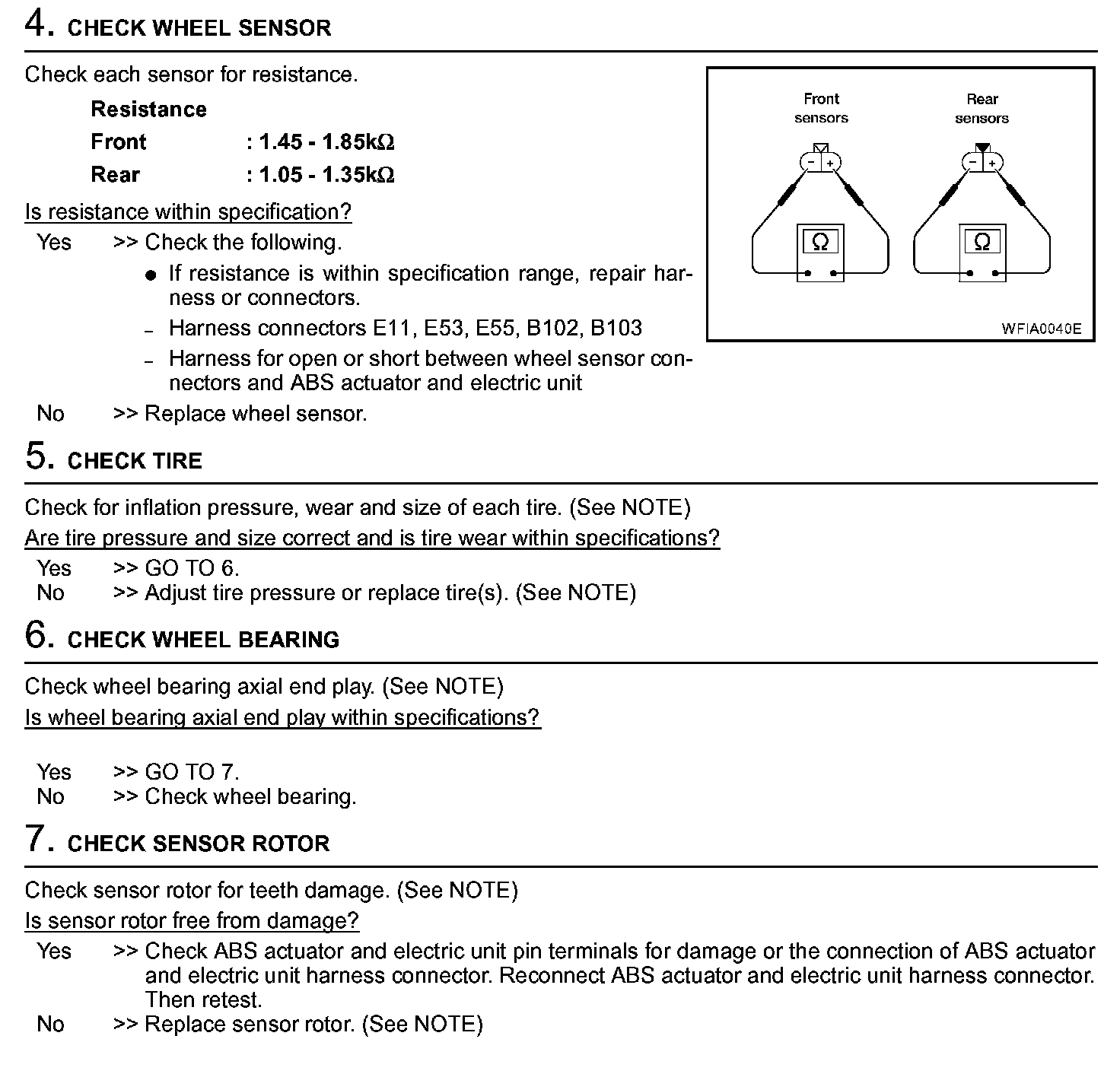

Procedure 4 - 7
