Removal and Replacement

FRONT DOOR GLASS AND REGULATOR:

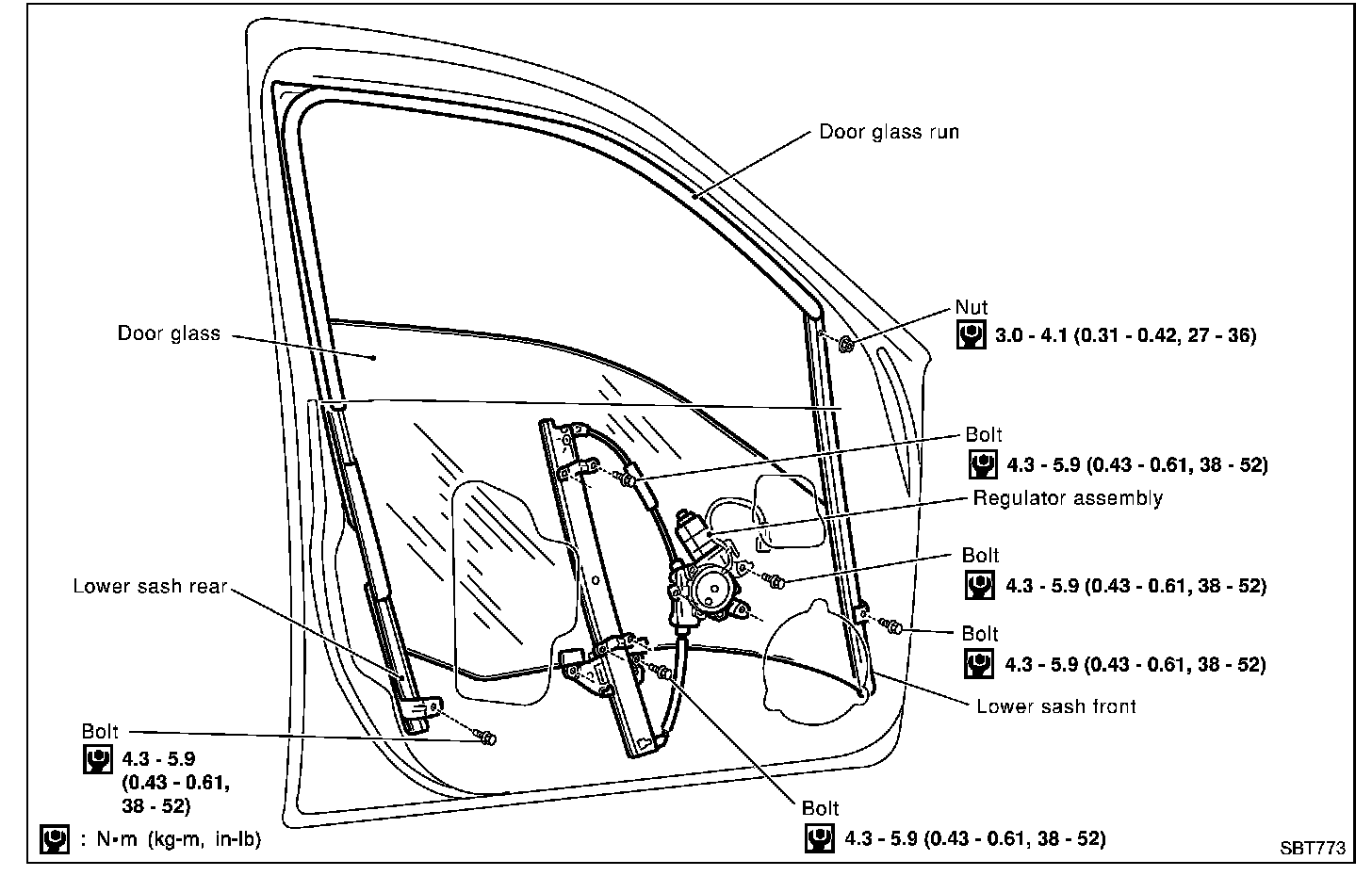

FRONT DOOR GLASS AND REGULATOR
- For removal of front door trim, refer to "DOOR TRIM".
- For removal of door mirror, refer to "DOOR MIRROR".
- For removal of door outside molding, refer to "EXTERIOR".
- Remove sealing screen.






1. Using power window main switch, raise or lower door glass until carrier plate securing bolts are visible.

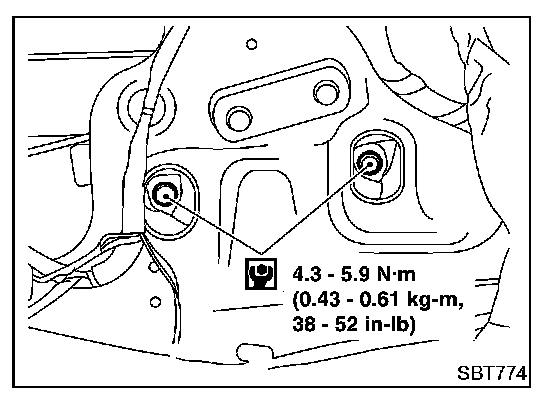

2. Remove bolts securing carrier plate.

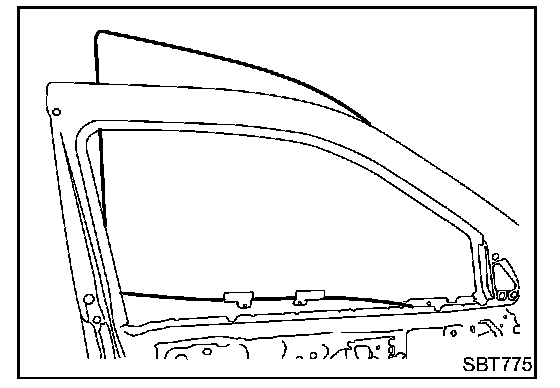

3. Hold door glass with both hands. While raising rear end of door glass, remove door glass from sash and away from outside the door.






4. Disconnect regulator assembly connector.

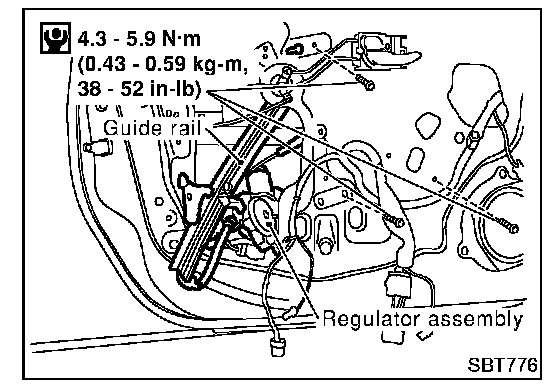

5. Remove bolts securing regulator assembly and guide rail, then remove regulator assembly and guide rail.
