Symptom Related Diagnostic Procedures

Step 1:




Step 2:

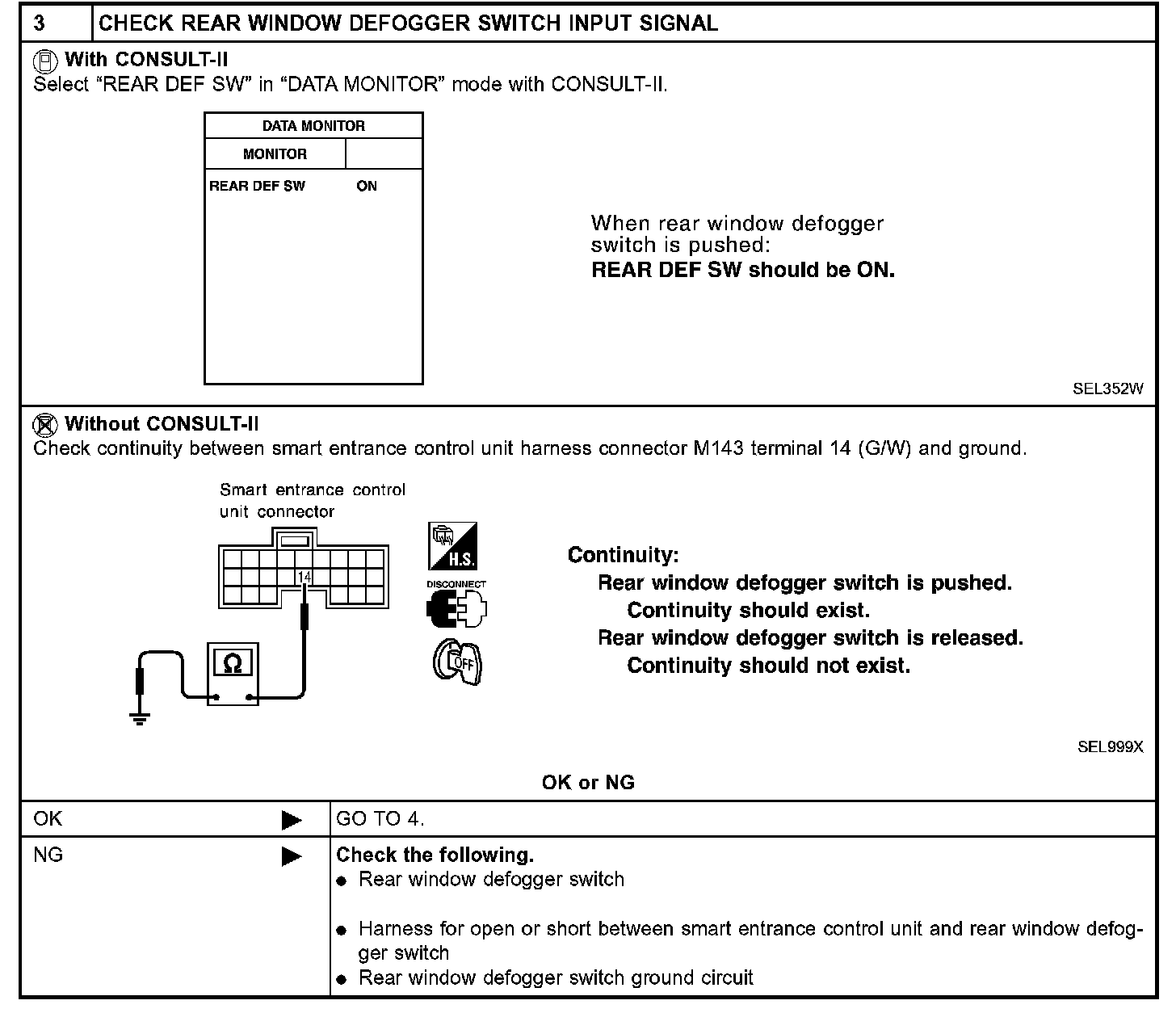

Step 3:




Step 4 - 5:




DIAGNOSTIC PROCEDURE

SYMPTOM: Rear window defogger does not activate, or does not go off after activating.
