Component Tests and General Diagnostics

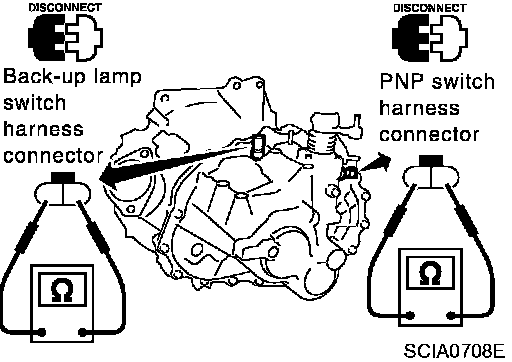

Position Switch Check

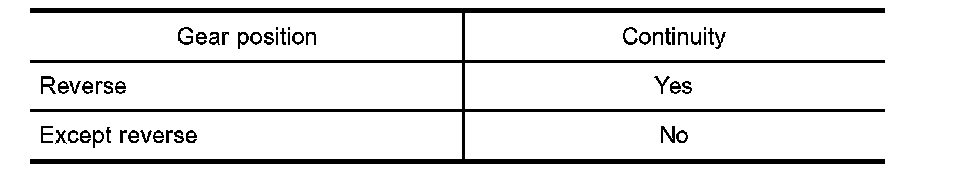

BACK-UP LAMP SWITCH
-
Check continuity.

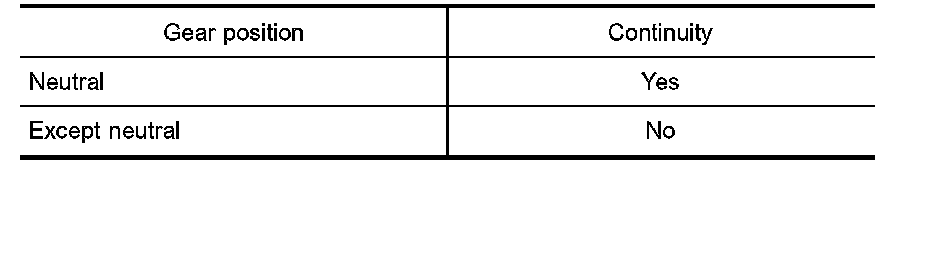

PARK/NEUTRAL POSITION SWITCH
-
Check continuity.
