Manual Transmission/Transaxle: Description and Operation

MANUAL TRANSAXLE

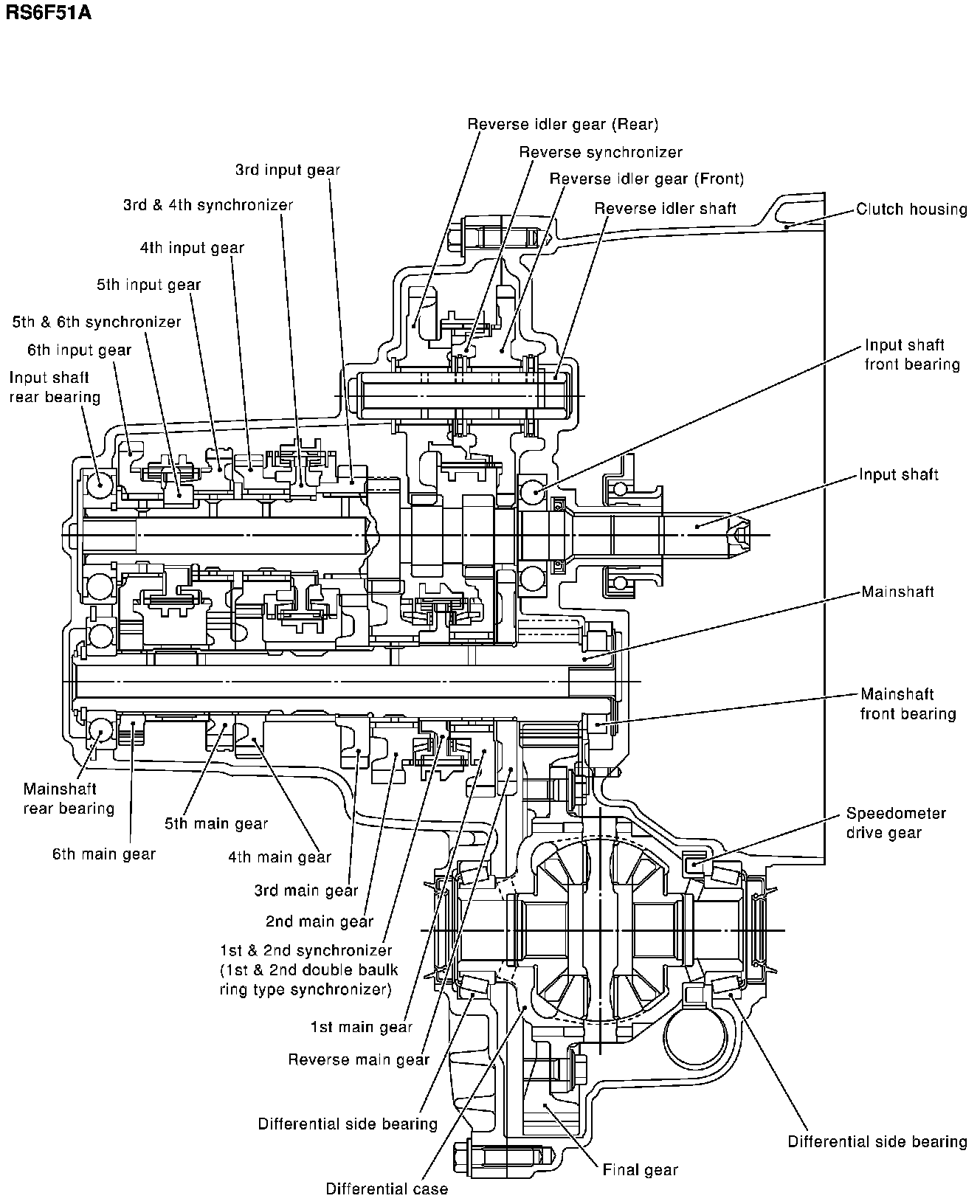

Cross-sectional View

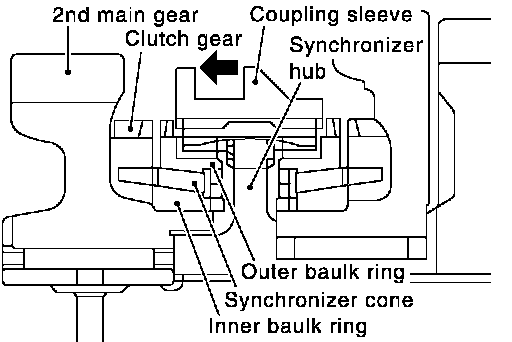

DOUBLE-CONE SYNCHRONIZER





Double-cone synchronizer is adopted for 1st and 2nd gears to reduce operating force of the shift lever.

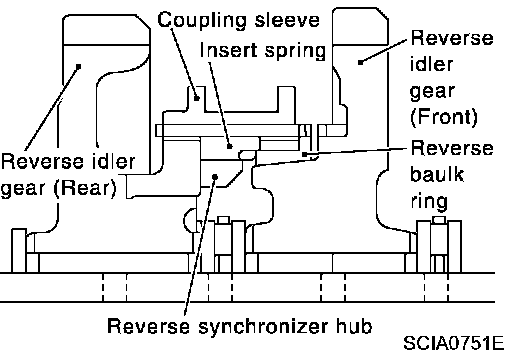

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)





The gear can be matched smoothly in a structure by setting synchronizer hub, coupling sleeve, baulk ring and insert spring to reverse gear, and letting gear be synchronized.
