Diagnostic Procedure 1

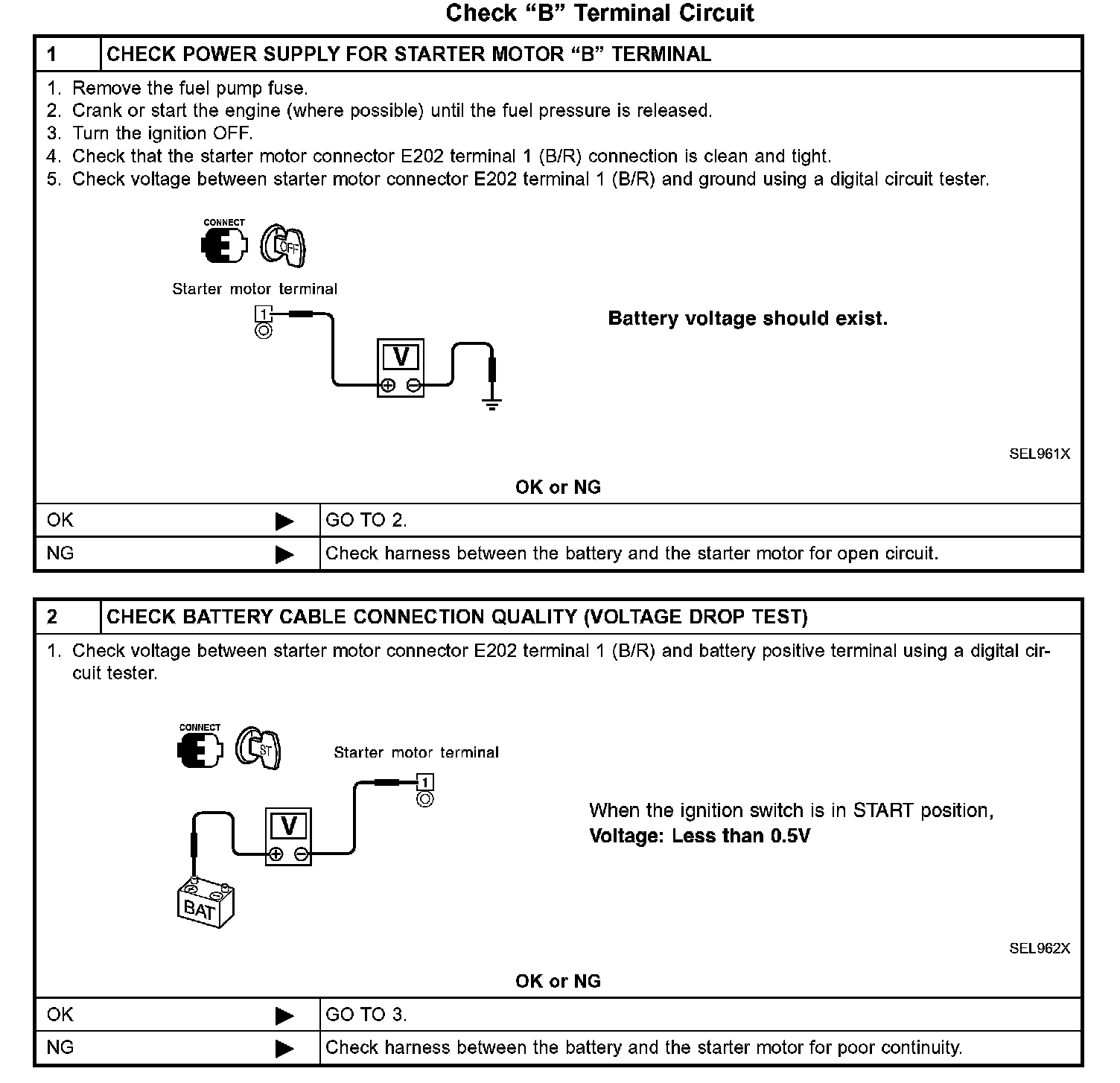

Diagnostic Procedure 1 Check "B" Terminal Circuit Step 1 - 2:

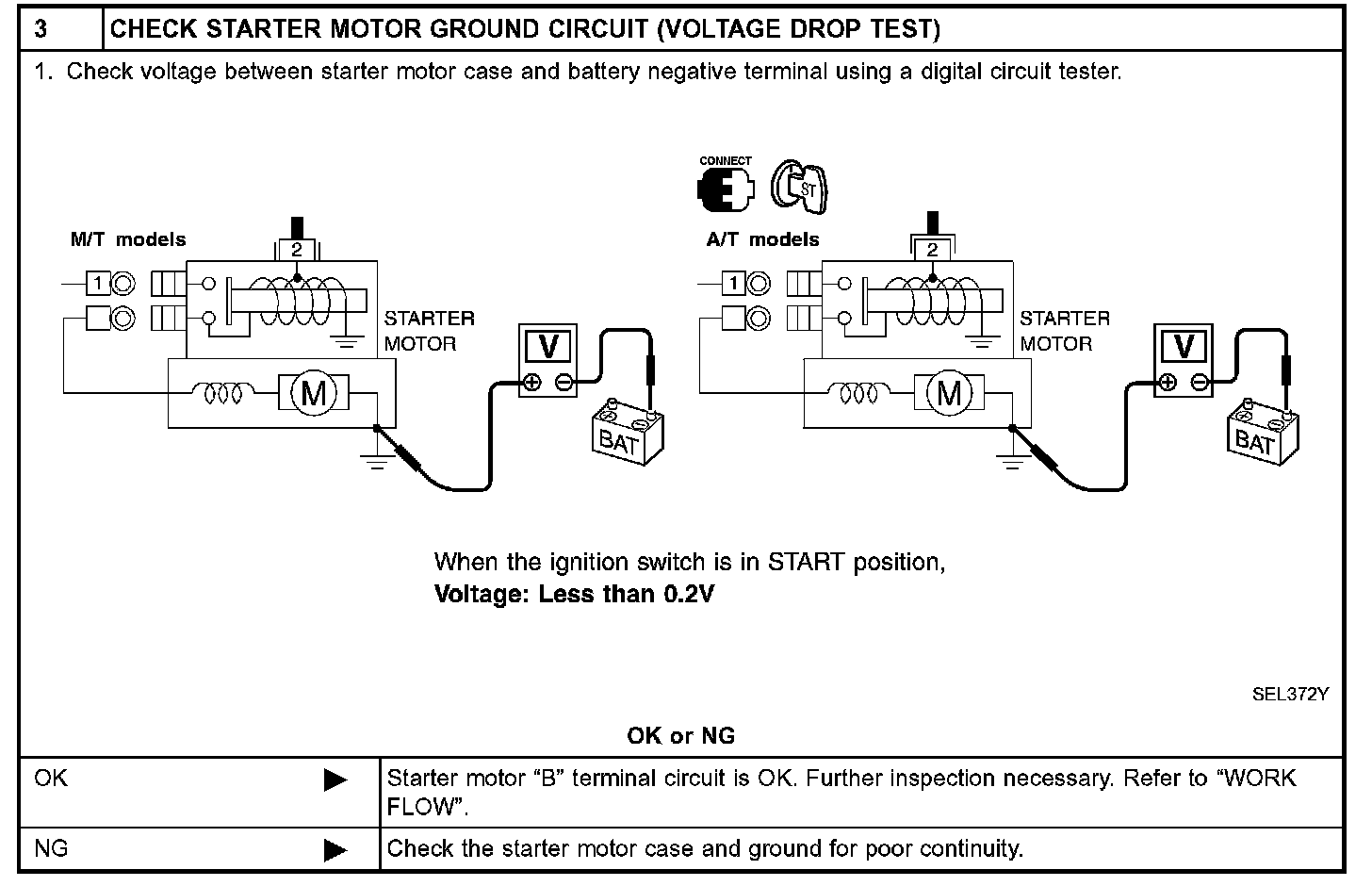

Diagnostic Procedure 1 Check "B" Terminal Circuit Step 3:
