Multiple Junction Connector: Service and Repair

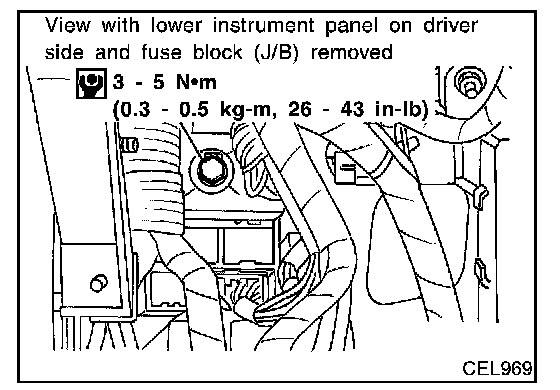

Installation
To install SMJ tighten bolts until orange "fulltight" mark appears and then retighten to specified torque as required.

Tightening Torque: 3 - 5 N.m (0.3 - 0.5 kg-m, 26 - 43 in-lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
