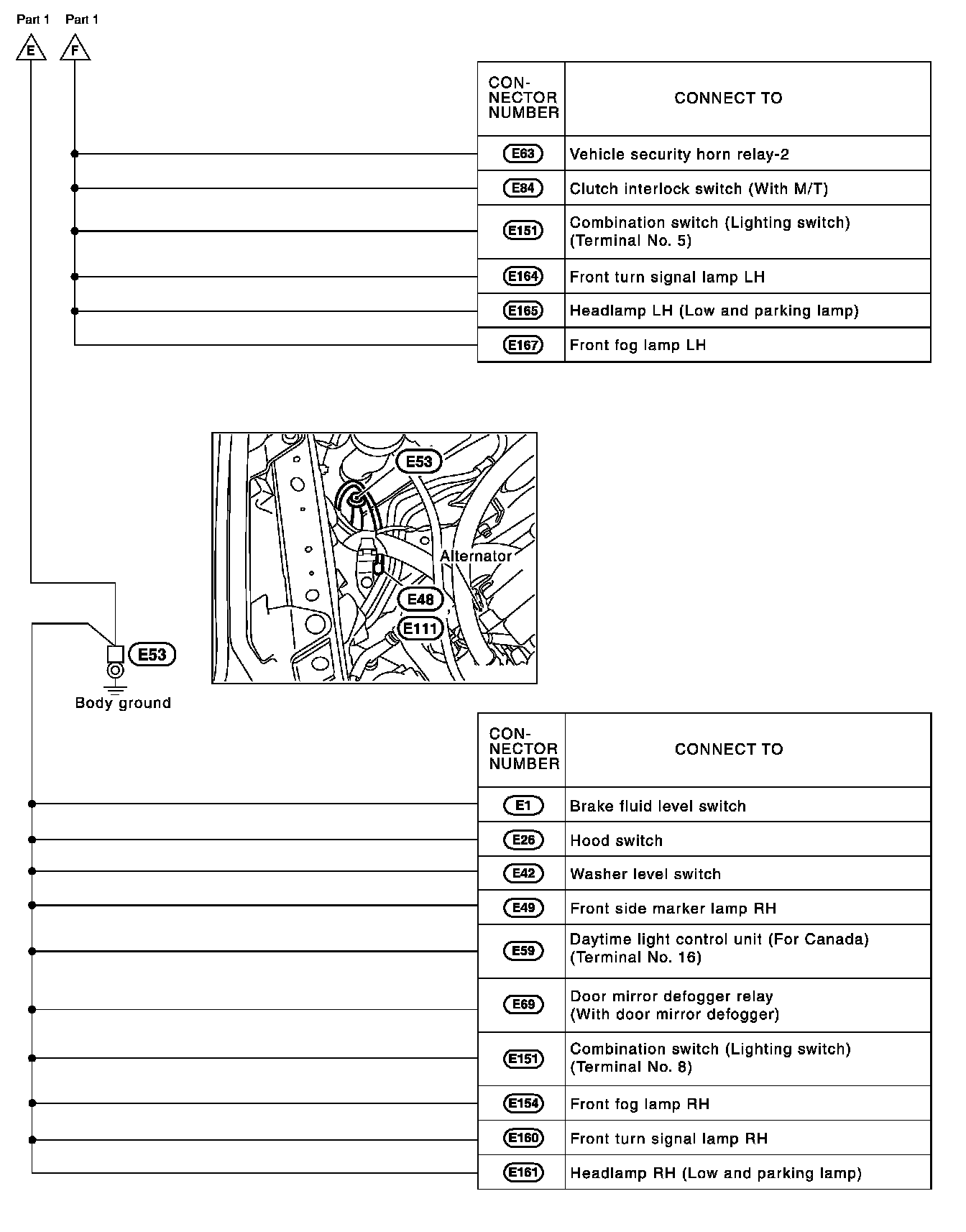

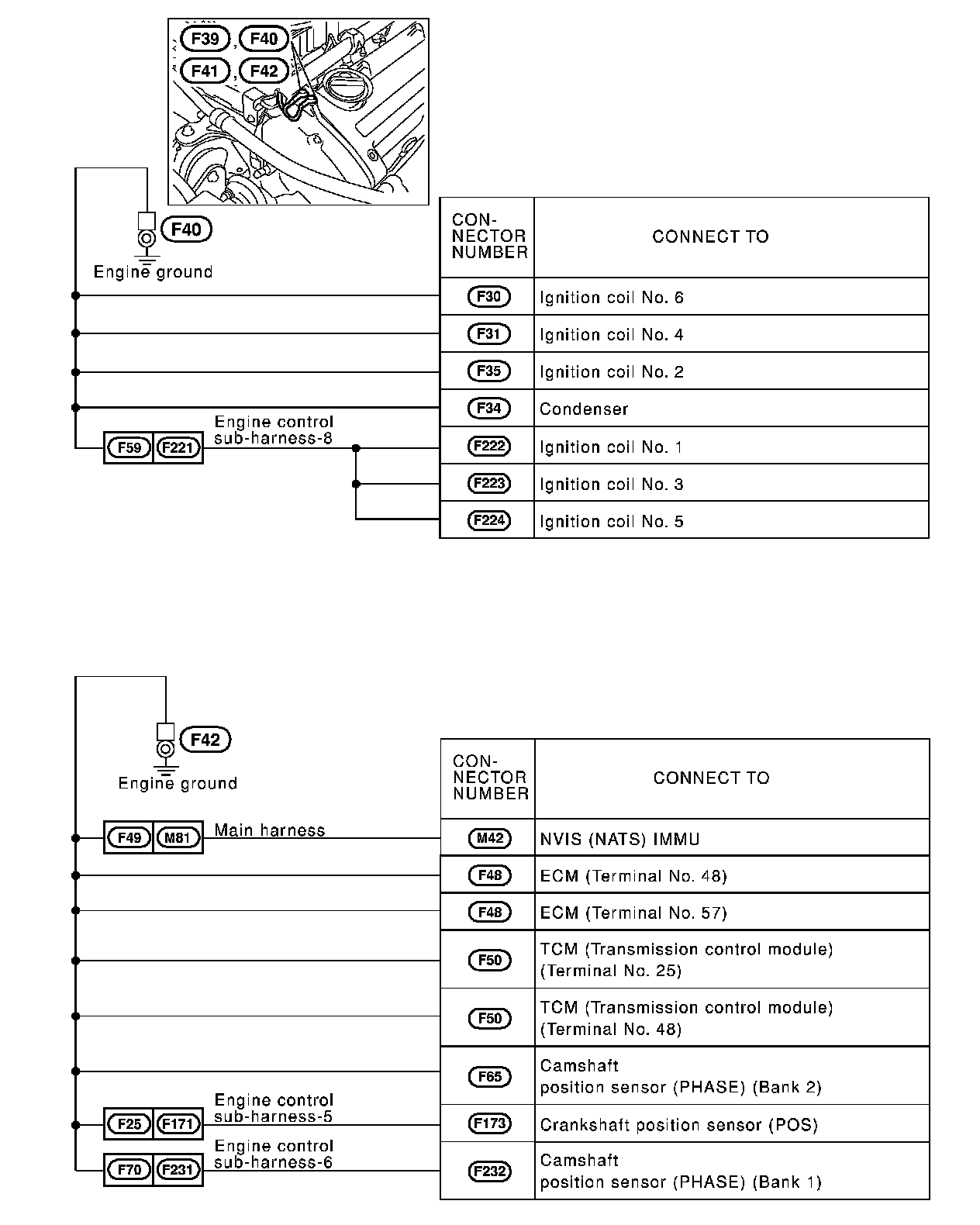

Grounding Point: Locations

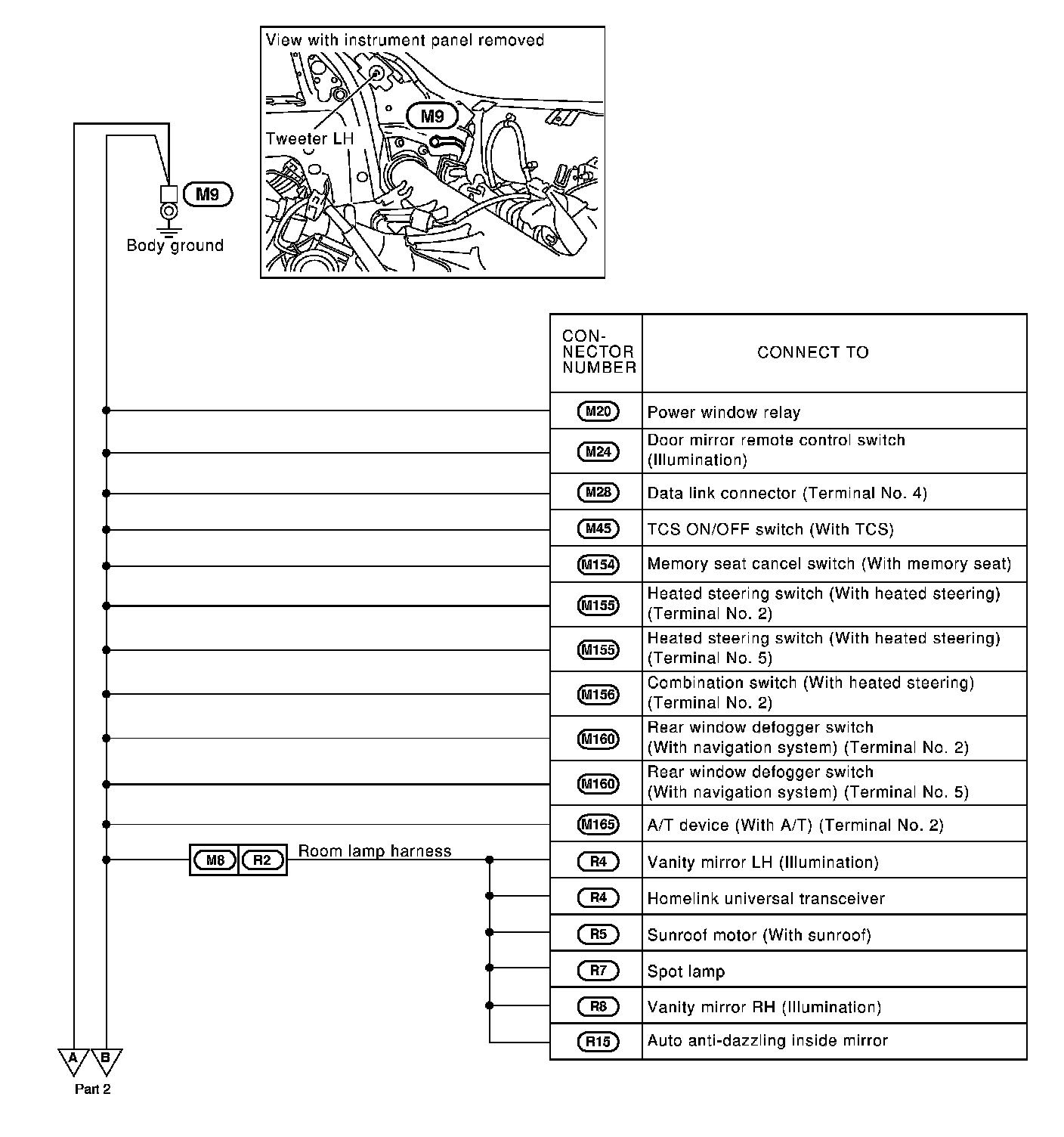

Main Harness Part 1:

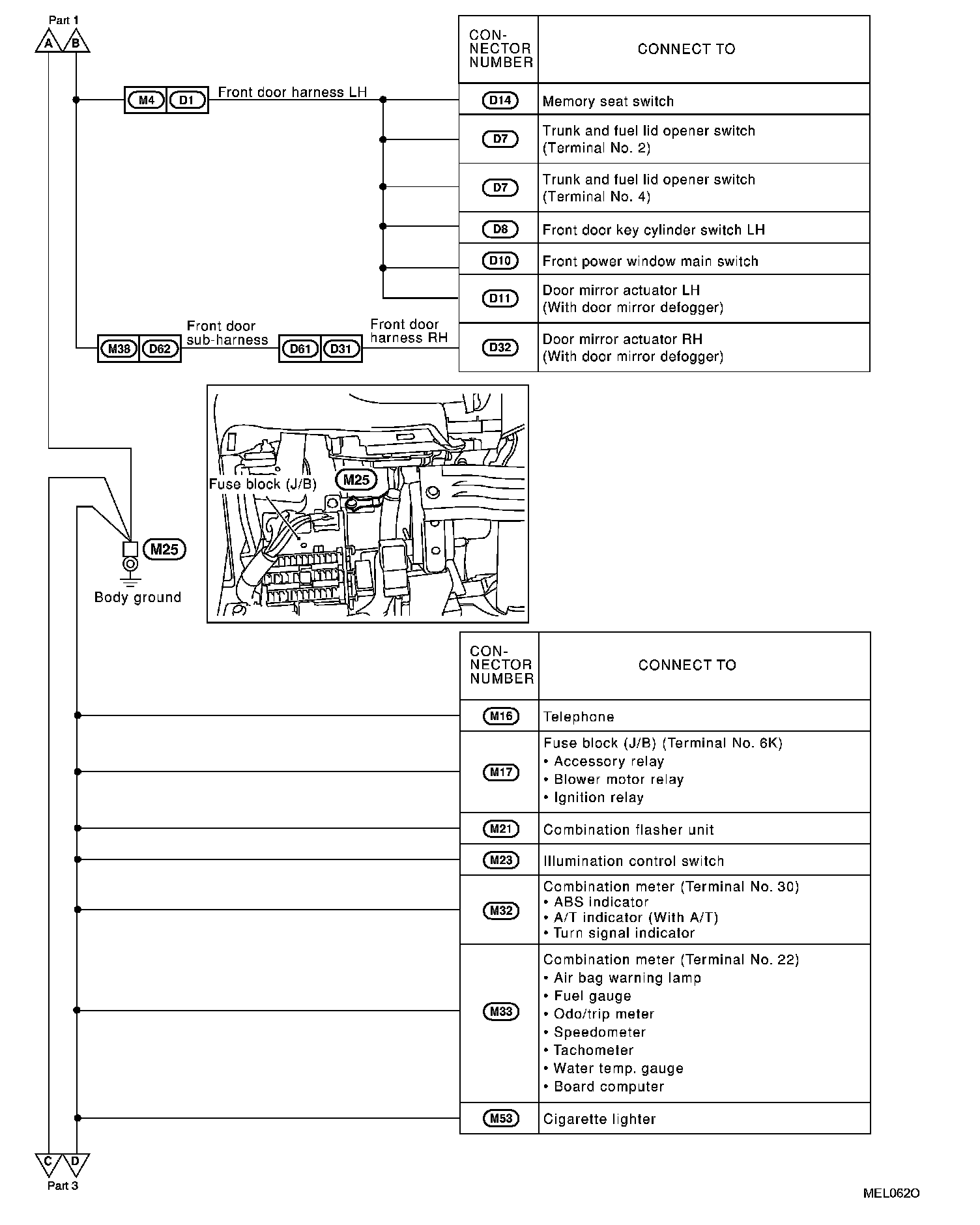

Main Harness Part 2:

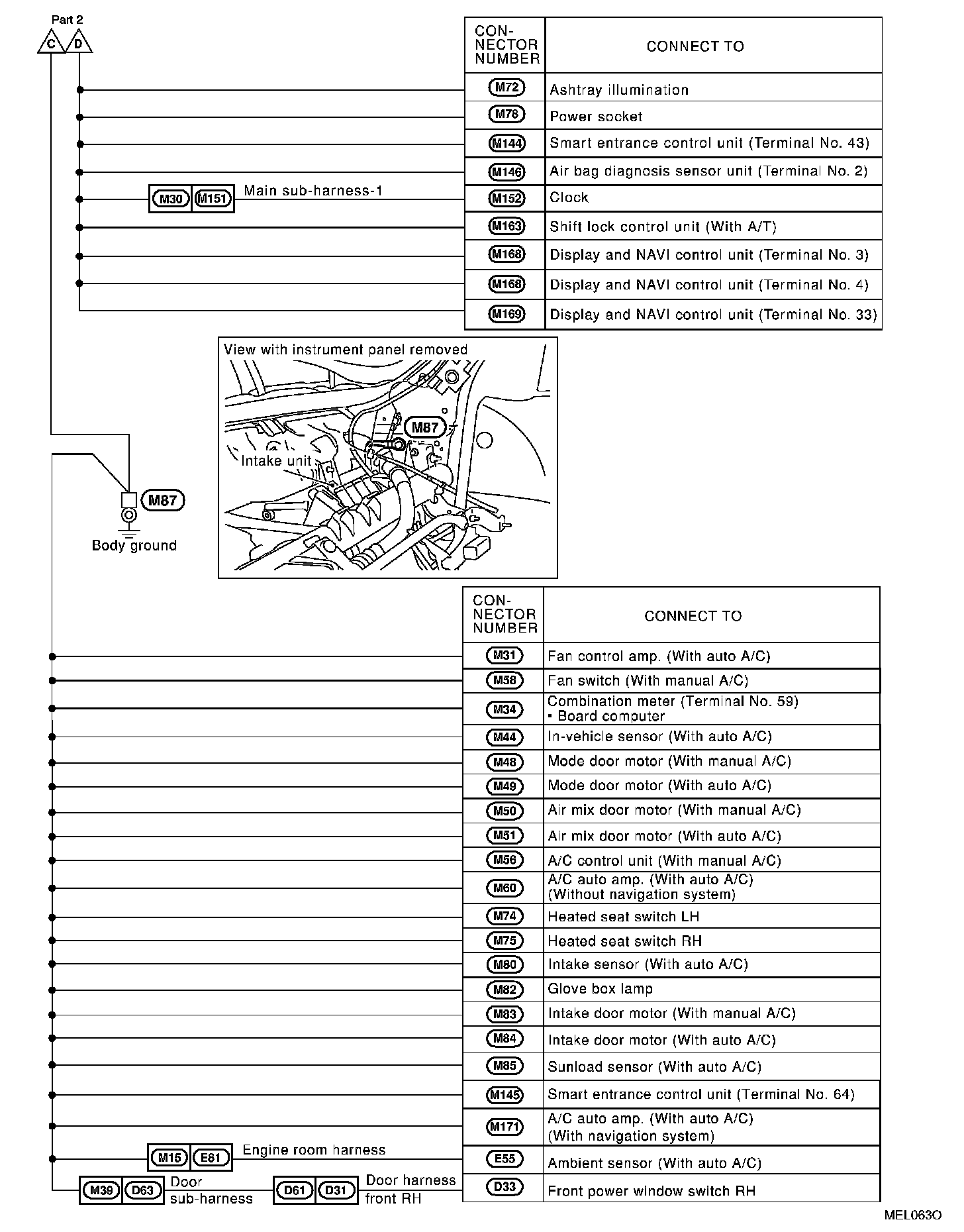

Main Harness Part 3:

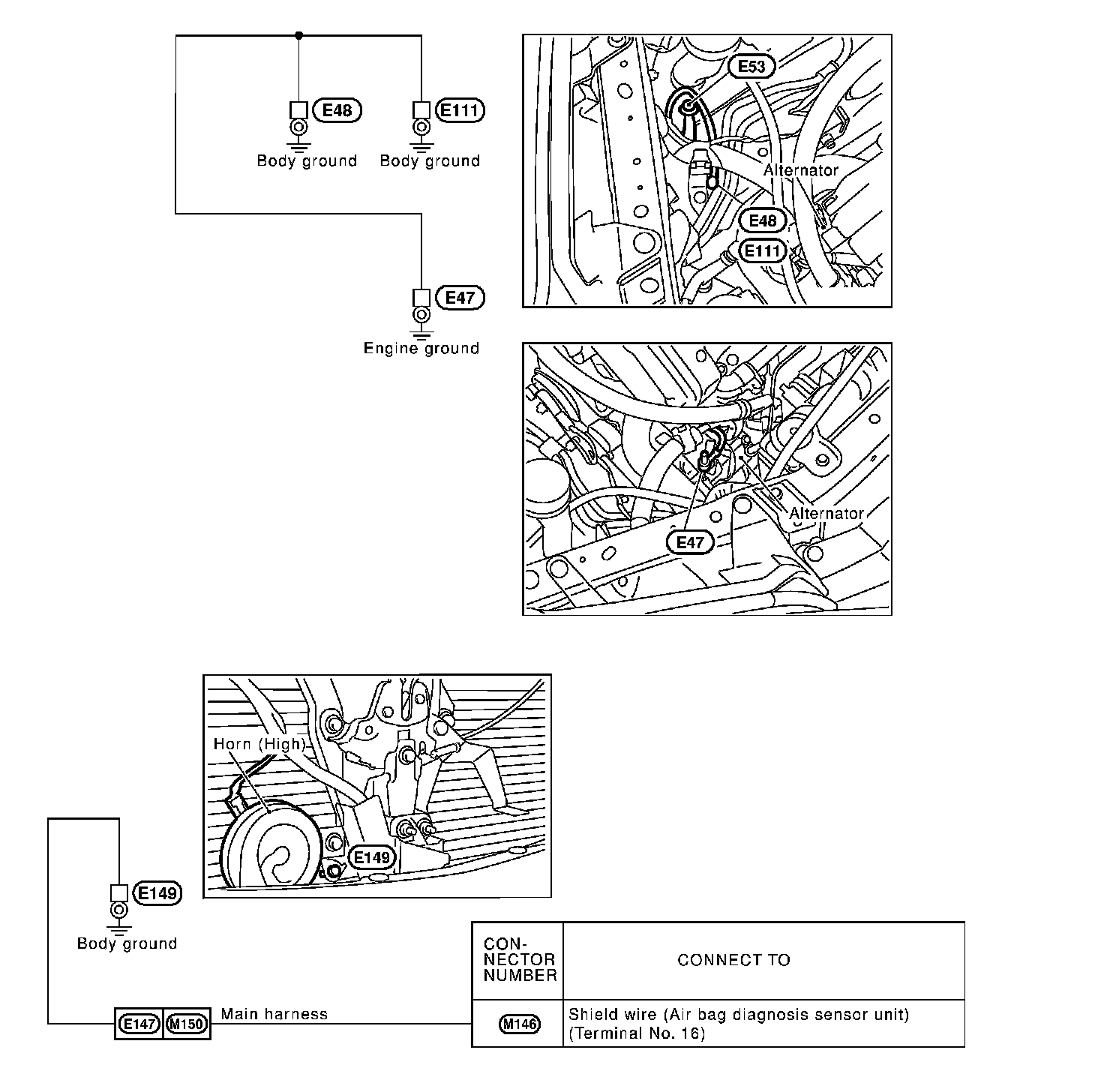

Engine Room Harness Part 1:

Engine Room Harness Part 2:

Engine Room Harness Part 3:

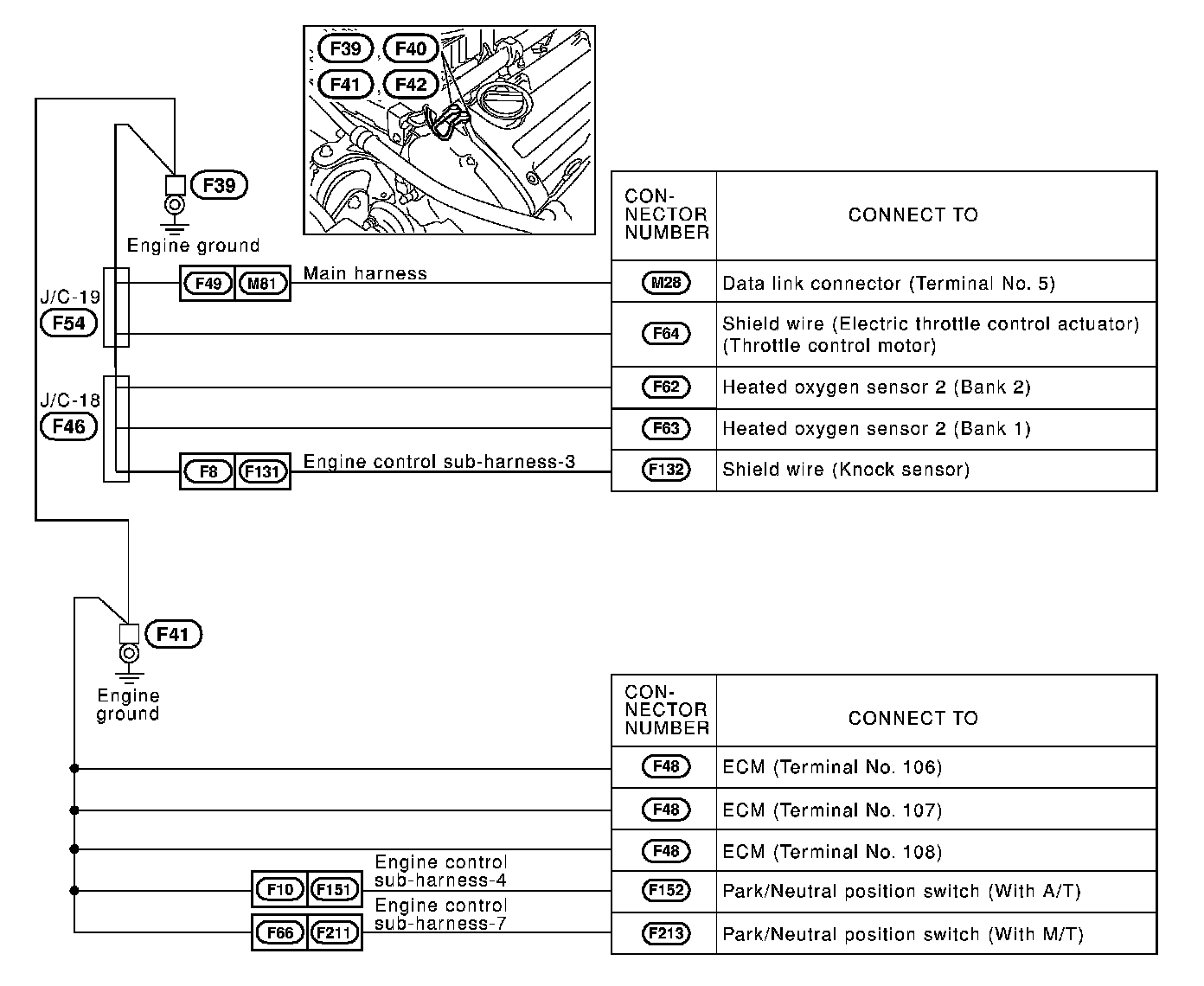

Engine Control Harness Part 1:

Engine Control Harness Part 2:

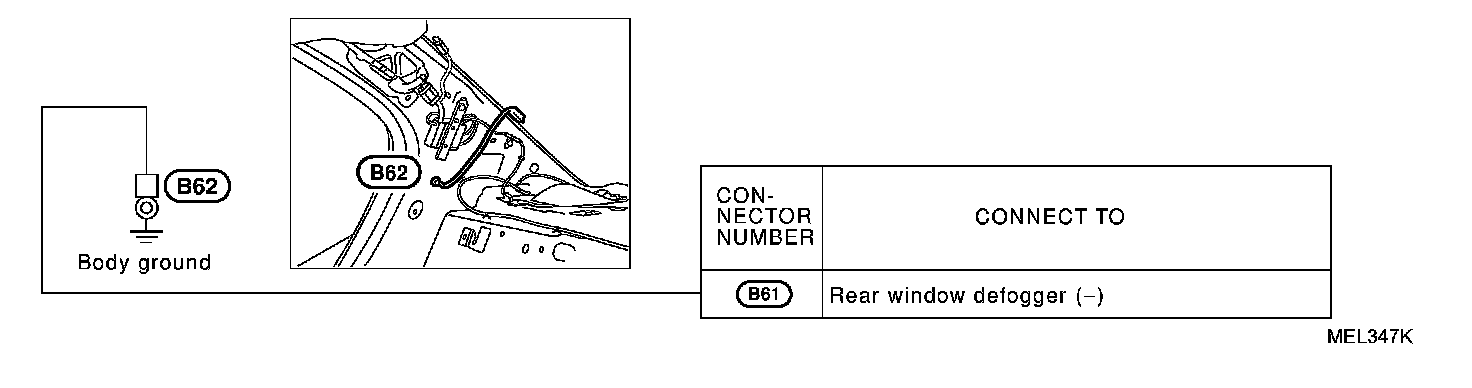

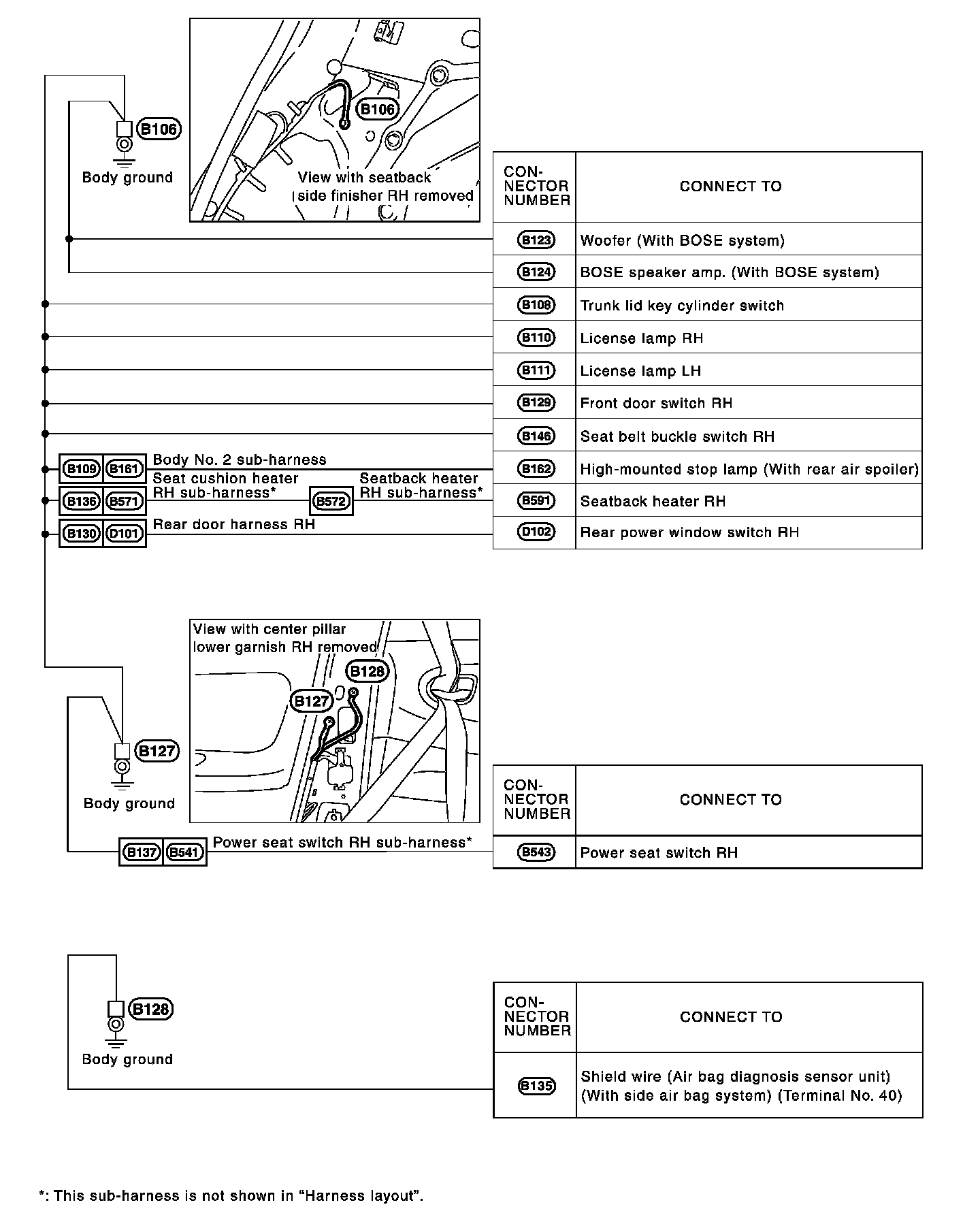

Body Harness Part 1:

Body Harness Part 2:

Body No.2 Harness:

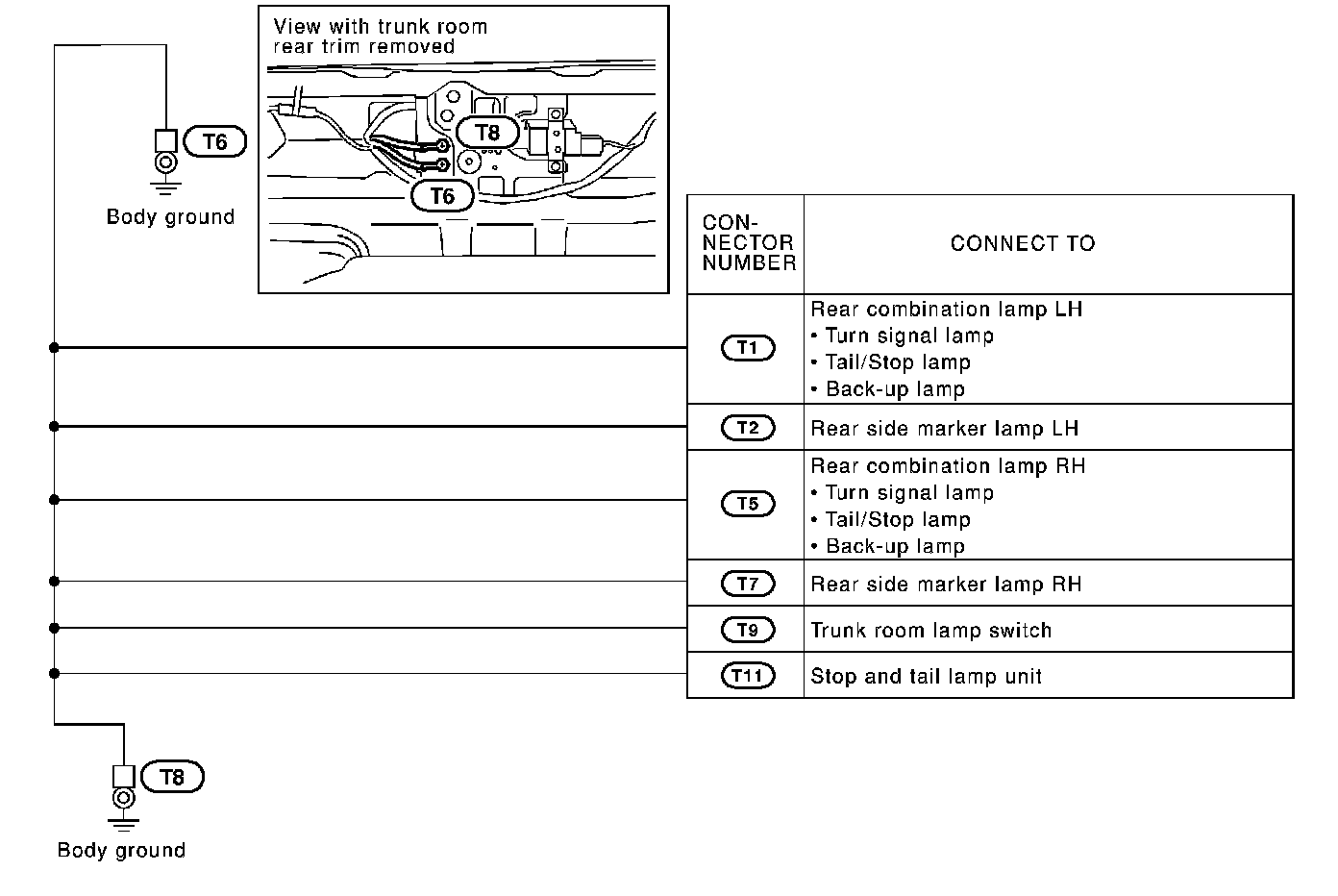

Tail Harness:
