FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications >> Engine Assembly and Outer Components

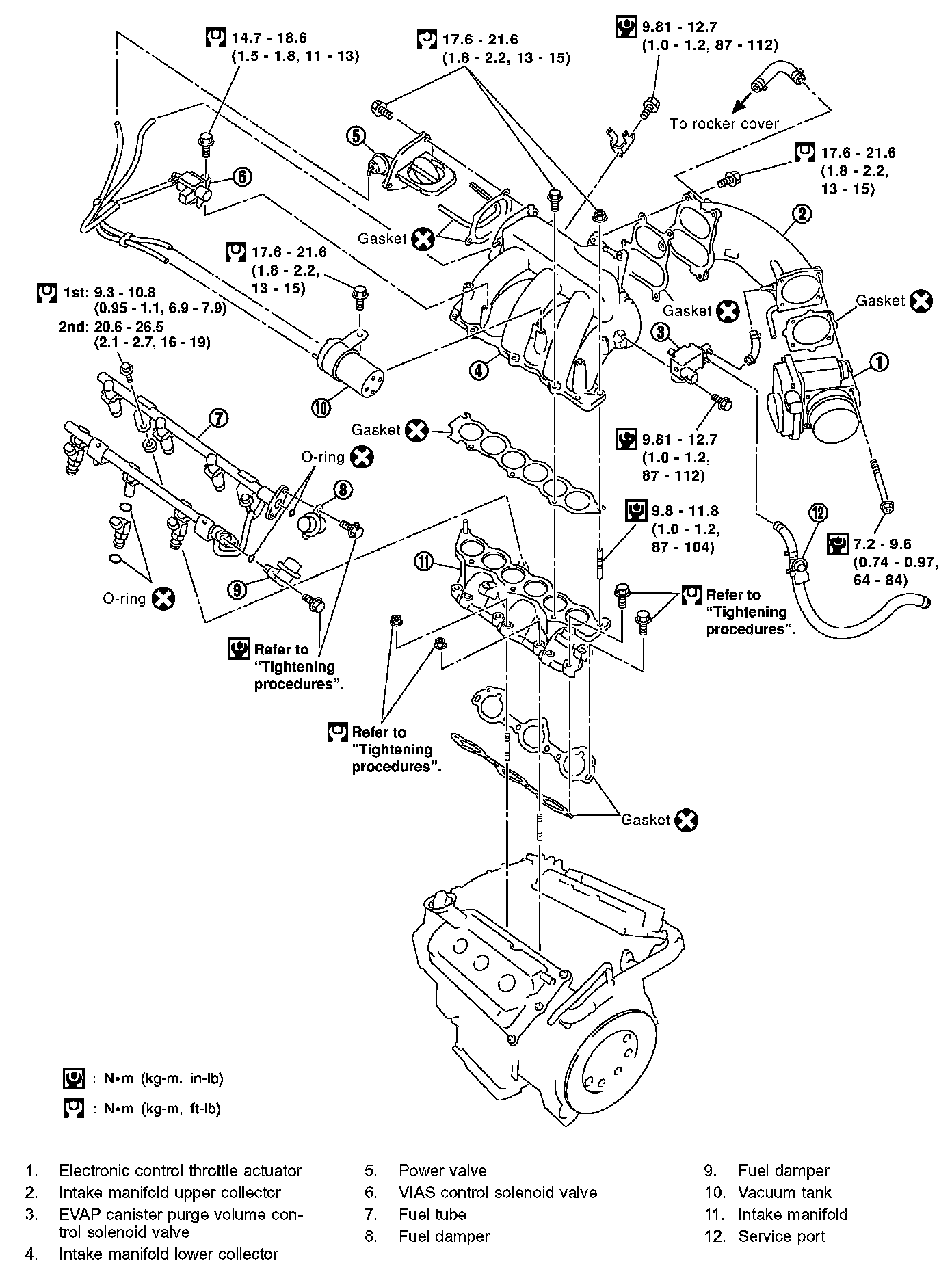

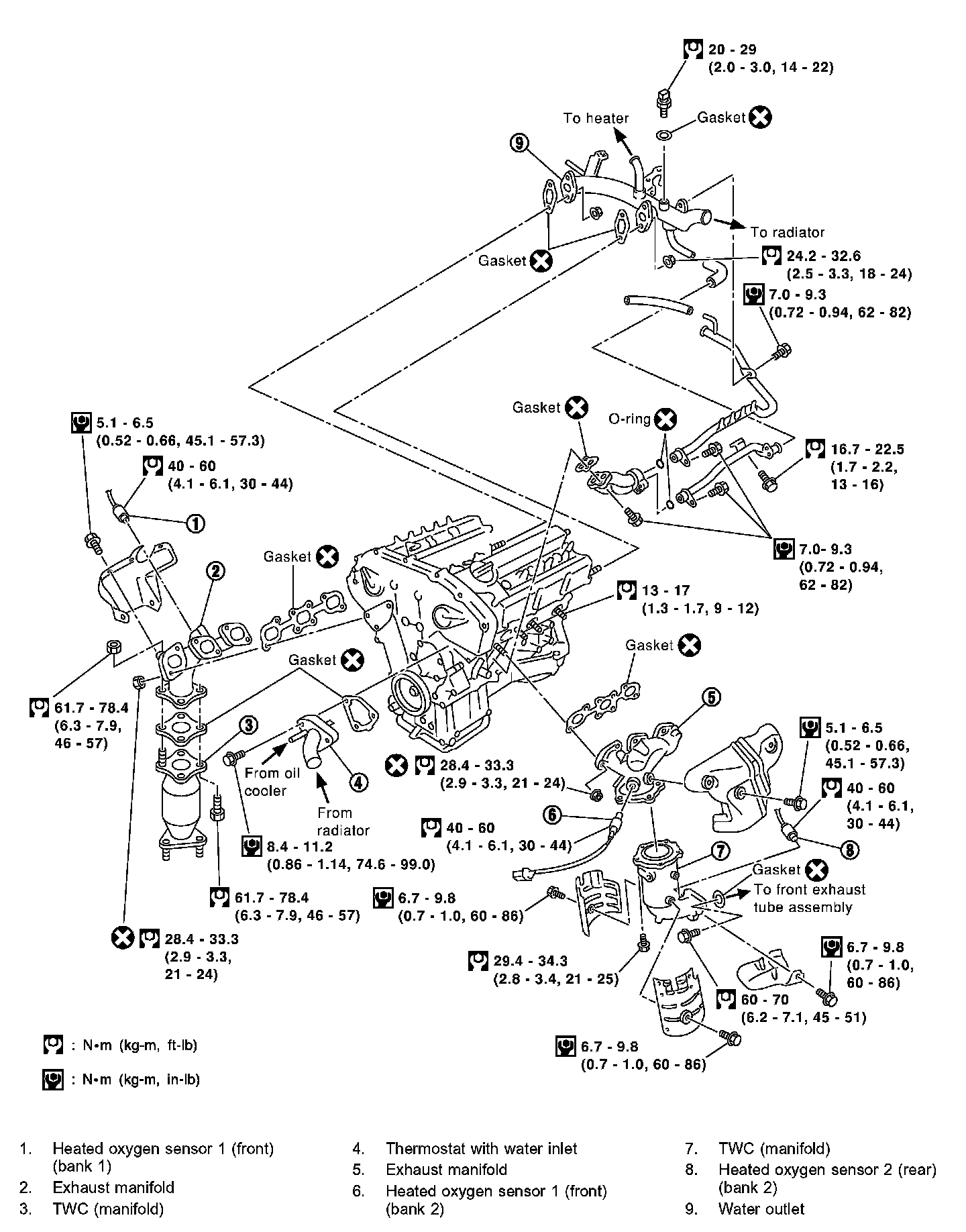

Engine Assembly and Outer Components





1 of 2





2 of 2
