Automatic

Refrigerant Pressure Sensor:

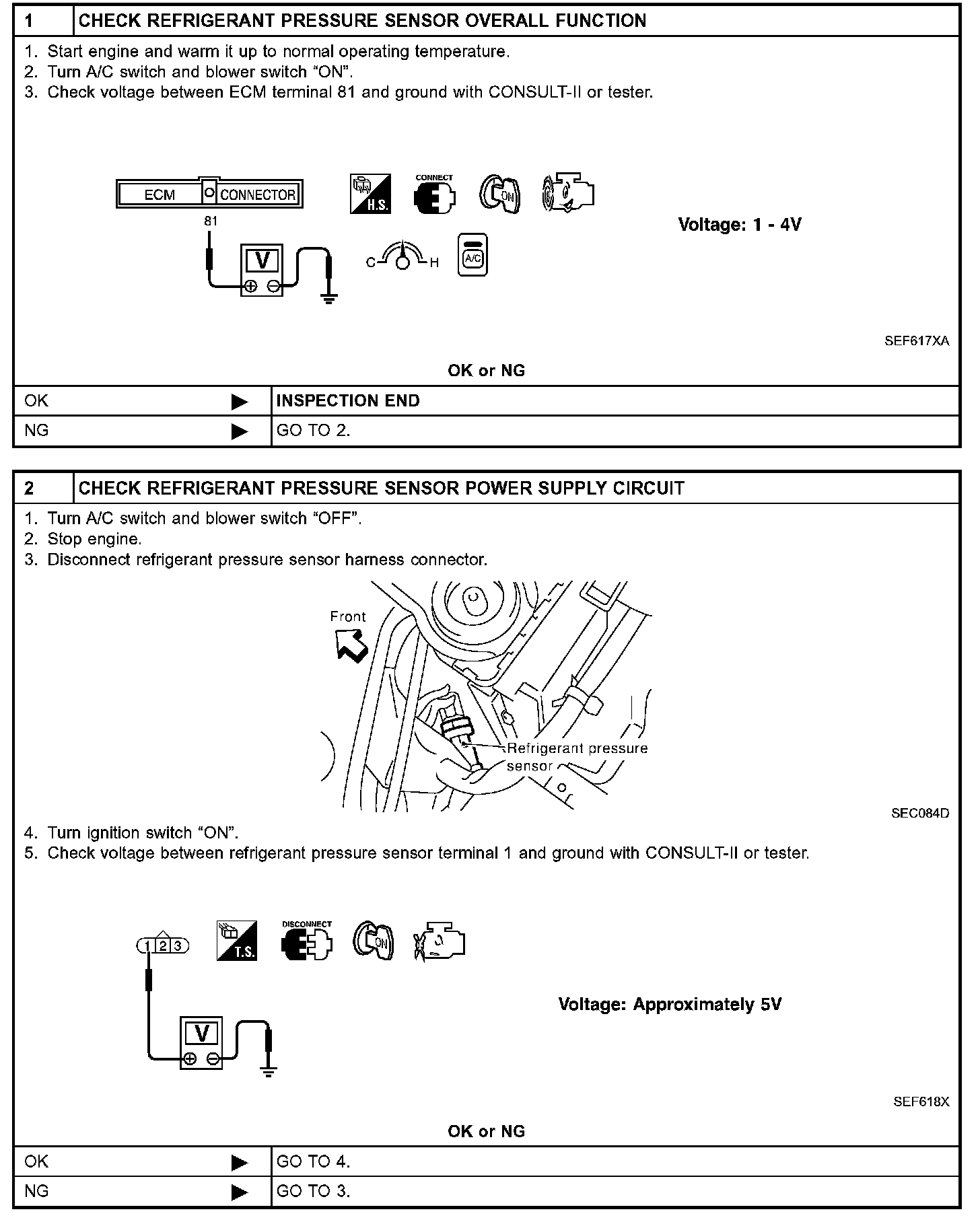

Step 1 - 2:

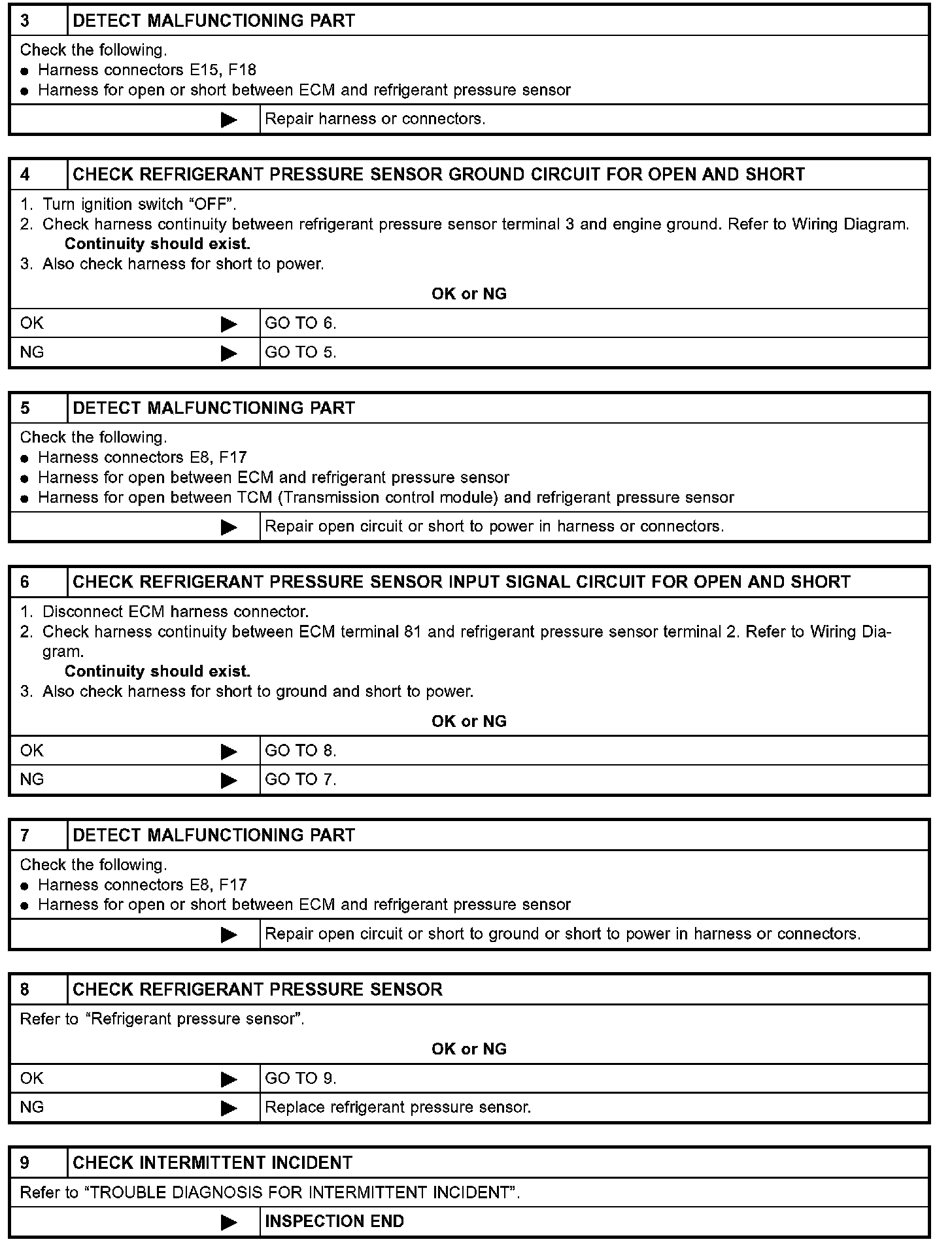

Step 3 - 9:

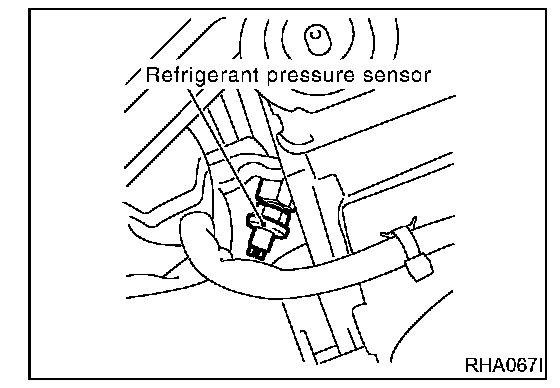

Refrigerant Pressure Sensor

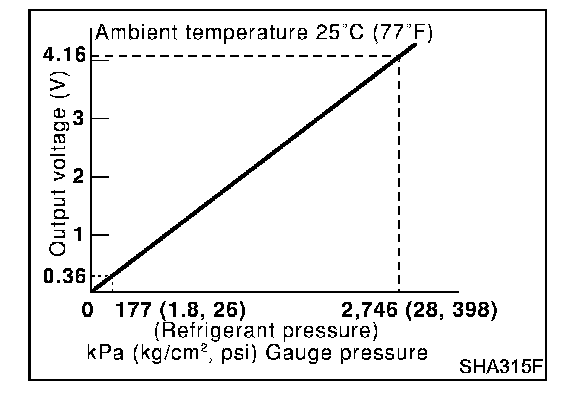

Make sure that higher A/C refrigerant pressure results in higher refrigerant-pressure sensor output voltage.
