Cruise Control Switch: Testing and Inspection

Component Inspection

ASCD STEERING SWITCH

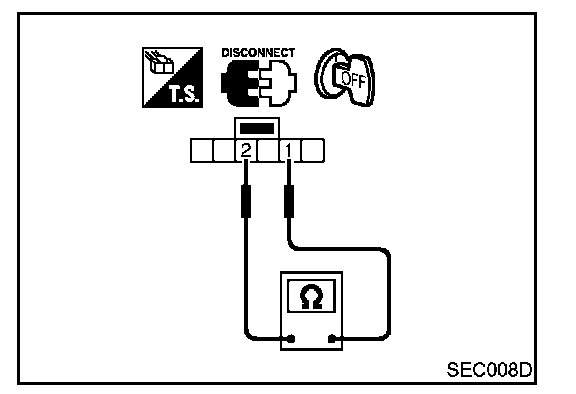

1. Disconnect ASCD steering switch.

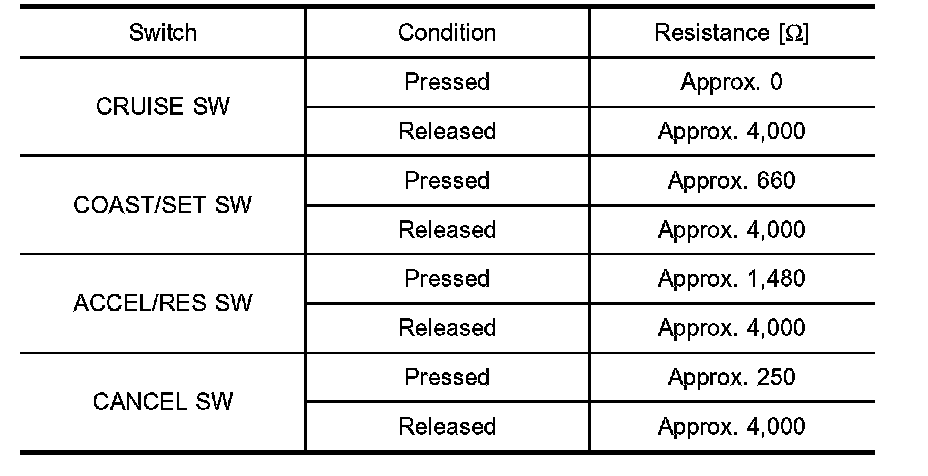

2. Check continuity between terminals 1 and 2 by pushing each switch.
