Symptom Related Diagnostic Procedures

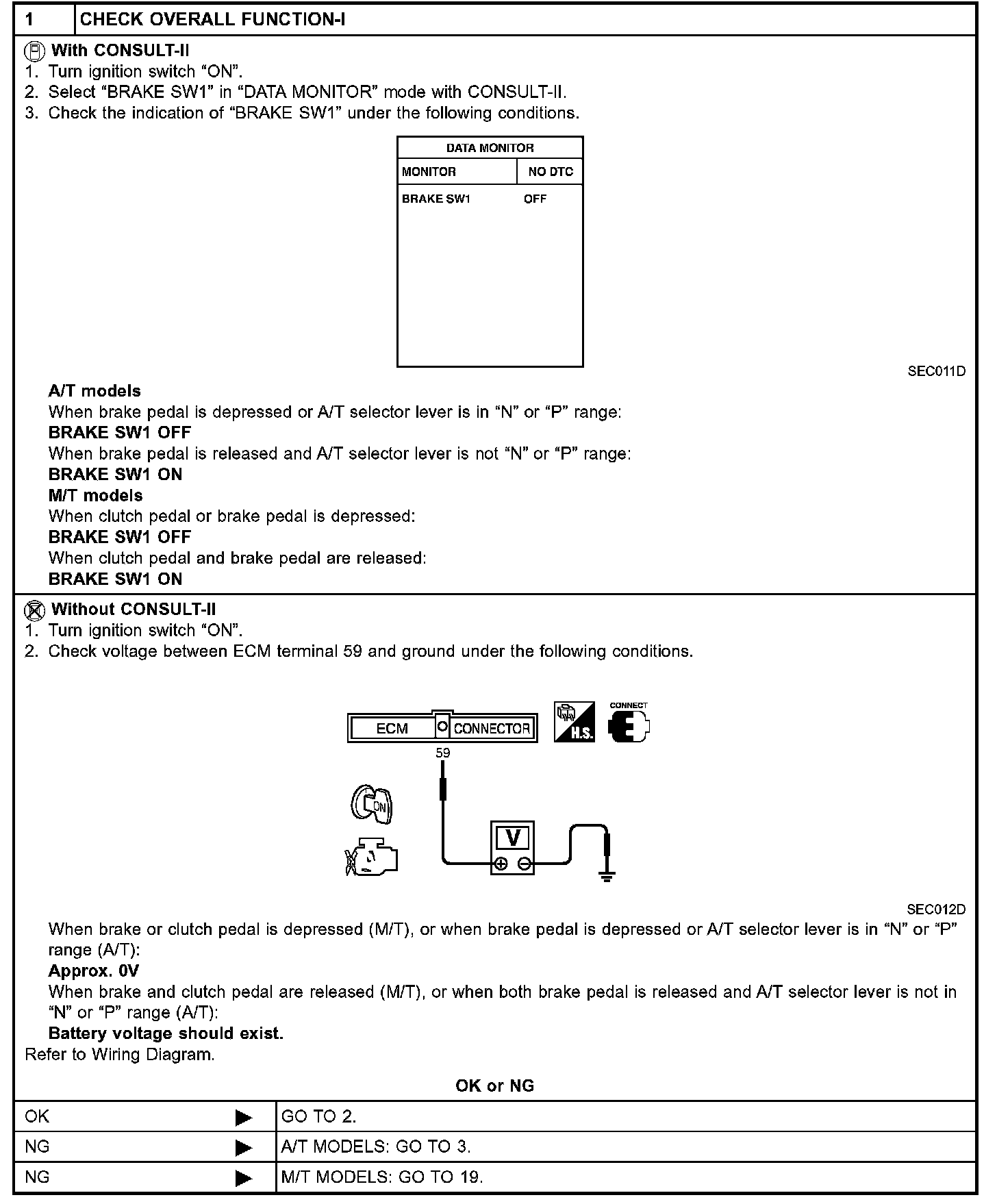

Step 1:

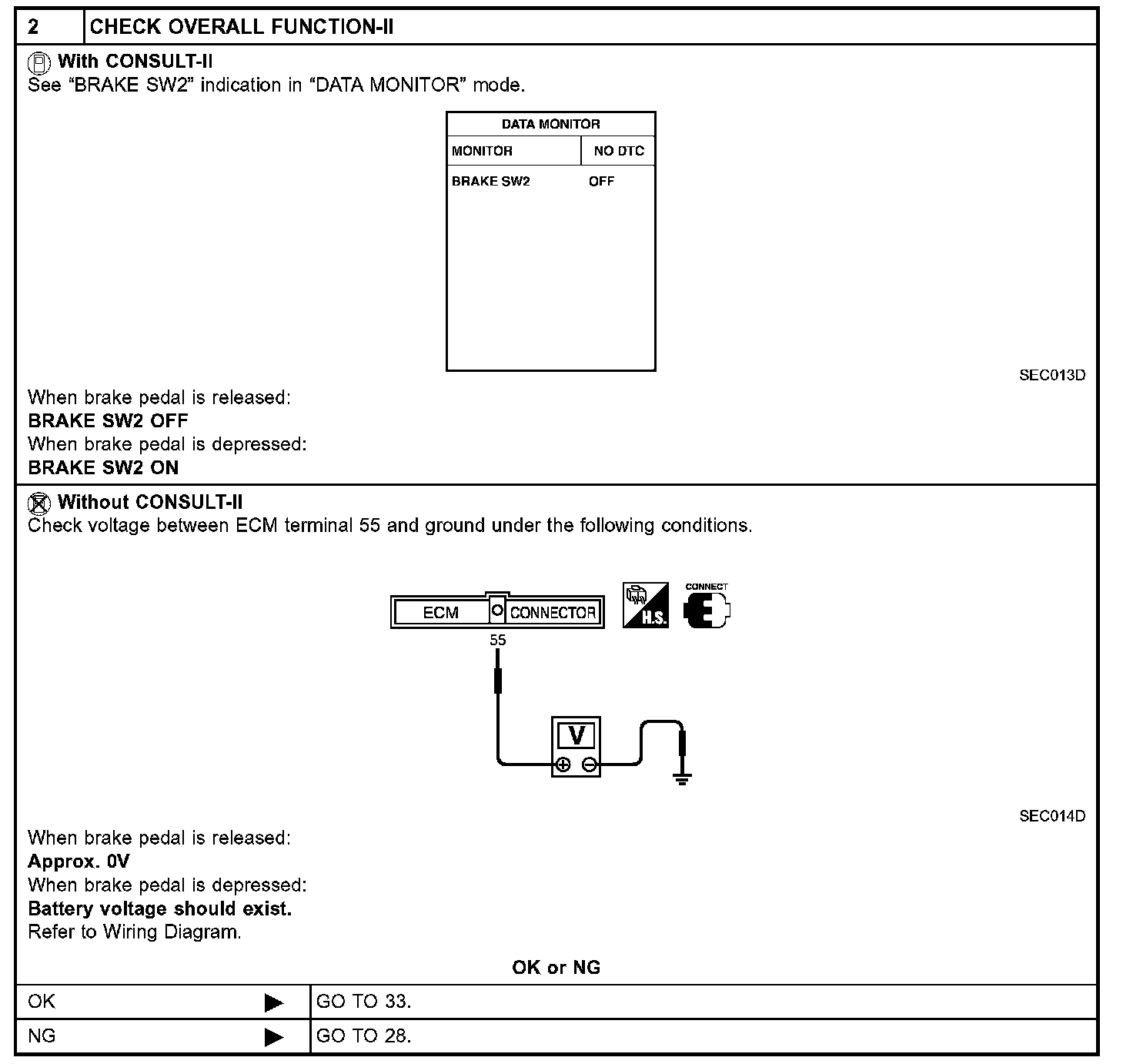

Step 2:

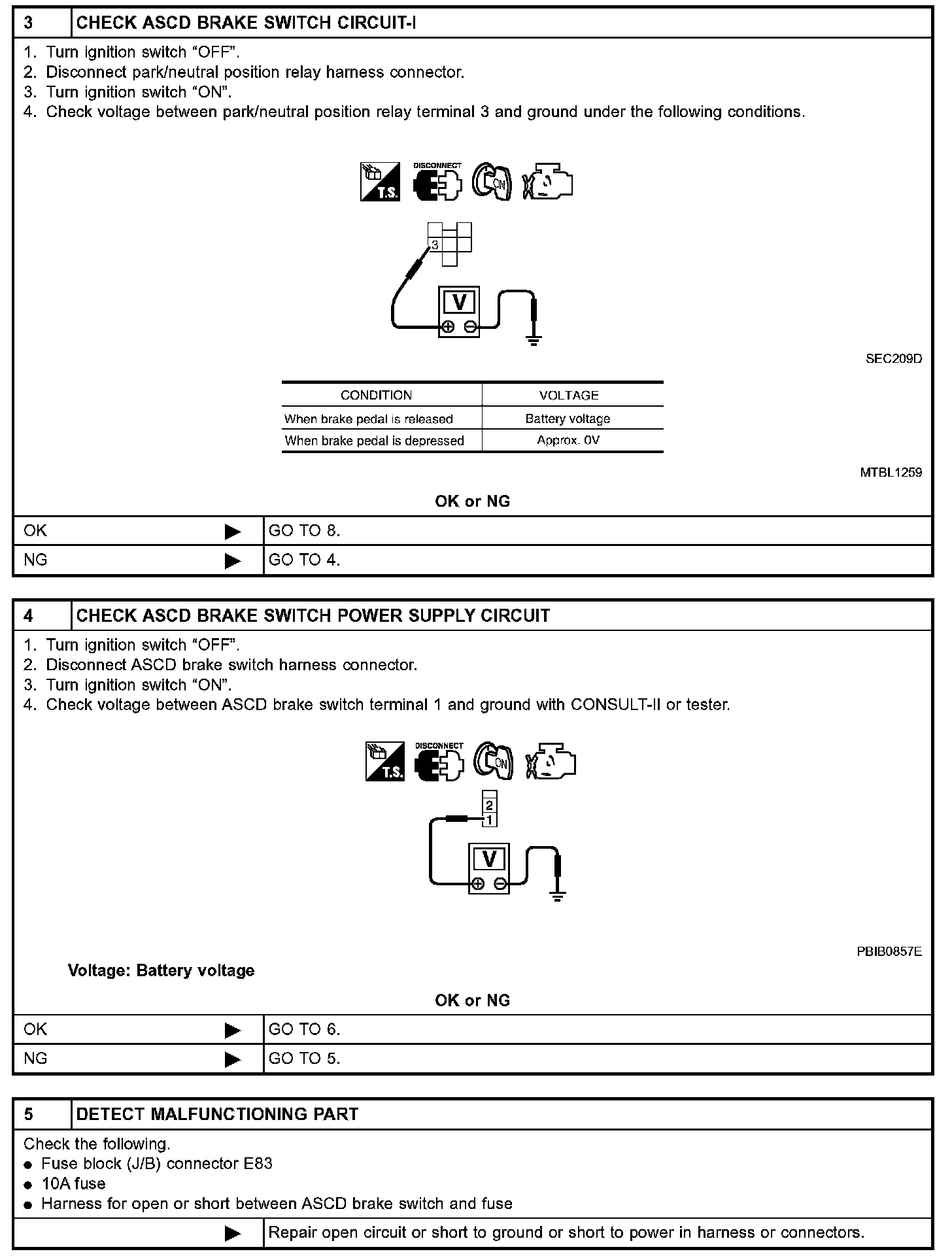

Step 3 - 5:

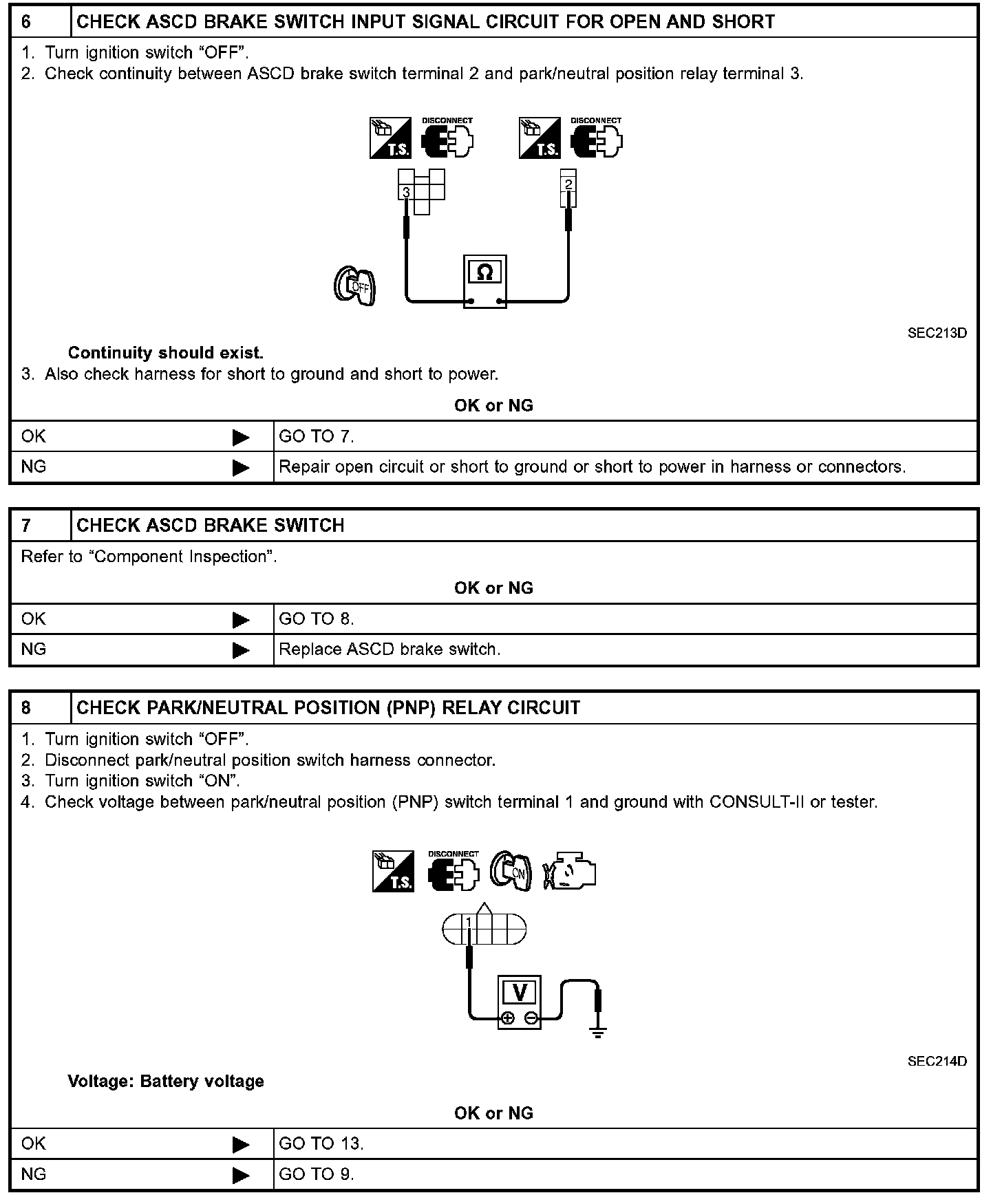

Step 6 - 8:

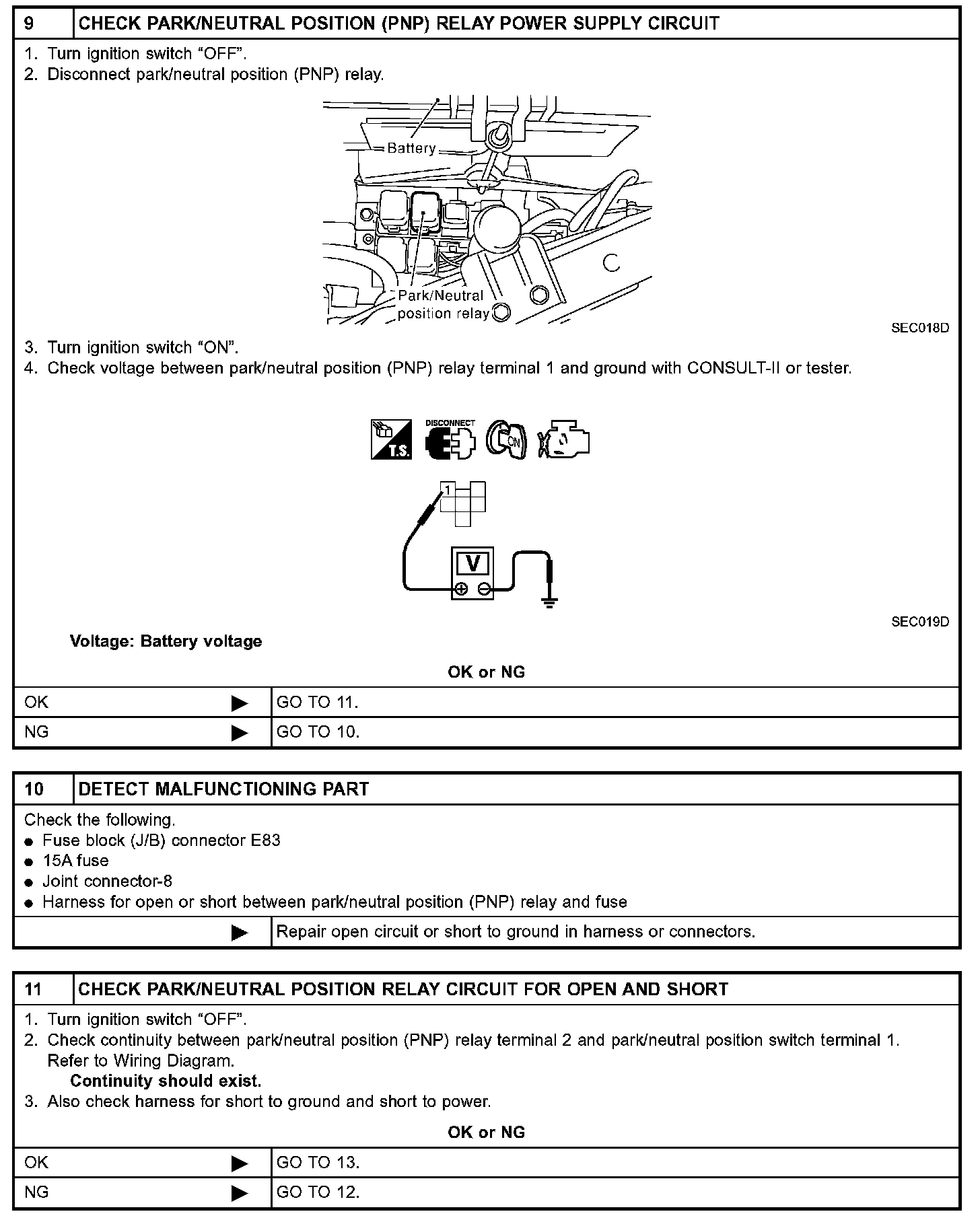

Step 9 - 11:

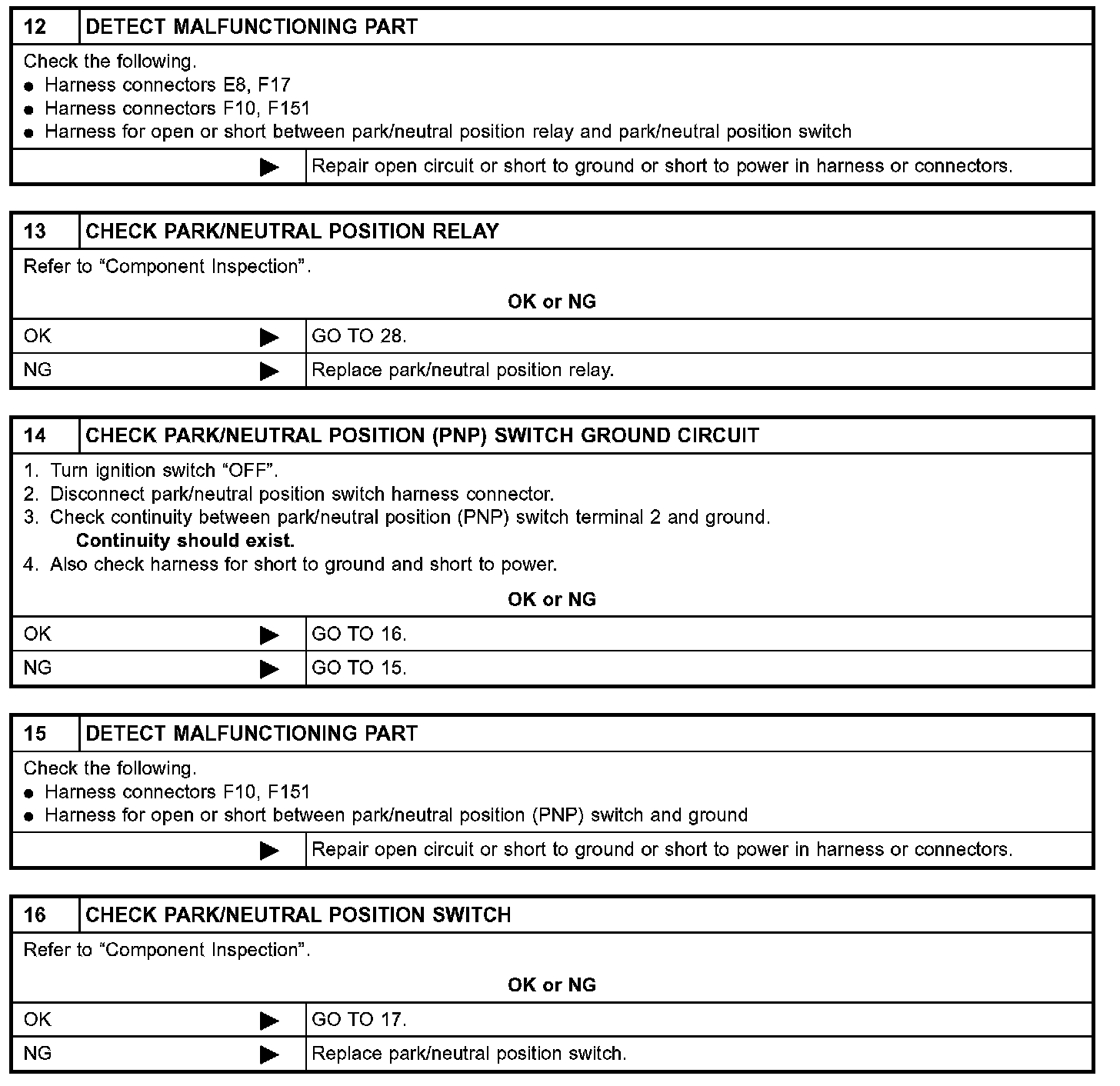

Step 12 - 16:

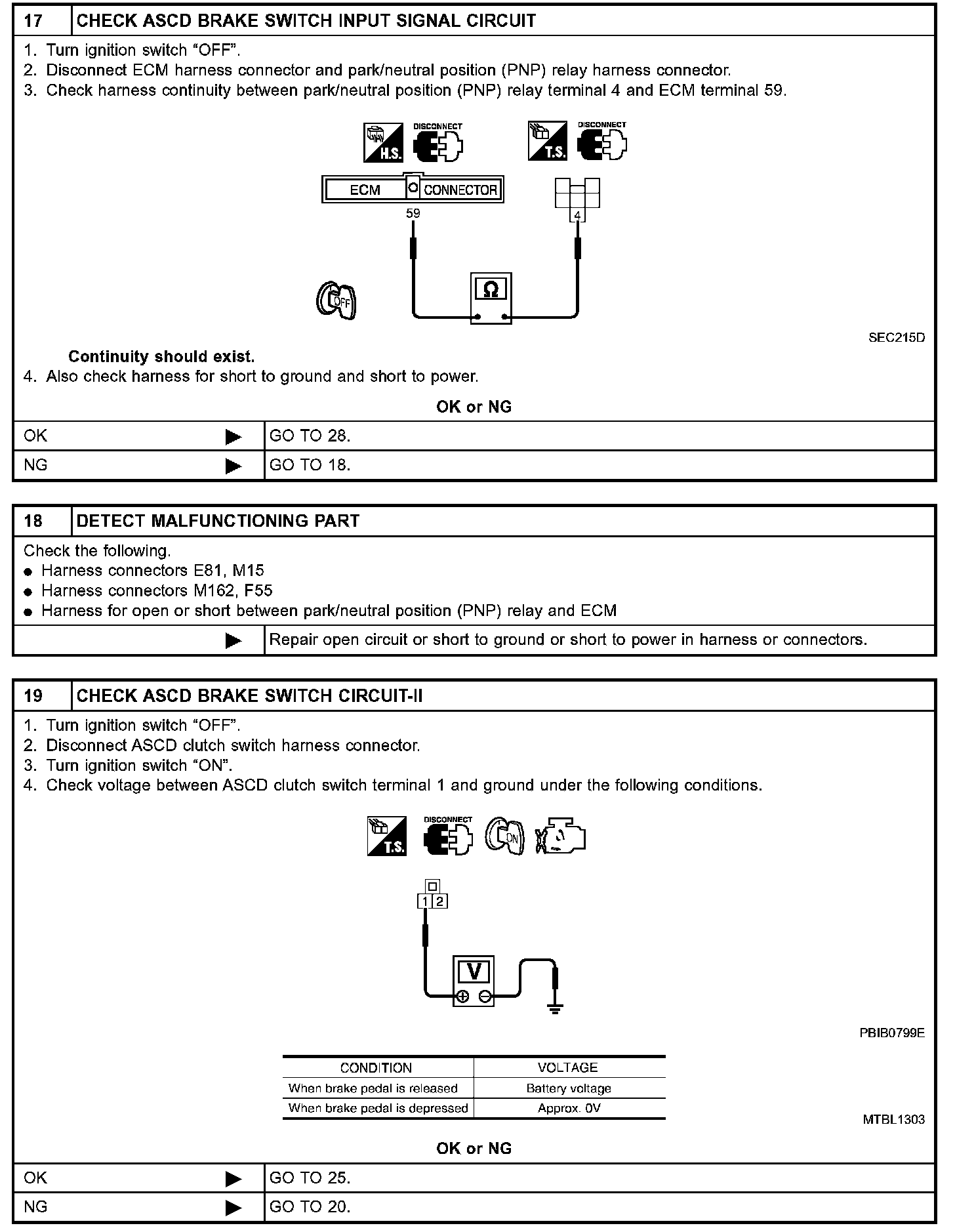

Step 17 - 19:

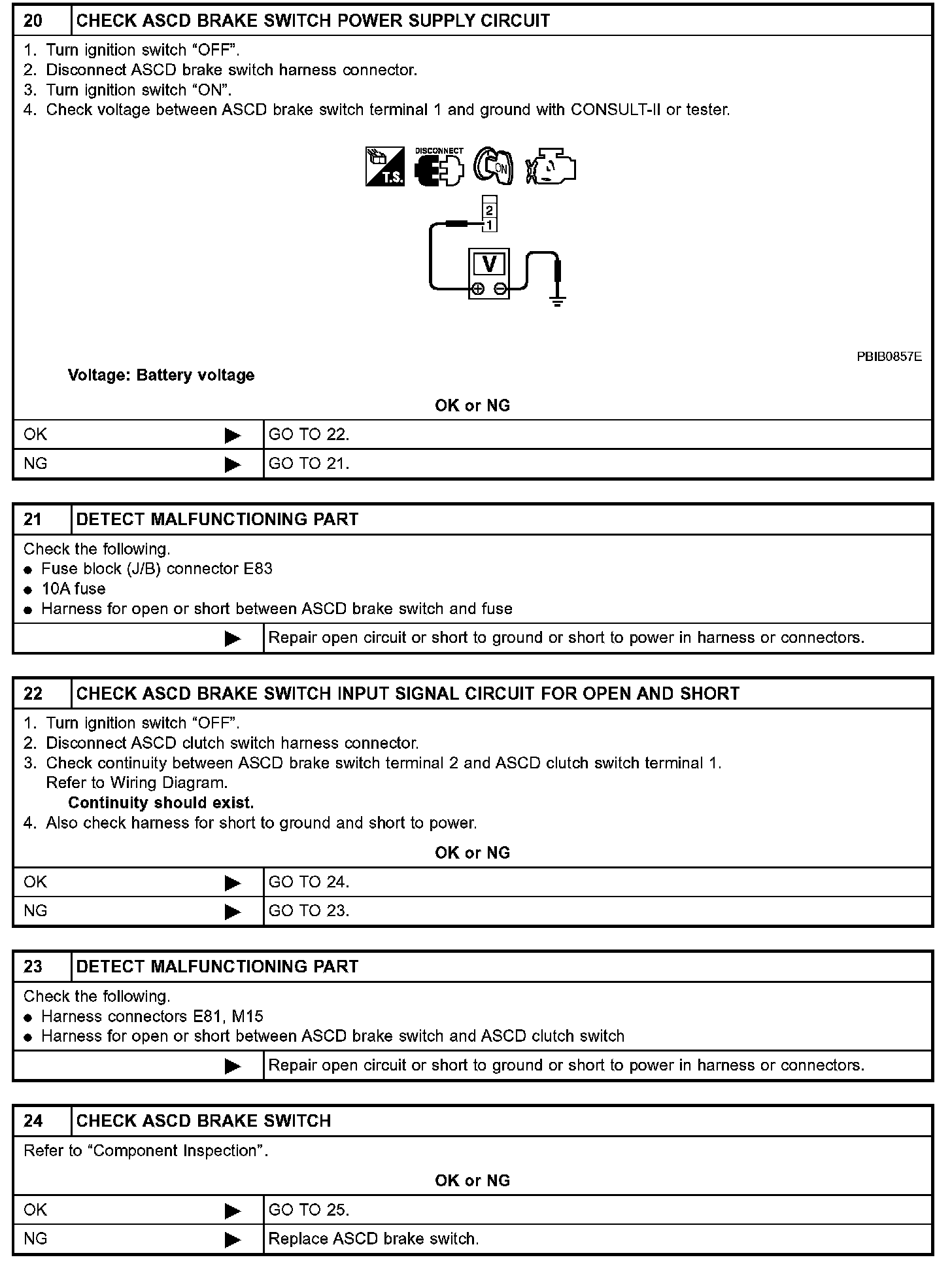

Step 20 - 24:

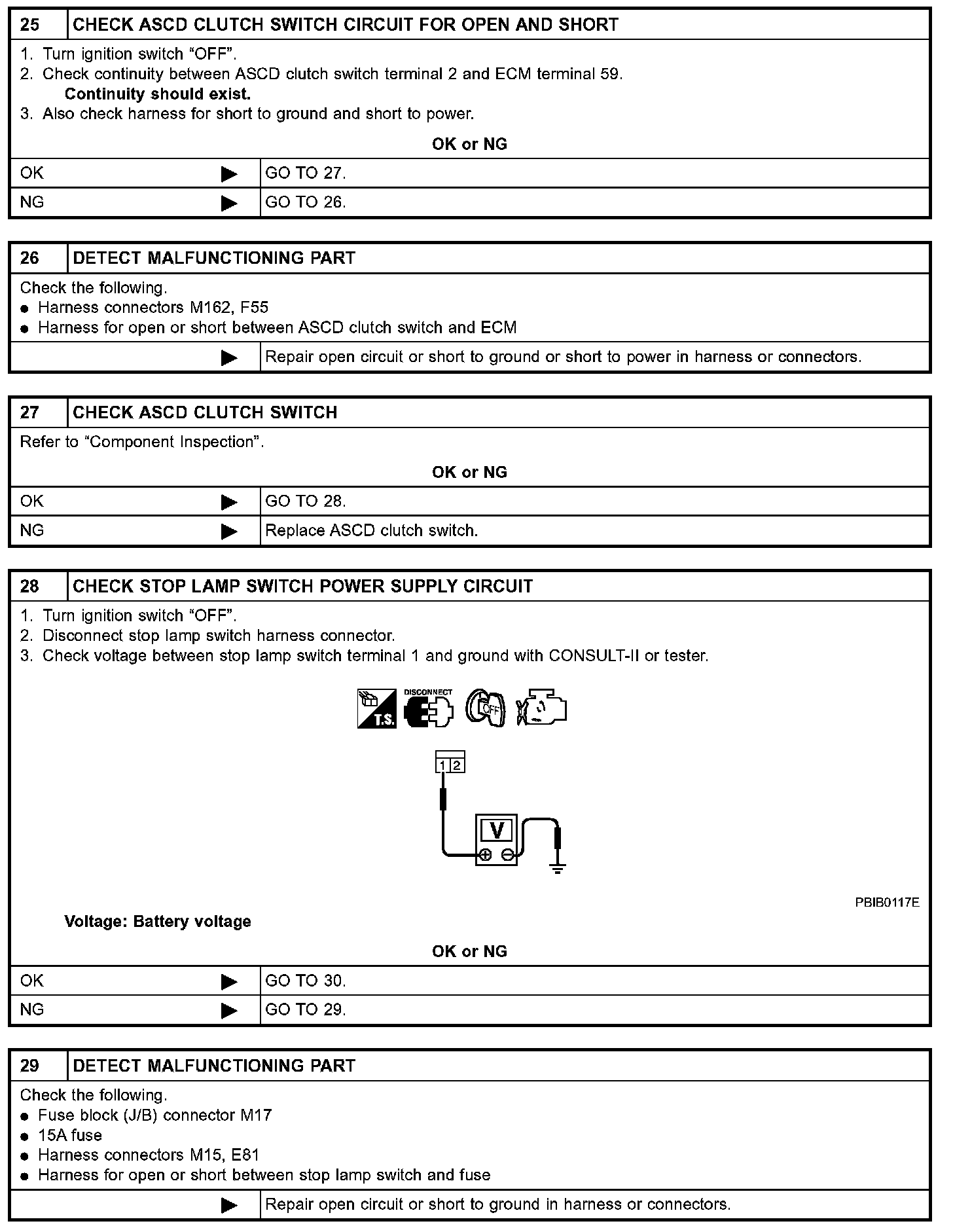

Step 25 - 29:

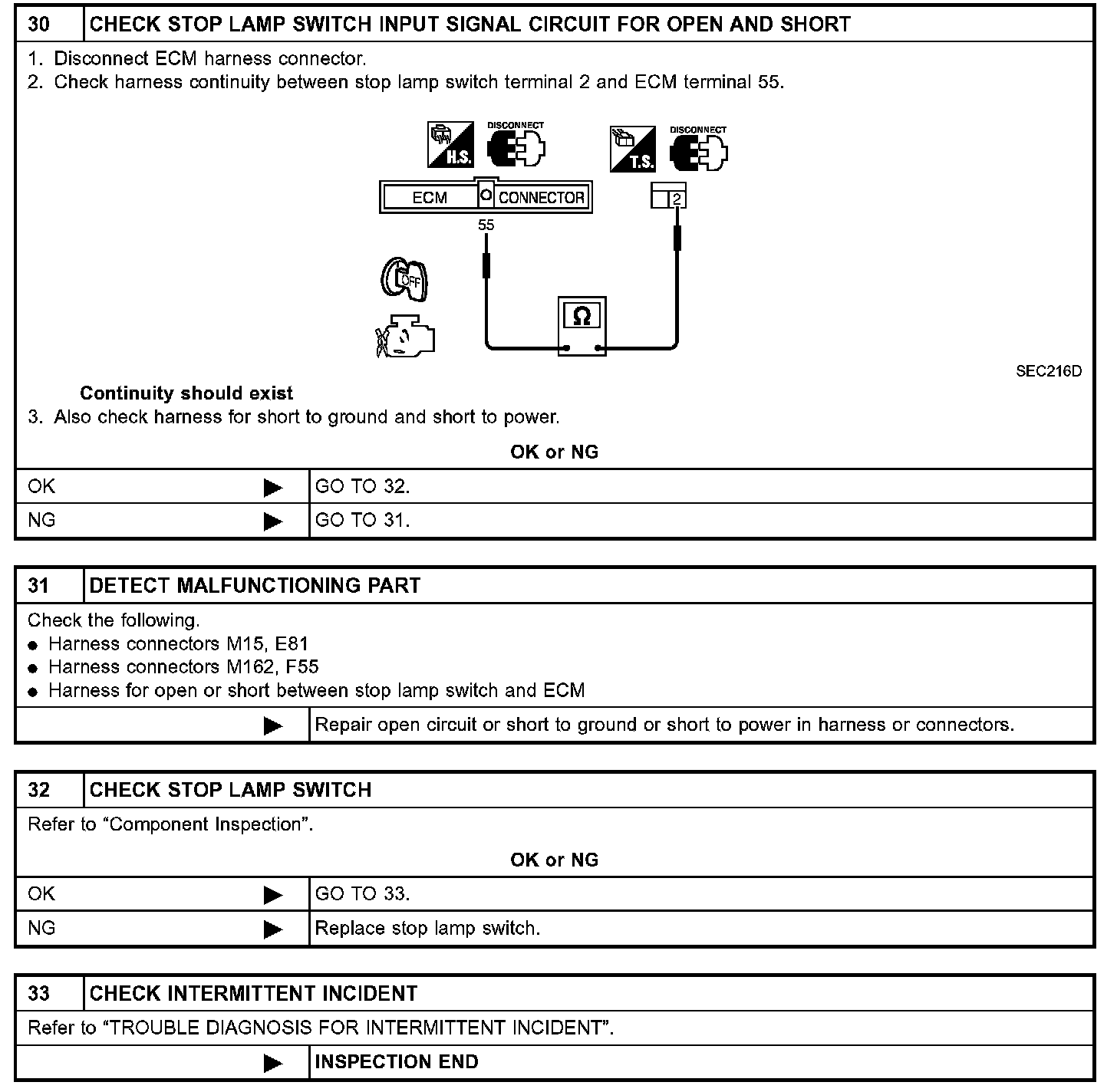

Step 30 - 33:
