Home
>>
Nissan-Datsun
>>
2002
>>
Maxima GXE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Cruise Control
>>
Brake Switch (Cruise Control)
>>
Diagrams
>>
Electrical Diagrams
>>
EC-ASCBOF
EC-ASCBOF

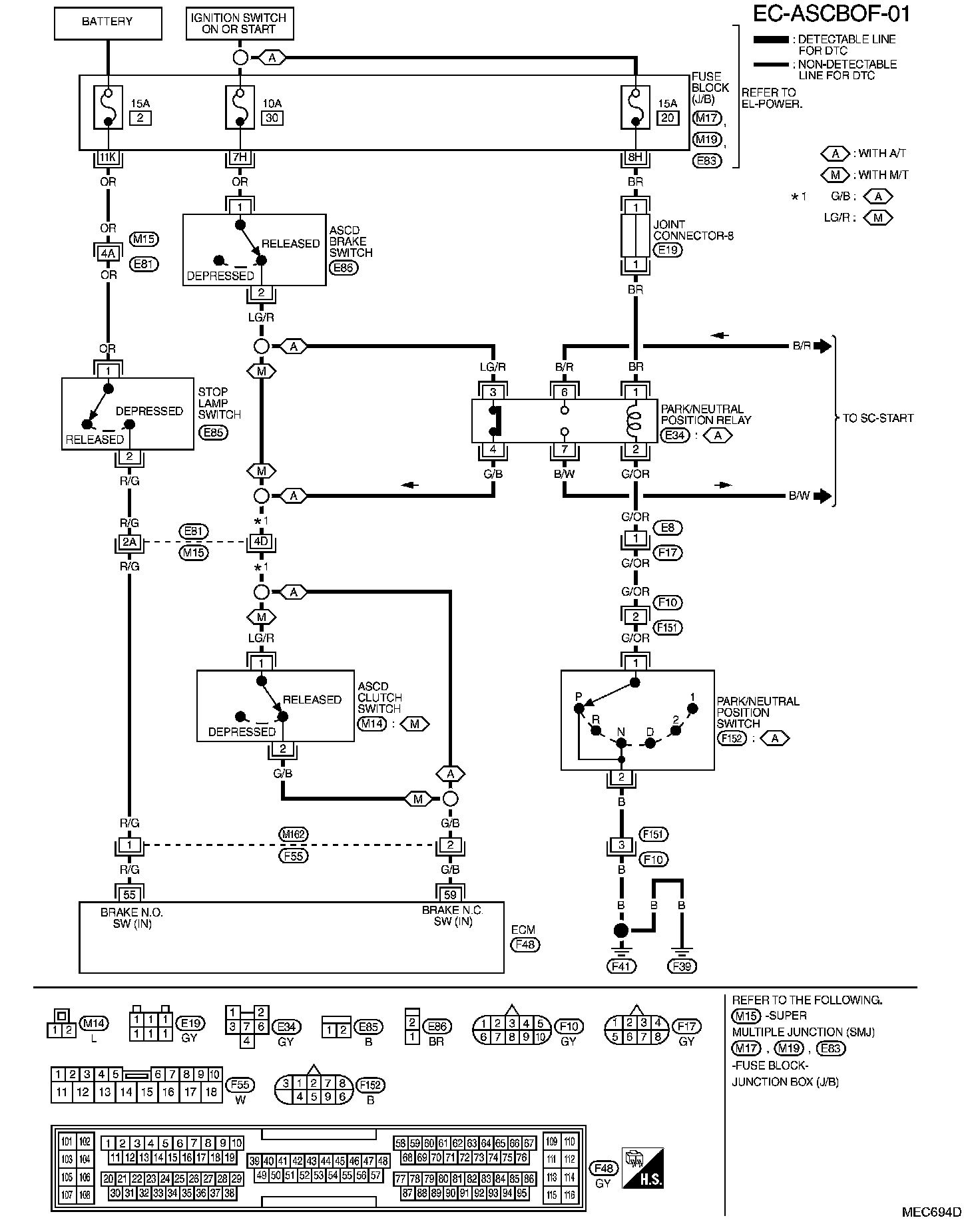

EC-ASCBOF-01:
