Brake Switch (Cruise Control): Description and Operation

ASCD BRAKE SWITCH




Component Description

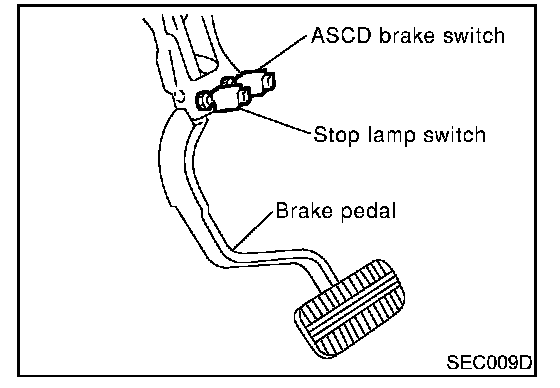

When depressing the brake pedal, ASCD brake switch is turned OFF and stop lamp switch is turned ON.

ECM detects the state of the brake pedal by this two kinds of input (ON/OFF signal).

Refer to Cruise Control/Description for the ASCD function.
