Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Steering >> Power Steering Fluid Heater Relay >> Diagrams >> Electrical Diagrams

Electrical Diagrams

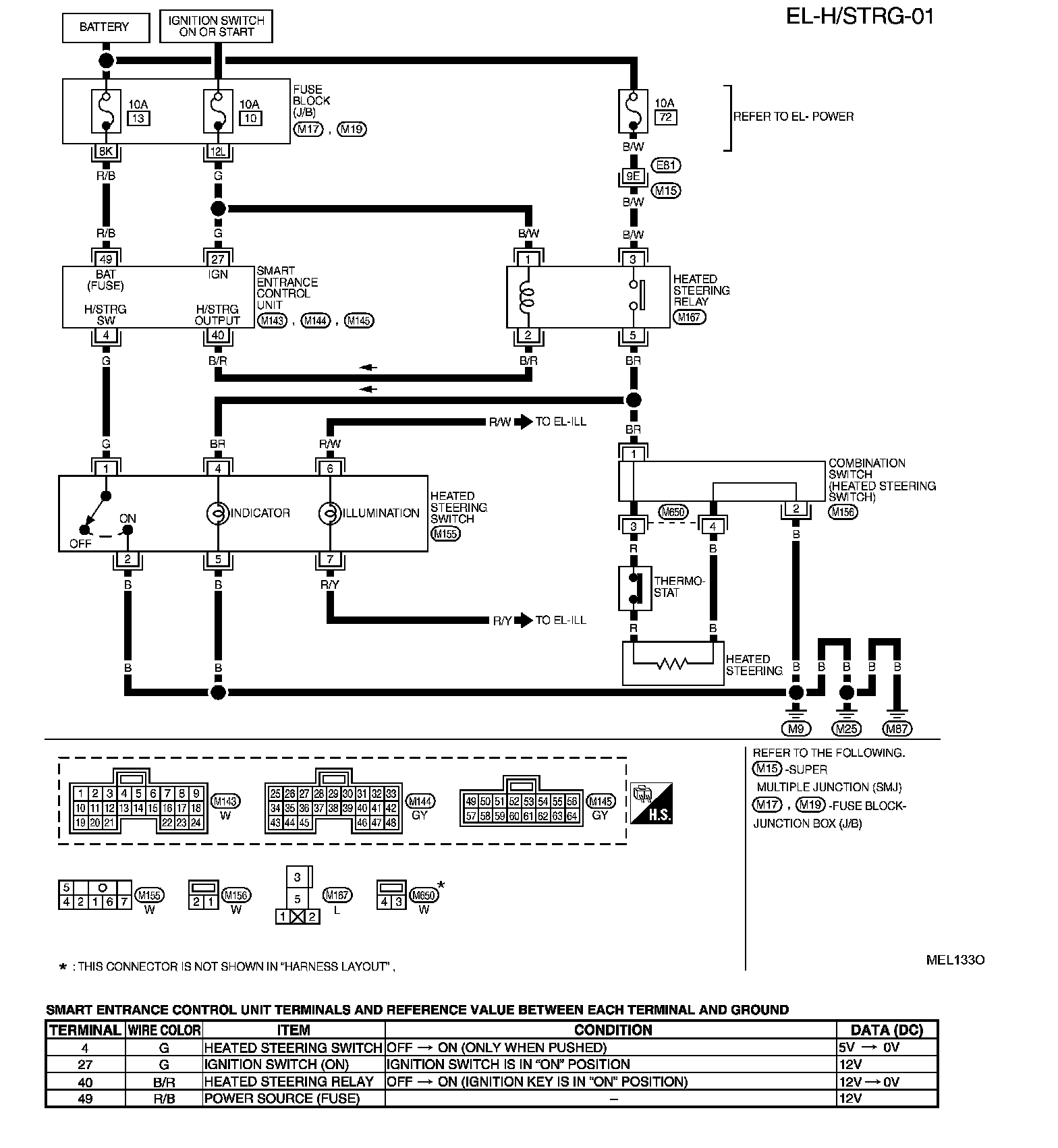

EL-H/STRG-01:
