Compressor Clutch Relay: Locations

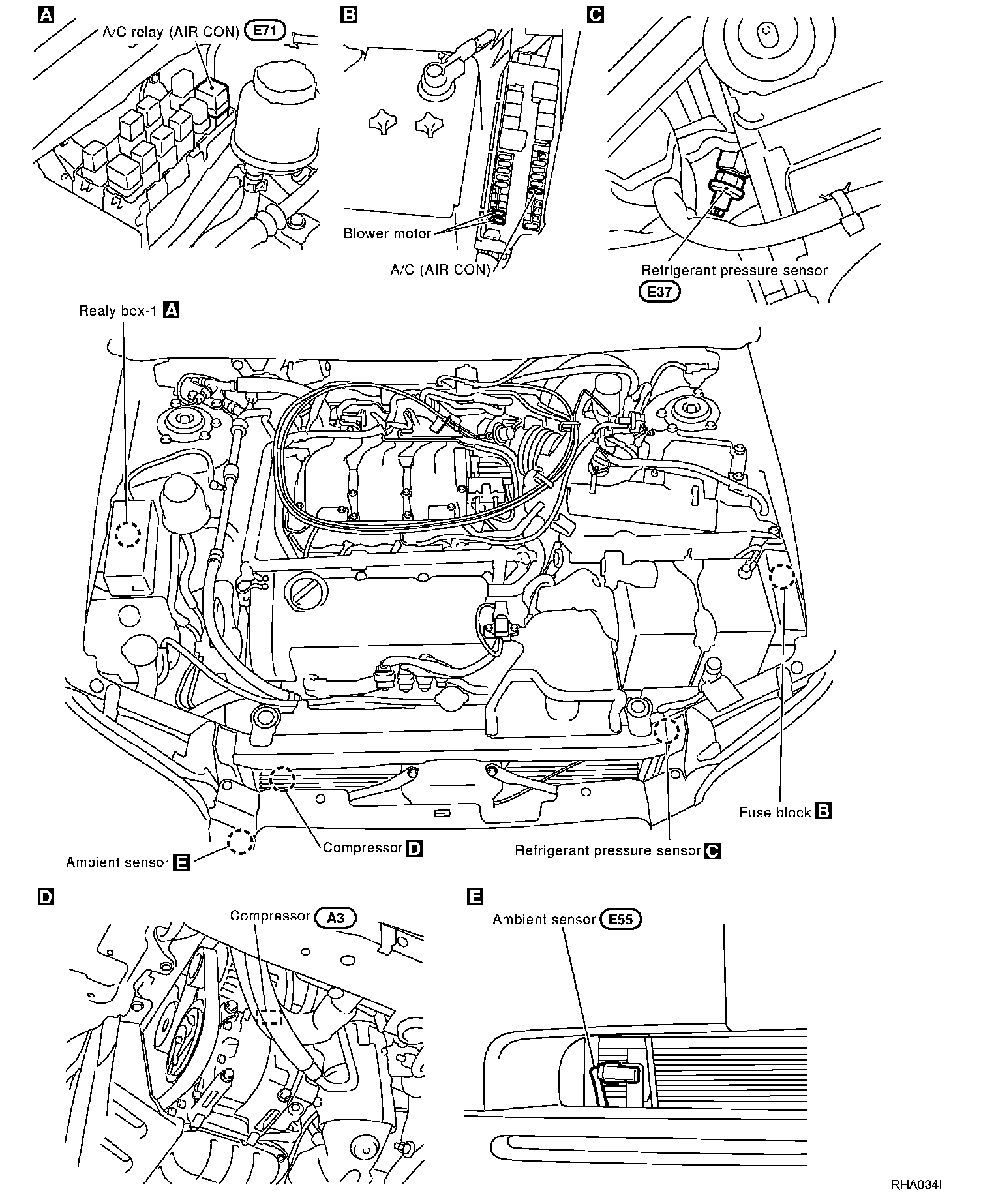

Engine Compartment / With Auto A/C:

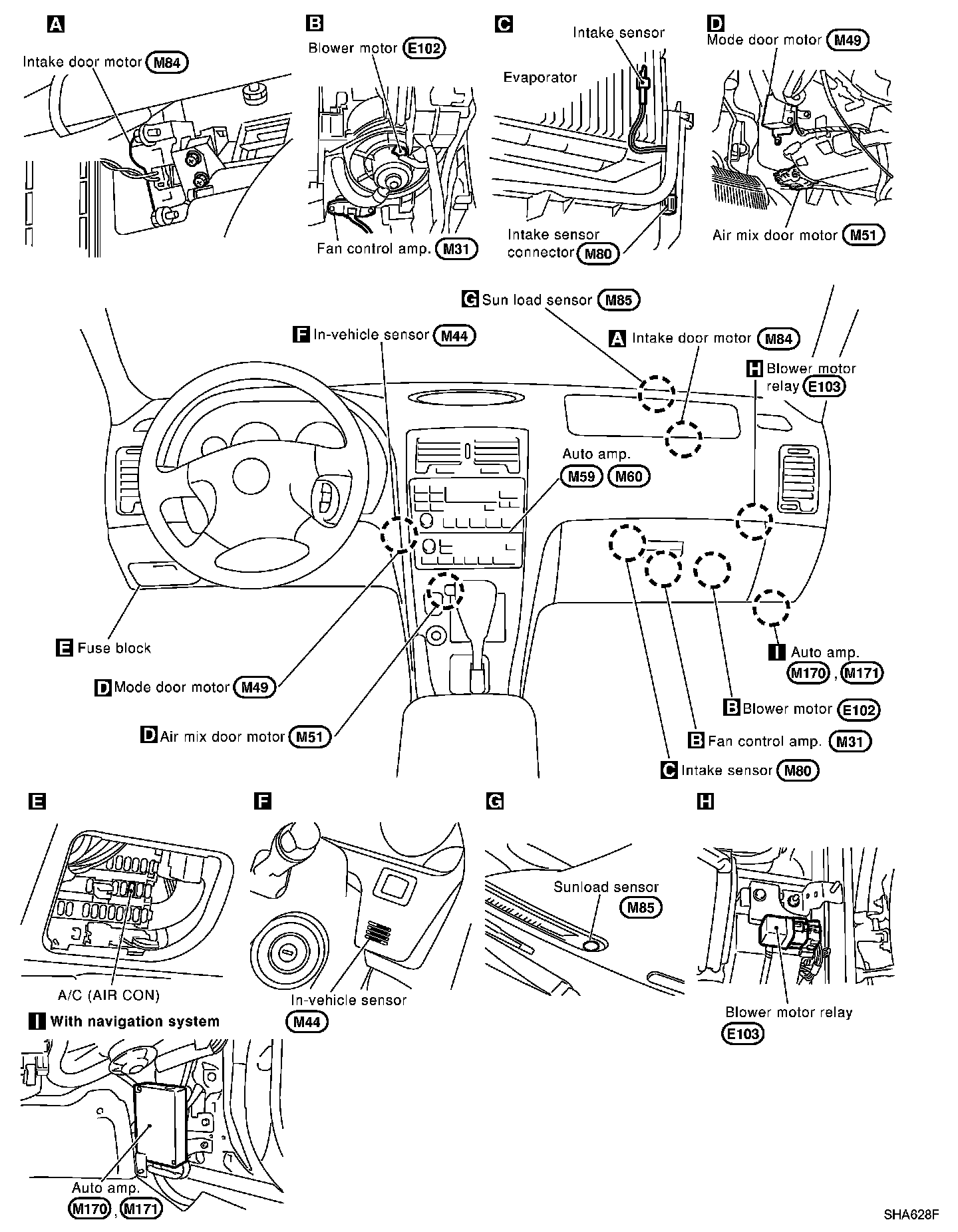

Passenger Compartment / With Auto A/C:



Engine Compartment Locations Overall View:
