Large Shock. N->R Position

5. Large Shock. N -> R Position

SYMPTOM: There is large shock when changing from N to R position.

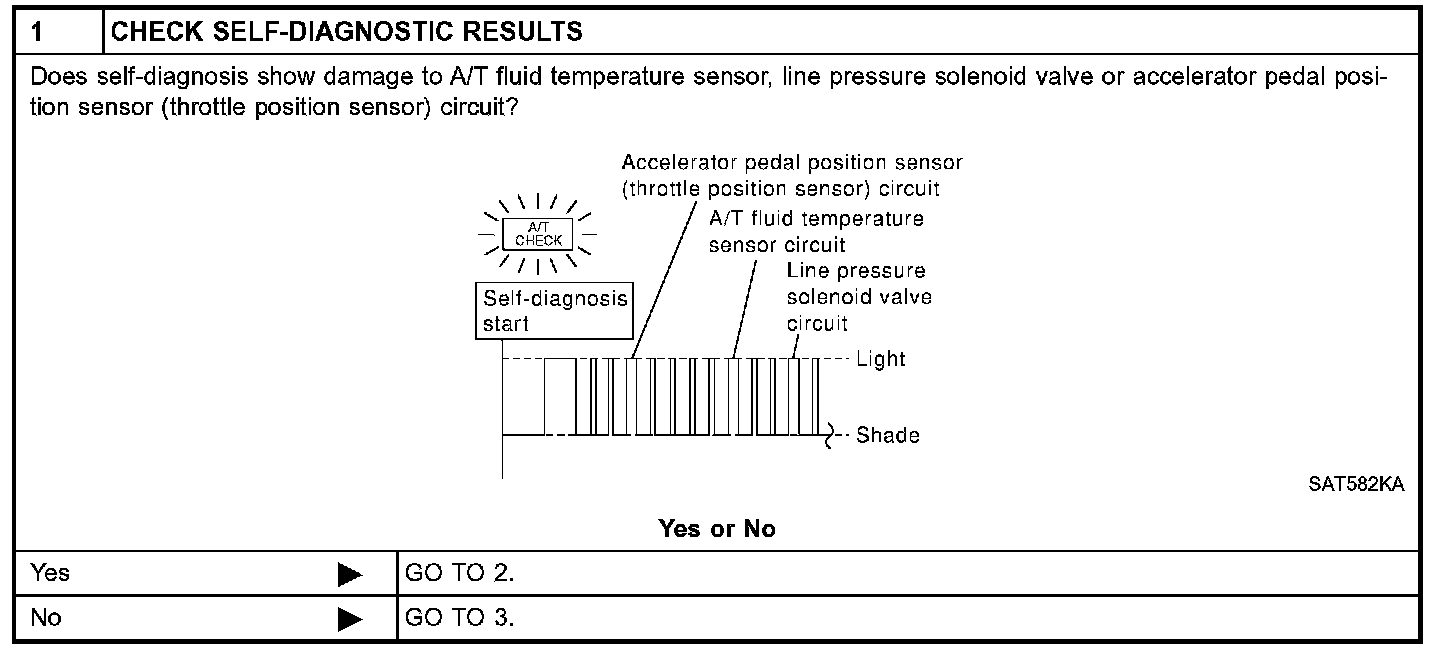

1 of 7

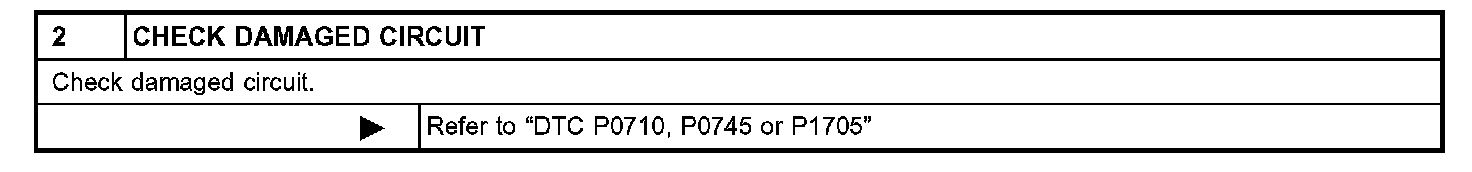

2 of 7





3 of 7

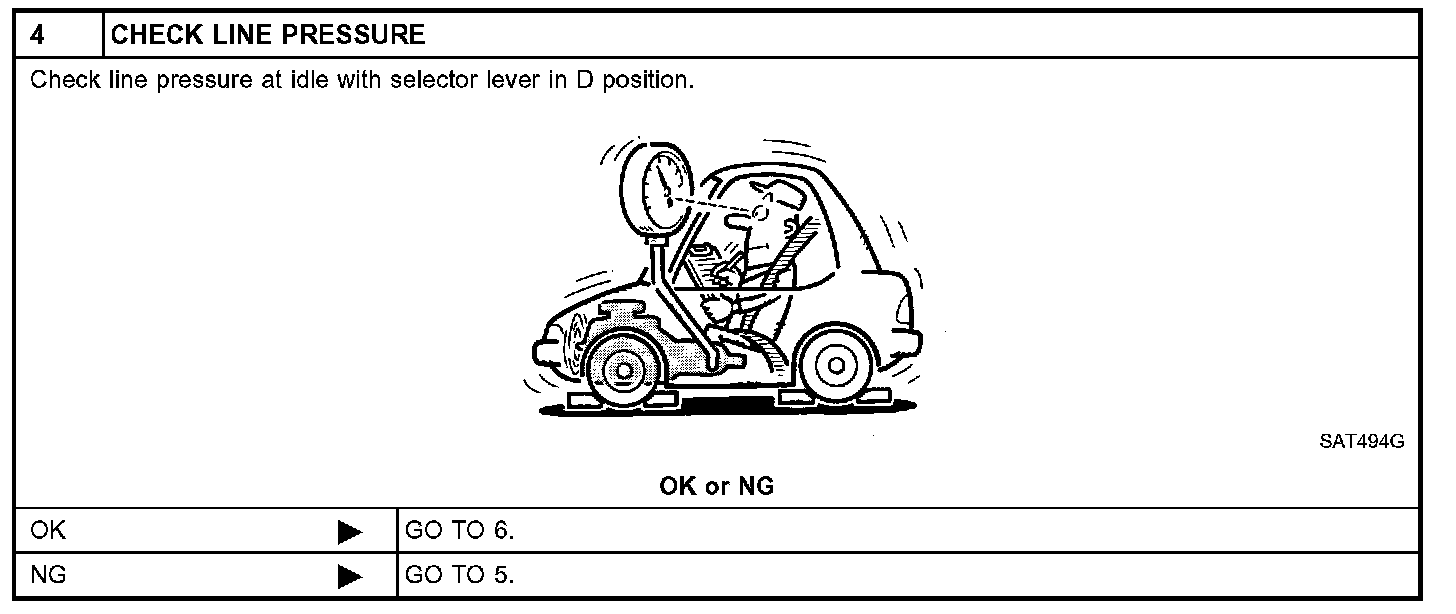

4 of 7

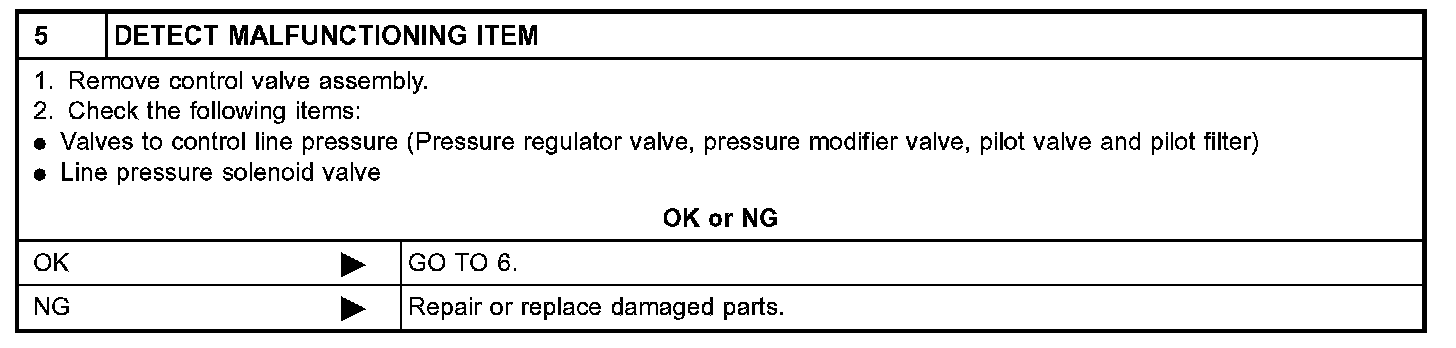

5 of 7

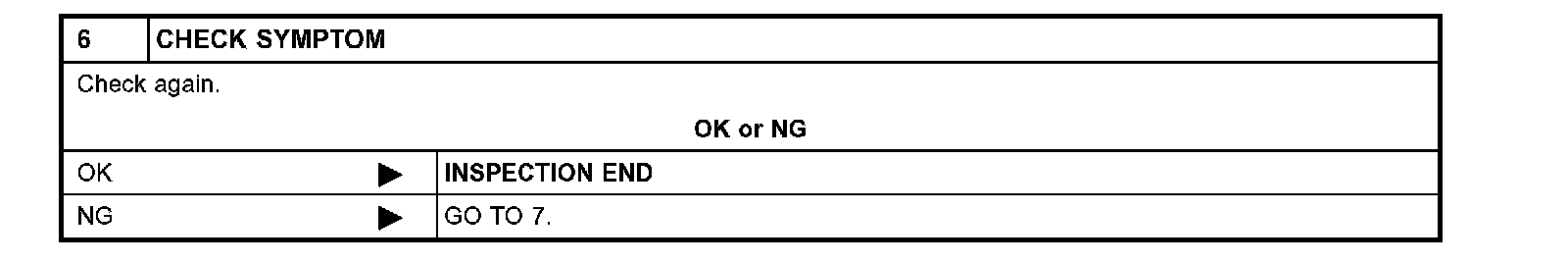

6 of 7

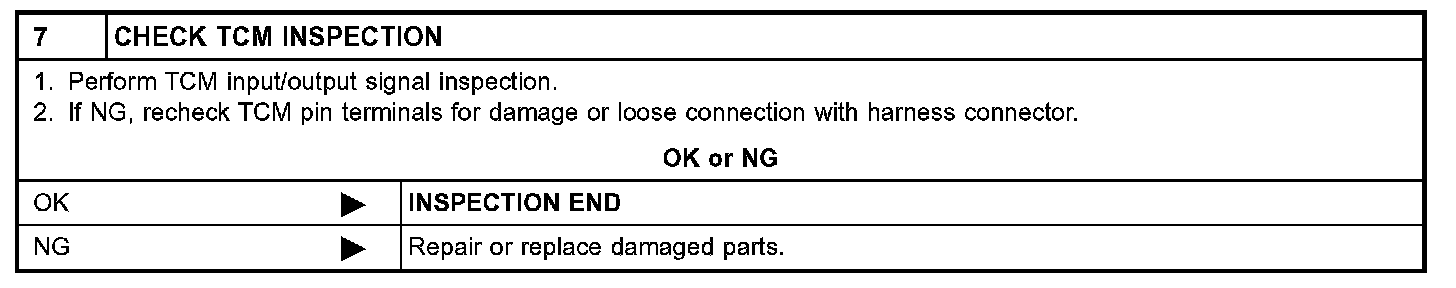

7 of 7
