A/T Does Not Shift: D2->D3

10. A/T Does Not Shift: D2 -> D3

SYMPTOM: A/T does not shift from D2 to D3 at the specified speed.

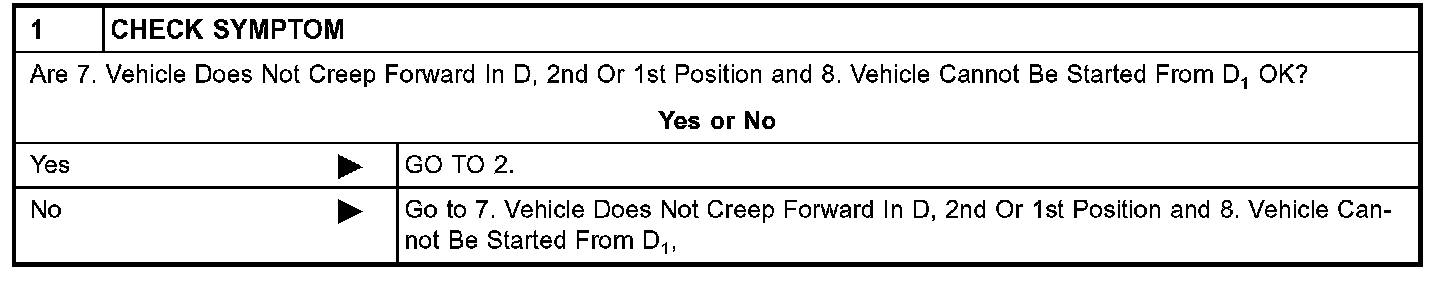

1 of 8

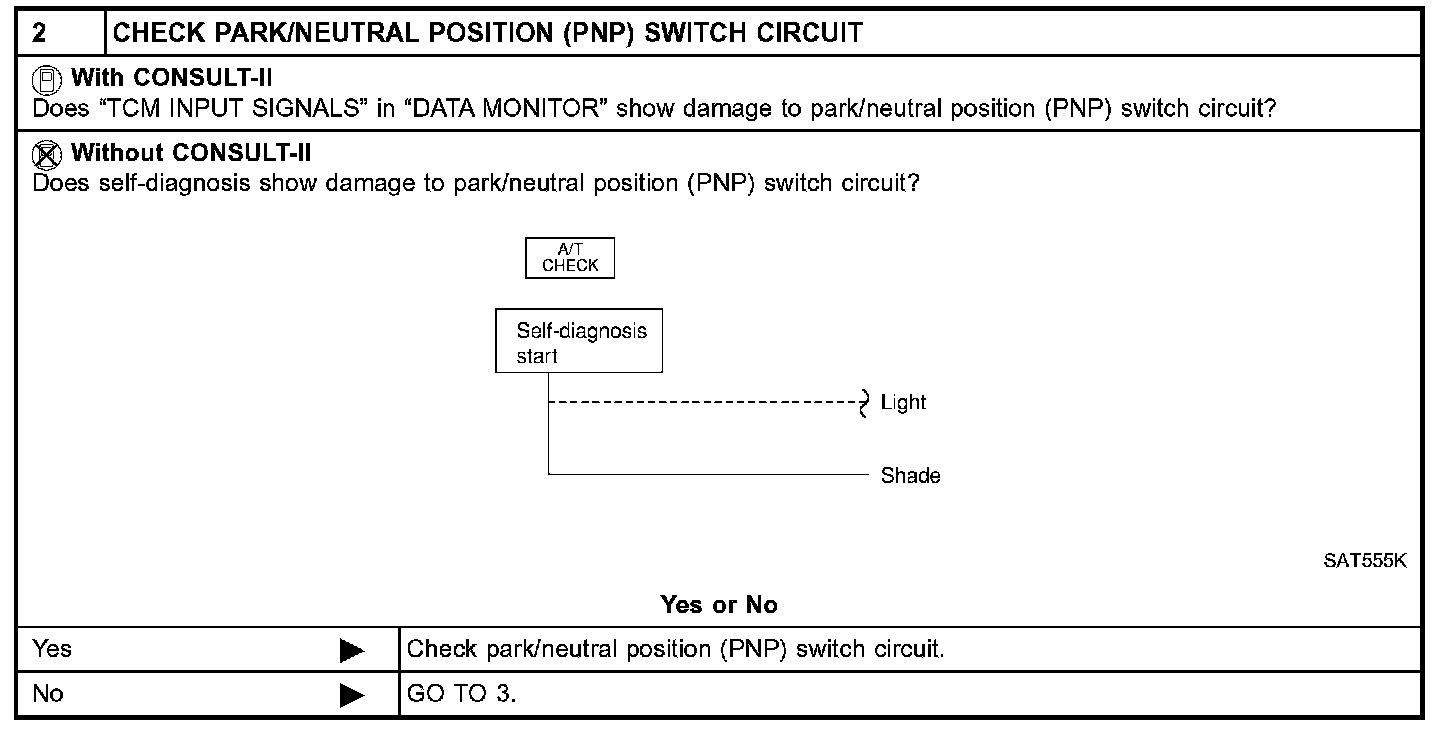

2 of 8

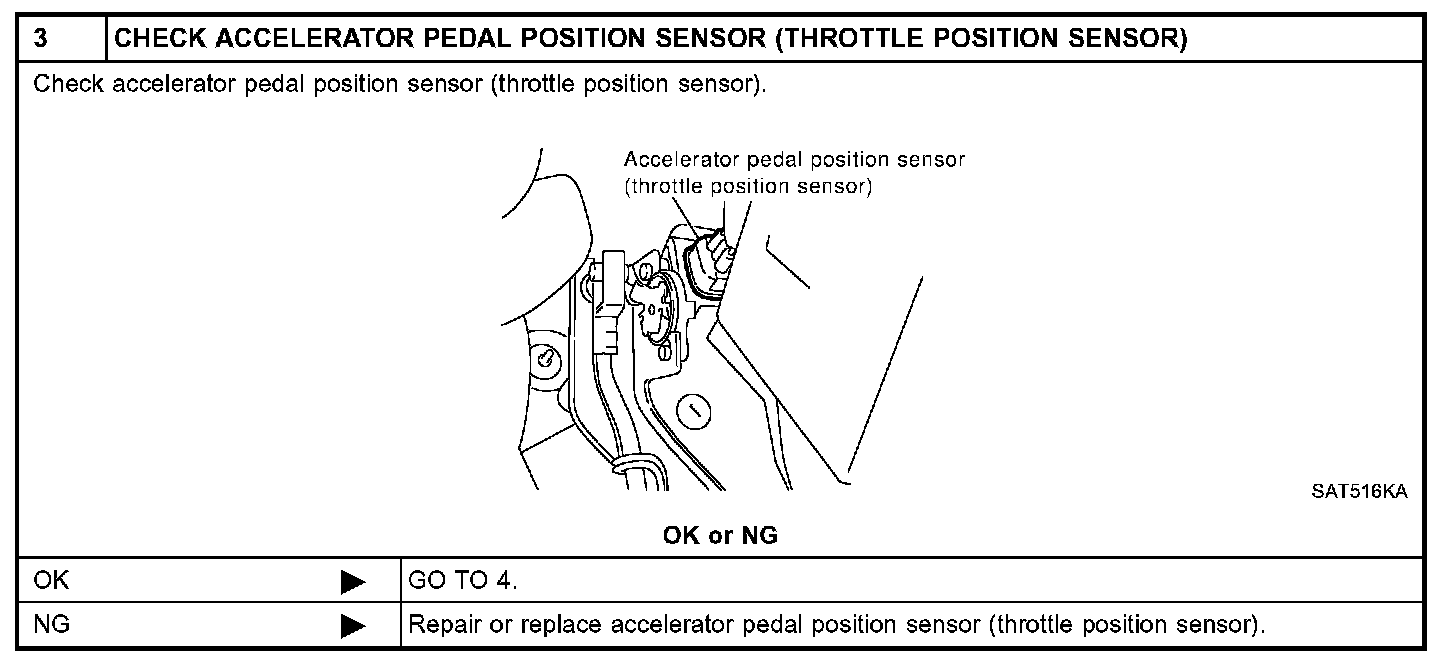

3 of 8

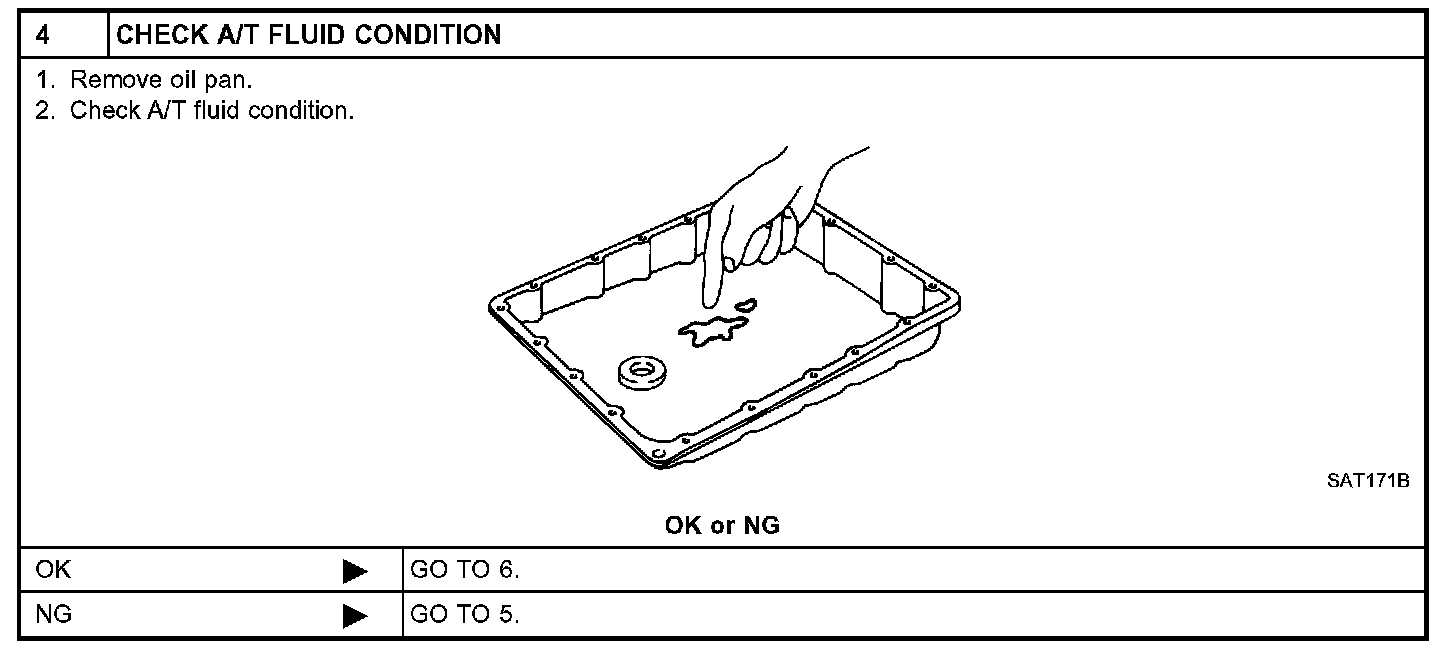

4 of 8

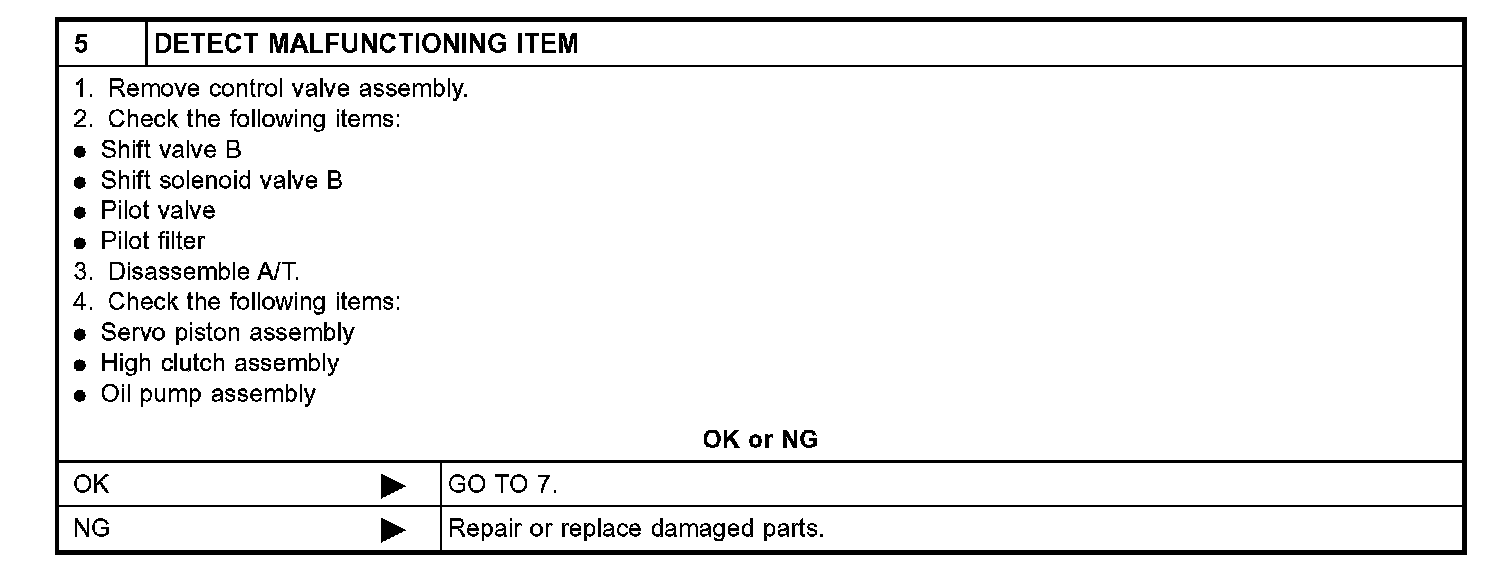

5 of 8

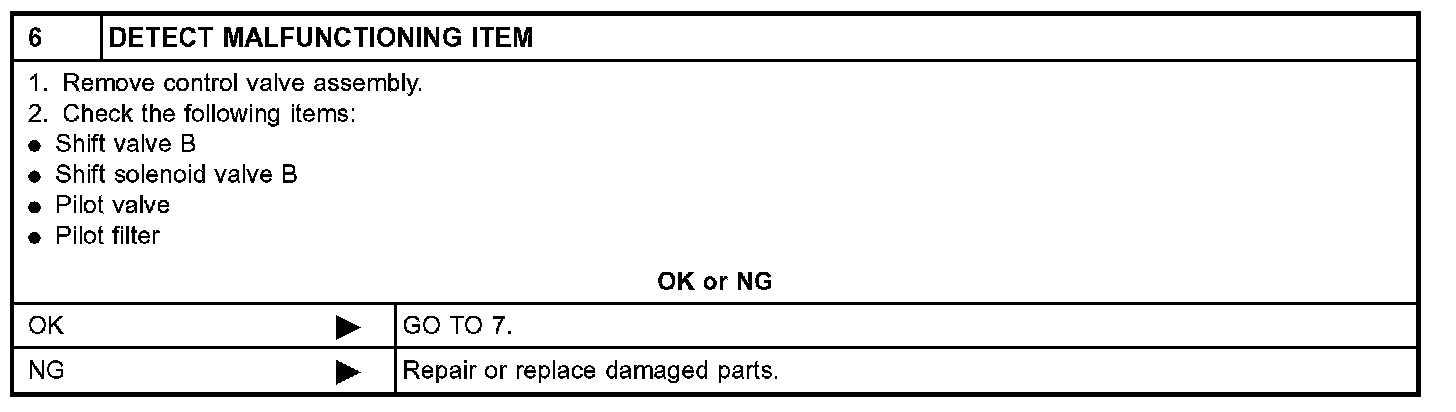

6 of 8

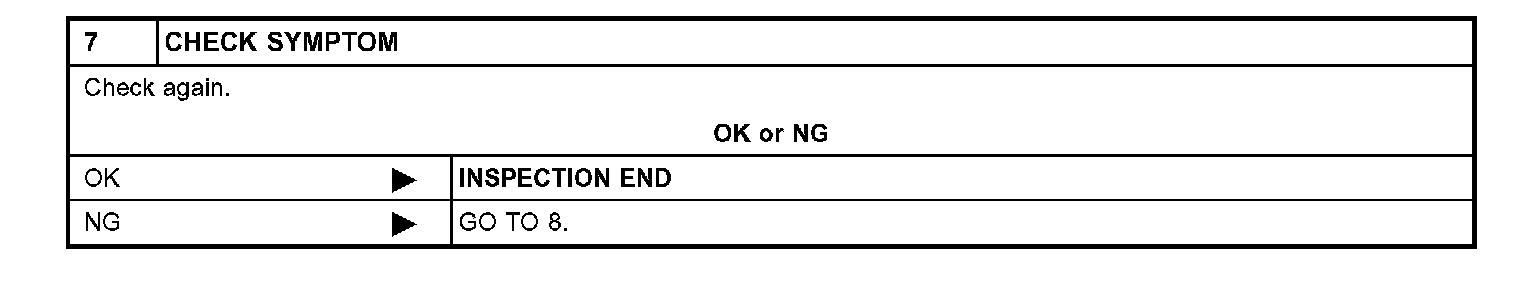

7 of 8

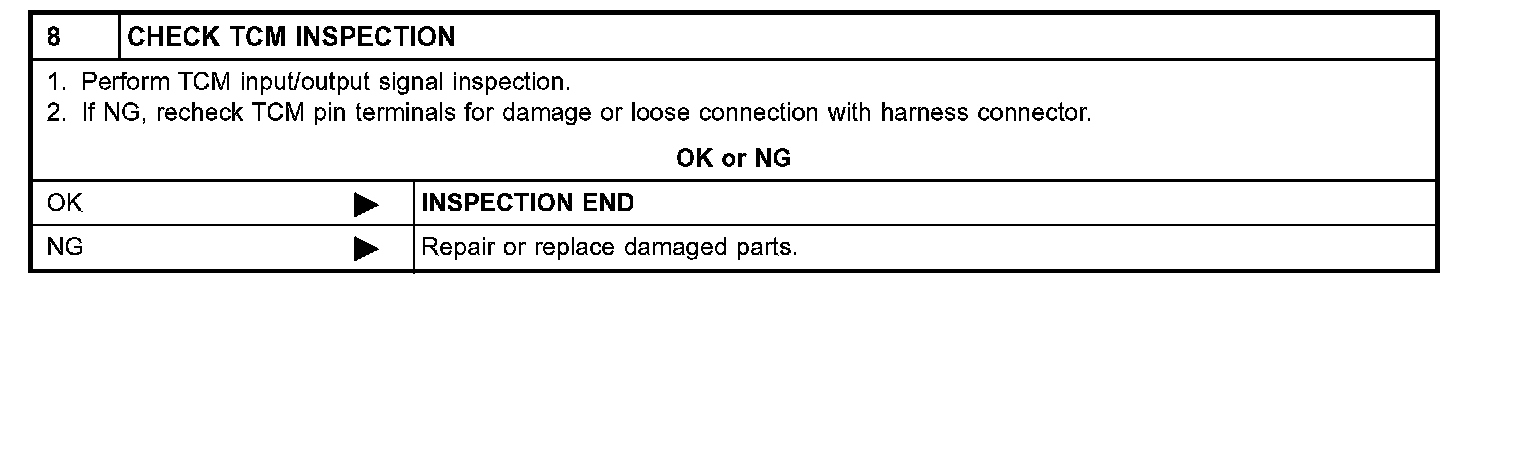

8 of 8
