Without Scan Tool

Diagnostic Procedure Without CONSULT-II
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to "Generic Scan Tool (GST)".

OBD-II SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Refer to "Malfunction Indicator Lamp (MIL)".

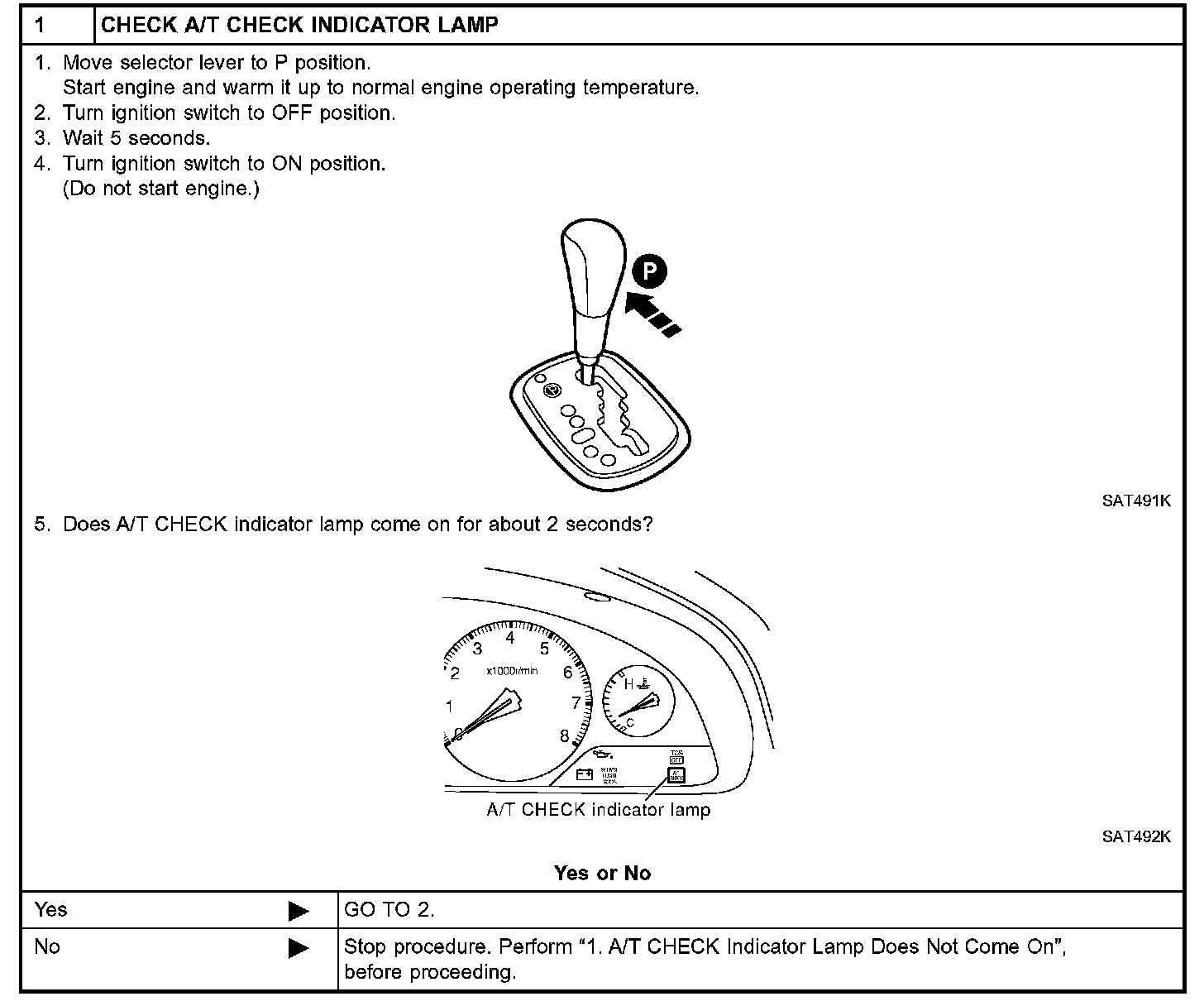

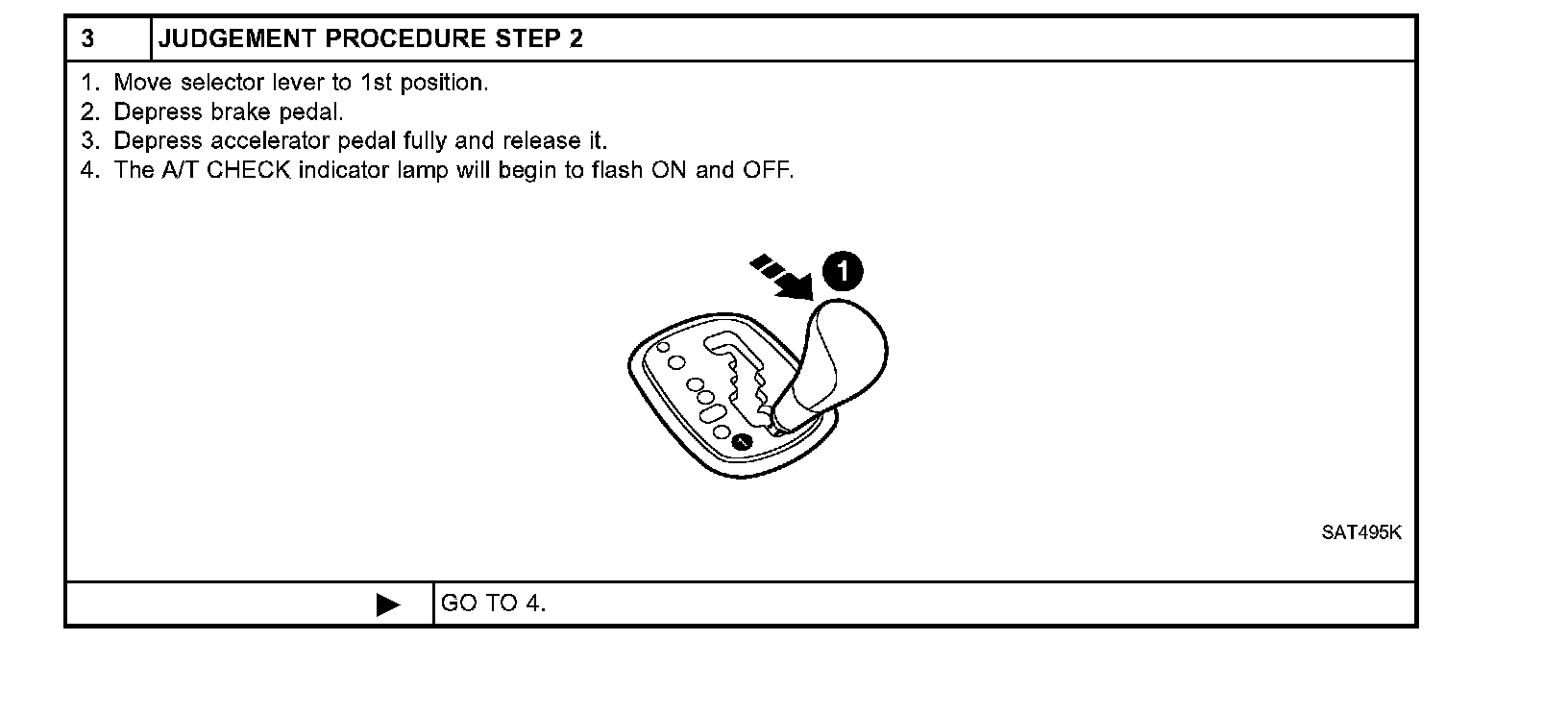

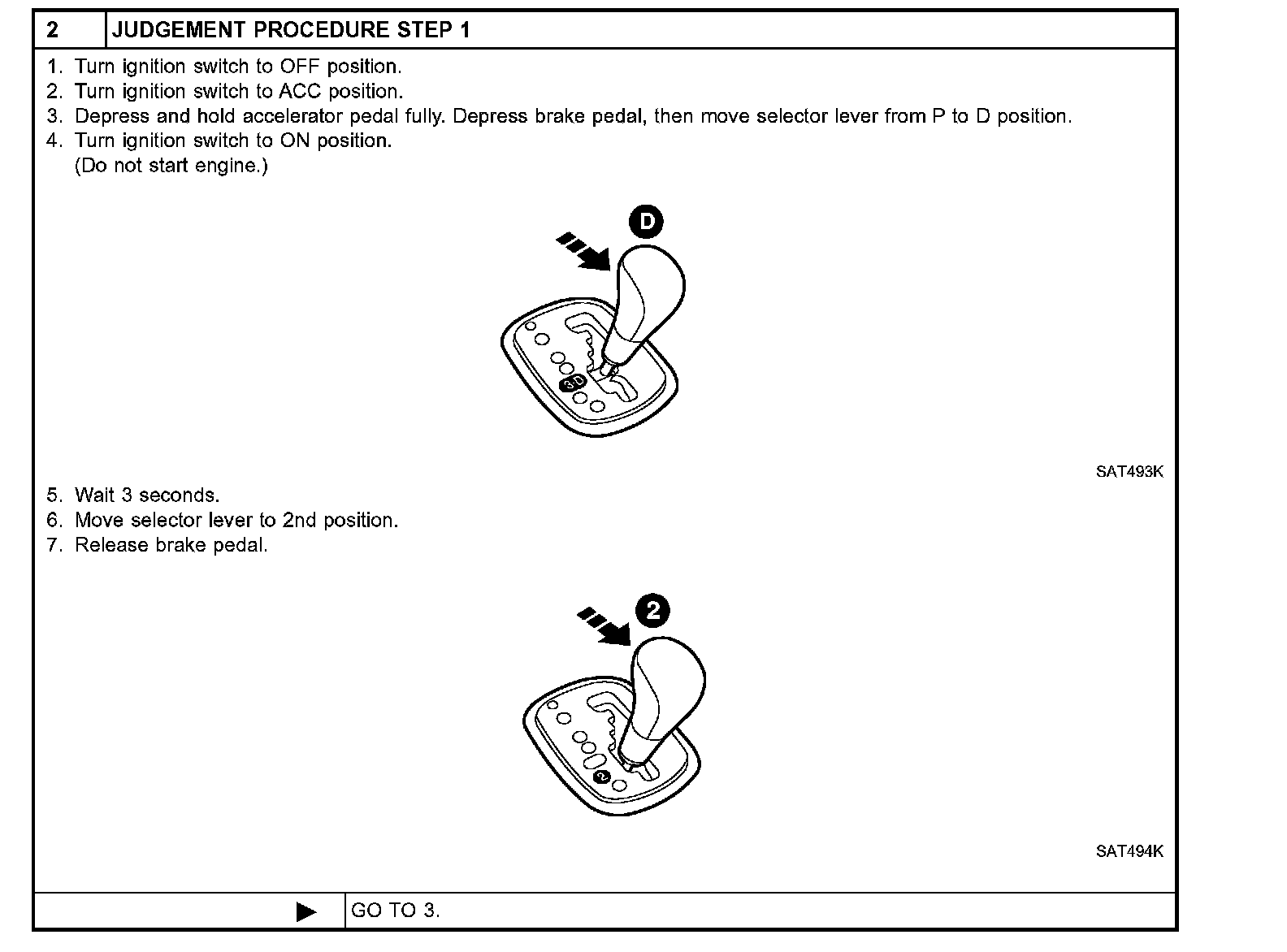

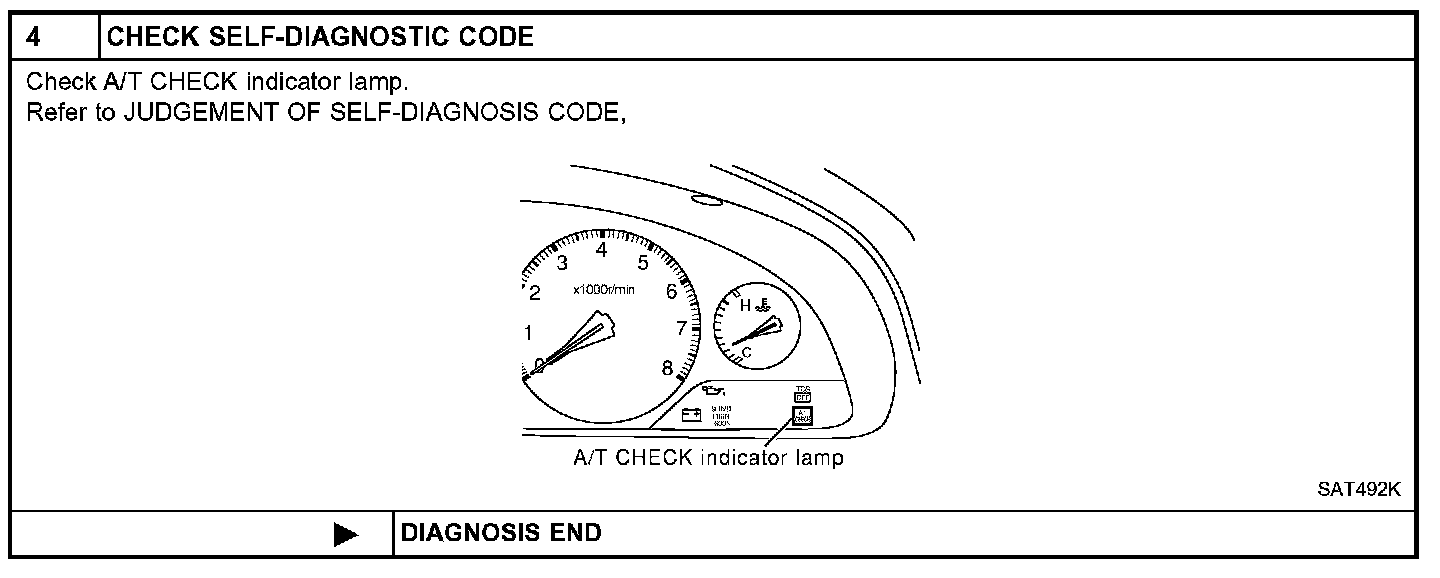

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)





1 of 4





2 of 4





3 of 4





4 of 4

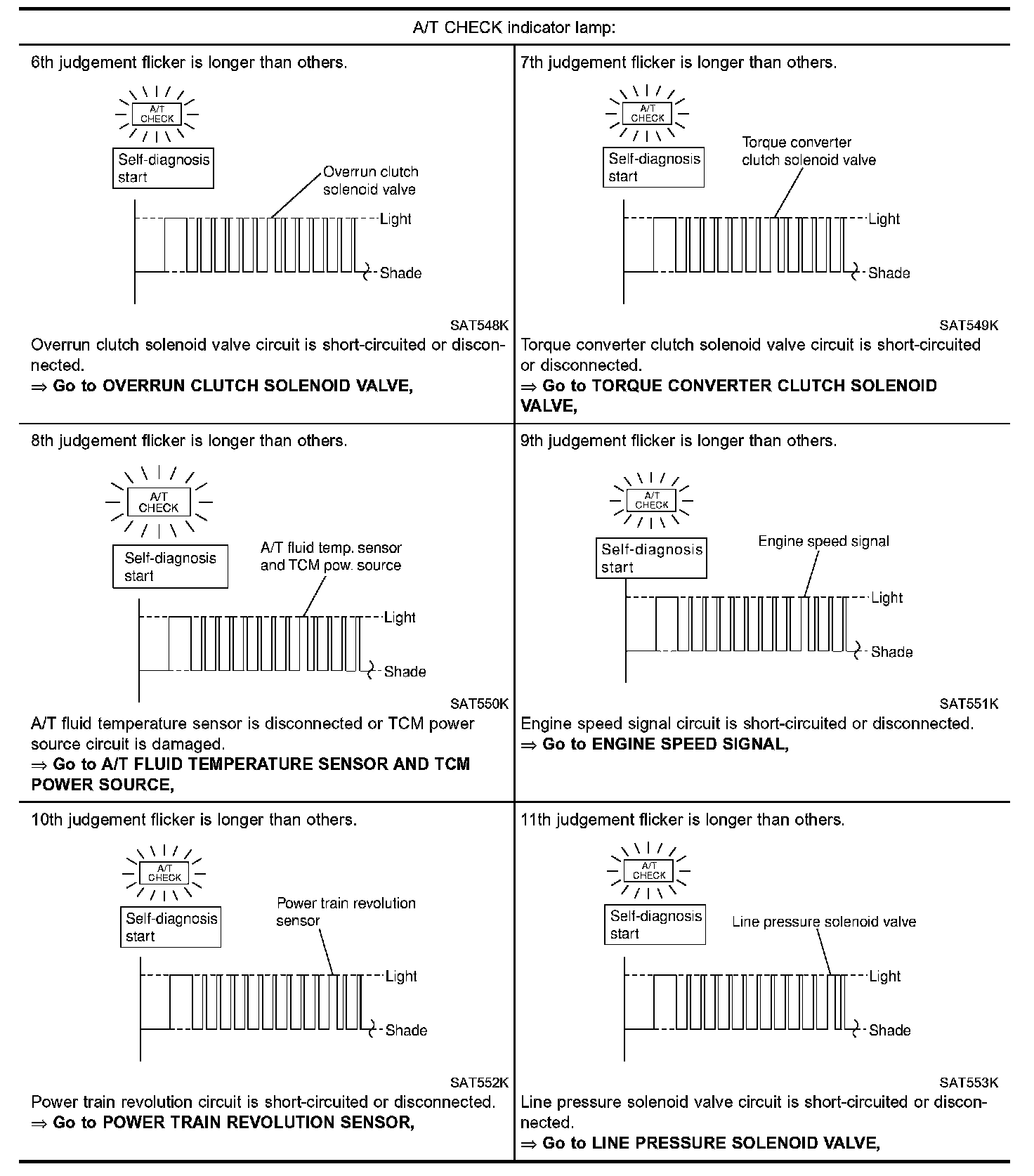

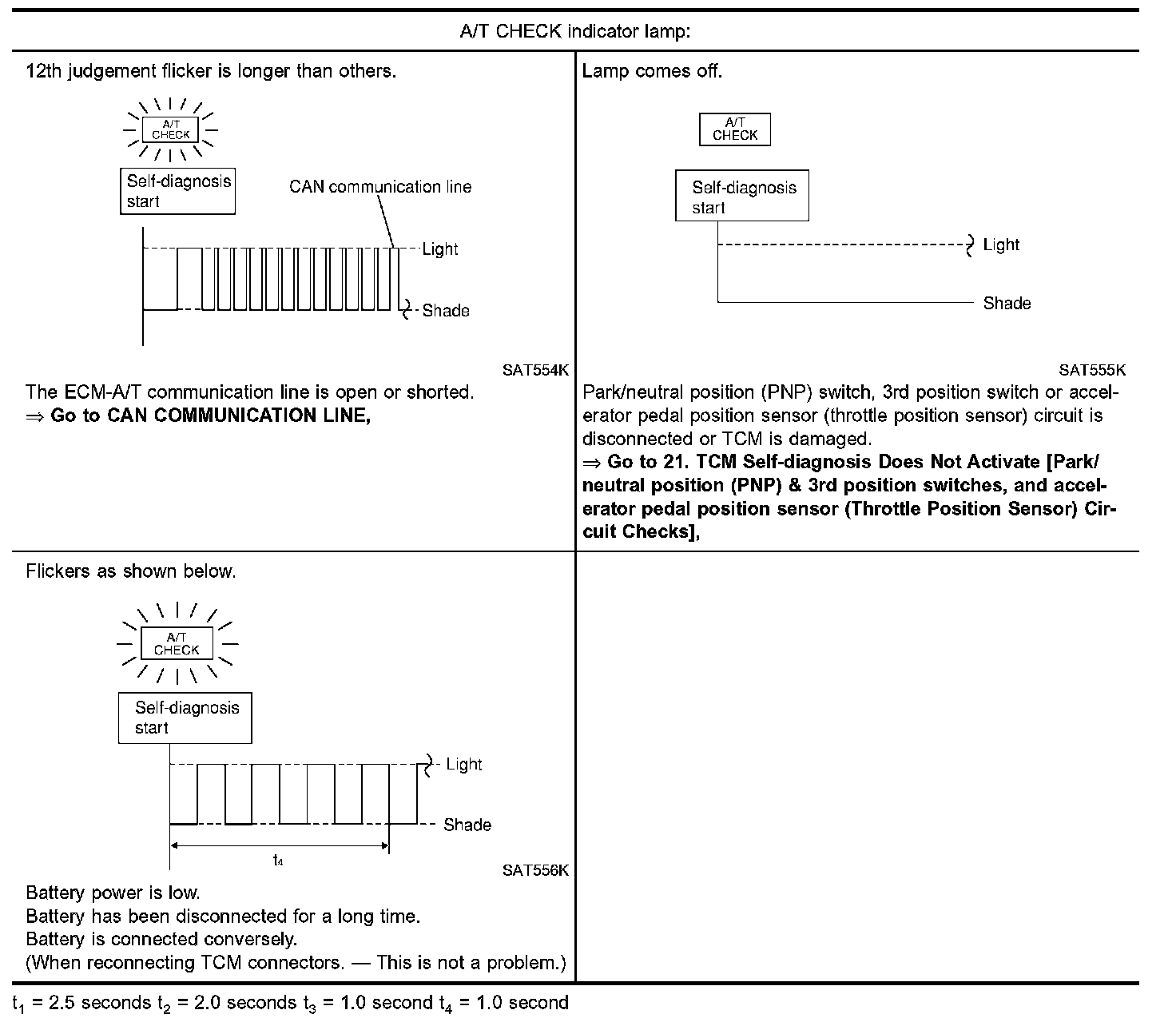

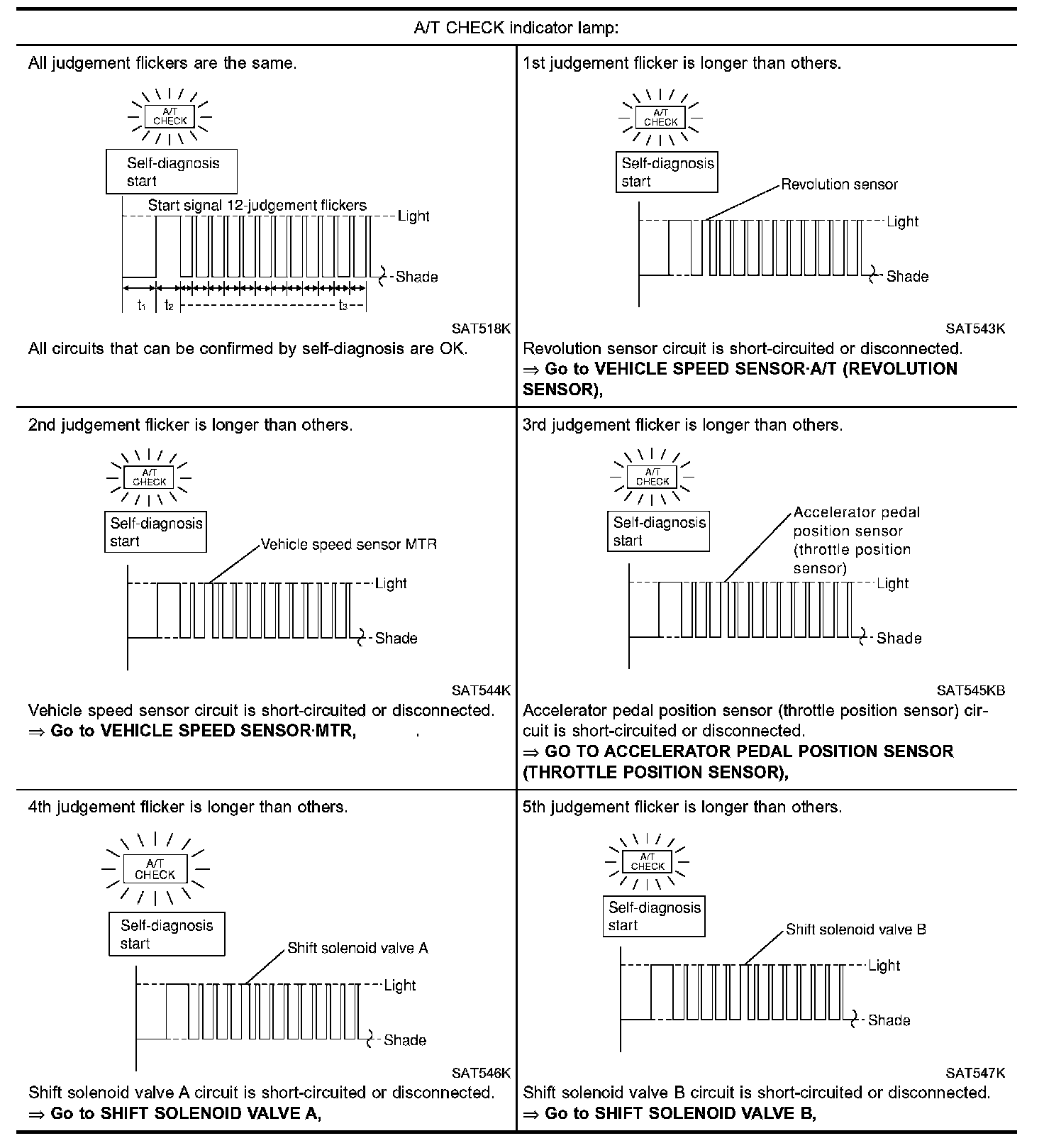

JUDGEMENT OF SELF-DIAGNOSIS CODE





1 of 3





2 of 3





3 of 3
