Batt/Fluid Temp (Fluid Temp Sens. Circuit & TCM Pwr. Source)

Description

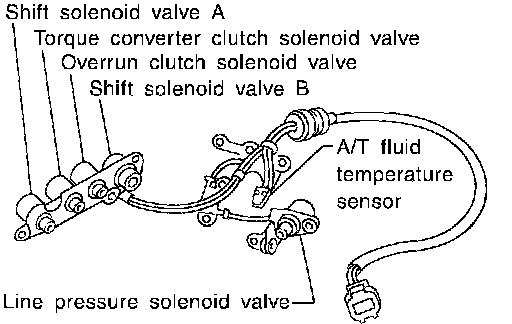

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

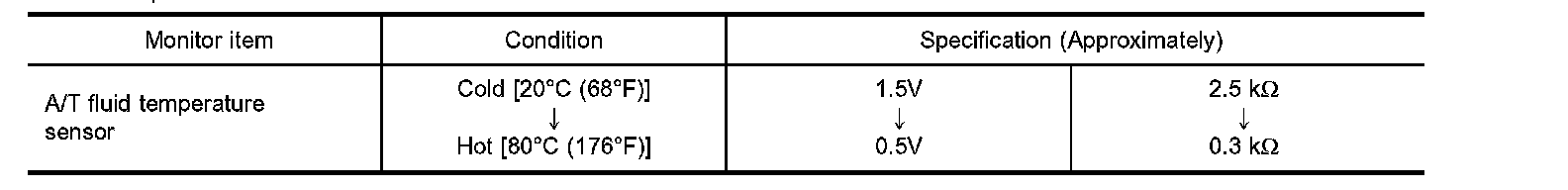

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE





Remarks: Specification data are reference values.

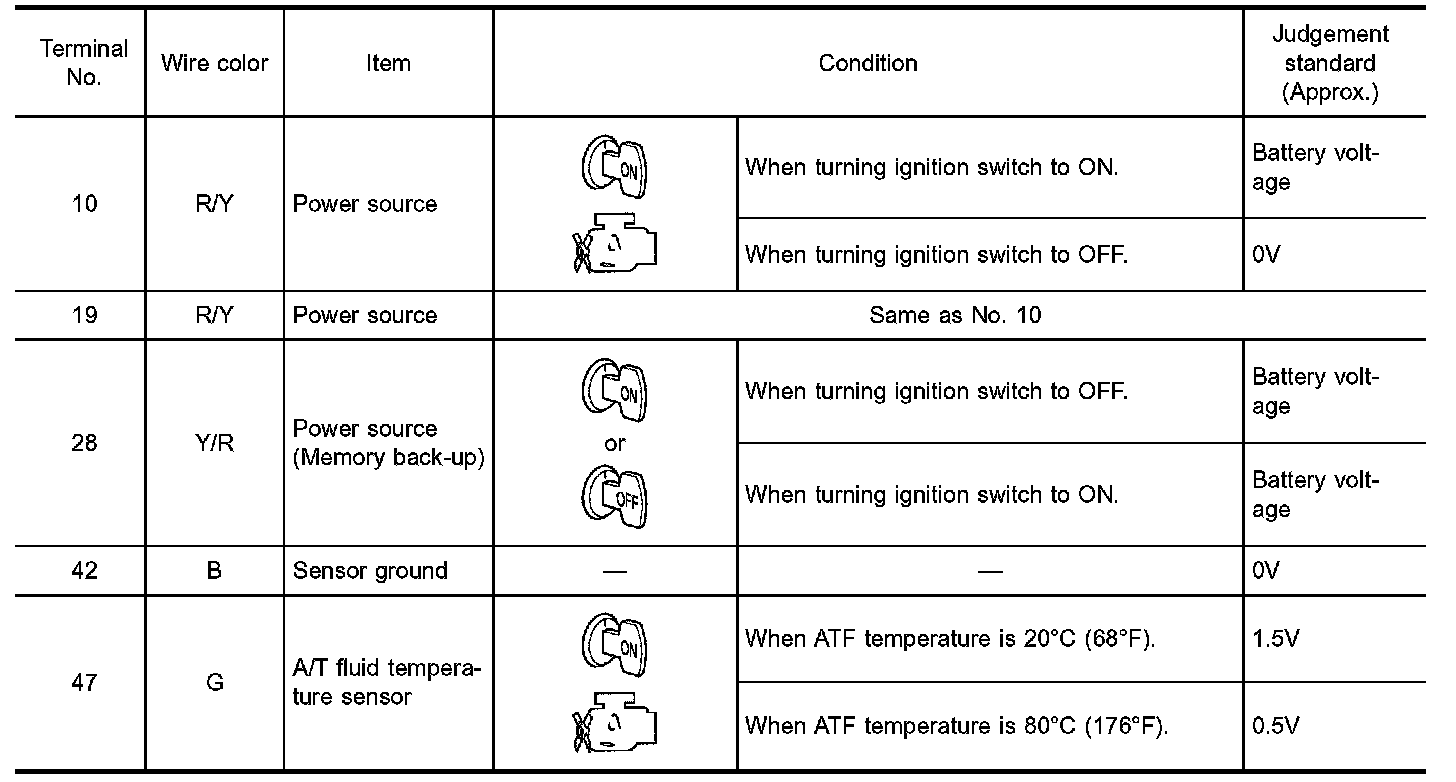

TCM TERMINALS AND REFERENCE VALUE





Remarks Specification data are reference values.

On Board Diagnosis Logic

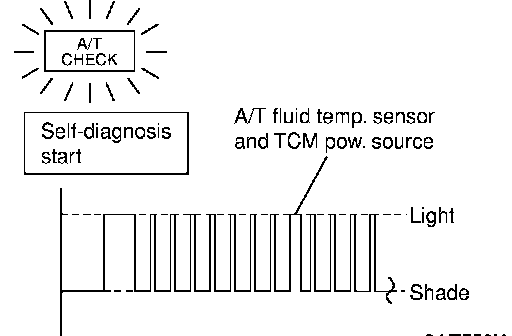

Diagnostic trouble code BATT/FLUID TEMP SEN with CONSULT-II or 8th judgement flicker without CONSULT-II is detected when TCM receives an excessively low or high voltage from the sensor.

Possible Cause
Check the following items.
- Harness or connectors
(The sensor circuit is open or shorted.)
- A/T fluid temperature sensor

Diagnostic Trouble Code (DTC) Confirmation Procedure
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II





1. Start engine.

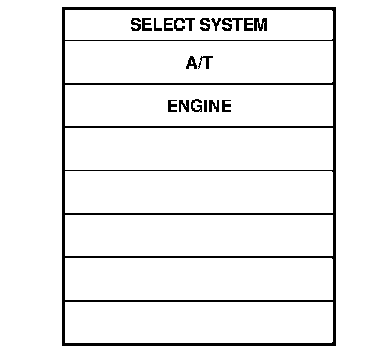

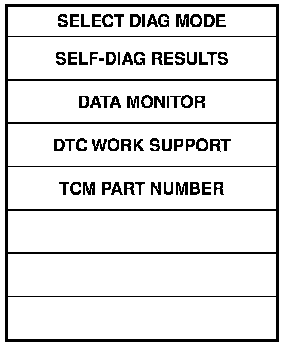

2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

WITHOUT CONSULT-II








1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).
3. Perform self-diagnosis.

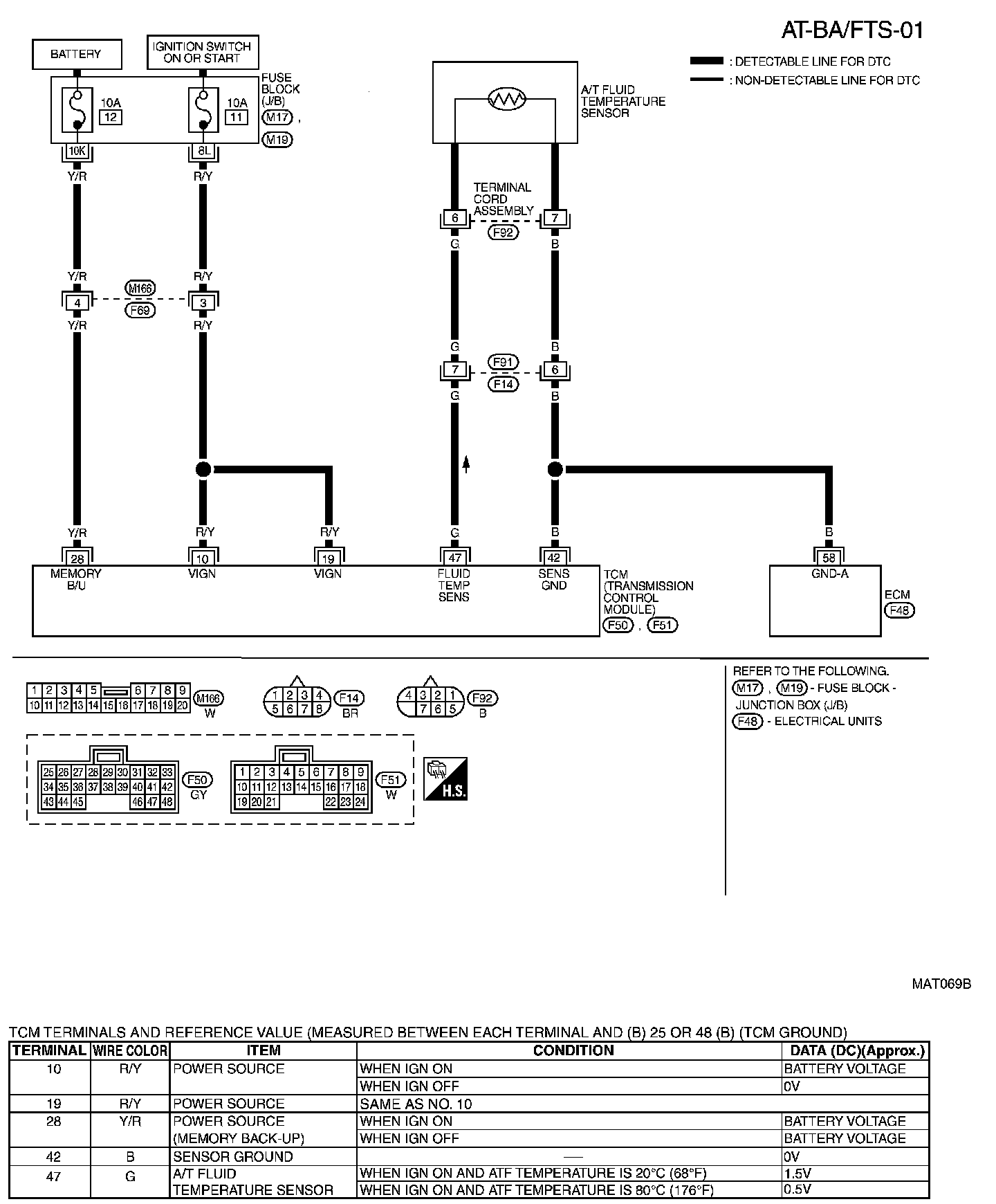

Wiring Diagram-AT-BA/FTS

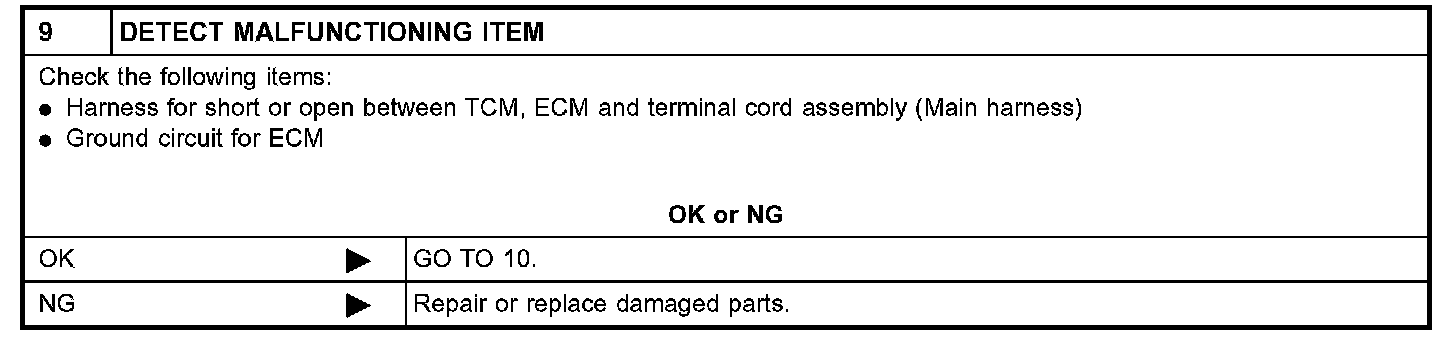

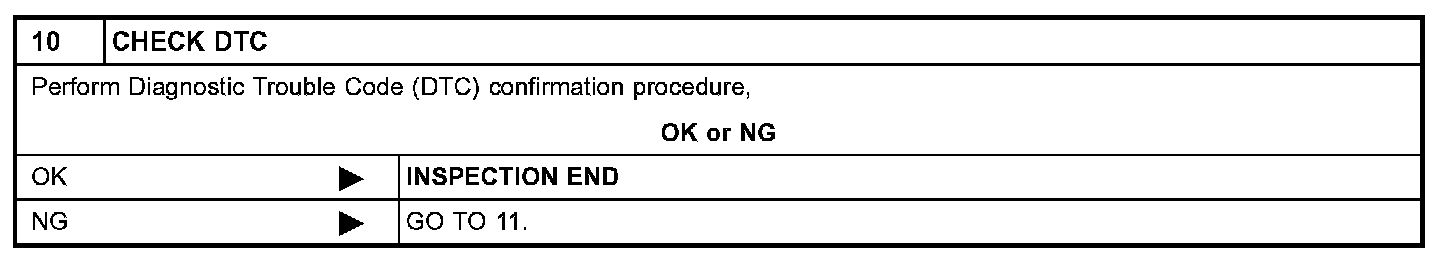

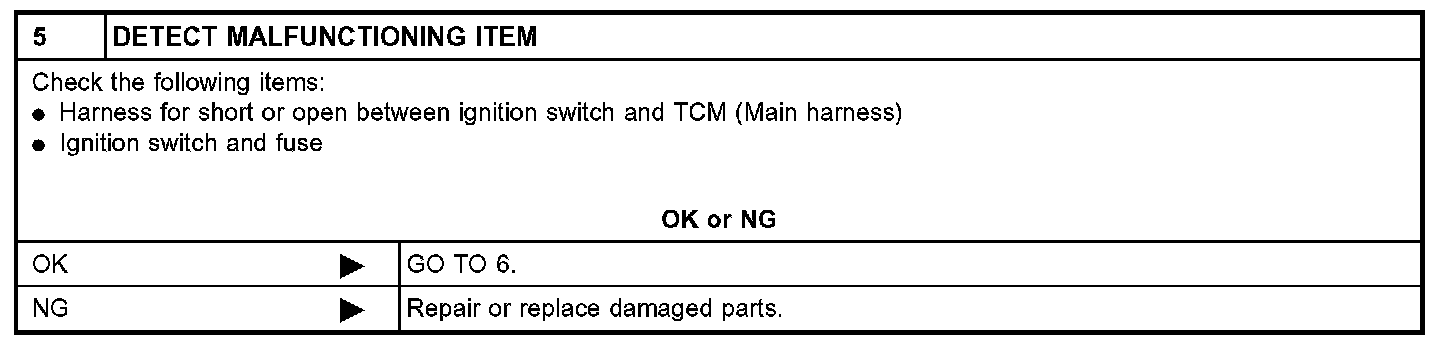

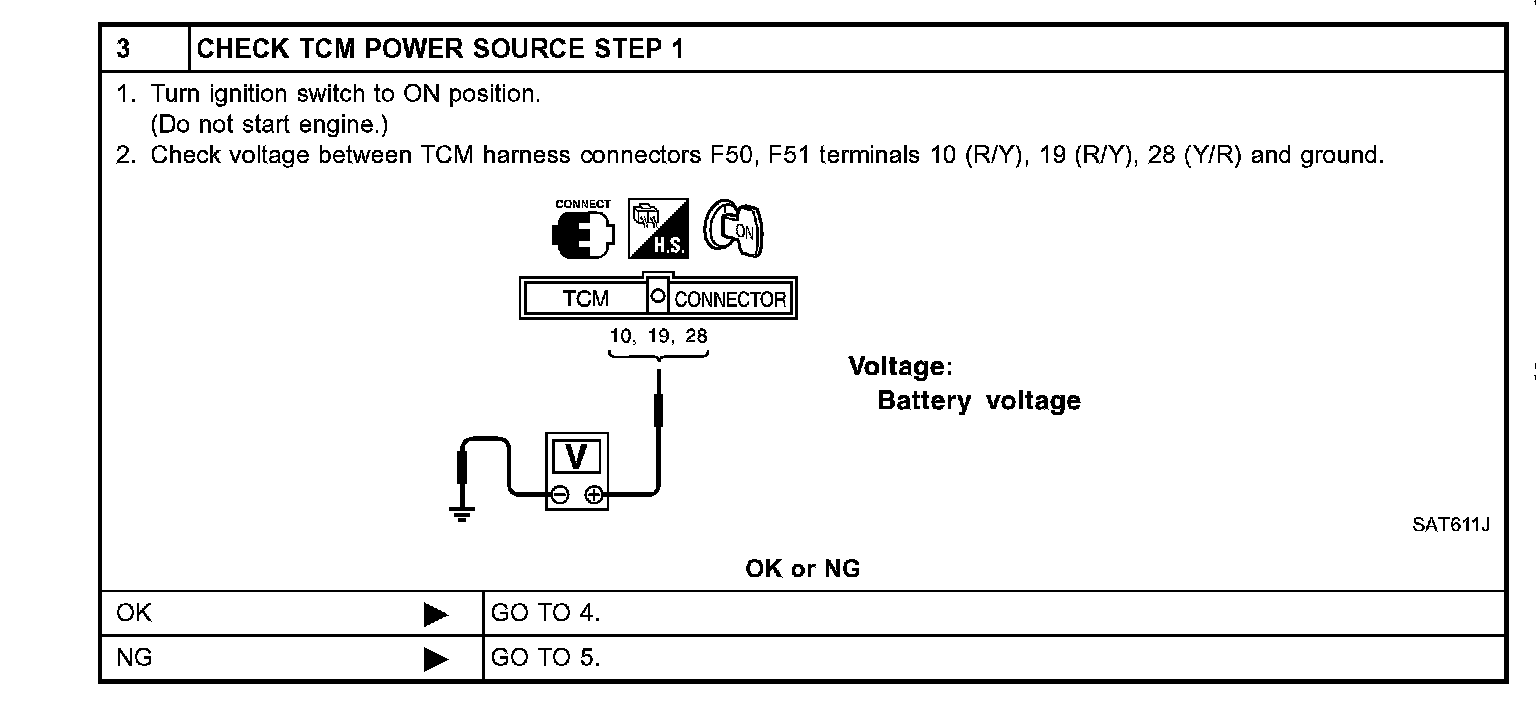

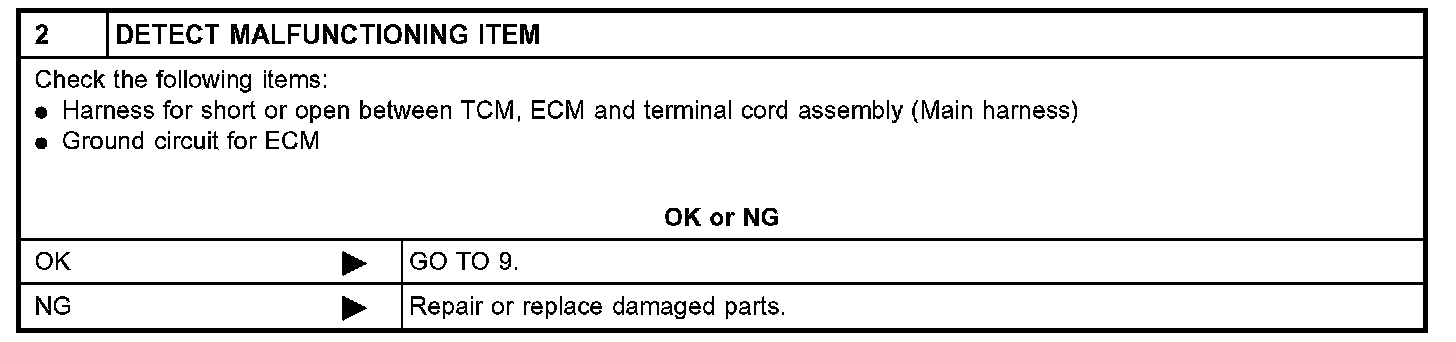

Diagnostic Procedure

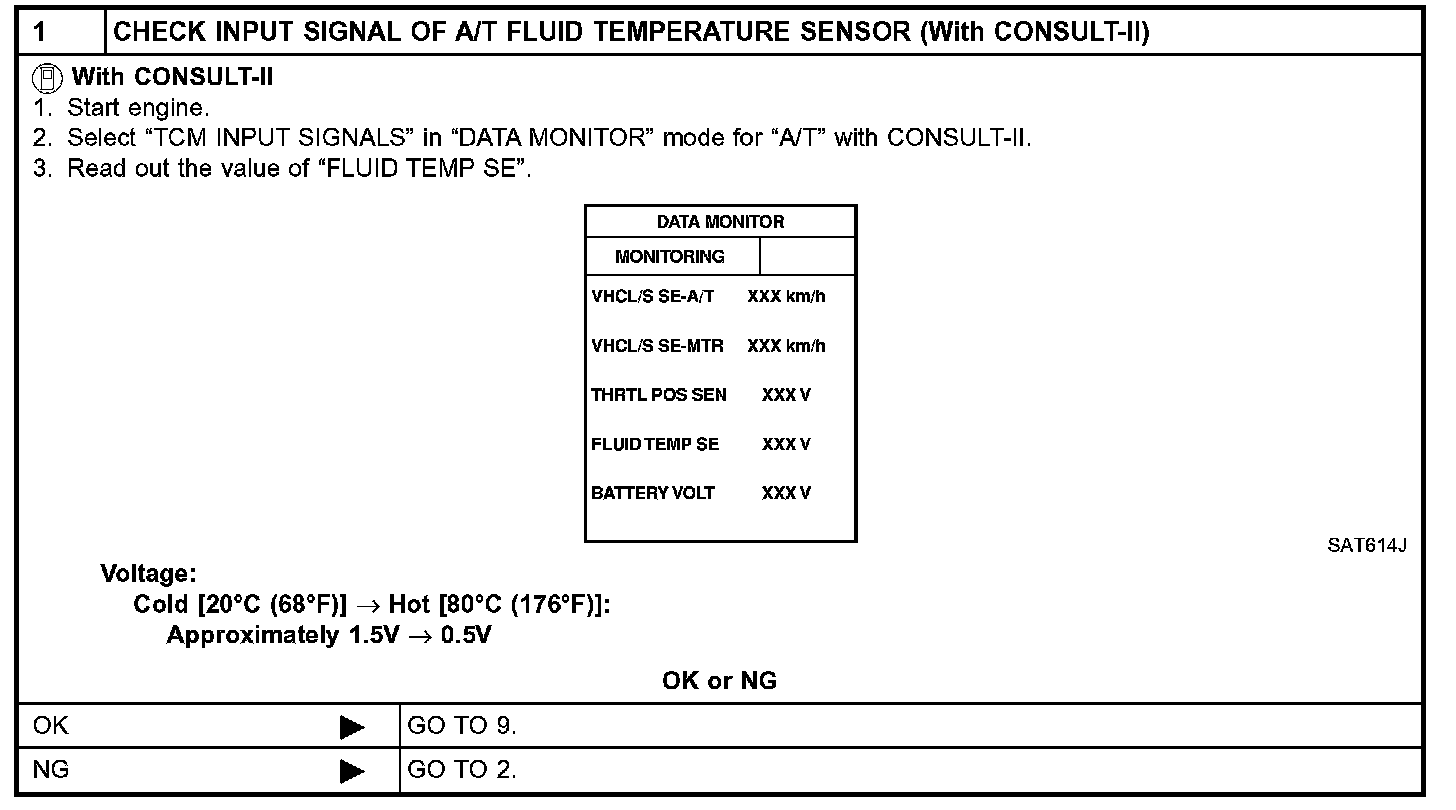

1 of 11





2 of 11





3 of 11

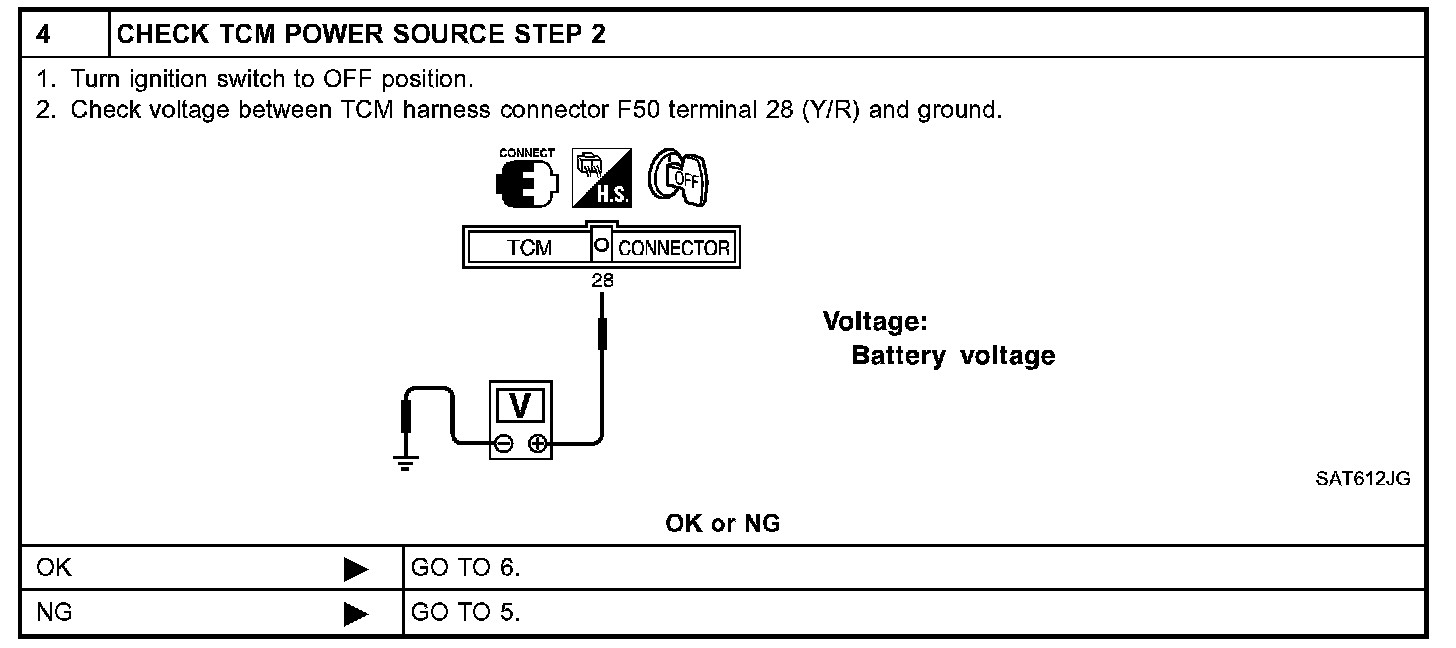

4 of 11





5 of 11

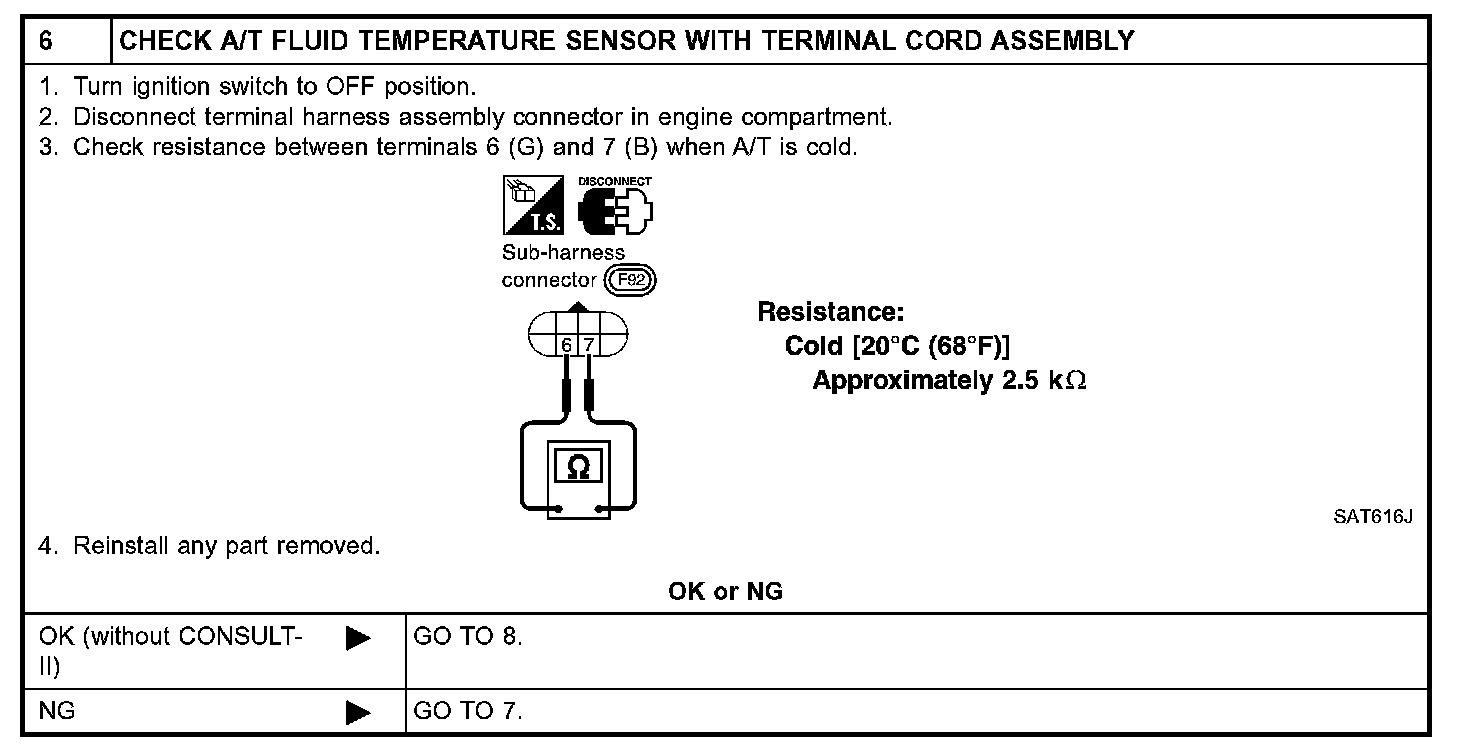

6 of 11

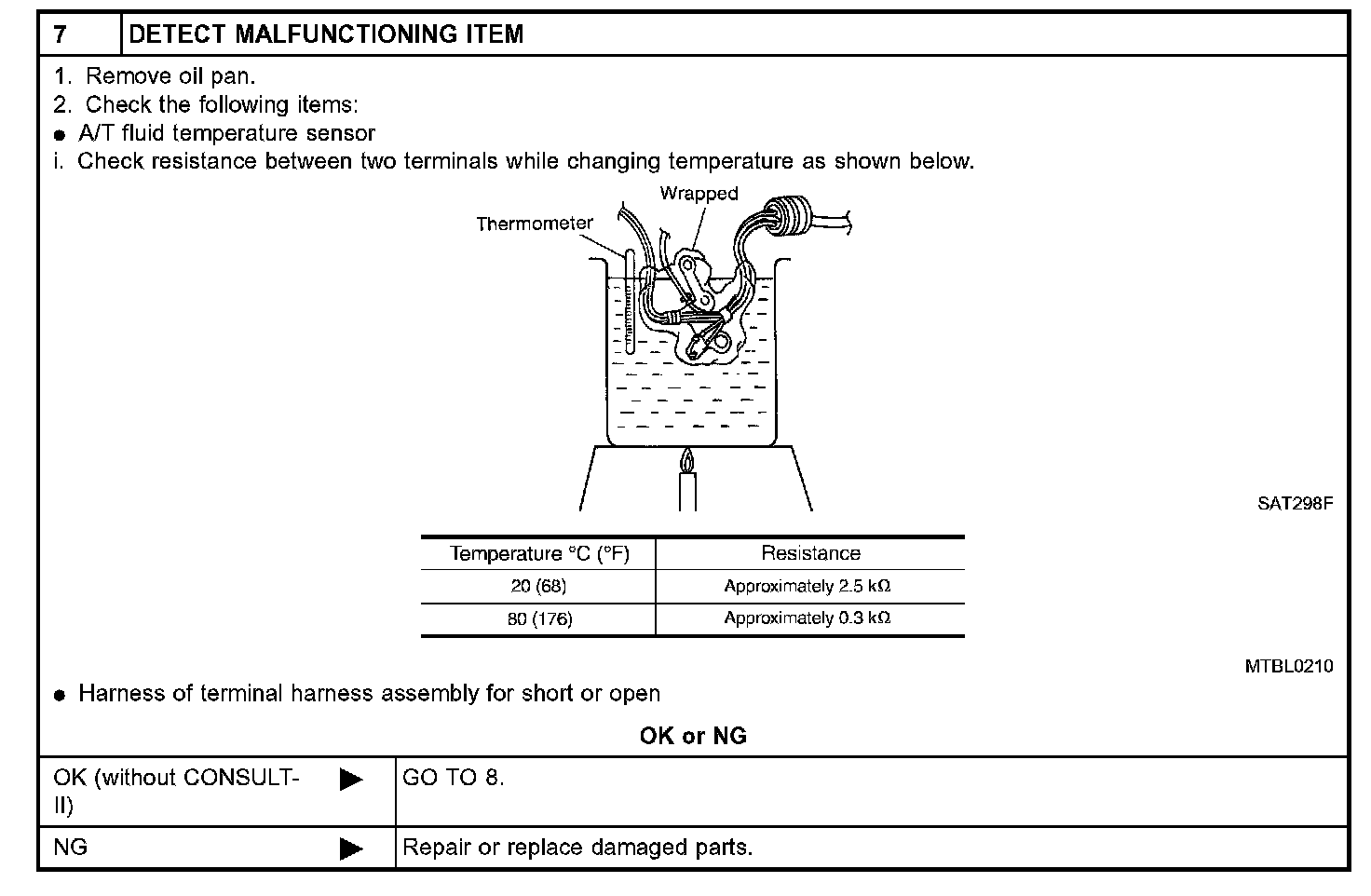

7 of 11

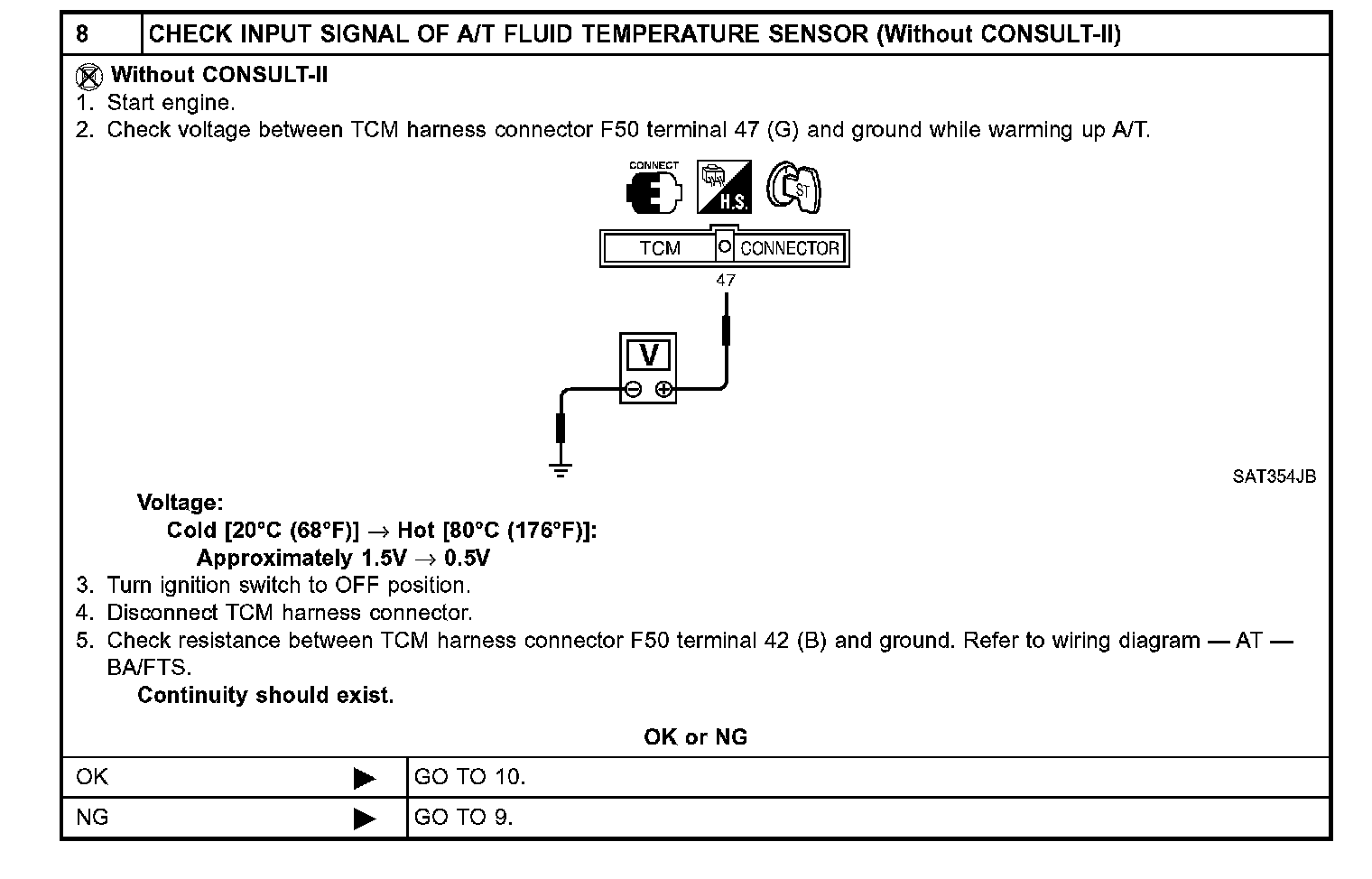

8 of 11





9 of 11





10 of 11

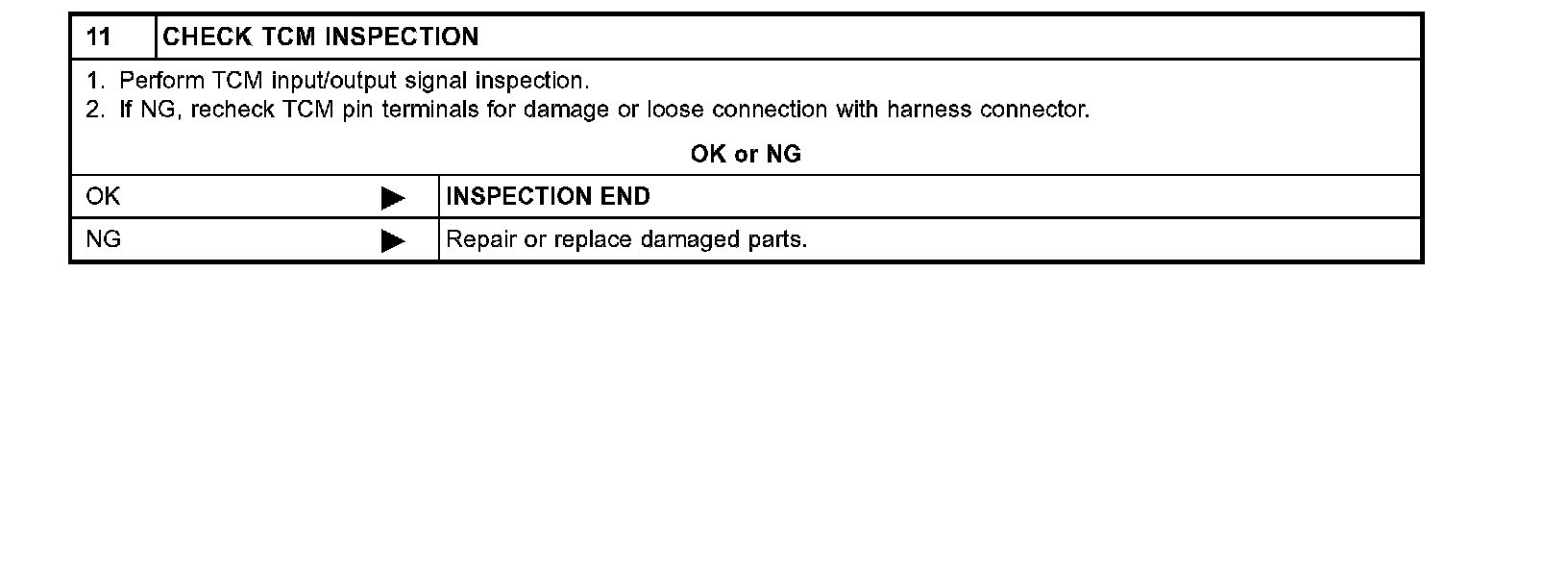

11 of 11
