Accelerator Pedal: Service and Repair

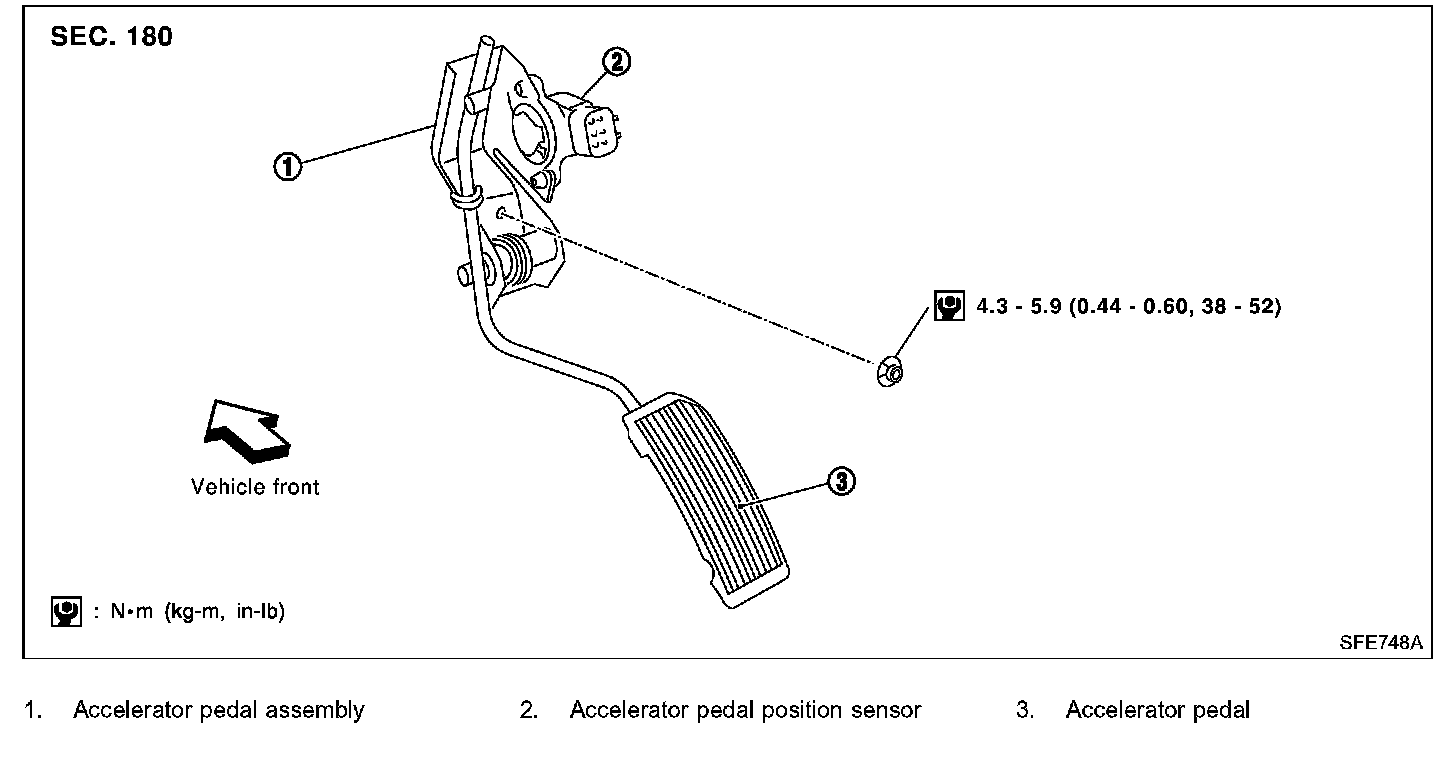

ACCELERATOR CONTROL SYSTEM




Removal and Installation

CAUTION:
- Check that throttle valve opens when accelerator pedal is fully depressed. Also check that it returns to idle position when pedal is released when ignition switch is in "ON" position.
- Check accelerator control parts for improper contact with any adjacent parts.

REMOVAL
1. Remove harness connector.
2. Remove mounting nut then remove accelerator pedal assembly.

CAUTION:
- Do not disassemble accelerator pedal or remove/install accelerator pedal position sensor.
- Do not drop or shock accelerator pedal assembly.
- Keep accelerator pedal assembly from getting wet.

INSTALLATION
Install in reverse order of removal.
