Symptom Related Diagnostic Procedures

WARNING:
When conducting inspections below, be sure to observe the following:
- Put a "CAUTION: INFLAMMABLE" sign in workshop.
- Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
- Be sure to furnish the workshop with a CO(2) fire extinguisher.


CAUTION:
- Before removing fuel line parts, carry out the following procedures:
a. Put drained fuel in an explosion-proof container and put lid on securely.
b. Release fuel pressure from fuel line. Refer to "Fuel Pressure Release".
c. Disconnect battery ground cable.

- Always replace O-ring when the fuel gauge retainer is removed.
- Do not kink or twist hose and tube when they are installed.
- Do not tighten hose and clamps excessively to avoid damaging hoses.
- After installation, run engine and check for fuel leaks at connection.
- Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically. Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.

DIAGNOSTIC PROCEDURE

Step 1 - 3:

Step 4 - 5:

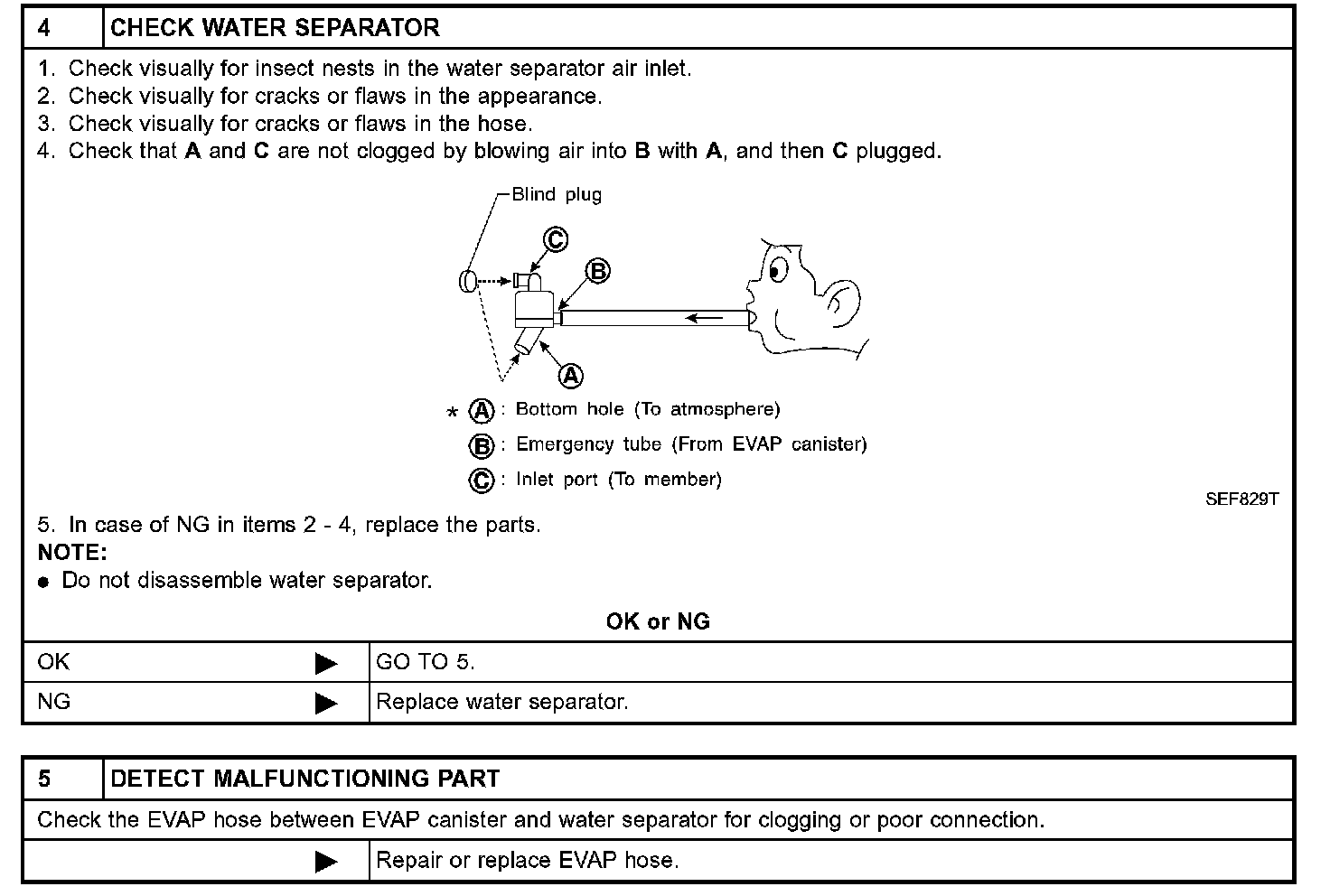

Step 6:

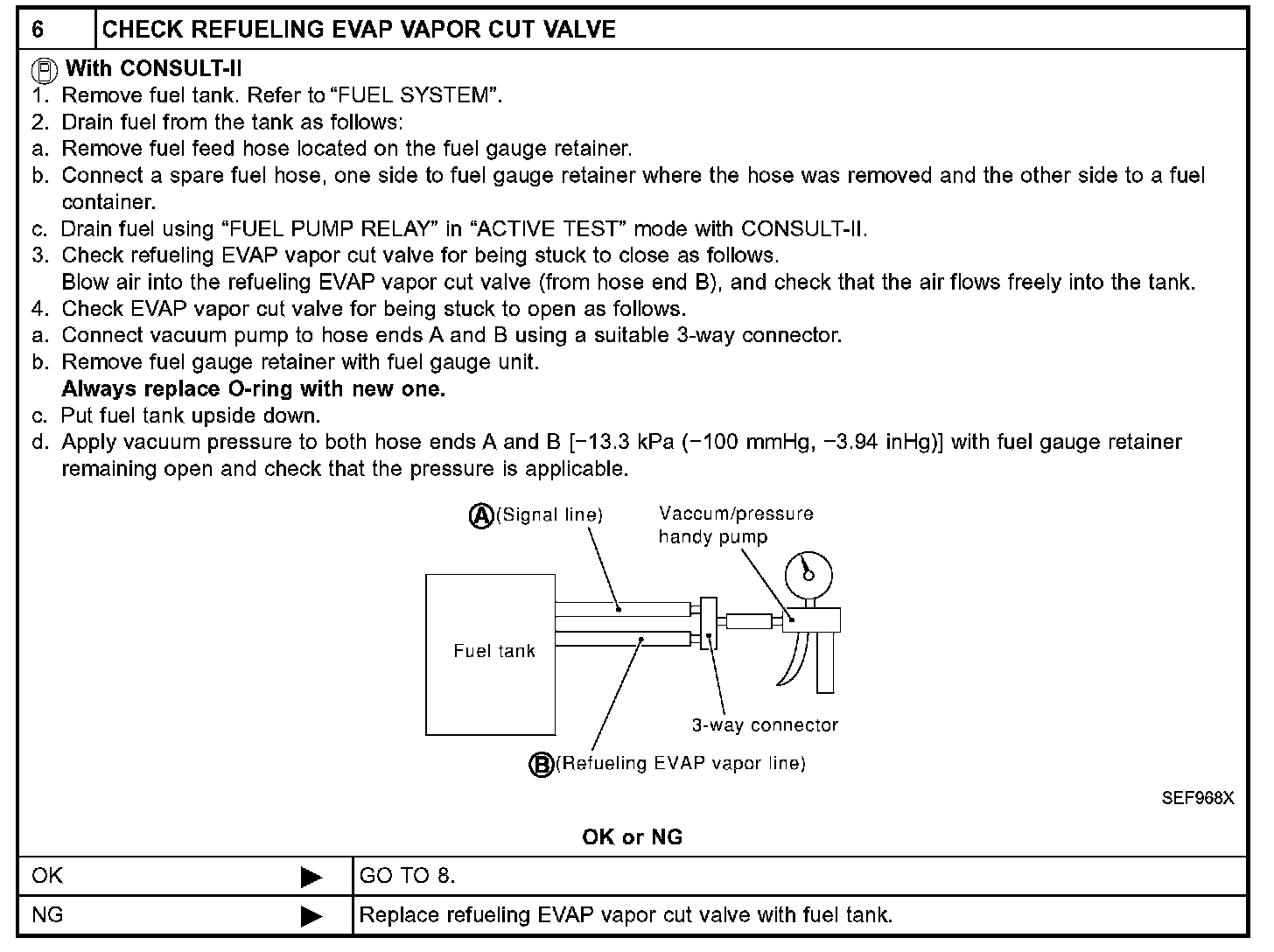

Step 7 - 8:

Symptom: Fuel Odor from EVAP Canister Is Strong.

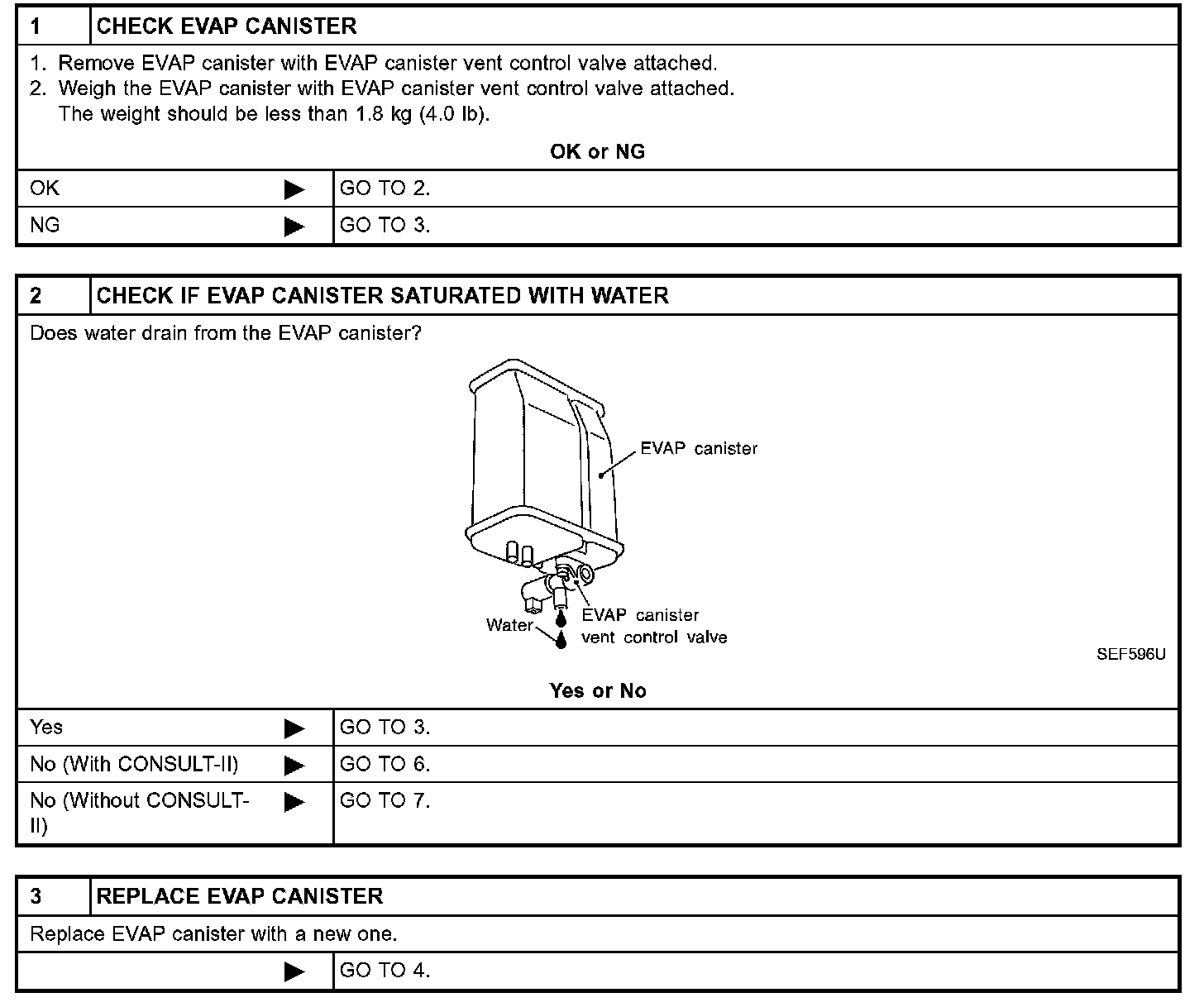

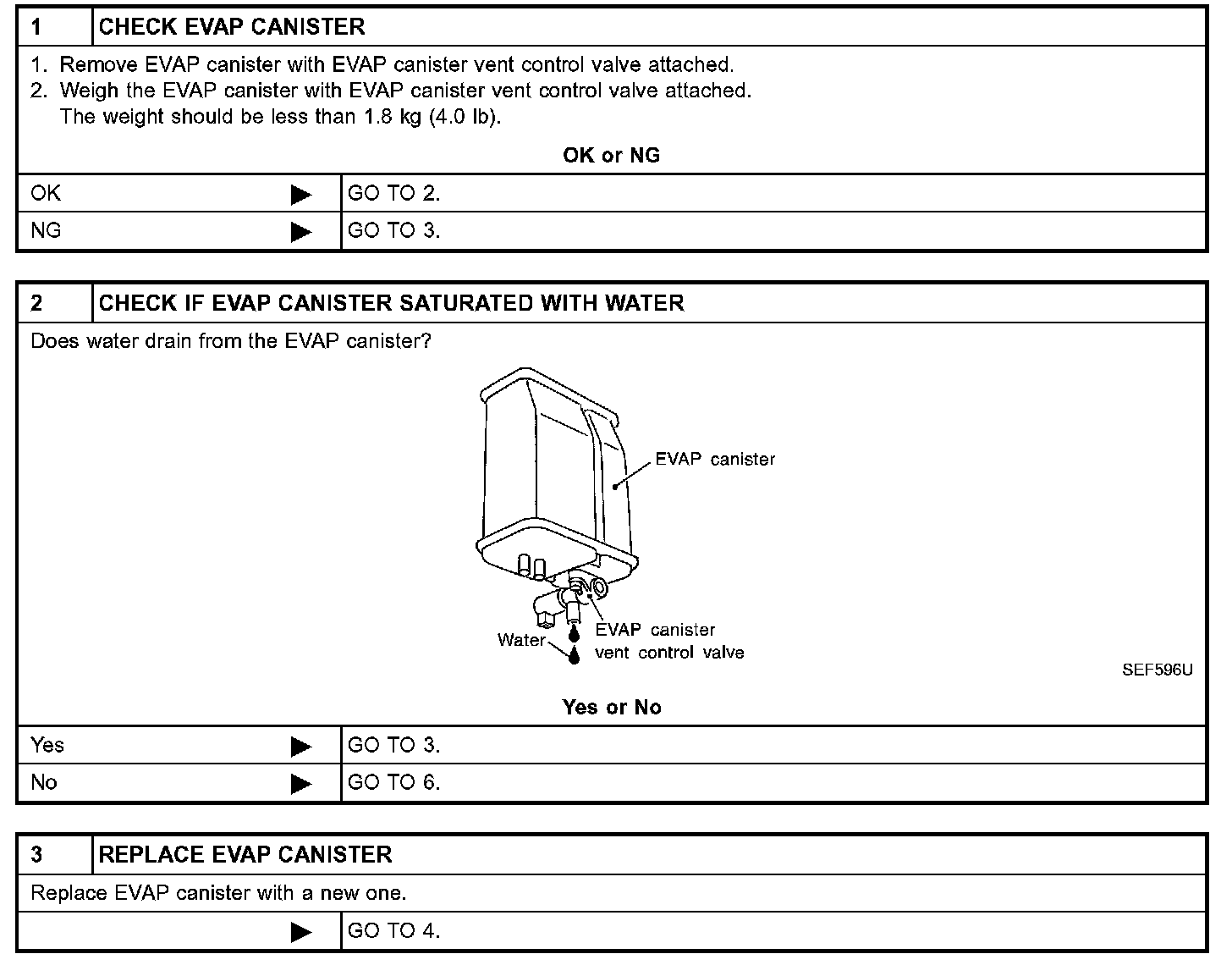

Step 1 - 3:

Step 4 - 7:

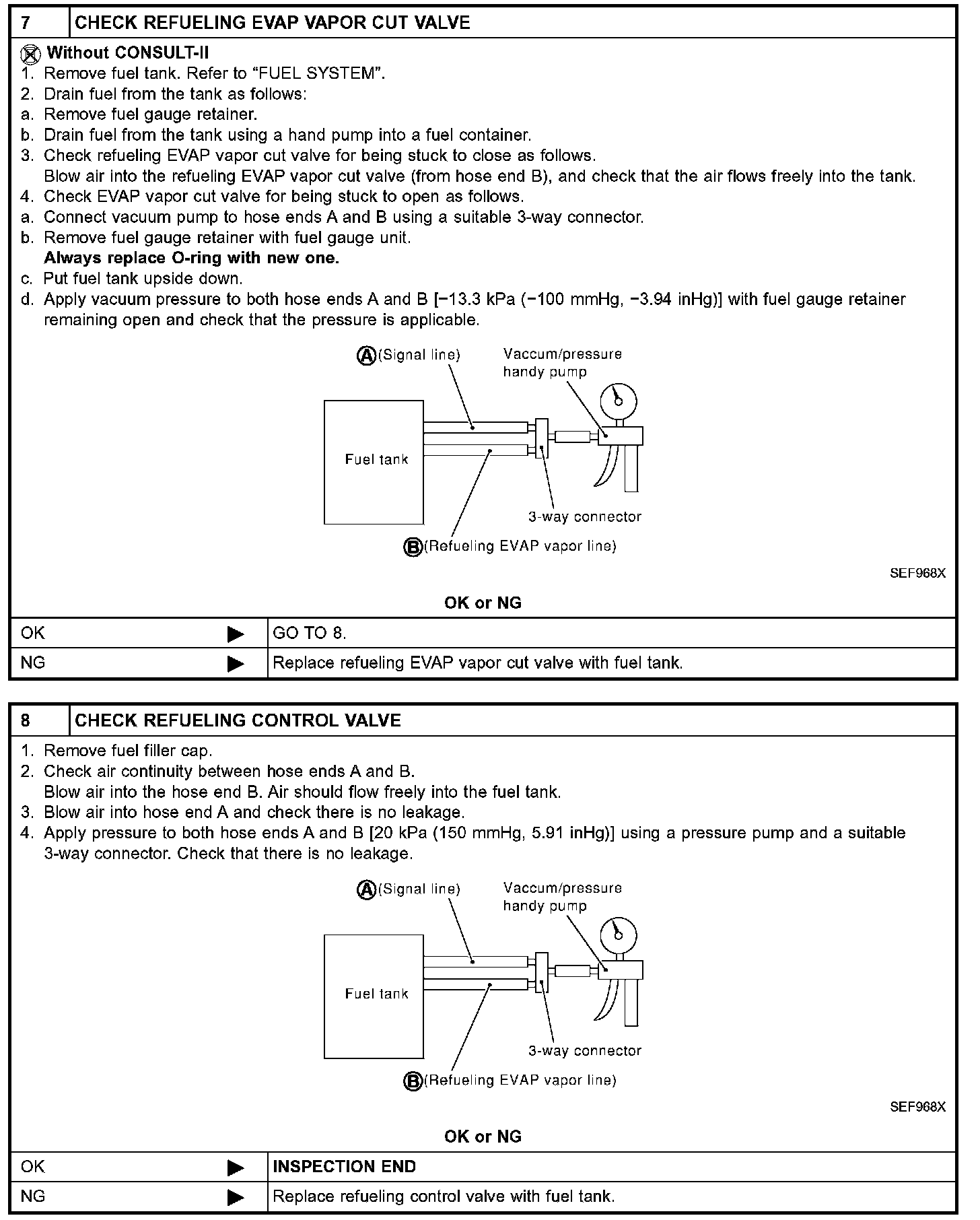

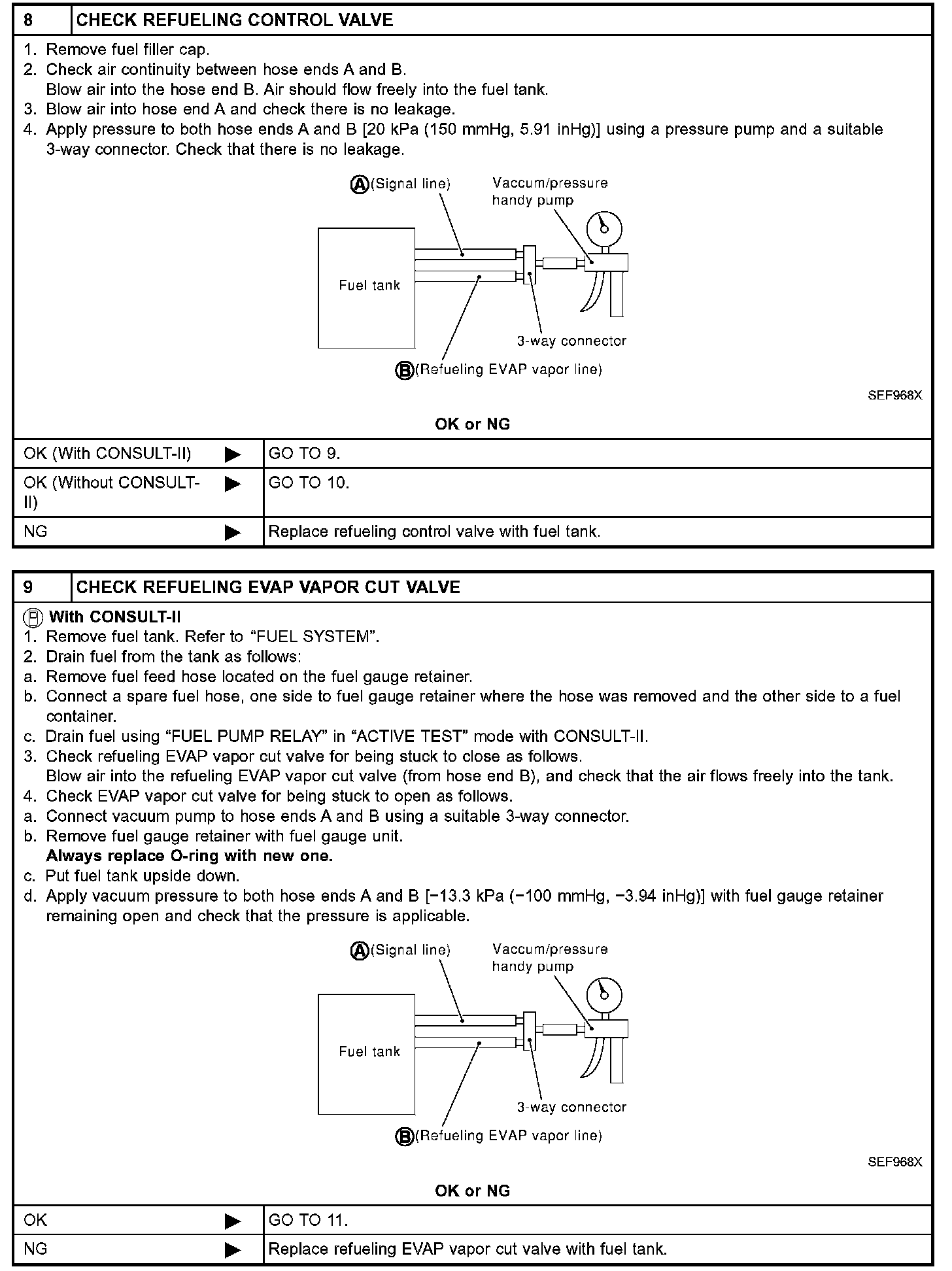

Step 8 - 9:

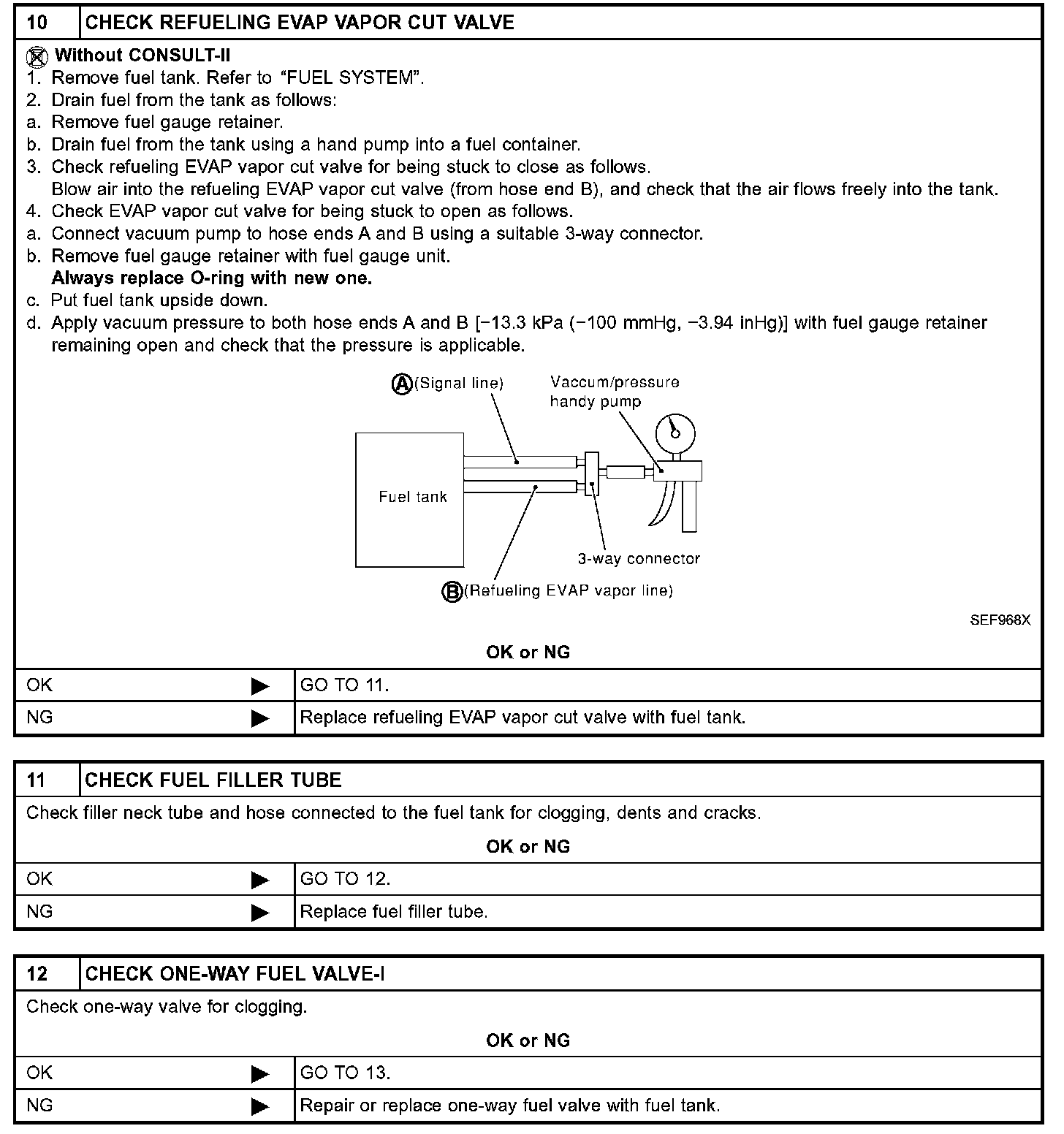

Step 10 - 12:

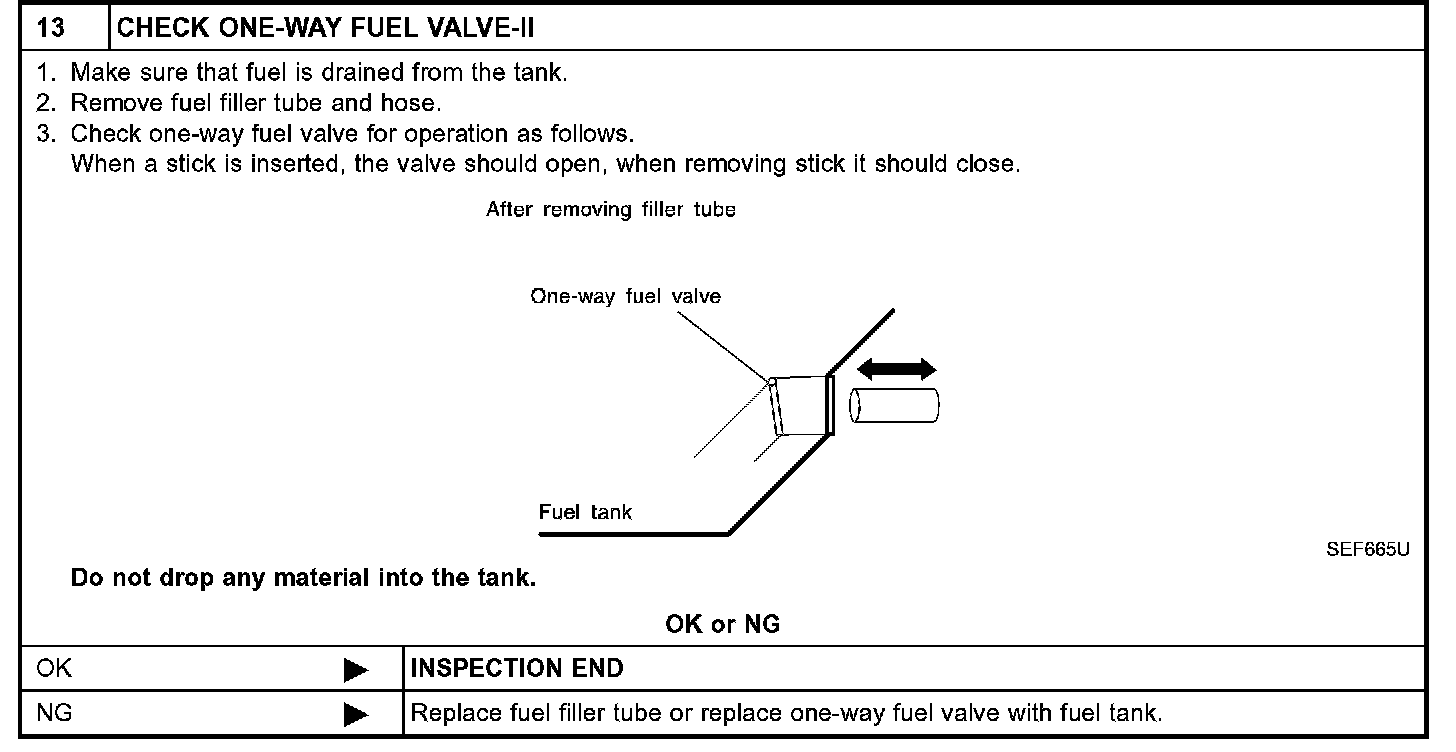

Step 13:

Symptom: Cannot Refuel/Fuel Odor From The Fuel Filler Opening Is Strong While Refueling.
