Evaporative Emission Control Canister: Testing and Inspection
EVAP Canister

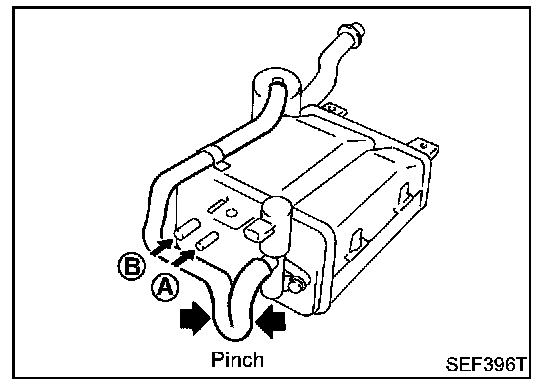

Check EVAP canister as follows:
1.
Pinch the fresh air hose.
2.
Blow air into port A and check that it flows freely out of port B.
