Control Unit Circuit Test

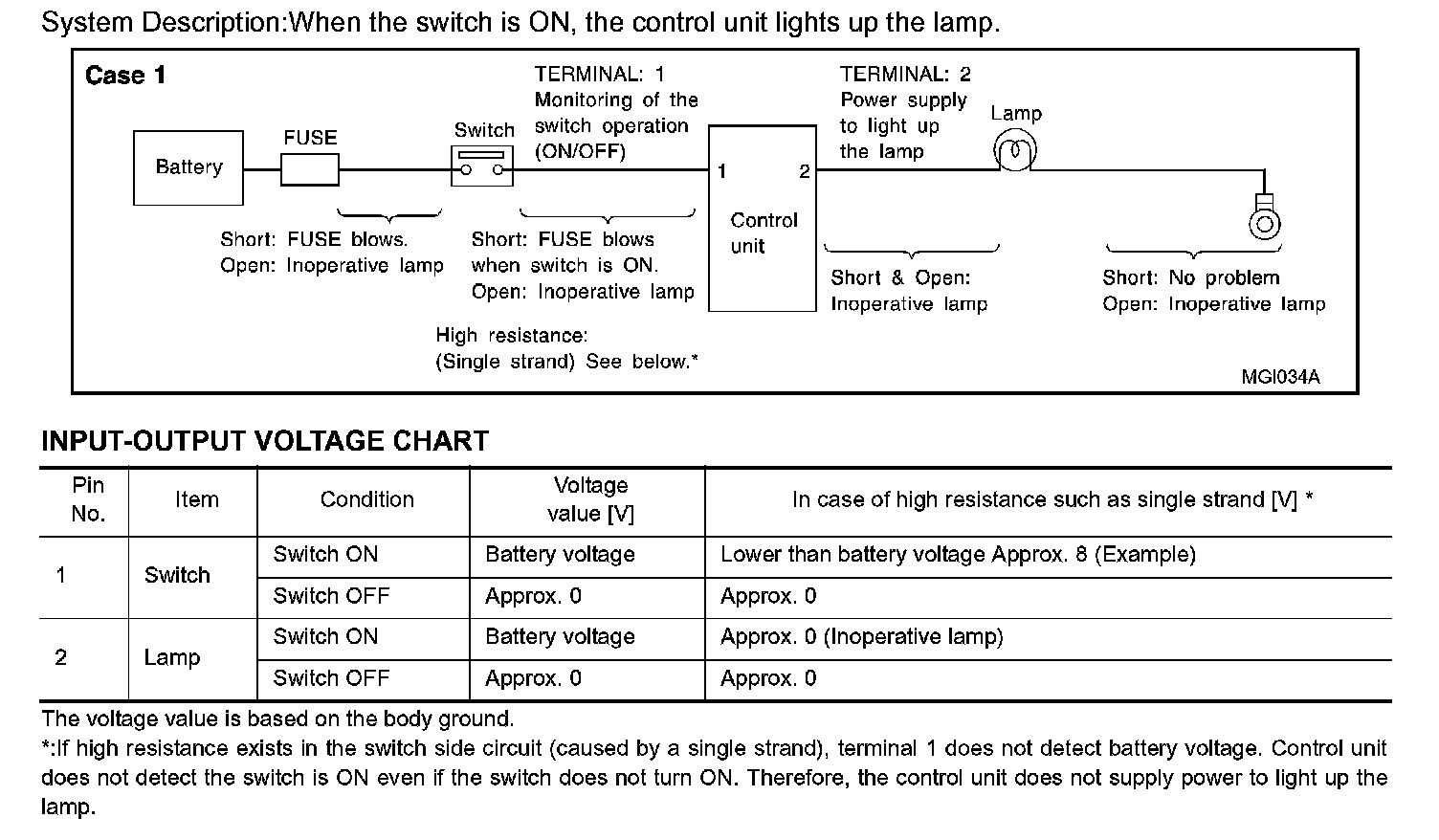

Control Unit Circuit Test Case 1:

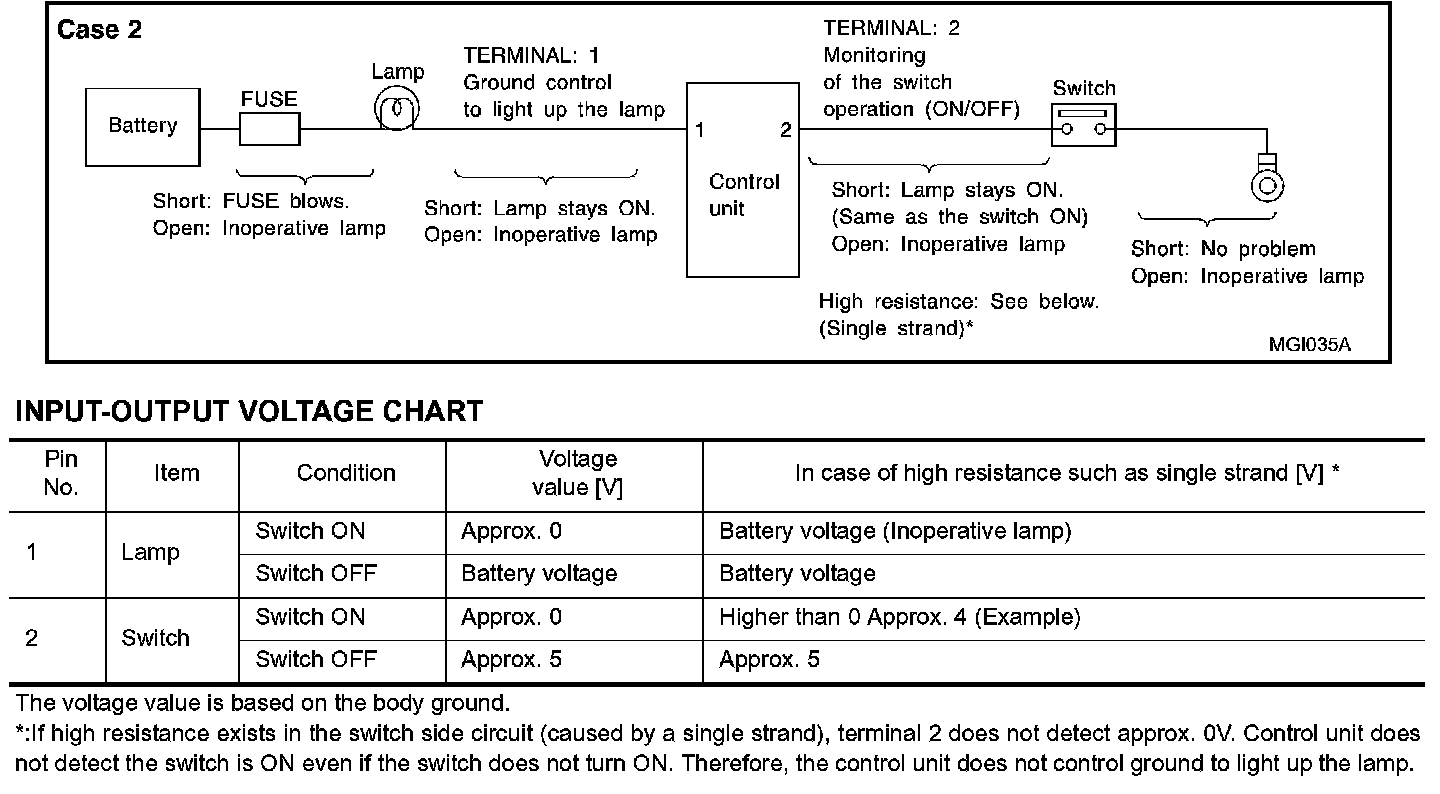

Control Unit Circuit Test Case 2:





CONTROL UNIT CIRCUIT TEST
System Description: When the switch is ON the control unit lights up the lamp.
