Fuel Warning Lamp Sensor Check

FUEL WARNING LAMP OPERATION CHECK

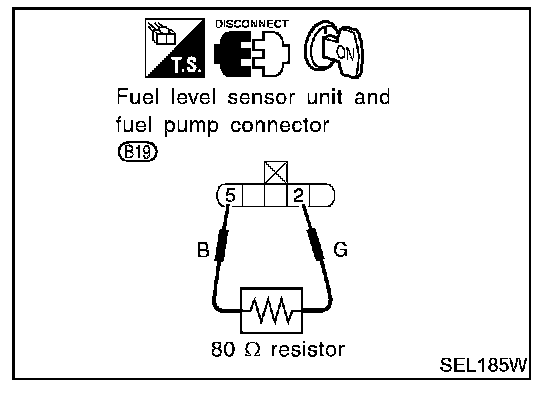

1. Turn ignition switch "OFF".
2. Disconnect fuel level sensor unit and fuel pump harness connector B19.
3. Connect a resistor (80 Ohms) between fuel level sensor unit and fuel pump harness connector terminals 2 and 5.
4. Turn ignition switch "ON".

The fuel warning lamp should come on.

NOTE: ECM might store the 1st trip DTC P0180 and the 1st trip DTC P0464 during this inspection.

If the DTC is stored in ECM memory, erase the DTC after reconnecting fuel level sensor unit and fuel pump harness connector.

Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION".
