Component Tests

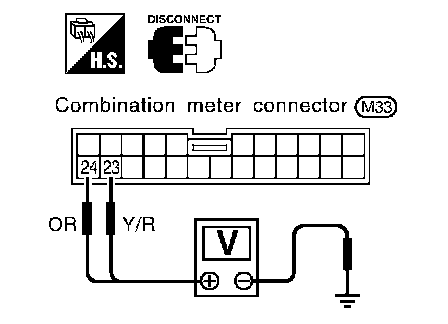

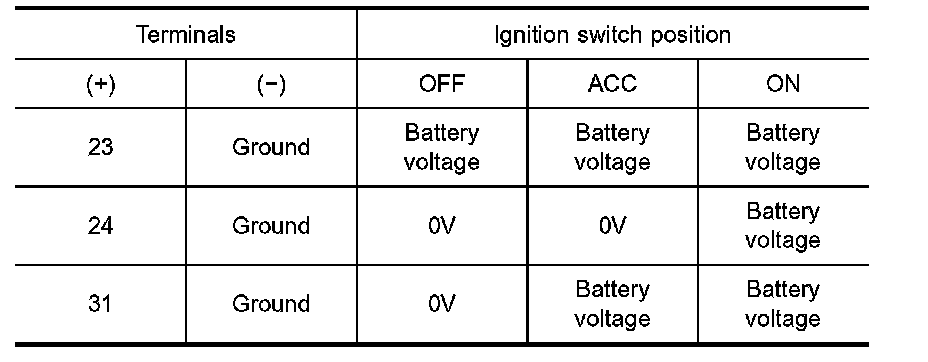

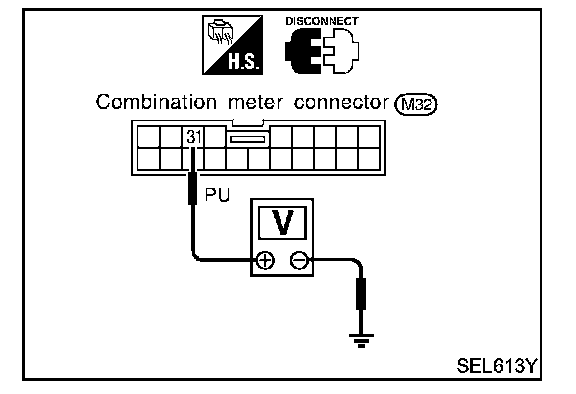

Power Supply Circuit Check
If NG check the following.
- 10 A fuse [No.12 located in fuse block (J/B)]
- 10 A fuse [No.30 located in fuse block (J/B)]
- 10 A fuse [No.1 located in fuse block (J/B)]
- Harness for open or short between fuse and combination meter

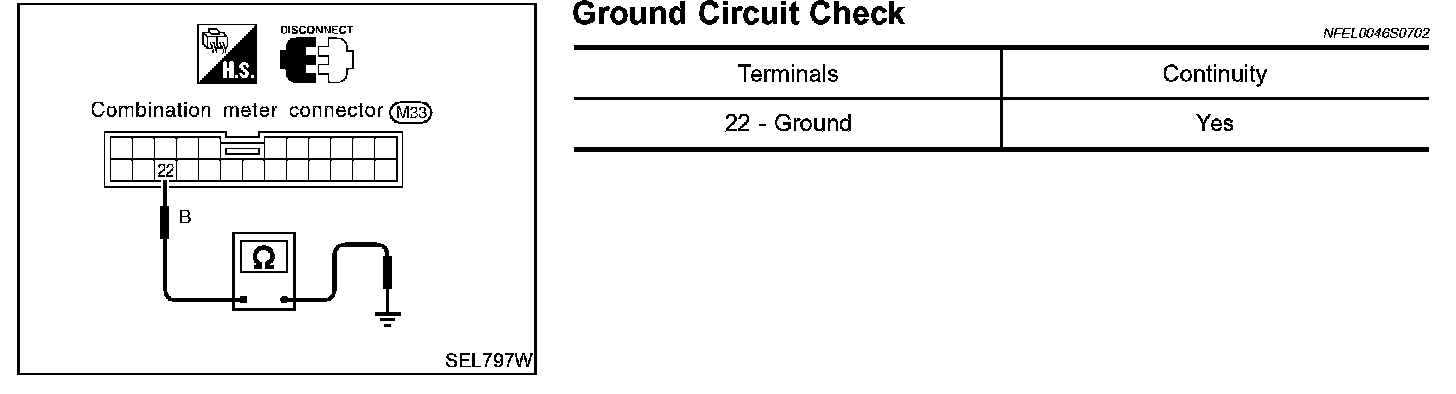

Ground Circuit Check:

Ground Circuit Check
