Magnet Clutch Circuit

* Manual Air Conditioning System *

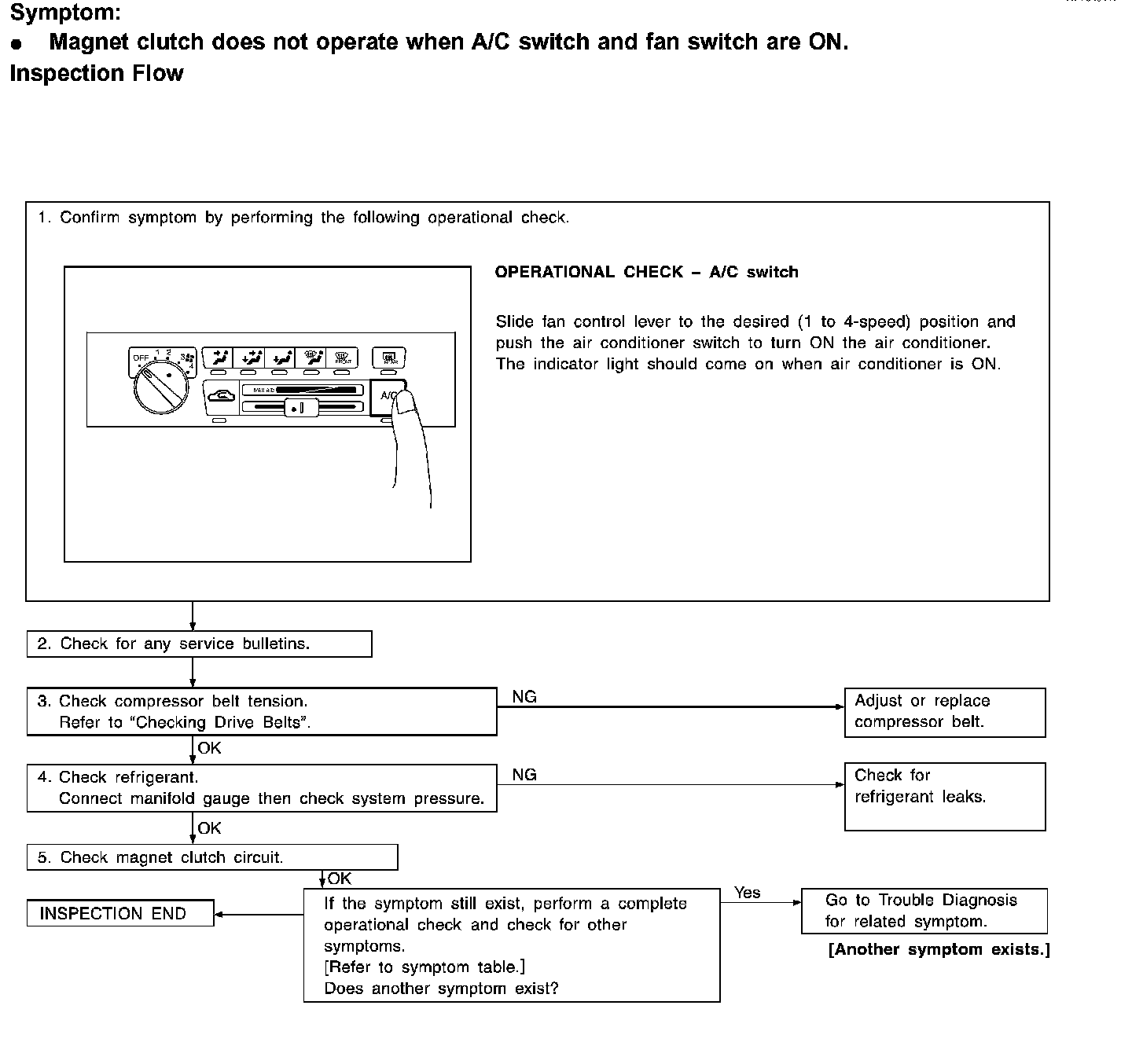

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH

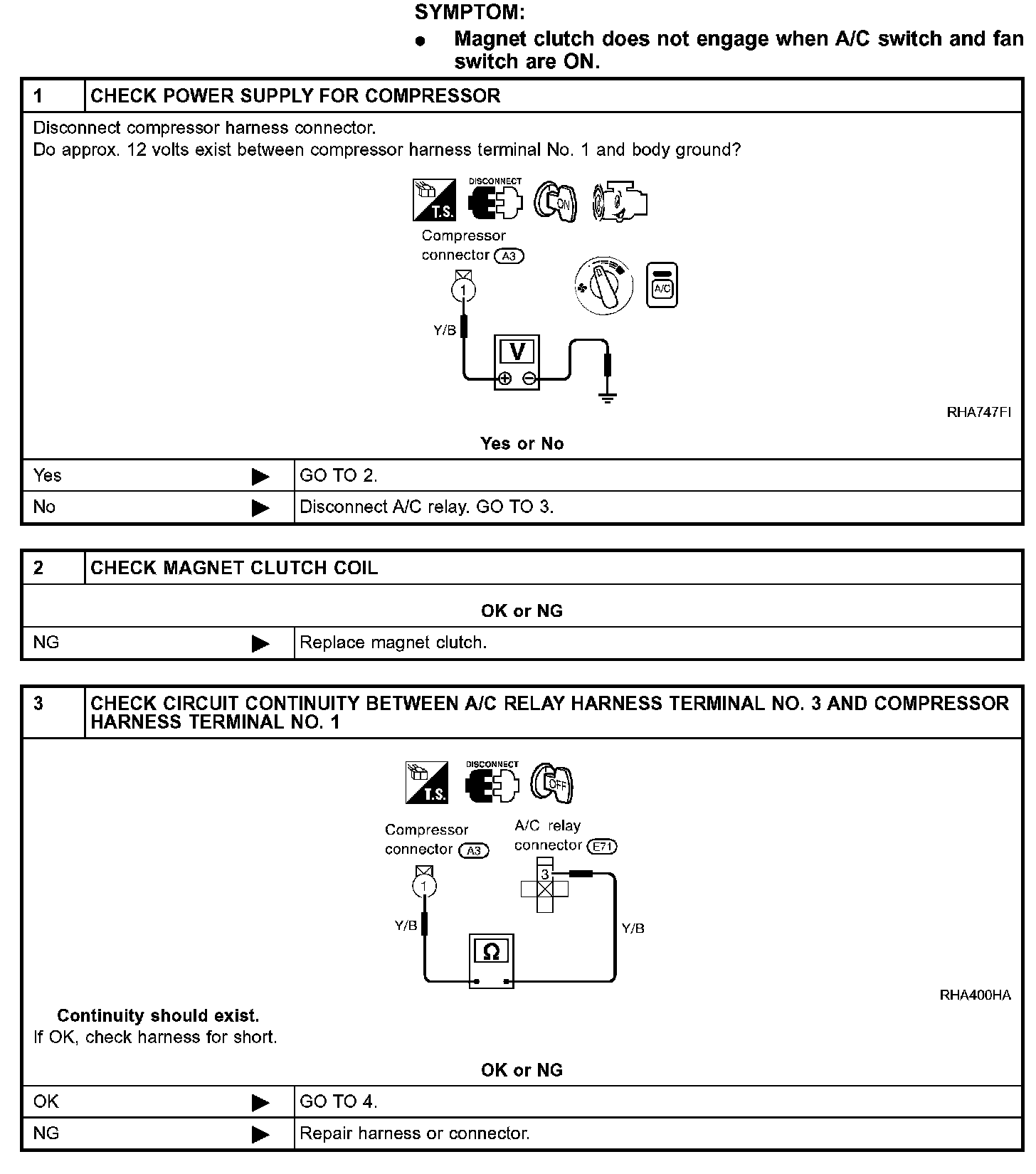

Step 1 - 3:

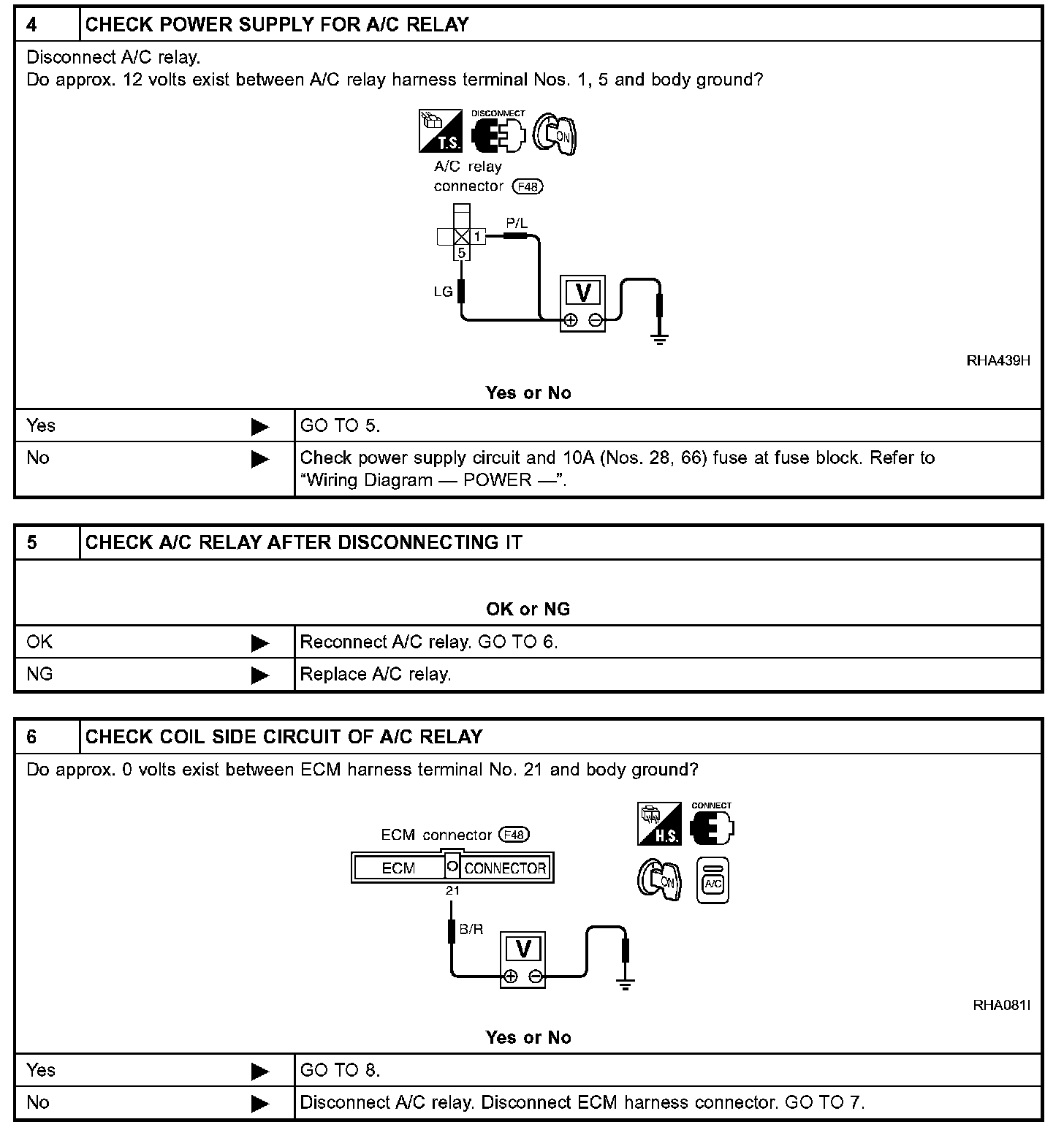

Step 4 - 6:

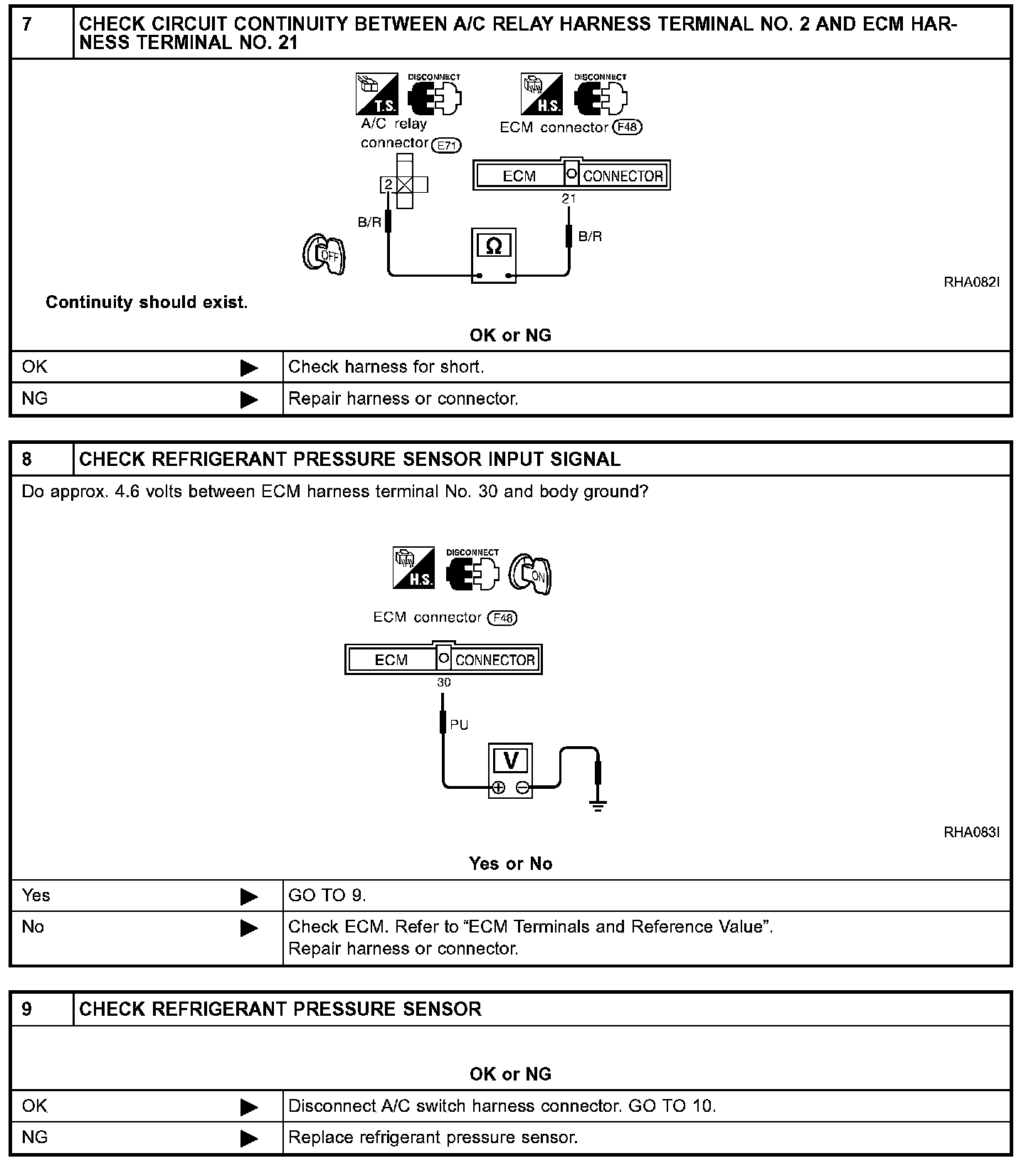

Step 7 - 9:

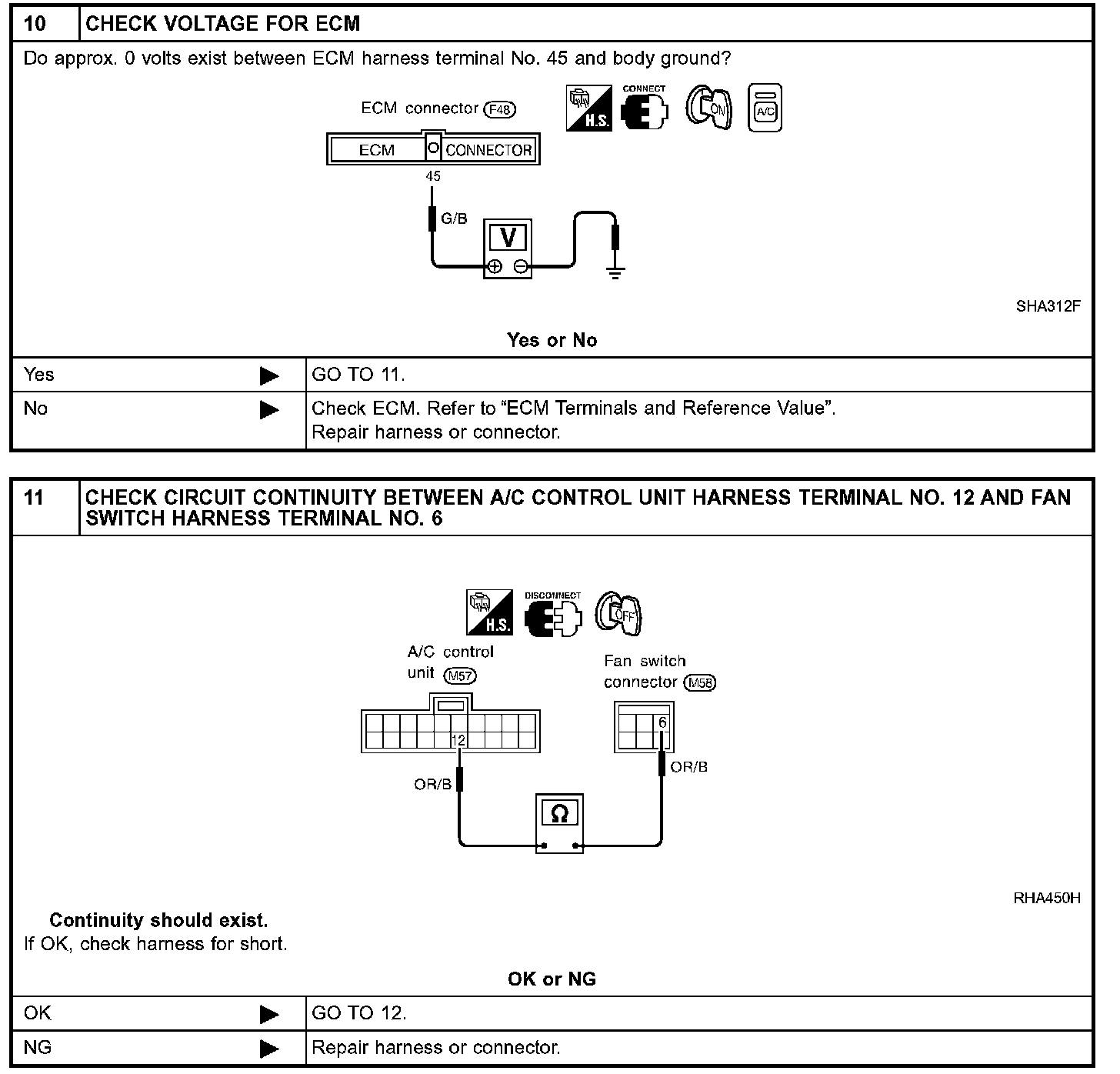

Step 10 - 11:

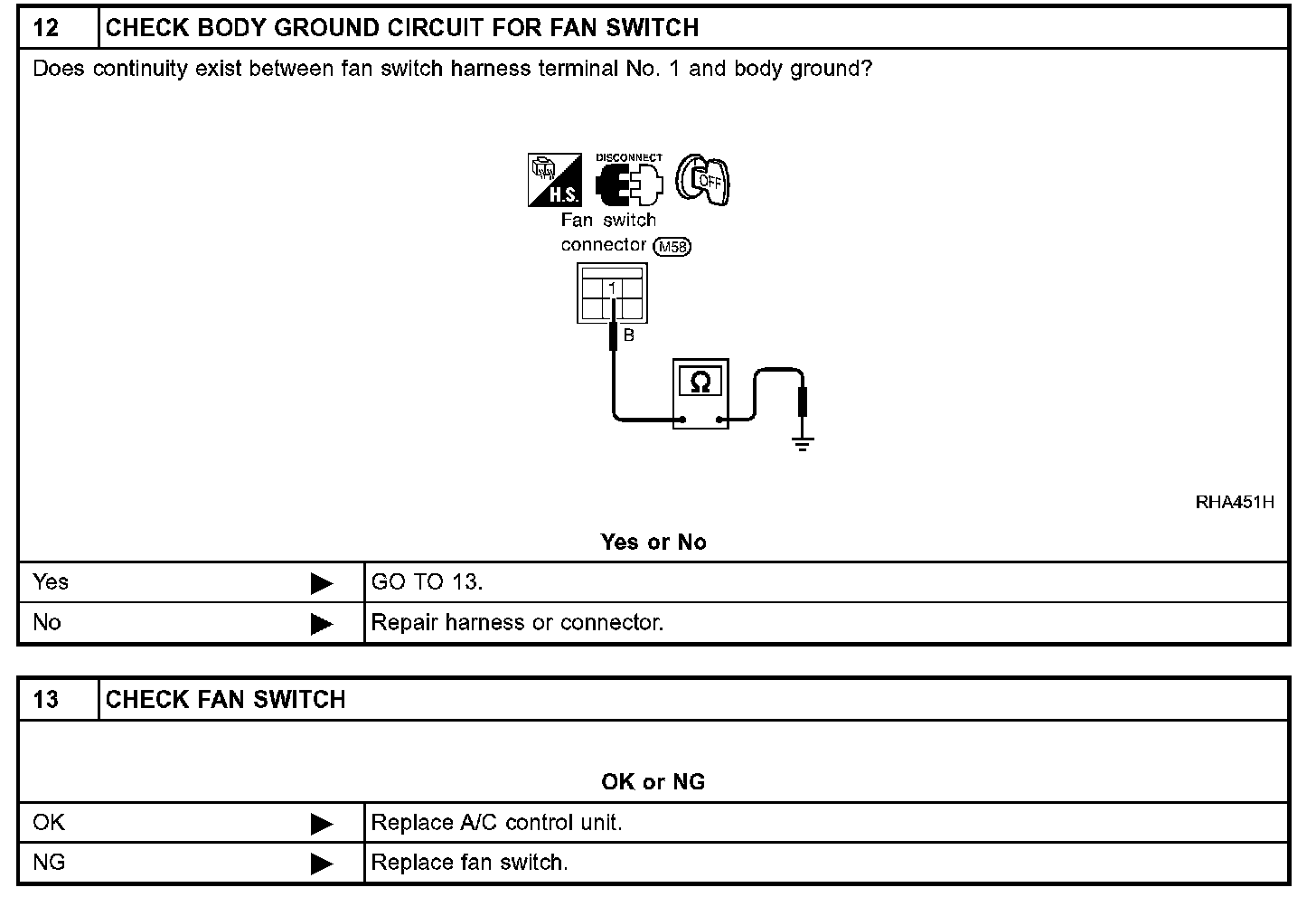

Step 12 - 13:

DIAGNOSTIC PROCEDURE

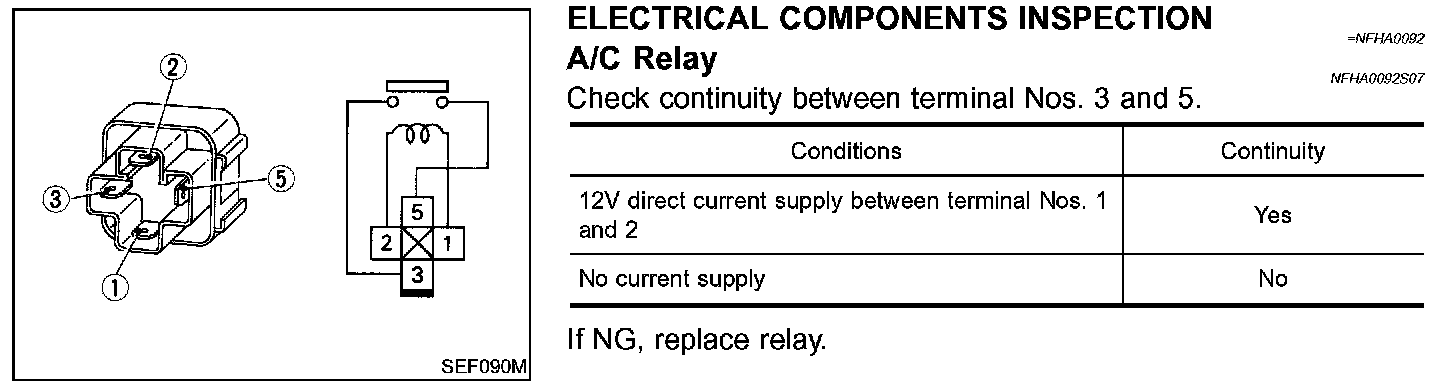

ELECTRICAL COMPONENTS INSPECTION

A/C Relay:

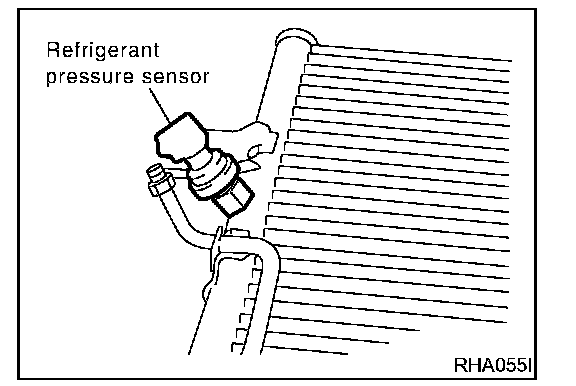

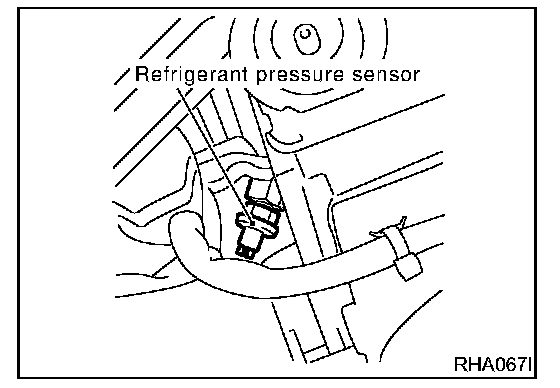

Refrigerant Pressure Sensor

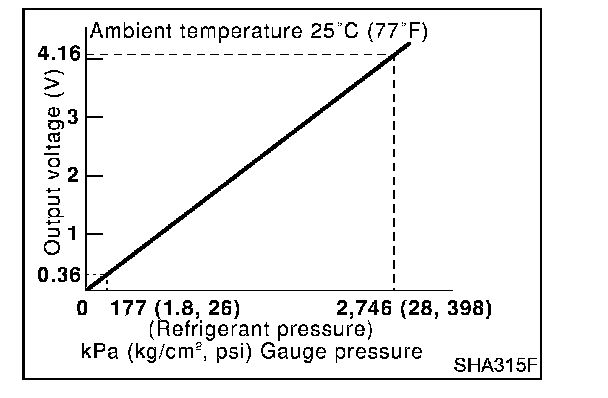

Make sure that higher A/C refrigerant pressure results in higher refrigerant-pressure sensor output voltage.

Refer to "Diagnostic Procedure".
