Multiplex Communication Circuit

* Automatic Air Conditioning System *

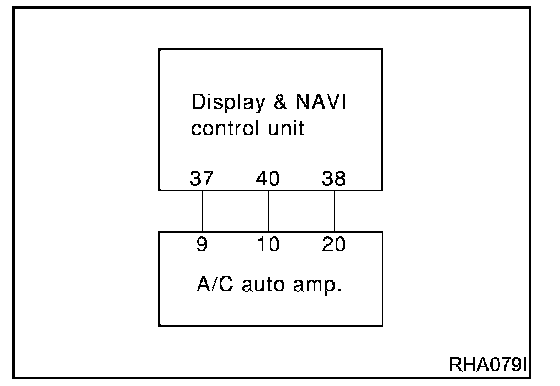

Multiplex Communication Circuit

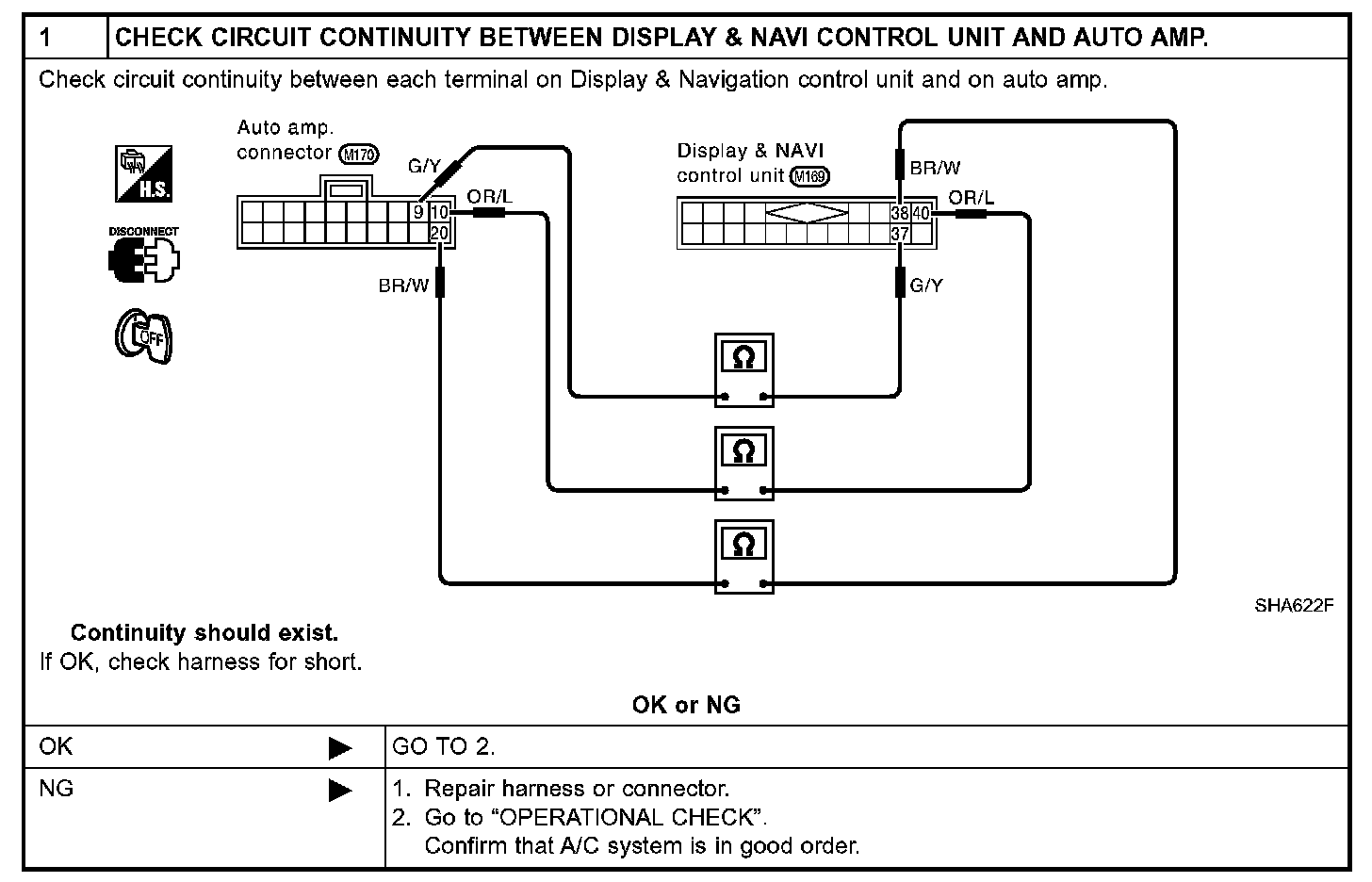

Step 1:

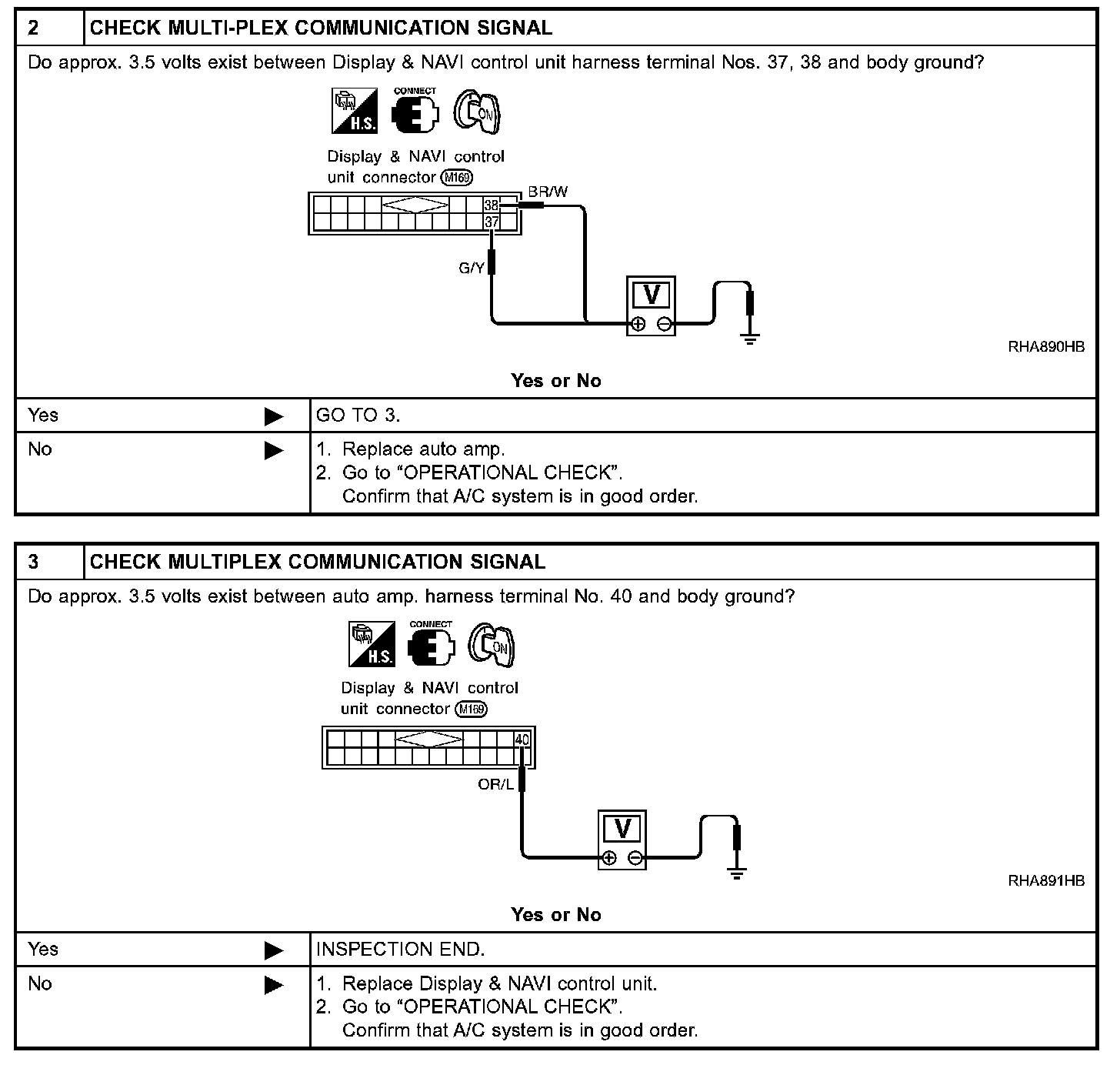

Step 2 - 3:

DIAGNOSTIC PROCEDURE

SYMPTOM:
- A/C system does not come on.
- A/C system can not controlled.
