Without Navigation System

AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER
(WITHOUT NAVIGATION SYSTEM) (Automatic Air Conditioning System)






Unconfirmed Incidents
The customer may feel that the cabin temperature is not being controlled or regulated to the temperature indicated by the auto A/C display screen. To satisfy individual driver preference the Temperature Setting Trimmer may be used to compensate in a range of ±3 °C (±6 °F).

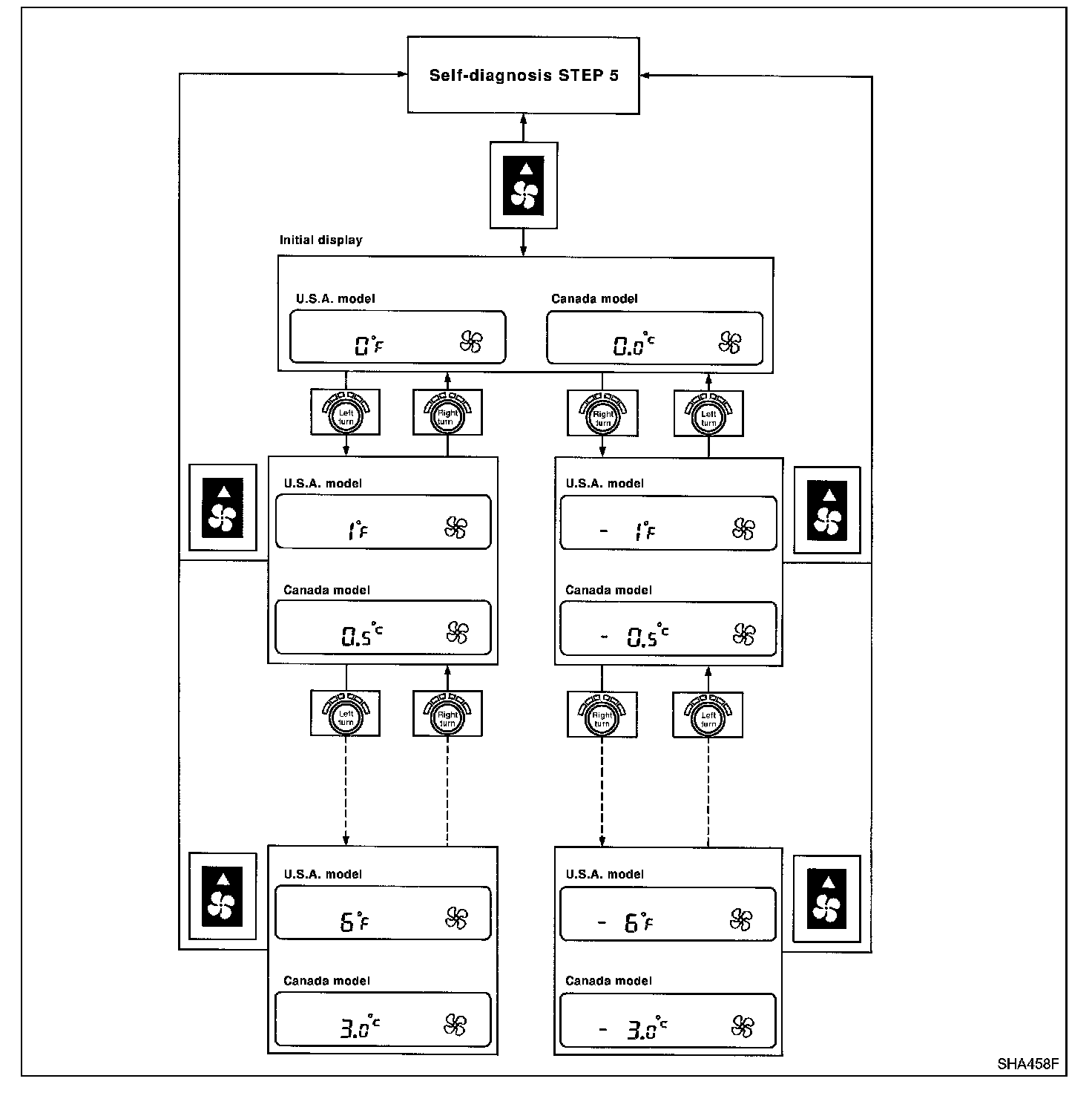

1. Enter Self Diagnosis mode and select STEP 5.
Reading and Clearing Diagnostic Trouble Codes

2. Press the Fan Up switch: This will set the A/C system in auxiliary mode and the display will show 61.

3. Turn the temperature dial clockwise or counterclockwise: The temperature will change at a rate of 0.5 °C (1 °F).

If power is lost to the A/C Auto Amp. trimmer setting is canceled and setting becomes that of initial condition, 0 °C (0 °F).

When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of initial condition, i.e. 0 °C (0 °F).
