With Navigation System

AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER
(WITH NAVIGATION SYSTEM) (Automatic Air Conditioning System)






Unconfirmed Incidents
The trimmer compensates for differences in range of ±3 °C (±6 °F) between temperature setting (displayed digitally) and temperature felt by driver.

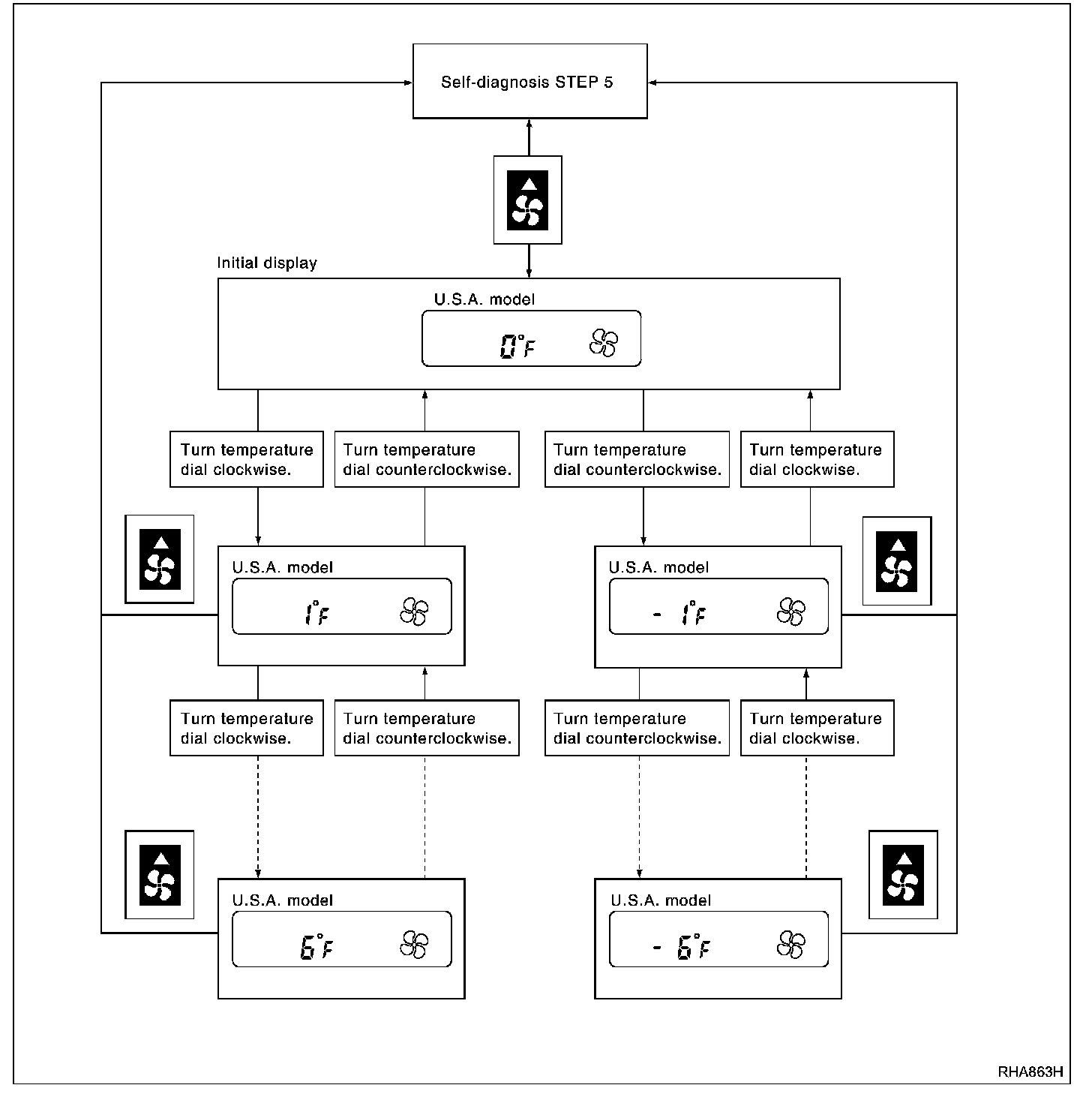

Operating procedures for this trimmer are as follows:
- Begin Self-diagnosis STEP 5 mode.
Reading and Clearing Diagnostic Trouble Codes

- Press (fan) UP switch to set system in auxiliary mode.

- Display shows "61" in auxiliary mechanism.
It takes approximately 3 seconds.

- Turn the temperature dial clockwise or counterclockwise: Temperature will change at a rate of 0.5 °C (1 °F).

When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of initial condition, i.e. 0 °C (0 °F).
