Without Navigation

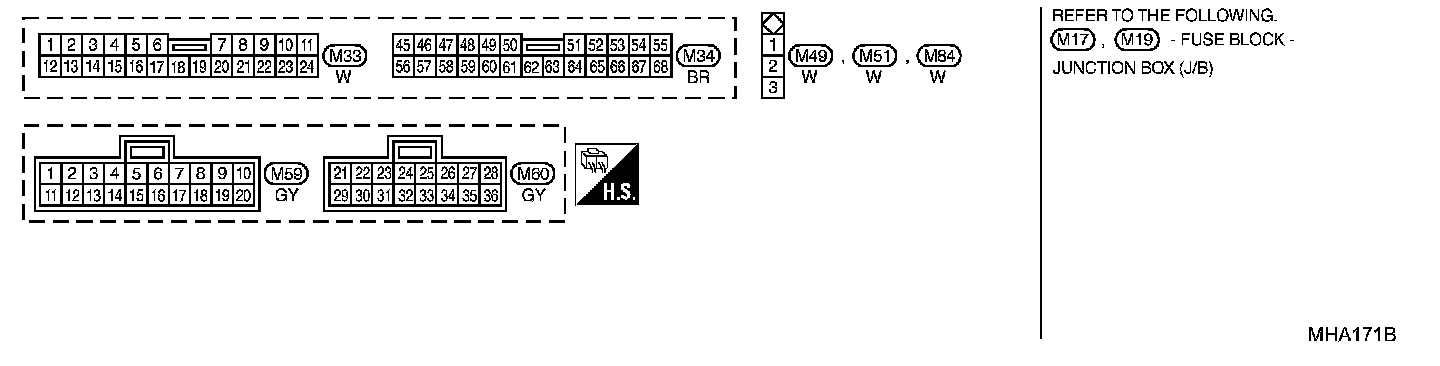

HA-A/C, A-01 Connector Views / Automatic A/C - Without Navigation System:

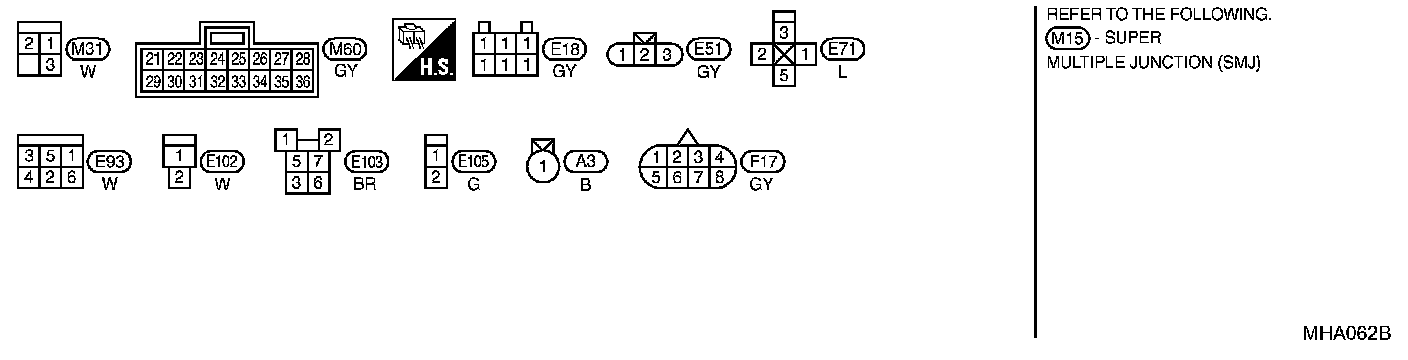

HA-A/C, A-02 Connector Views / Automatic A/C - Without Navigation System:

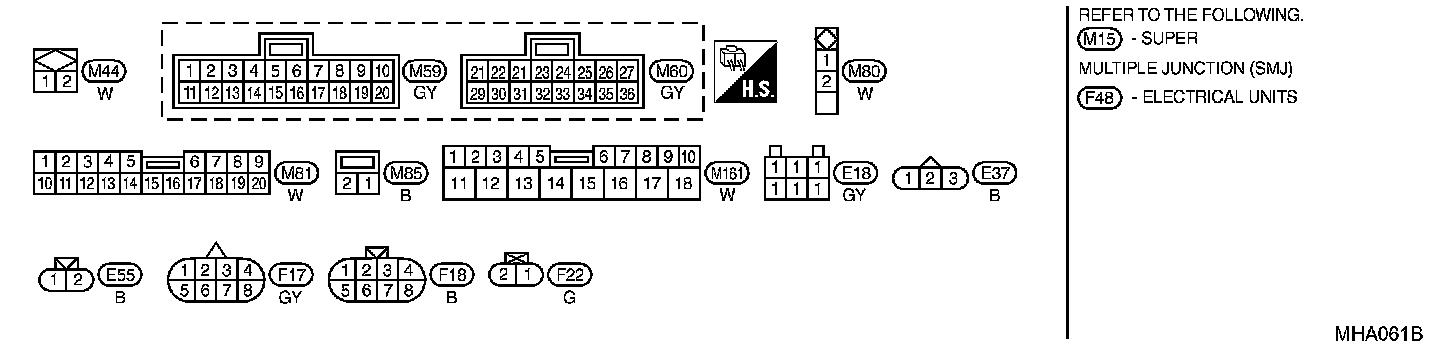

HA-A/C, A-03 Connector Views / Automatic A/C - Without Navigation System:
