Switches and Their Control Function

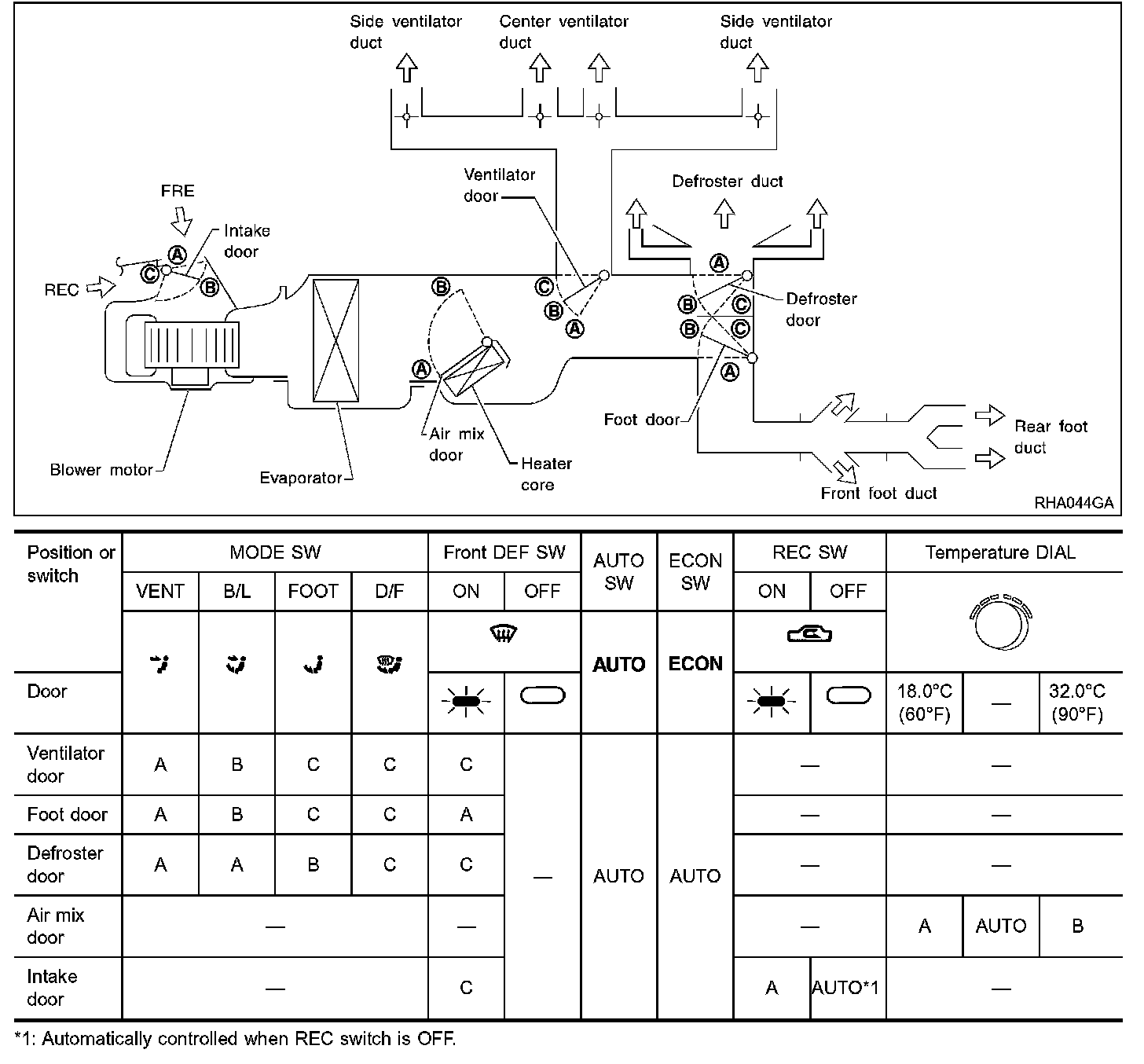

Switches And Their Control Functions / Automatic Air Conditioning:



Switches And Their Control Functions / Manual Air Conditioning:

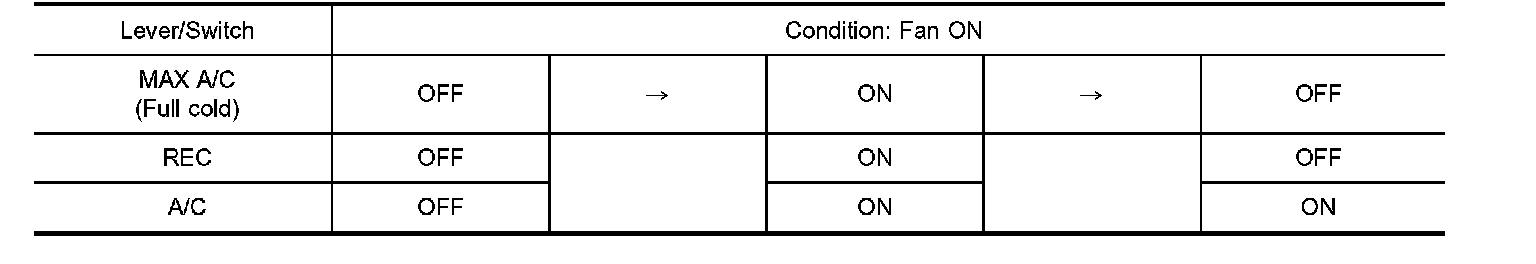

Max. A/C Switch Control Function / Manual Air Conditioning:
