Air Conditioning System - Component Layout

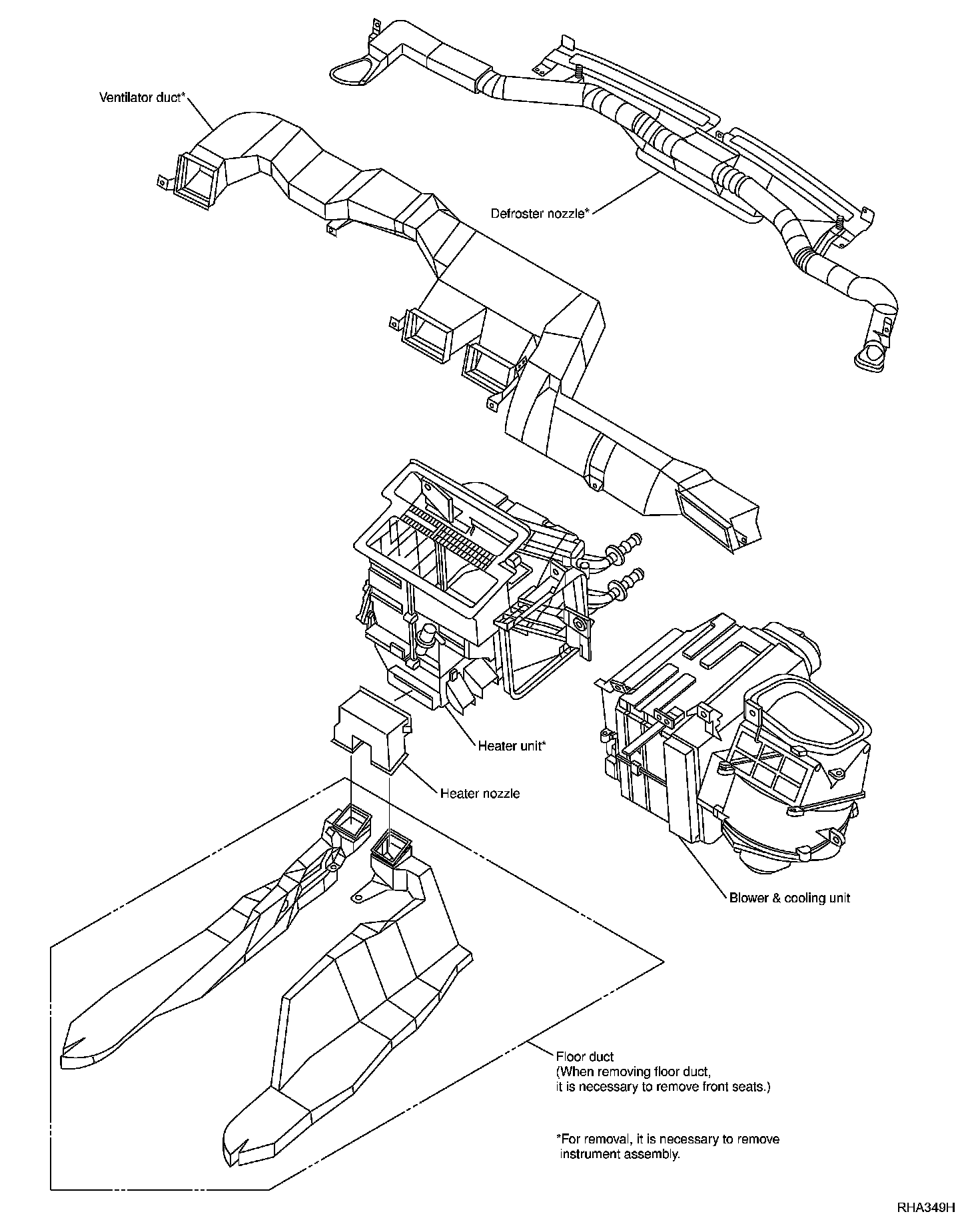

AUTOMATIC AIR CONDITIONER - Component Layout:

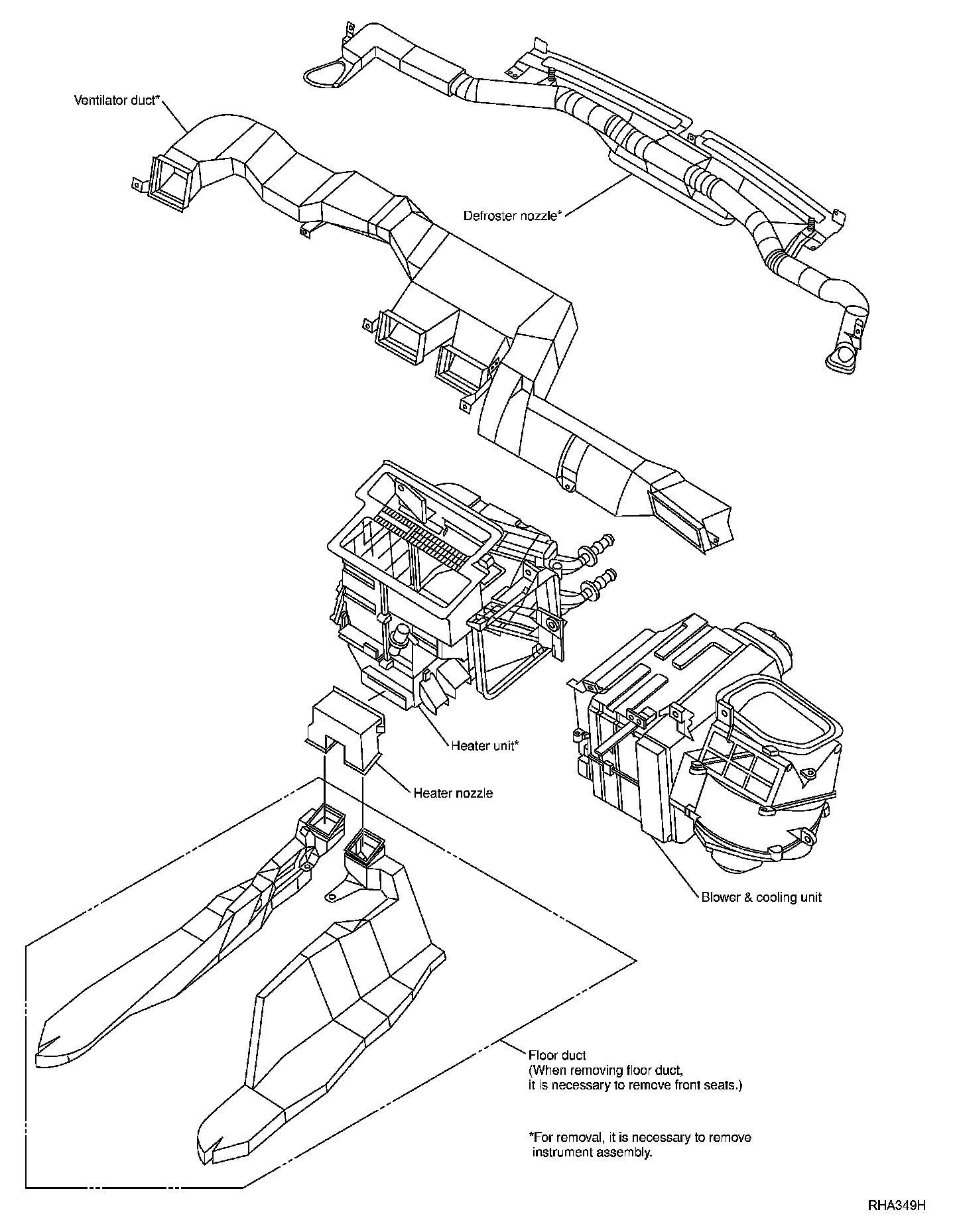

MANUAL AIR CONDITIONING -- Component Layout:
