Compressor Clutch: Description and Operation

* Automatic Air Conditioning System *

Magnet Clutch / Auto A/C:

SYSTEM DESCRIPTION / Magnet Clutch
Auto amplifier controls compressor operation by ambient temperature and signal from ECM.

Low Temperature Protection Control
Auto amplifier will turn the compressor "ON" or "OFF" as determined by a signal detected by ambient sensor.

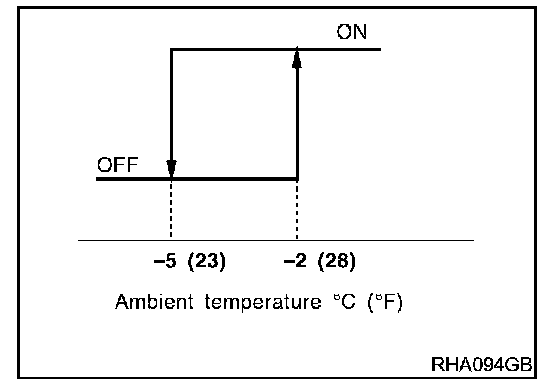

When ambient temperatures are greater than -2 °C (28 °F), the compressor turns "ON". The compressor turns "OFF" when ambient temperatures are less than -5 °C (23 °F).
