Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C, Automatic >> Without Navigation

Without Navigation

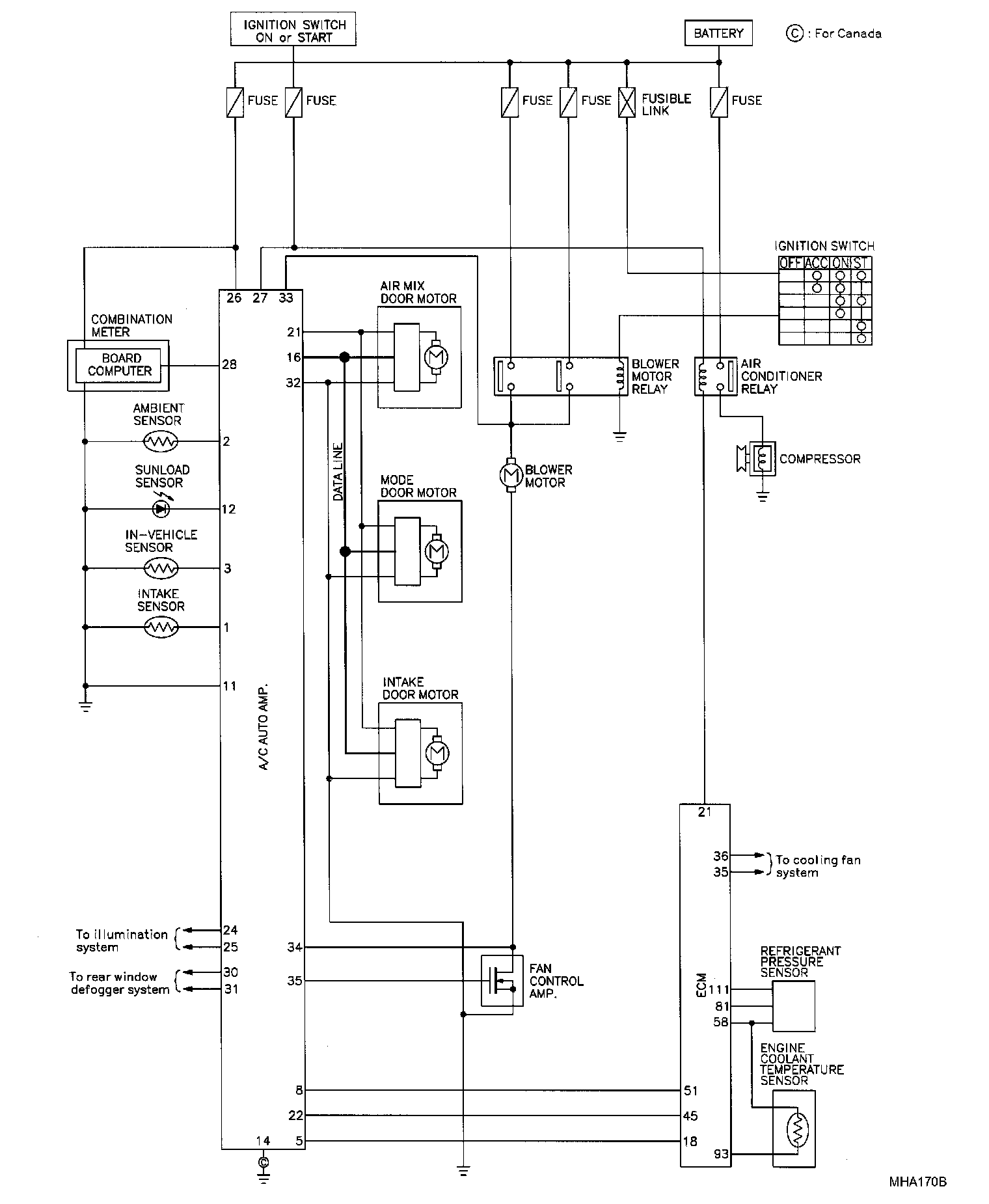

Circuit Diagram / Automatic A/C - Without Navigation System:

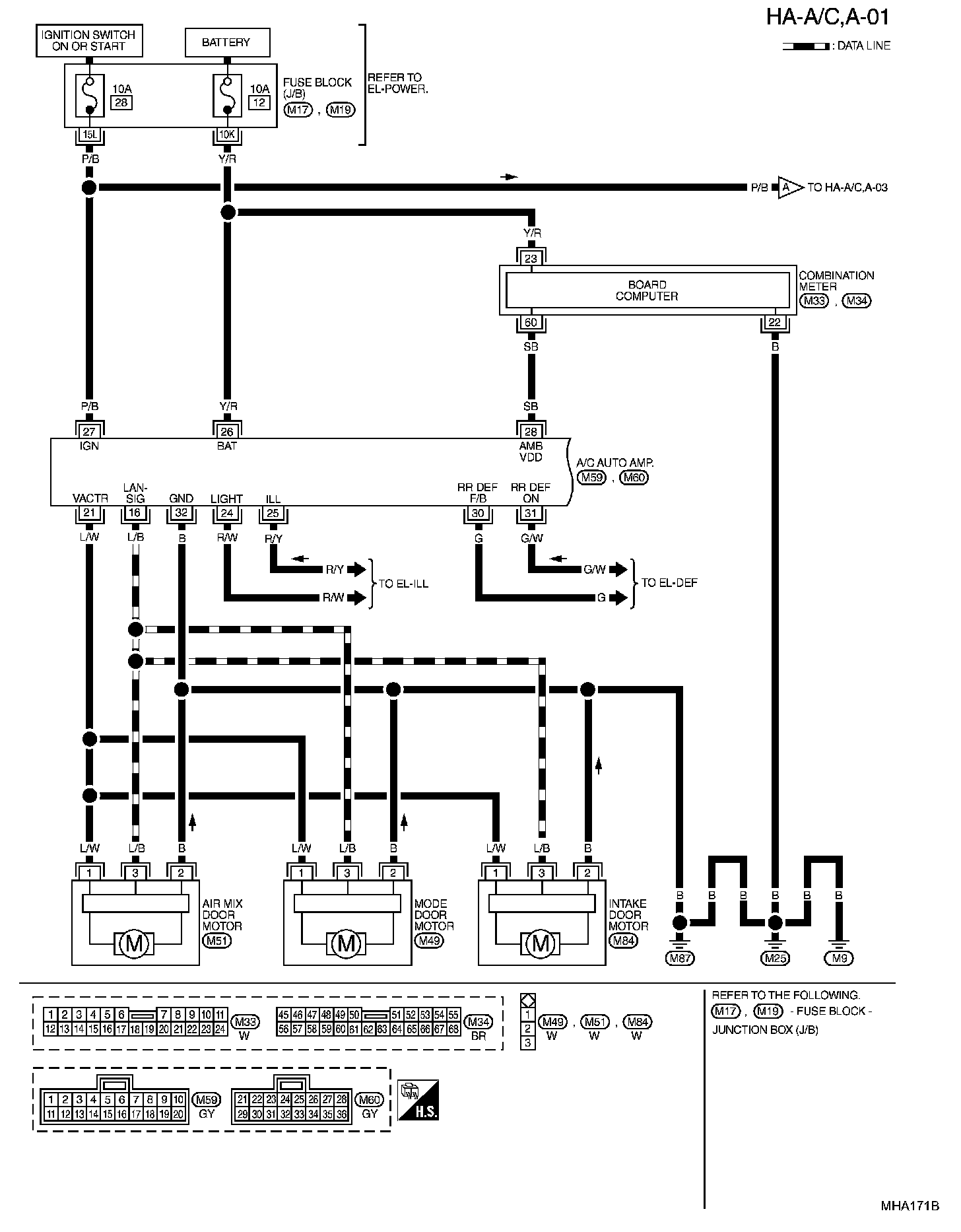

HA-A/C, A-01 / Automatic A/C - Without Navigation System:

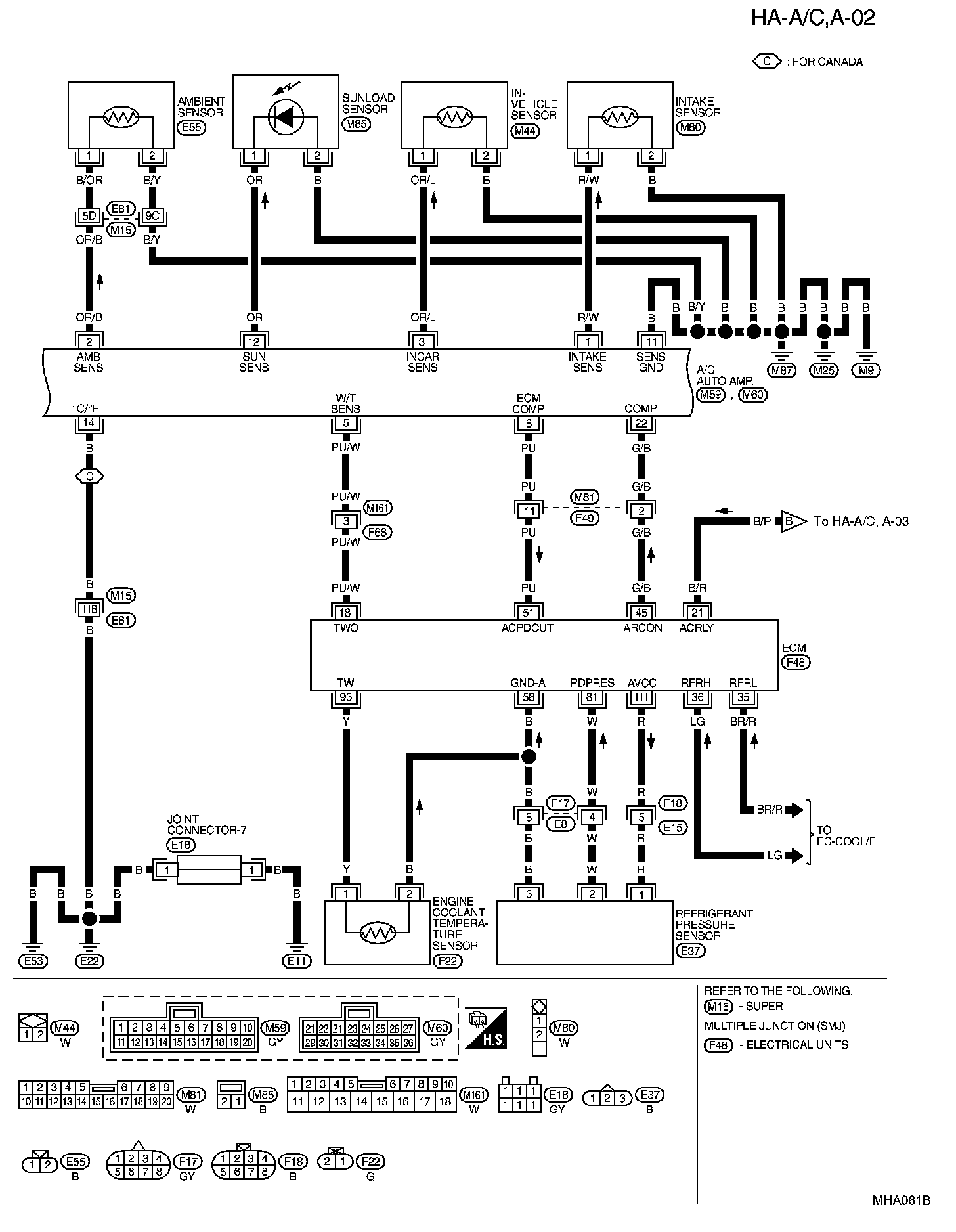

HA-A/C, A-021 / Automatic A/C - Without Navigation System:

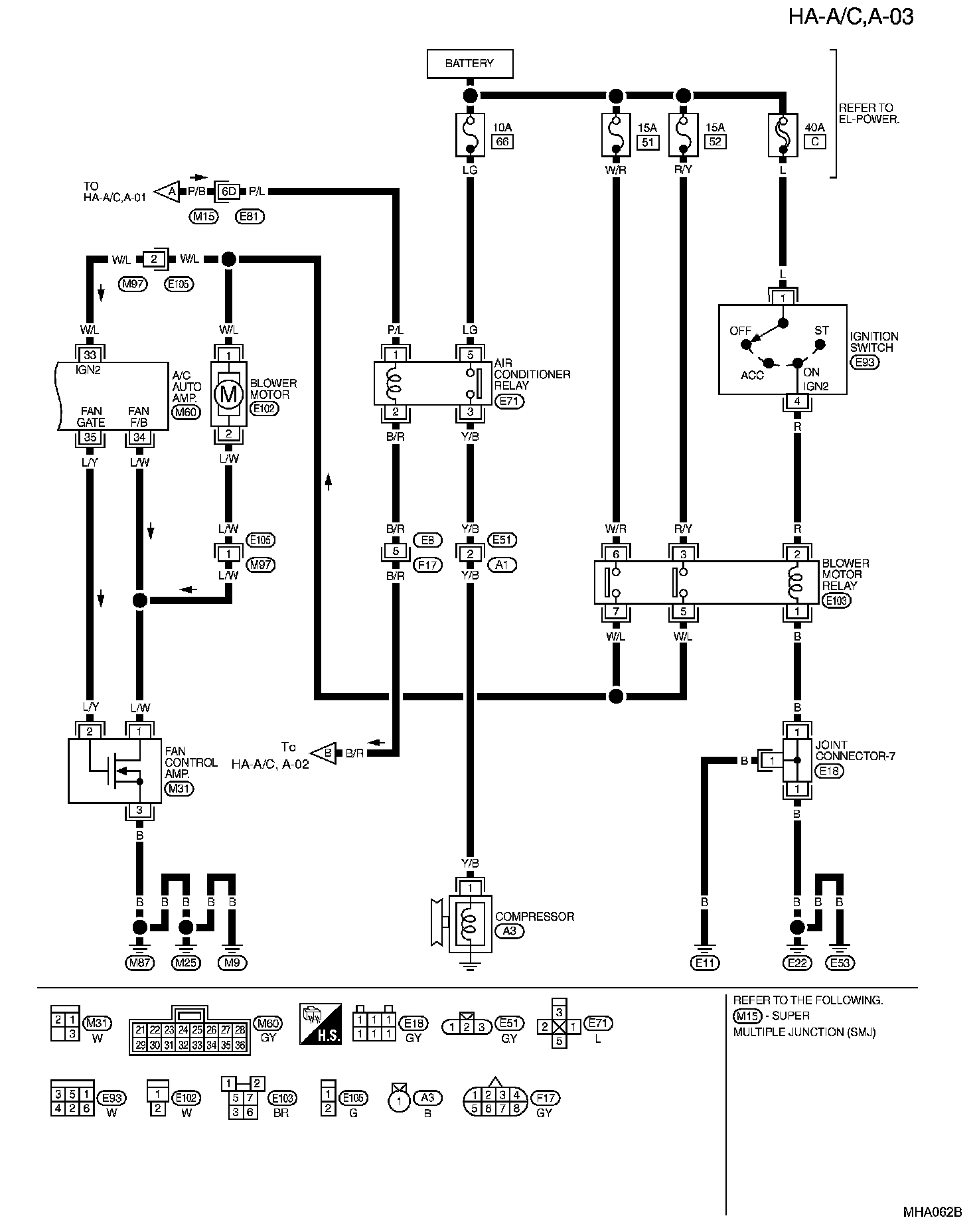

HA-A/C, A-031 / Automatic A/C - Without Navigation System:
