Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> EC Diagrams (Engine Control System) >> EC-ECM/PW

EC-ECM/PW

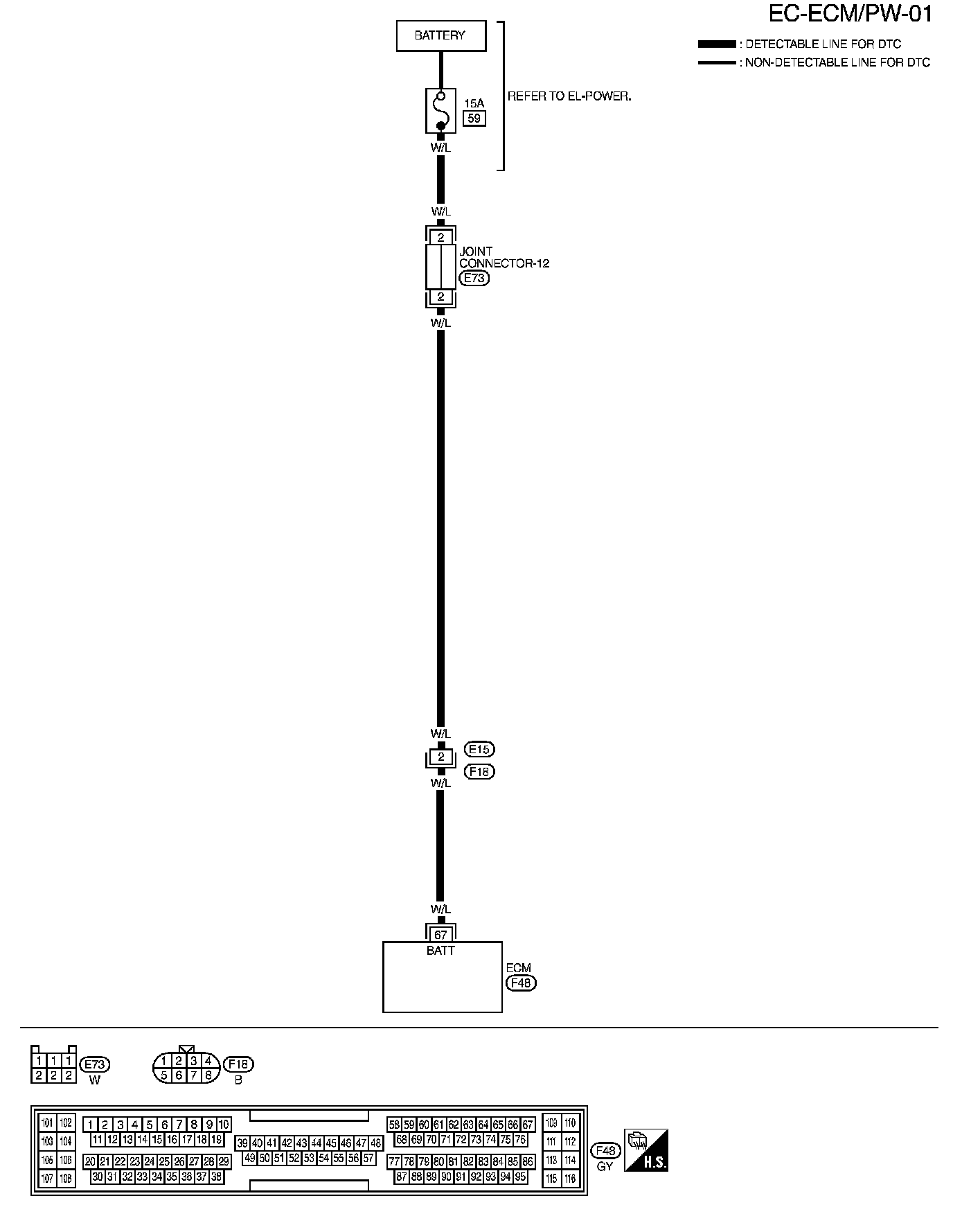

EC-ECM/PW-01:
