Vehicle Security (Theft Warning) System Schematic

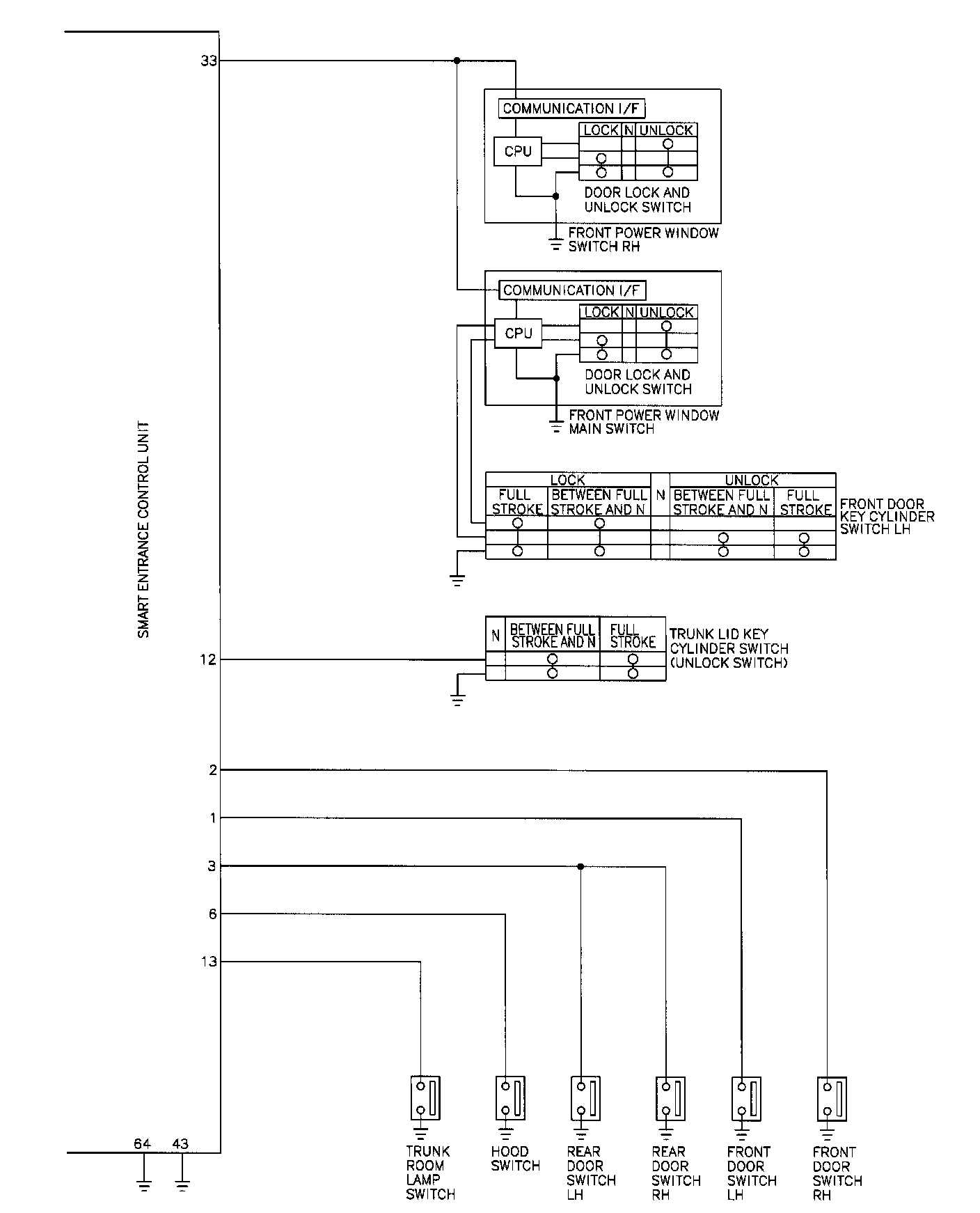

Vehicle Security (Theft Warning) System Schematic Part 1:

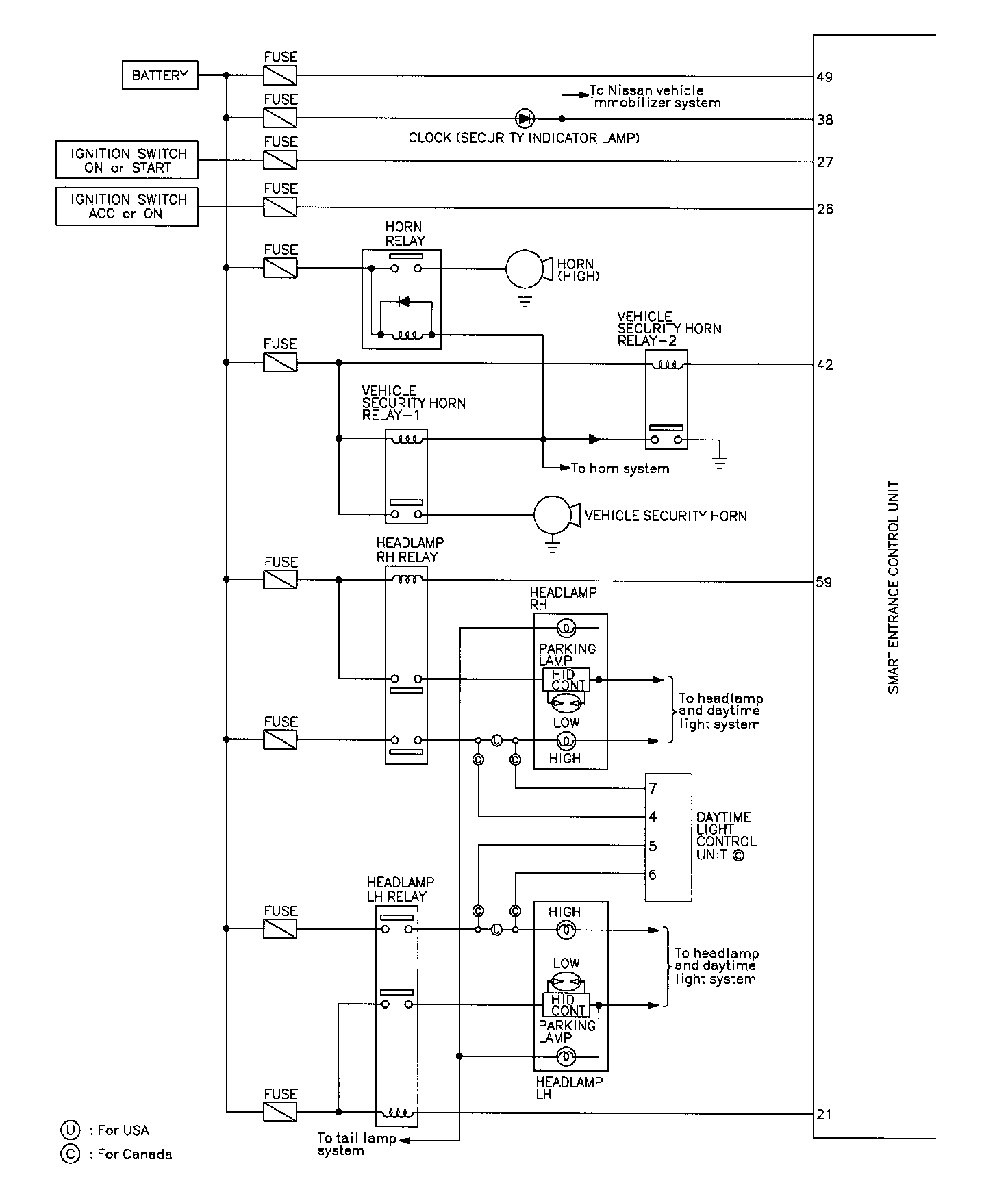

Vehicle Security (Theft Warning) System Schematic Part 2:
