Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> A/C, Automatic >> With Navigation

With Navigation

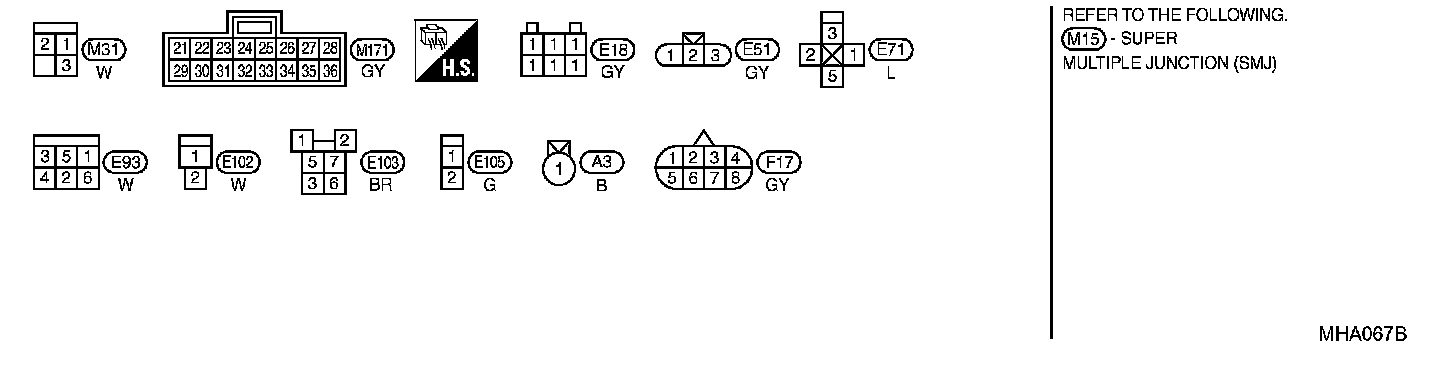

HA-A/C, A-04 Connector Views / Automatic A/C - With Navigation System:

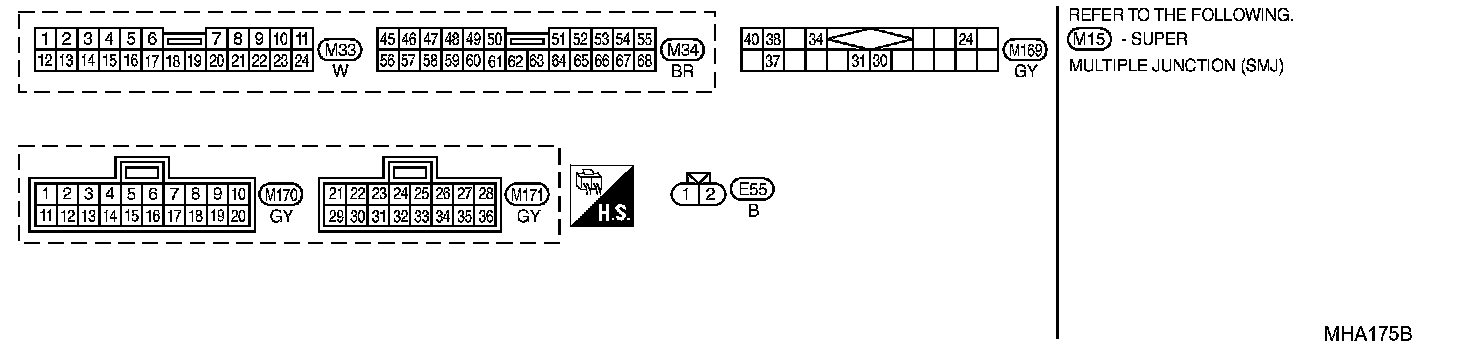

HA-A/C, A-05 Connector Views / Automatic A/C - With Navigation System:

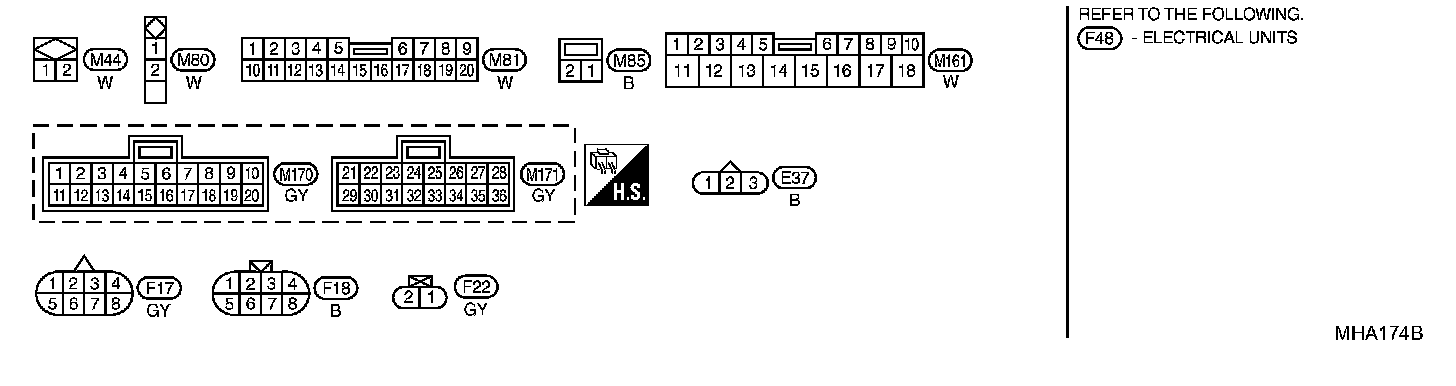

HA-A/C, A-06 Connector Views / Automatic A/C - With Navigation System:

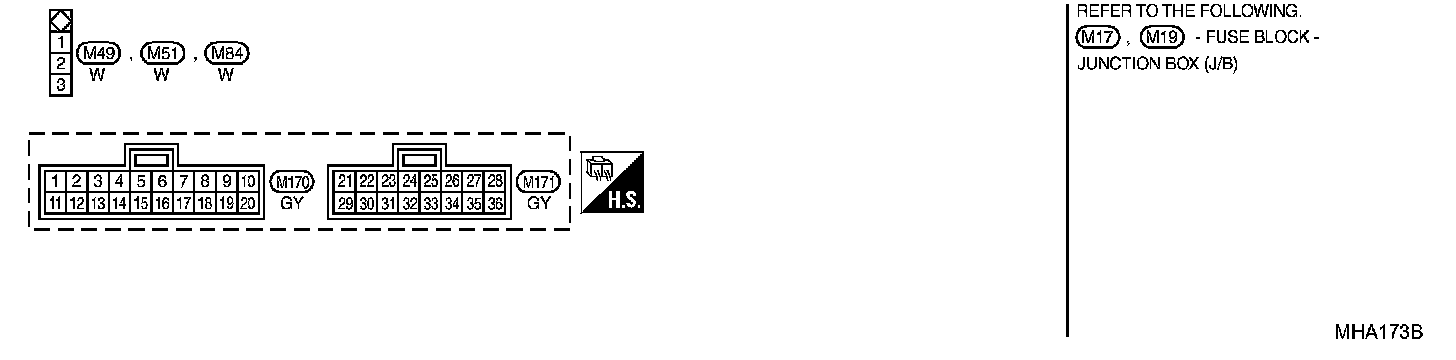

HA-A/C, A-07 Connector Views / Automatic A/C - With Navigation System:
