Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Delivery and Air Induction >> Variable Induction System >> System Diagram

System Diagram

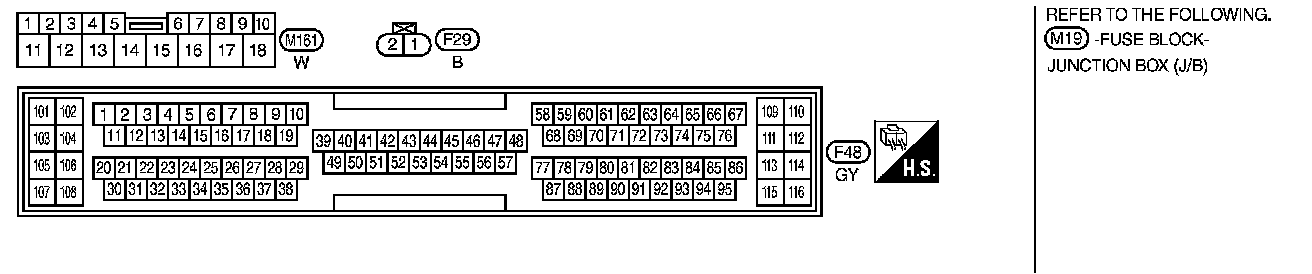

EC-VIAS-01 Connector Views:

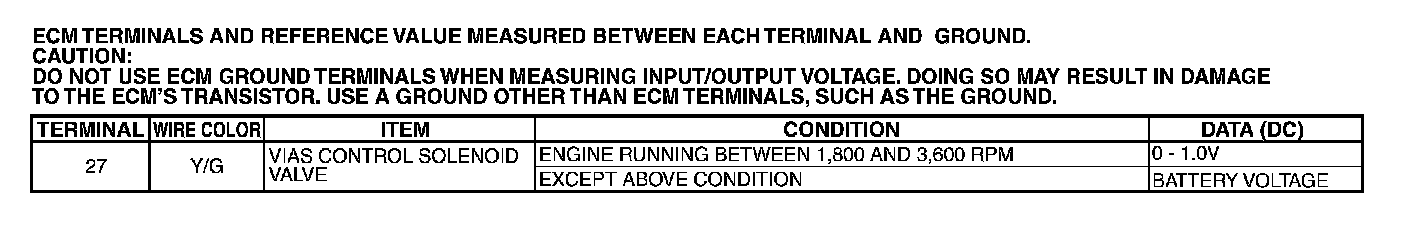

ECM Terminals And Reference Value:
