Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By System >> SC - Connector Views >> SC-START

SC-START

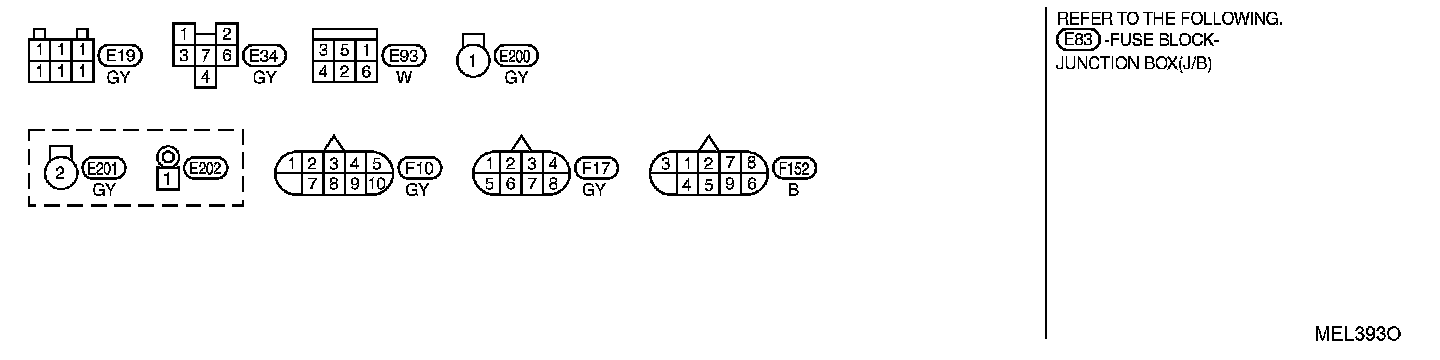

SC-START-01 Connector Views:

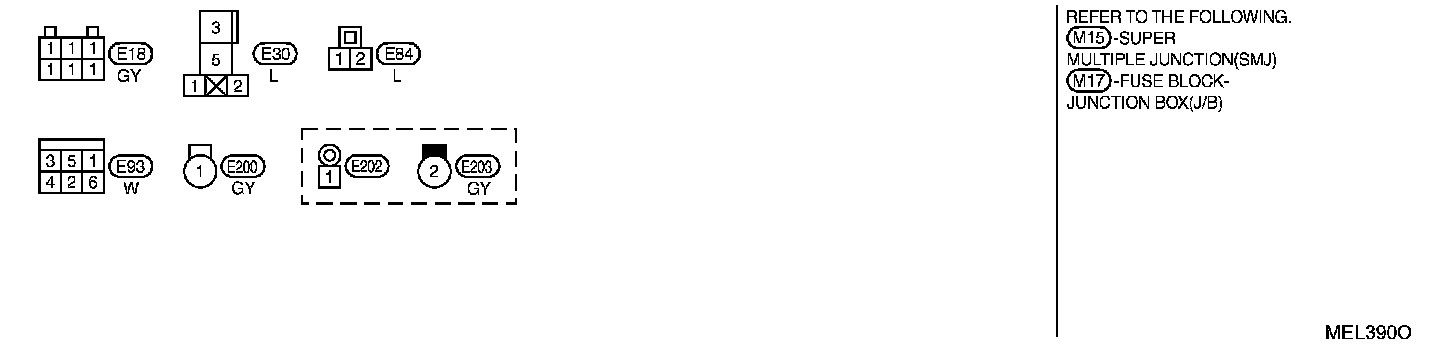

SC-START-02 Connector Views:
