Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Body and Frame >> Seats >> Memory Positioning Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom

Diagnosis By Symptom

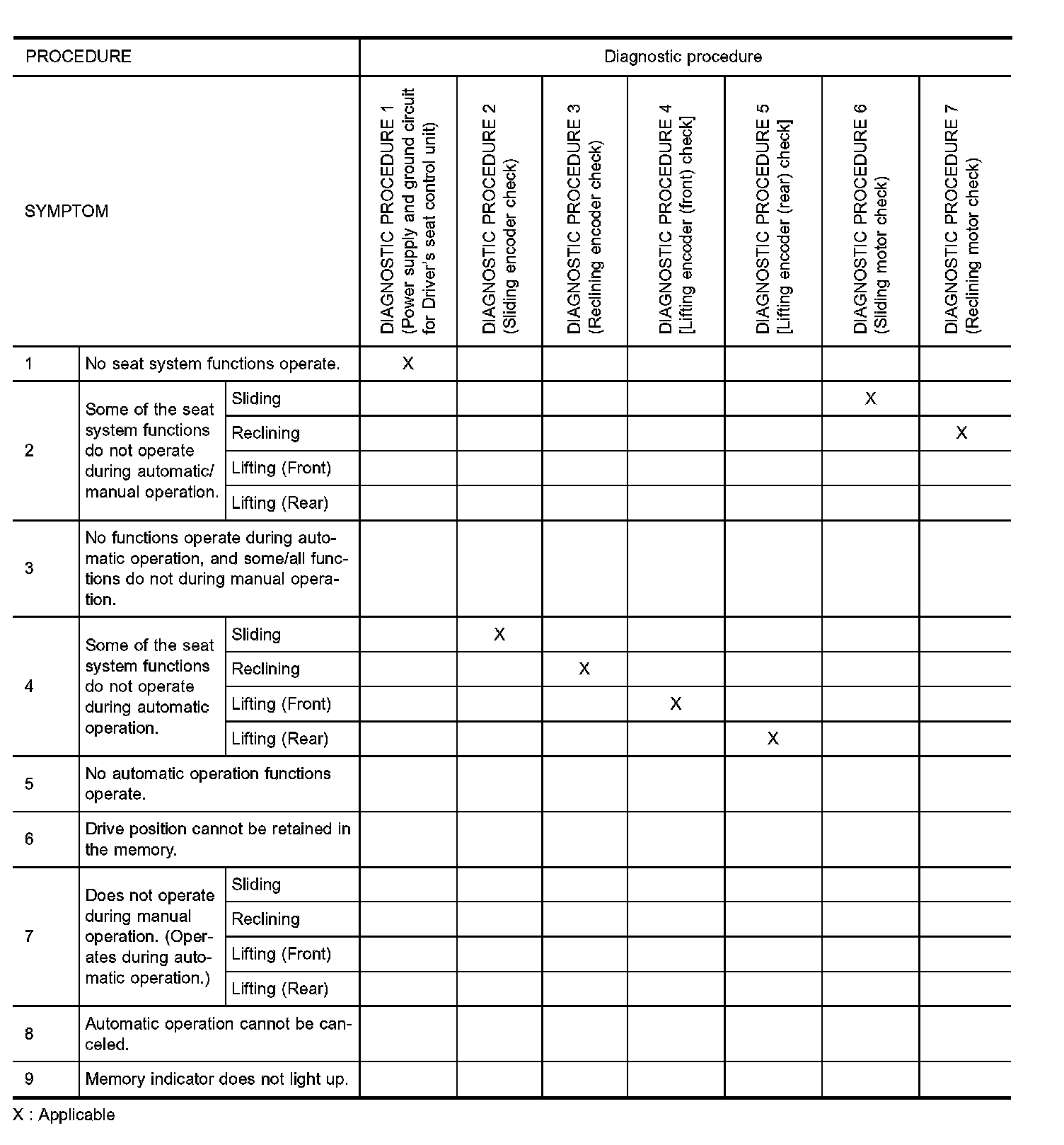

Symptom Chart Part 1:

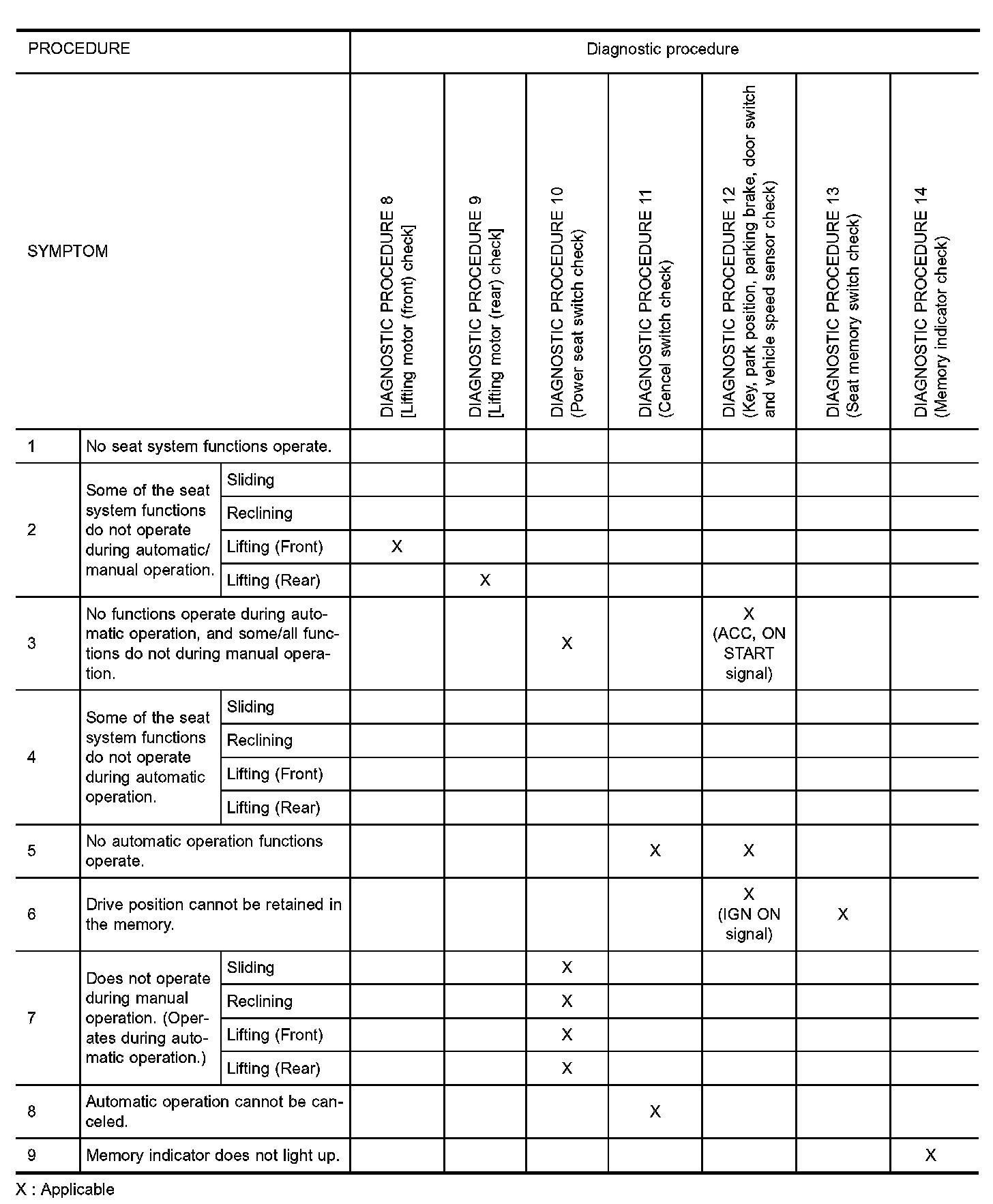

Symptom Chart Part 2:
