Maxima GXE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Memory Positioning Systems
>>
Diagrams
>>
Electrical Diagrams
>>
EL-AUT/DP
EL-AUT/DP

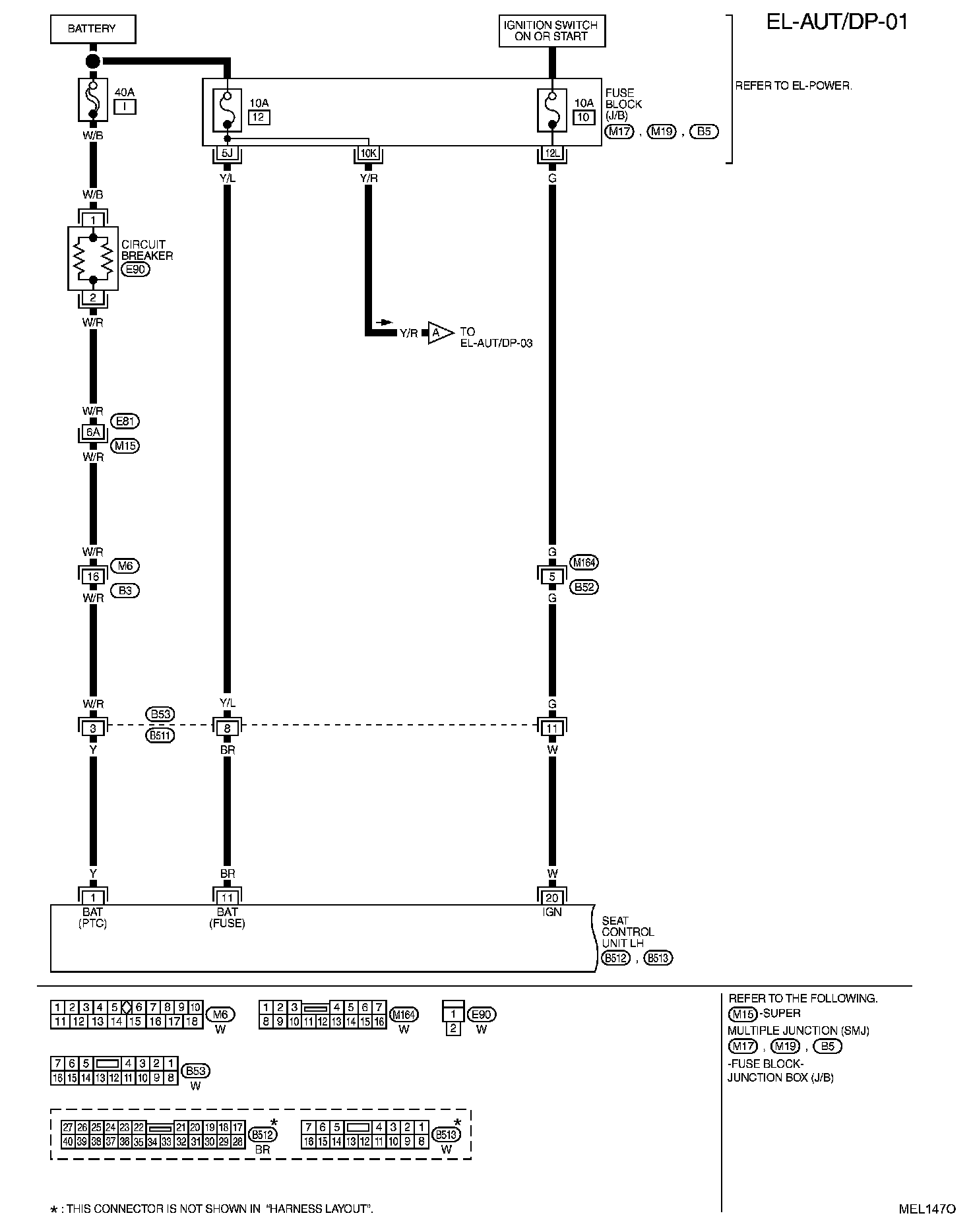

EL-AUT/DP-01:

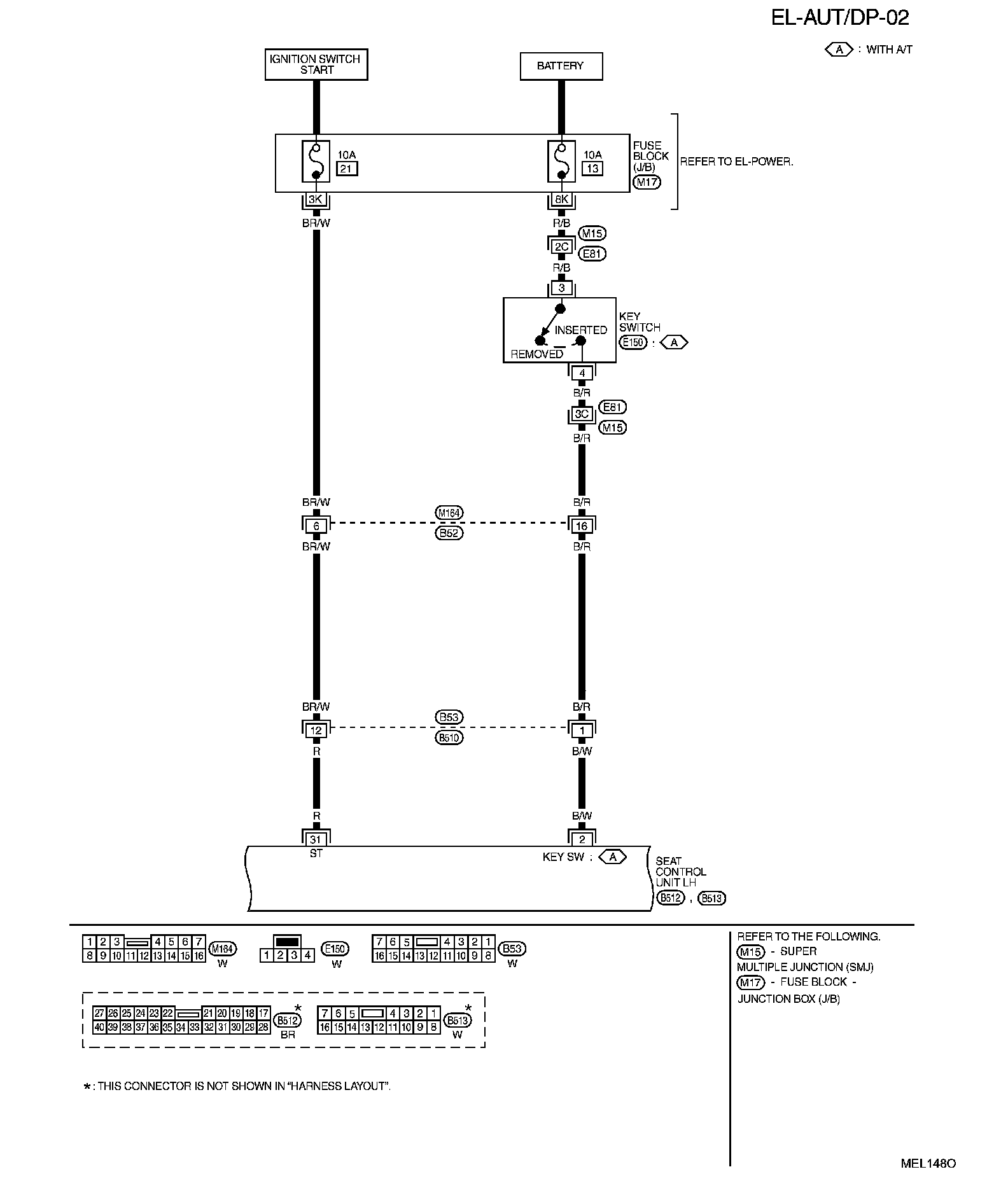

EL-AUT/DP-02:

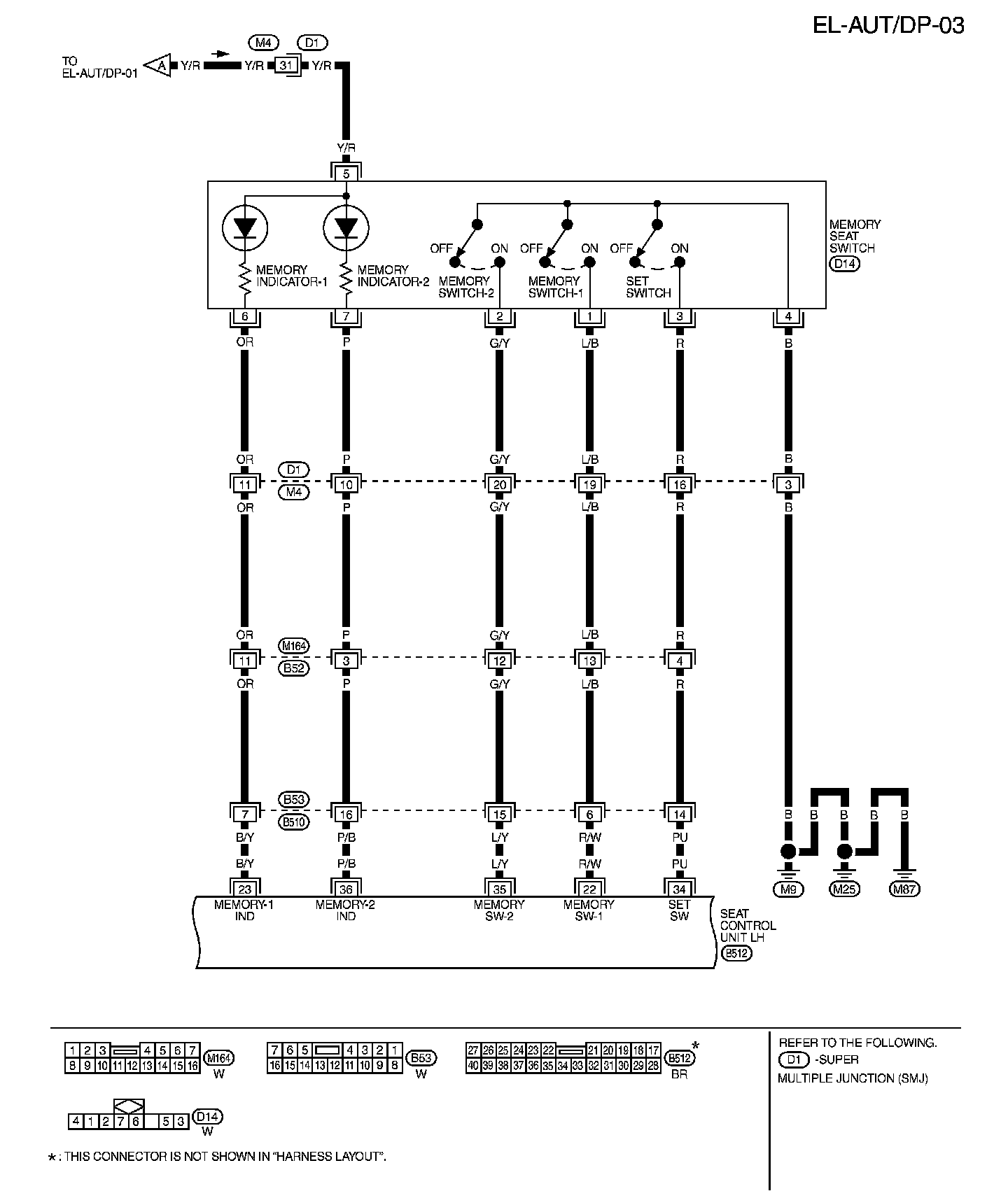

EL-AUT/DP-03:

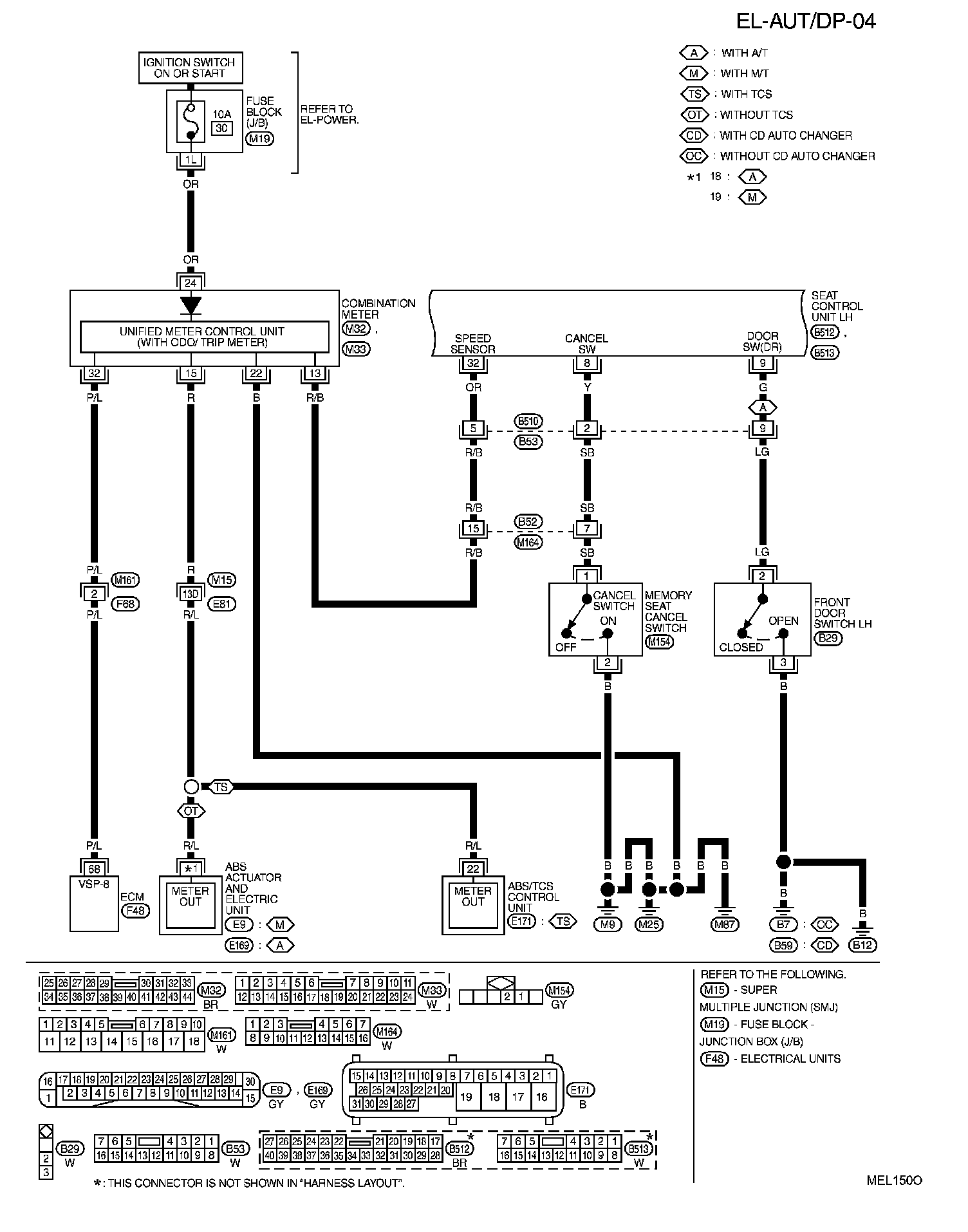

EL-AUT/DP-04 Connector:

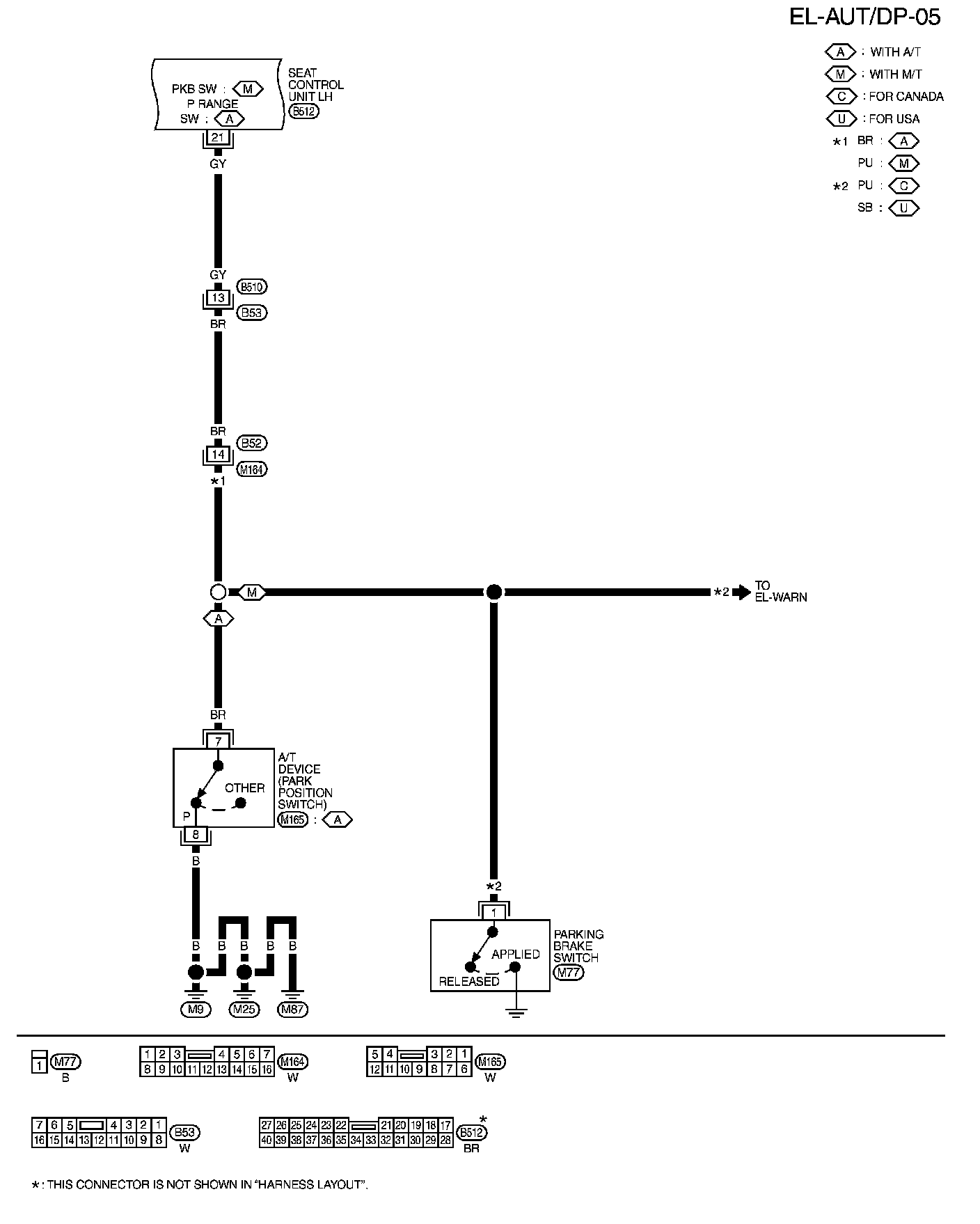

EL-AUT/DP-05:

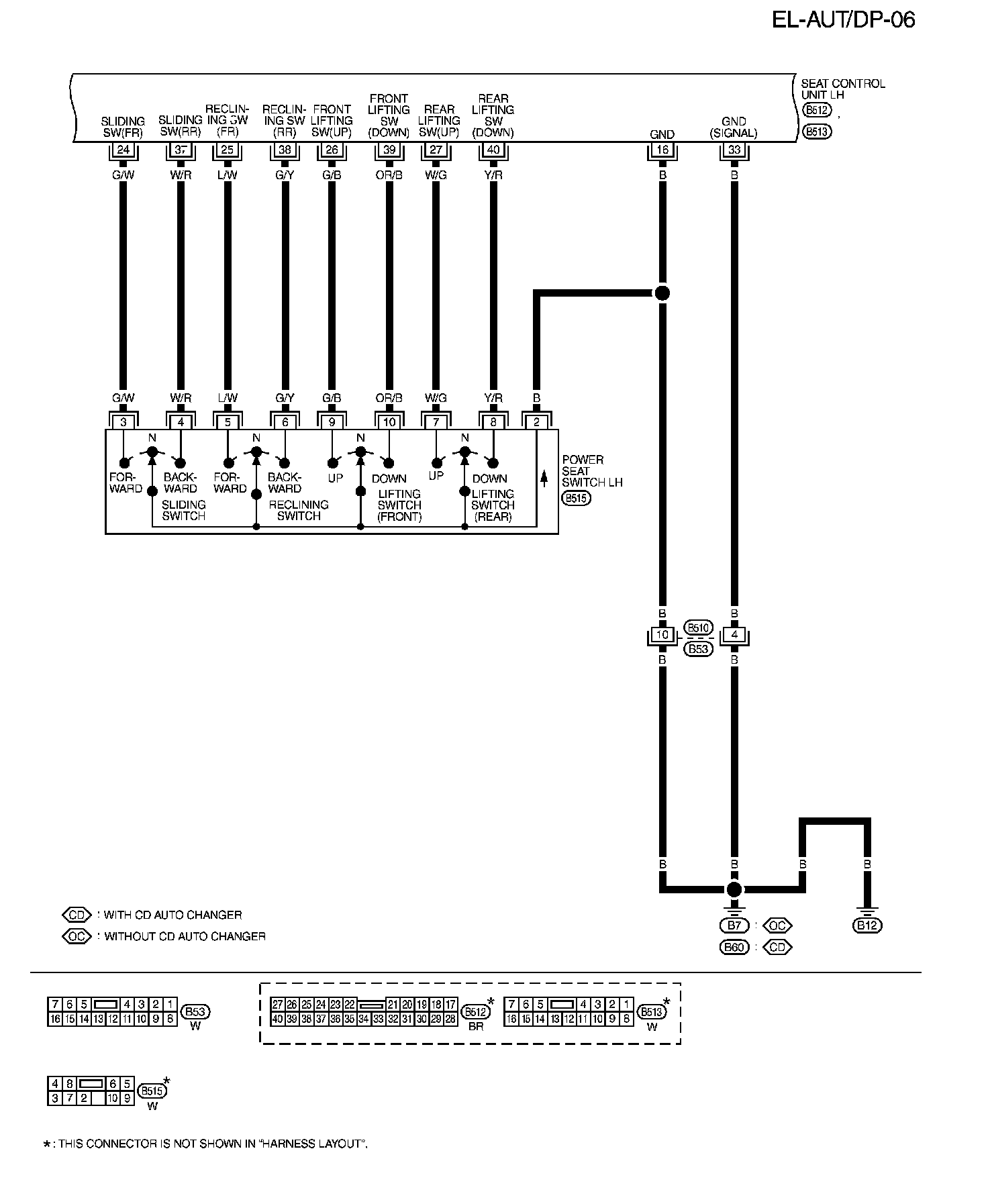

EL-AUT/DP-06:

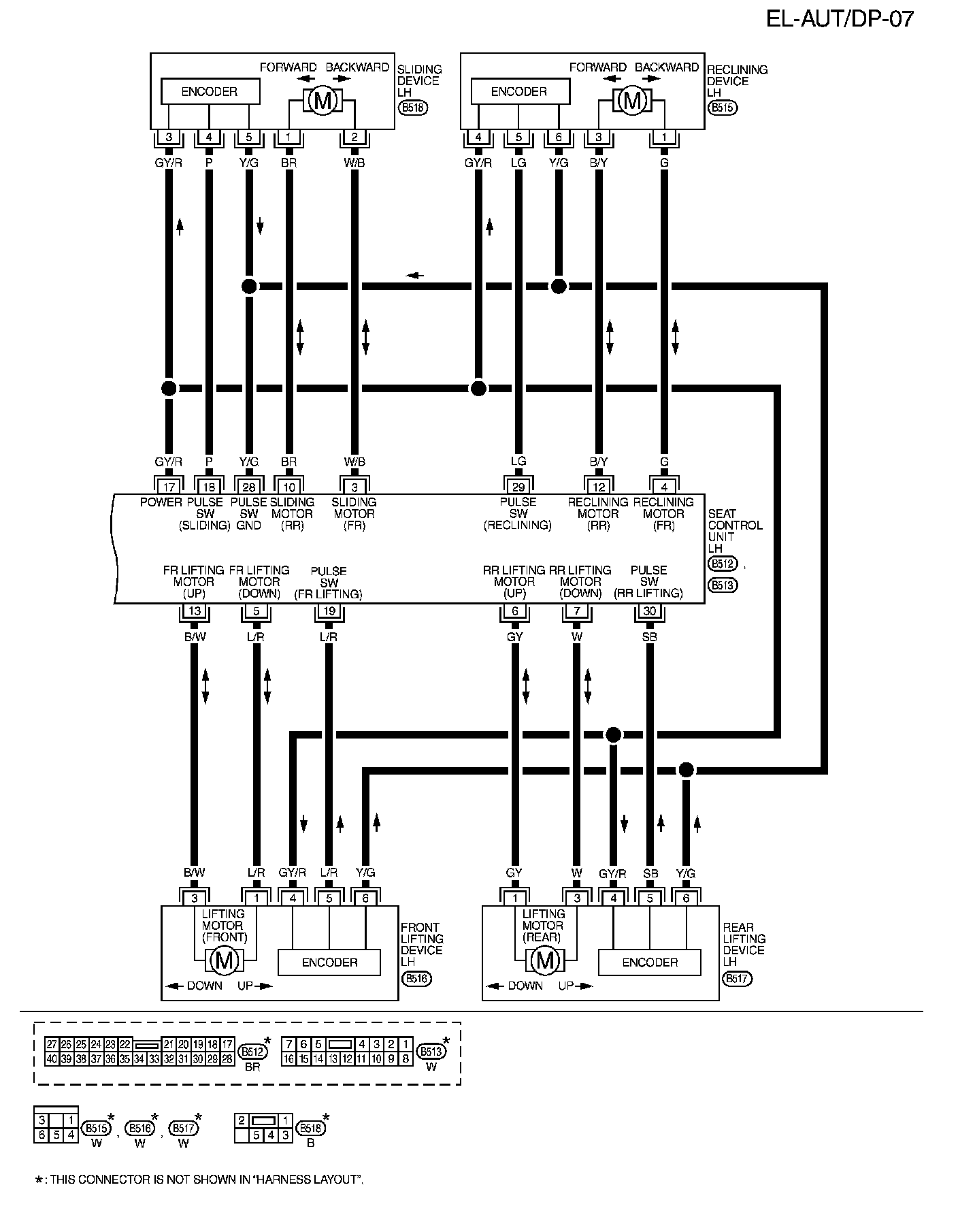

EL-AUT/DP-07:
