CONSULT-II / Inspection Procedure

CONSULT-II Inspection Procedure

"RETAINED PWR"
1. Turn ignition switch "OFF".

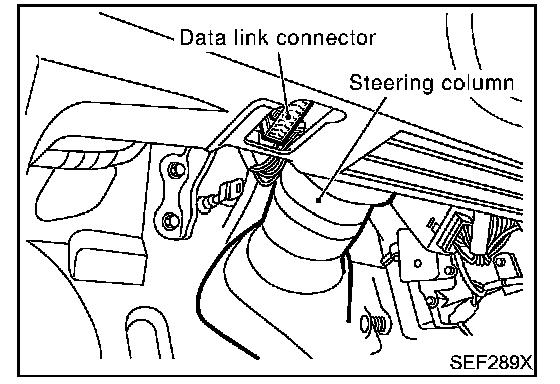

2. Connect "CONSULT-II" to the data link connector.




3. Turn ignition switch "ON".

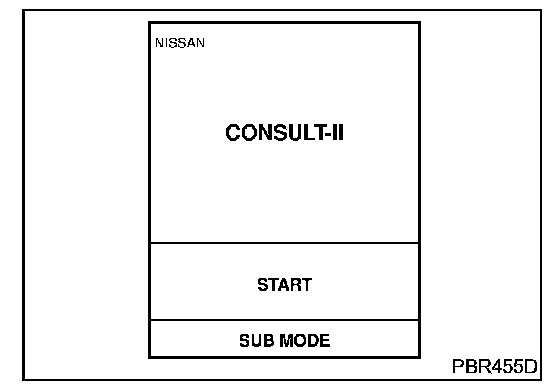

4. Touch "START".

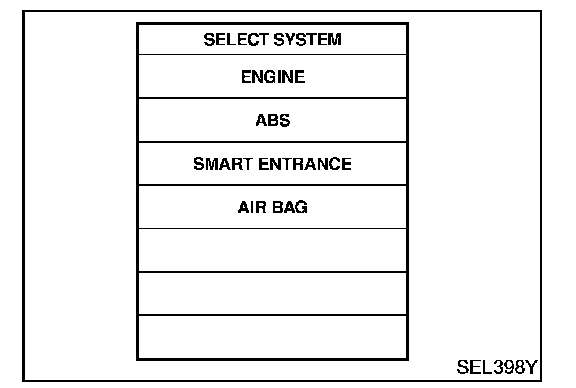

5. Touch "SMART ENTRANCE".

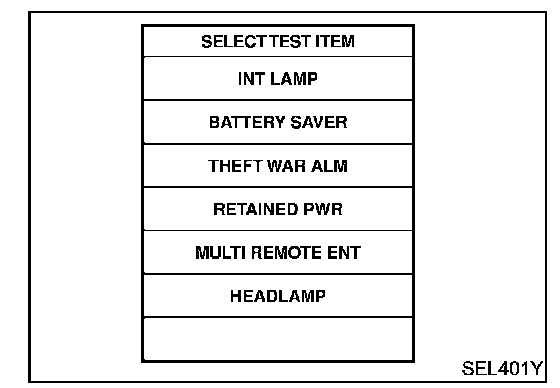

6. Touch "RETAINED PWR".

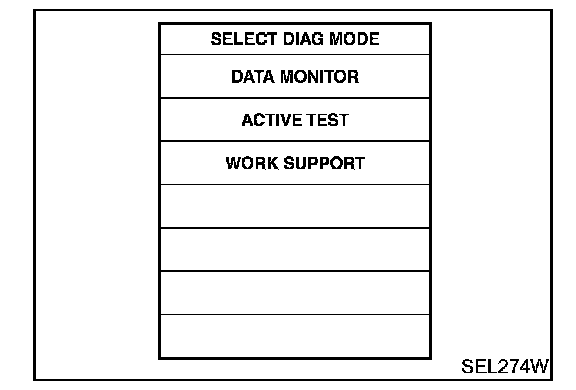

7. Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.
