Preliminary Check

PROCEDURE A
1. Insert key in the ignition key cylinder. (Ignition switch is in OFF position.)
2. Open close open driver side door. (Do not perform with the door switch operation.)
3. End

PROCEDURE B
1. Drive the vehicle at more than 25 km/h (16 MPH).
2. End

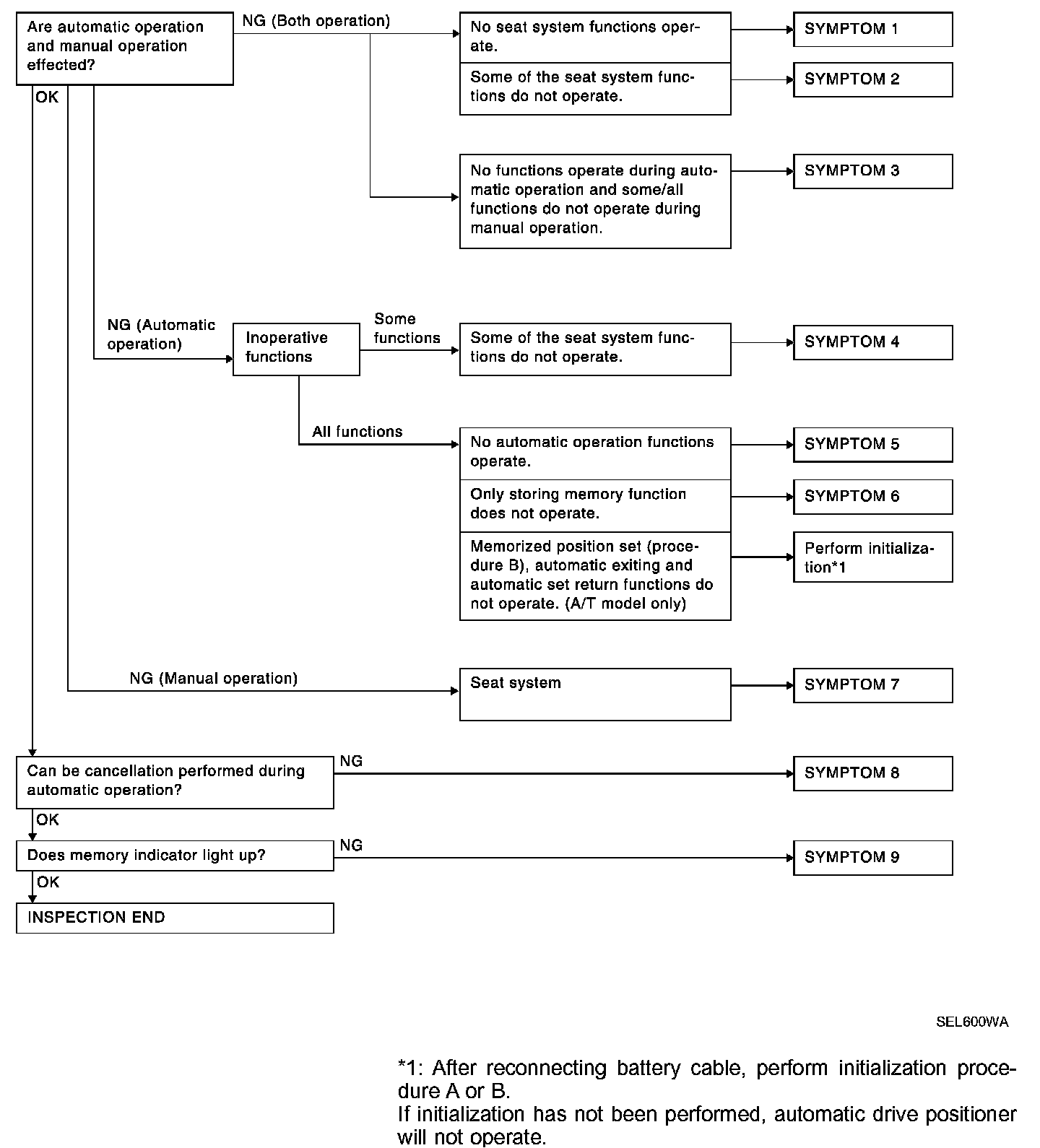

After performing preliminary check, go to symptom chart.

Before starting trouble diagnoses below, perform preliminary check. Symptom numbers in the symptom chart correspond with those of preliminary check.
