Reading and Clearing Diagnostic Trouble Codes
>>
Non-Trouble Code Procedures
>>
Main Power Supply and Ground Circuit Check
Main Power Supply and Ground Circuit Check

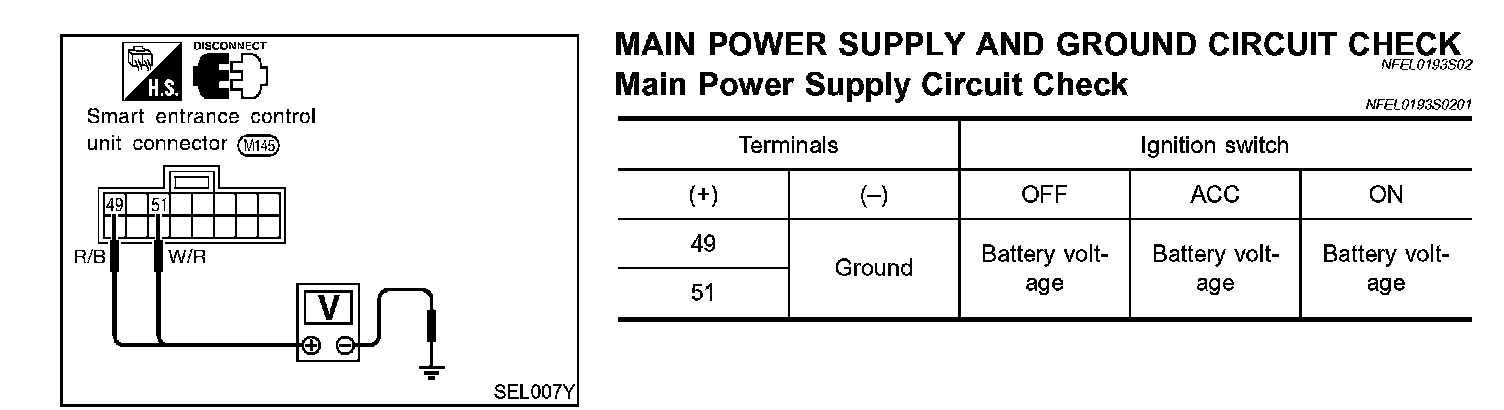

Main Power Supply Circuit Check:

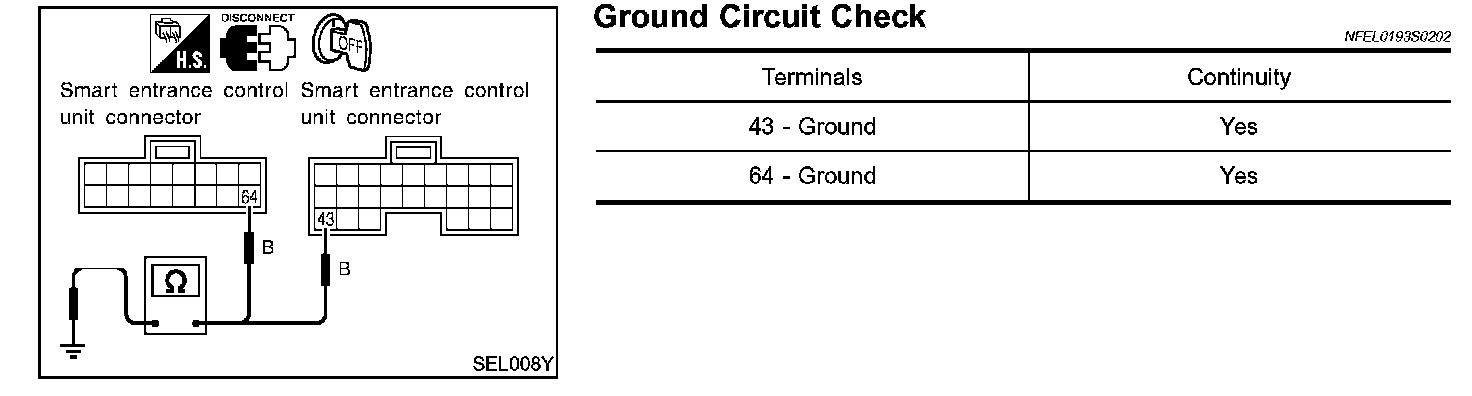

Ground Circuit Check:
